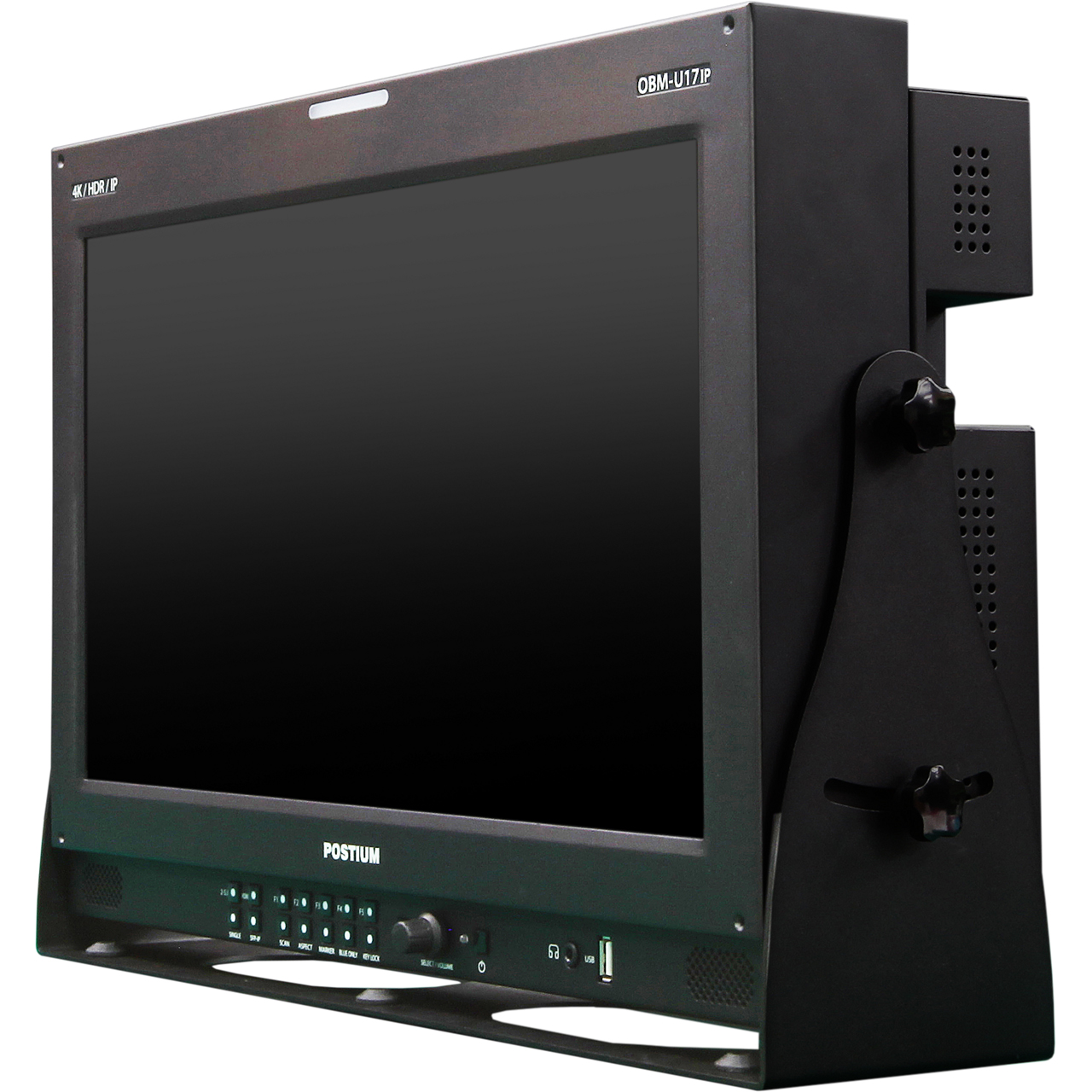

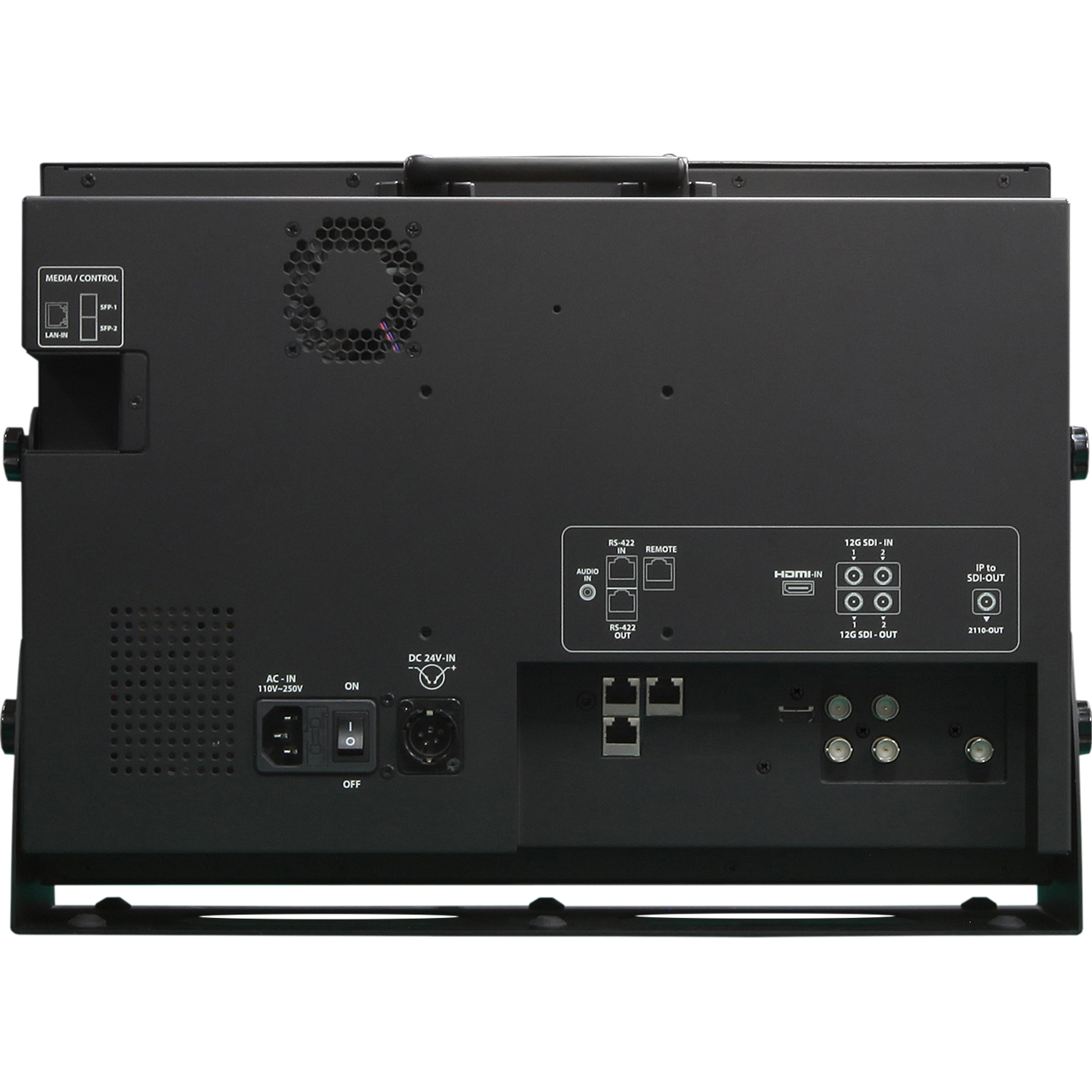

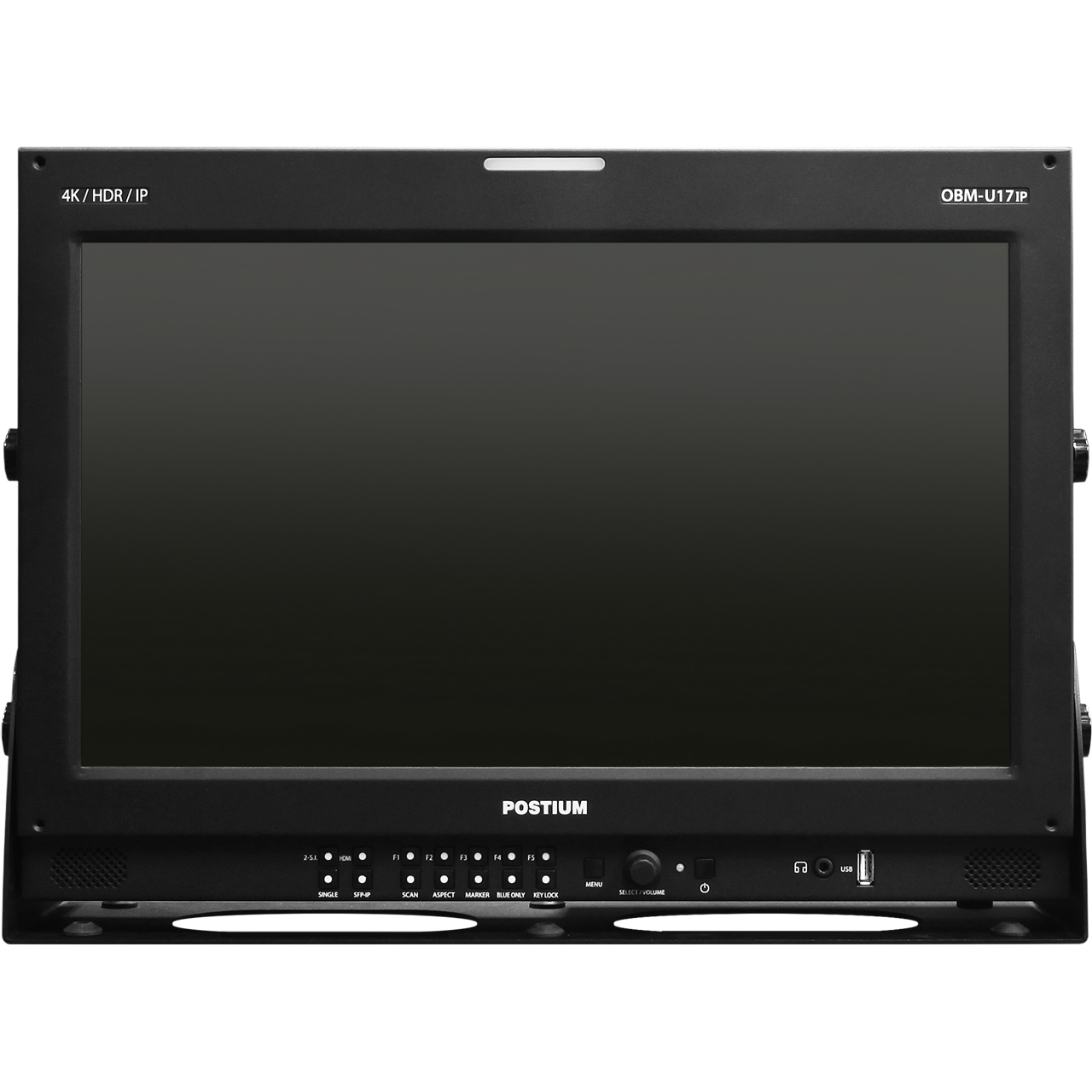

The Postium OBM-4KIP is a true UHD and ST 2110 IP 25GbE broadcast and media monitor solution featuring two 12G SDI, one HDMI® 2.0, one 1G RJ45, and two SFP28 ports. Postium's IP input monitor models provide high quality picture image reproduction and critical monitoring applications and deliver your IP solution workflow by supporting ST 2110 & ST 2022-7, PTP, NMOS IS-04, and NMOS IS-05 with Web UI.
Display Functions
Wide Color Space Support including DCI-P3 and ITU-R BT.2020 is controlled with an advanced 3D LUT (Look Up Table) to reproduce various color spaces accurately with smooth, artifact-free grayscale steps. Available color gamuts are DCI-P3, ITU-R BT.2020, ITU-R BT.709, SMPTE-C, EBU, and Native.
Versatile 4K/QFHD Input Capability
The OBM-4KIP series is equipped with standard 12G-SDI input interface(x4) and support 4K/8K Quad Link 2-sample inter-leave signals and 4K Quad Link Square Division signals.
The OBM-4KIP Series can accept up to 7680x4320/23.98,24,25,29.97,30,50,59.94,60p and 8192x4320/23.98, 24, 25, 29.97, 30, 50, 59.94, 60p.
Custom 3D LUT File Import
The OBM-4KIP Series allow the user to import 3D Look-up Table for accurate and consistent color matching between indivisual displays as well as using customized `looks' that have been created by 3rd party color-grading applications. 32^3, 33^3, 64^3 and 65^3 cube file is supported.
Camera Log Selection
The OBM-4KIP series have the built-in camera LUT of the various camera manufacturers. It allows users to load the following camera logs: Log-C, C-Log / S-Log2, S-Log3 / J-Log1. More camera LUT updates to come.
High Dynamic Range(HDR) Display Function
The OBM OBM-4KIP series provides the function to display High Dynamic Range footage. Postium HDR function allows users to view both highlights and shadow detail of scenes at the same time, thus resulting in more natural and realistic images.
Focus Assist
Focus Assist controls the aperture level of a video signal and displays images on screen with sharpened edges to help camera focus operation.
4K HDR Waveform Monitor and Vector Scope Display
modes enable users to monitor sources using the internal Waveform and Vector Scope individually or simultaneously.
Adjustable Gamma
control allows for incremental compensation between gamma correction values of 1.0 and 3.0 - thereby ensuring that the decoded image isn't too bright (no gamma correction) or too dark (over correction).
4K/QFHD Mode
The LCD panel resolution of OBM-U31IP/24IP is QFHD(16:9) 3840x2160, so if the input signal is 3840x2160 1:1 mapping is supported. If the input signal is DCI 4K(4096x2160), 1:1 mapping is not supported.
When the 4096x2160 signal is fed, if you select Zero Scan using [Scan] button on the front panel, the picture is scaled to be displayed on the panel of 3840x2025 resolution with maintaining 1.89:1 ratio.
