WILLIAMS AV PPA R37N Select FM Receiver

ITEM #: PPA-R37N MFG #: PPA R37N

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$135.00

Our Price:

$118.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PPA R37N - Overview

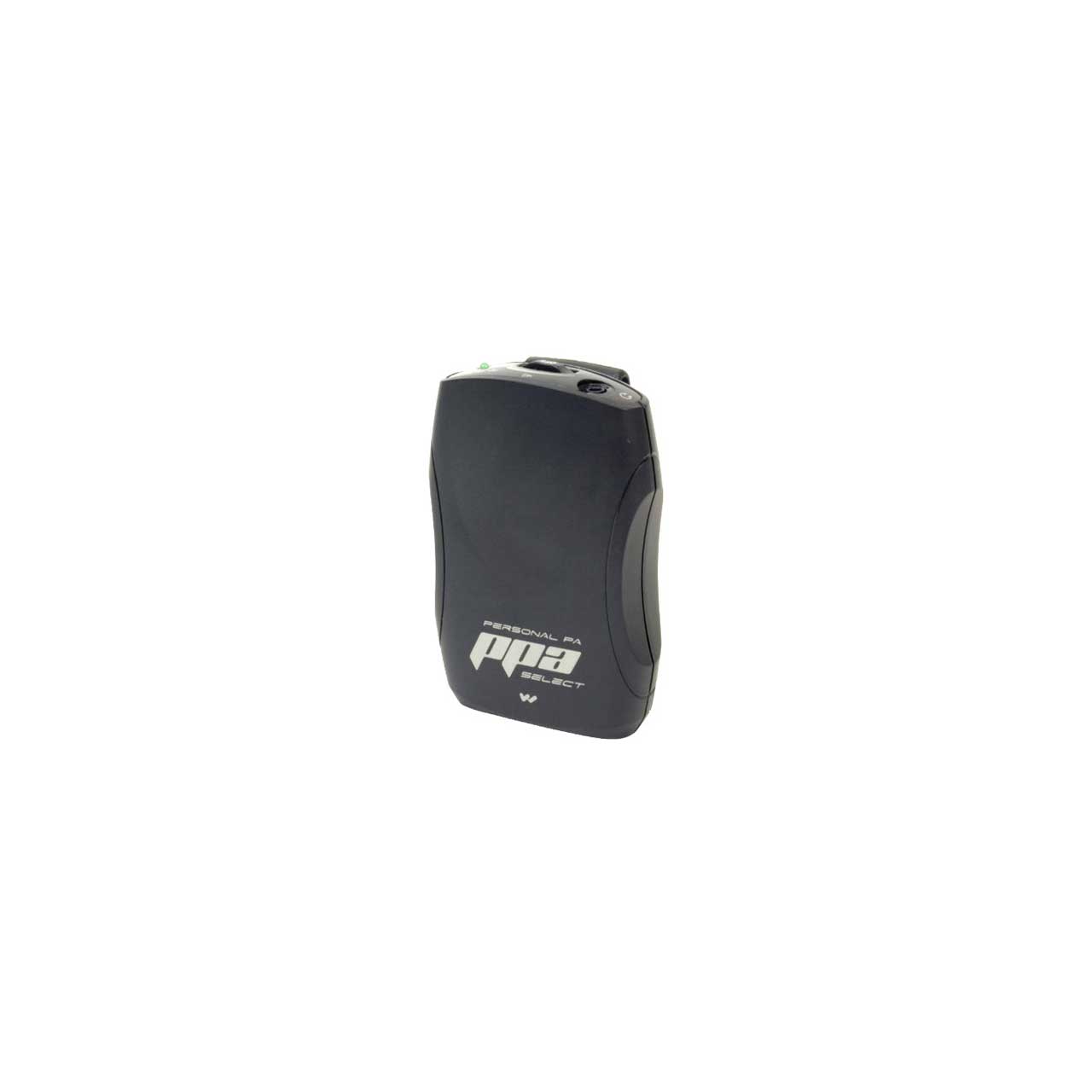

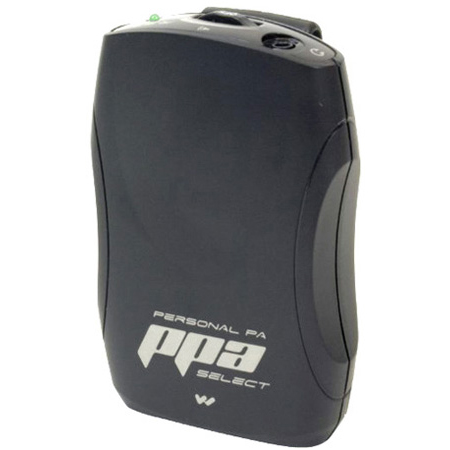

The PPA-R37N PPA Select FM receiver features easy-to-use, seek-button channel selection with access to 17 pre-set wideband frequencies between 72-76 MHz. Digitally synthesized for even greater audio clarity and stability, the PPA Select also offers channel-lock capability (to prevent accidental channel change) and a battery-saving Sleep Mode. A versatile 3.5mm stereo/mono jack allows for a variety of earphone and headphone options, and is neckloop/telecoil-equipped-hearing-aid compatible.

Note: The PPA Select Receiver requires a transmitter operating on 72-76 MHz. Compatible WILLIAMSAV transmitters: PPA T35, T27, T32 and PPA T36. The PPA Select is approved by the FCC for operation in U.S. Markets. The receiver cannot be used in all countries. Check with your government's radio regulations for 72-76 MHz operation.

Flexible and simple.

  • Features:

    • Seek-button access to all 17 wideband frequencies in the 72-76 MHz bandwidth
    • Channel-lock capability
    • Battery-saving sleep mode
    • Low-battery indicator
    • Field tunable

  • Specifications:

    • ppa r37
    • Dimensions: 4.1" x 2.85" x 1.38" (104 x 72 x 35mm)
    • Weight: 4.6oz (130g) with batteries. 2.6oz (73g) without batteries
    • Color: Black
    • Battery Type: (2) AA Alkaline or 2 x AA NiMH
    • Battery Life: Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs
    • Current Consumption: 52mA nominal
    • Temperature Range: - 0 to 50C
    • Channels: 17, accessed via seek button in battery compartment
    • Operating Freq.: 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*
    • Intermediate Freq.: 75 kHz
    • FM Deviation: 75 kHz
    • De-Emphasis: 75 μS
    • LED Indicator: Power: Green; Low Battery: Flashes Green
    • AFC Range: ± 120 kHz
    • Sensitivity: 2 μV at 12 dB Sinad with squelch defeated
    • Input Overload: 100 mV
    • Frequency Response: 200 - 15 kHz
    • Modulation: FM, +/- 75 kHz peak deviation
    • Signal-to-Noise Ratio:65 dB min @ 100 uV
    • Receive Antenna: Integral with earphone/headphone cord
    • Audio Output: 35 mW max, peak into 16 ohms
    • Output Connector: 3.5 mm stereo/mono phone jack
    • Earphone: Earbud-type with foam cushion, 3.5 mm plug, 32 Ω
    • Auto Shut-off: Enters sleep mode after approx 6 mins of no RF signal
    • Approvals: FCC, Industry Canada, RoHS, WEEE
    • Warranty: Lifetime PLUS Limited Warranty, 90 Days on most accessories.

  • Item Includes:

    • Belt clip.
      No batteries.
      No earphone.
