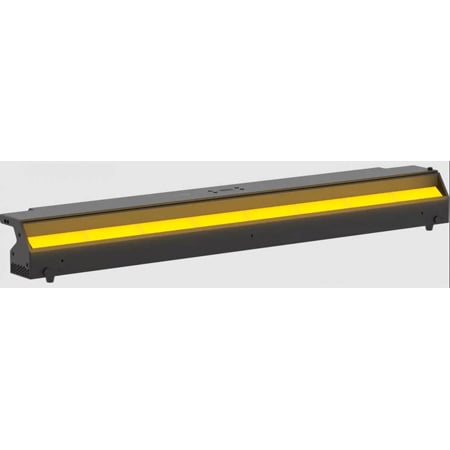

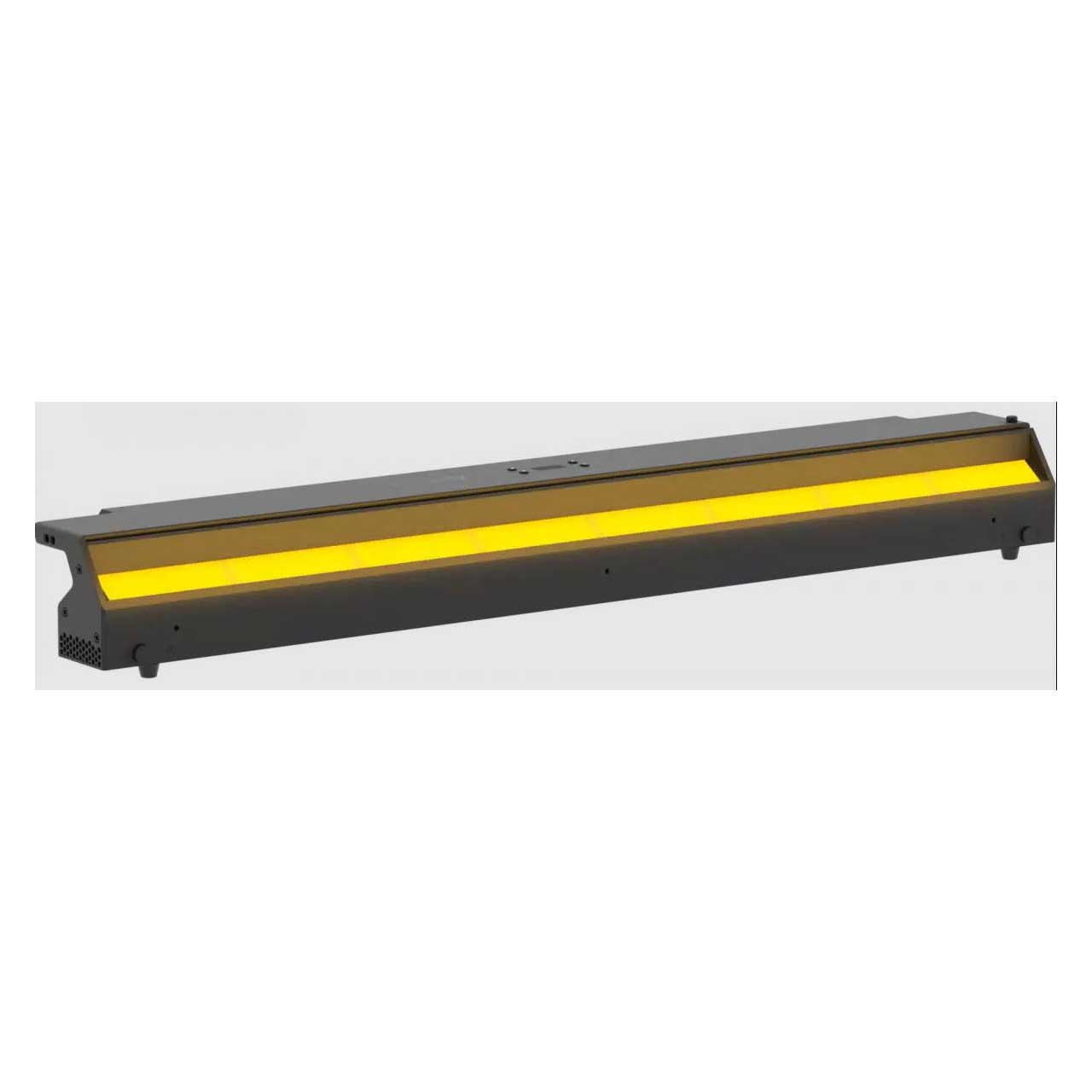

ProLights Linear EclCyclorama 100 - 330W Linear Soft CYC and Flood Light with RGB+Warm White Color Mixing - IP20 Rated

PIECLCYC100 - Overview

High quality of whites (CRI 93 @3.200 K) and bright colors!

• Features:

  • Perfect for Theater, Film and Studio use
  • RGB + Warm White color systems allows high quality of whites (CRI 93 @3.200 K) and bright colors.
  • Slim design, with only 12 cm (4.72 In) height for easy implementation in the front or at the back of the stage.
  • Wide Asymmetric beam angle to allow flexible installation at modular distances between fixtures.
  • Hardware designed with tilt angle adjustment, beam control and flexible hanging and ground stacking applications.
  • IP20 rated - Touchproof and resistant to dust or objects that are over 12mm in size.


• Specifications:

  • Light Source
  • Source: 330W RGB + Warm White
  • Luminous flux: (with 40°x80° filter on board) 27'342lm @full
  • Lux: @1 m to wall and 1,5 m height @full (with standard filter 40° x 80°) 1'240 lx - (with 40° filter) 2'610 lx - (with 10° x 60° filter) 3'110 lx - (with 30° x 60° filter) 2'880lx
  • CRI: 93 @3.200 K; 92,6 @5.600 K
  • R9: 88 @3.200 K; 93,7 @5.600 K
  • TLCI: 91 @5.600 K
  • TM30 Rf: 89,8 @5.600 K
  • TM30 Rg: 106 @5.600 K
  • Source life expectancy: > 50.000 h

    Optics
  • Beam angle: (VxH) 40° x 80°
  • Additional optics: see available accessories

    Color System
  • Color mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K
  • Colour wheel: virtual colour wheel with macros

    Dynamic Effects
  • Control Resolution: 16-bit dimmer, colors
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colors

    Body
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Body: sturdy die-cast aluminium body
  • Body color: black
  • Other: +/- 8° angle adjusting

    Control
  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
  • Wireless Control: included, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

    Electronics
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz

    Electrical
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 400W
  • Power factor: >0,94

    Physical
  • IP rating: IP20
  • Cooling: heat sink without fan
  • Suspension and fixing: any position with quick-lock omega brackets

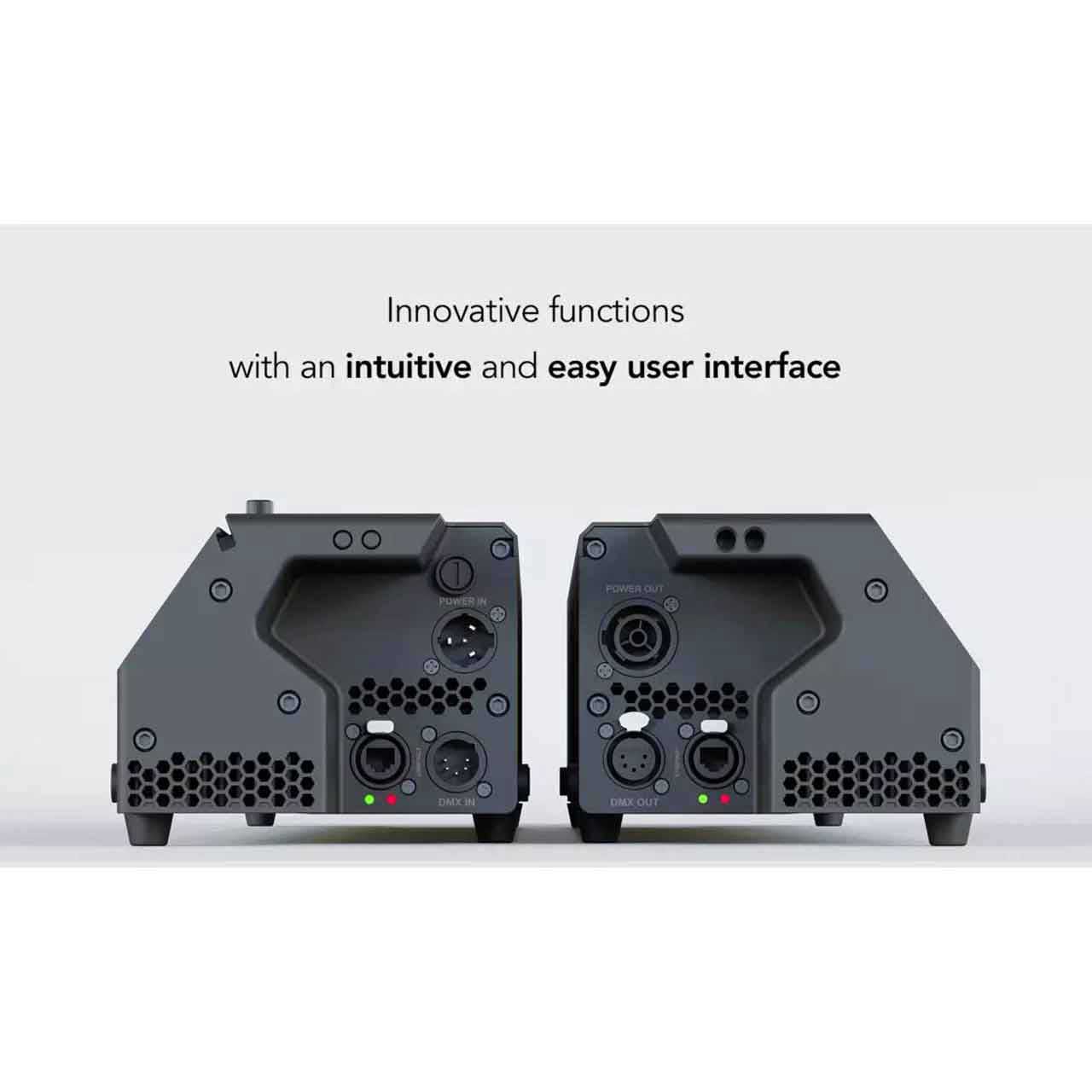

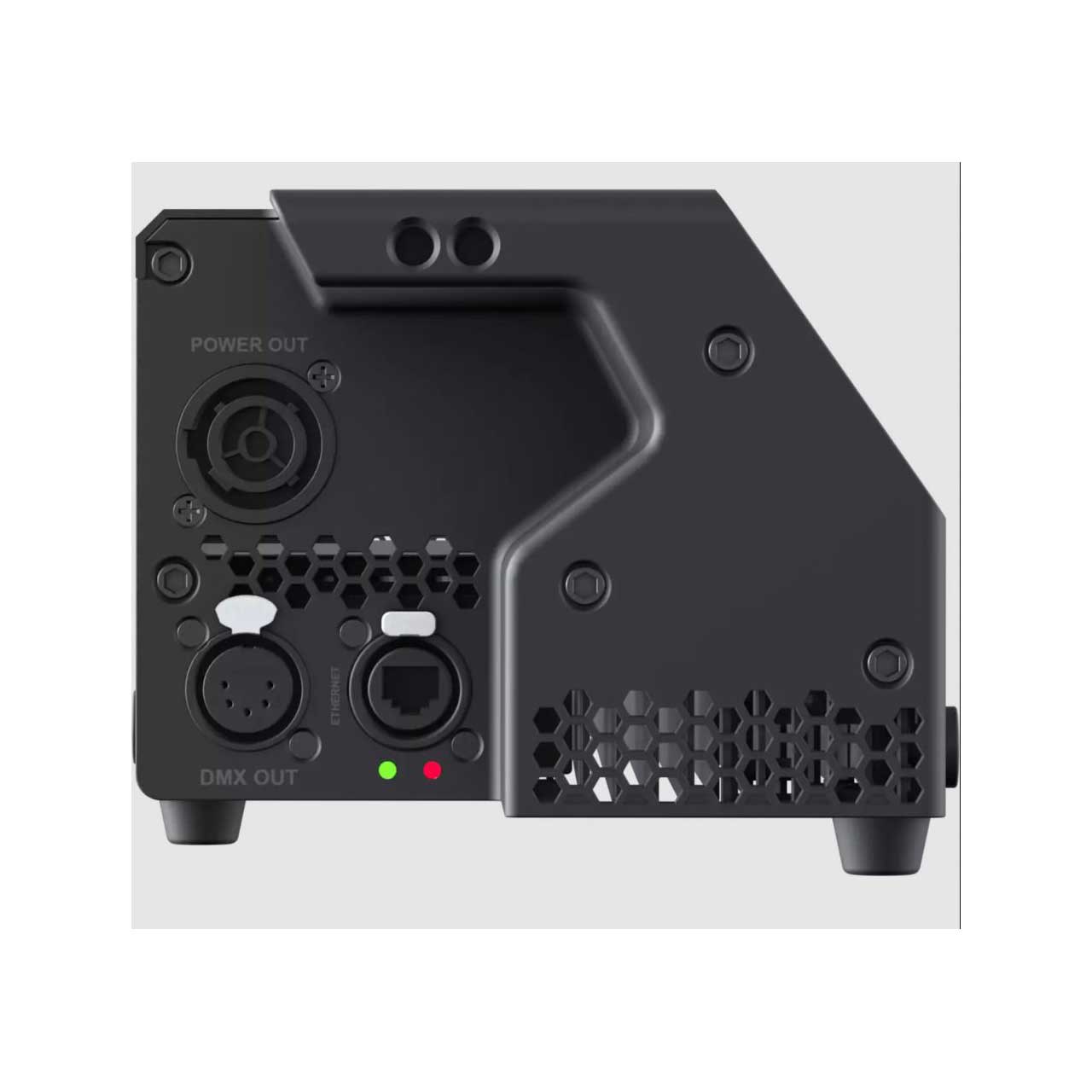

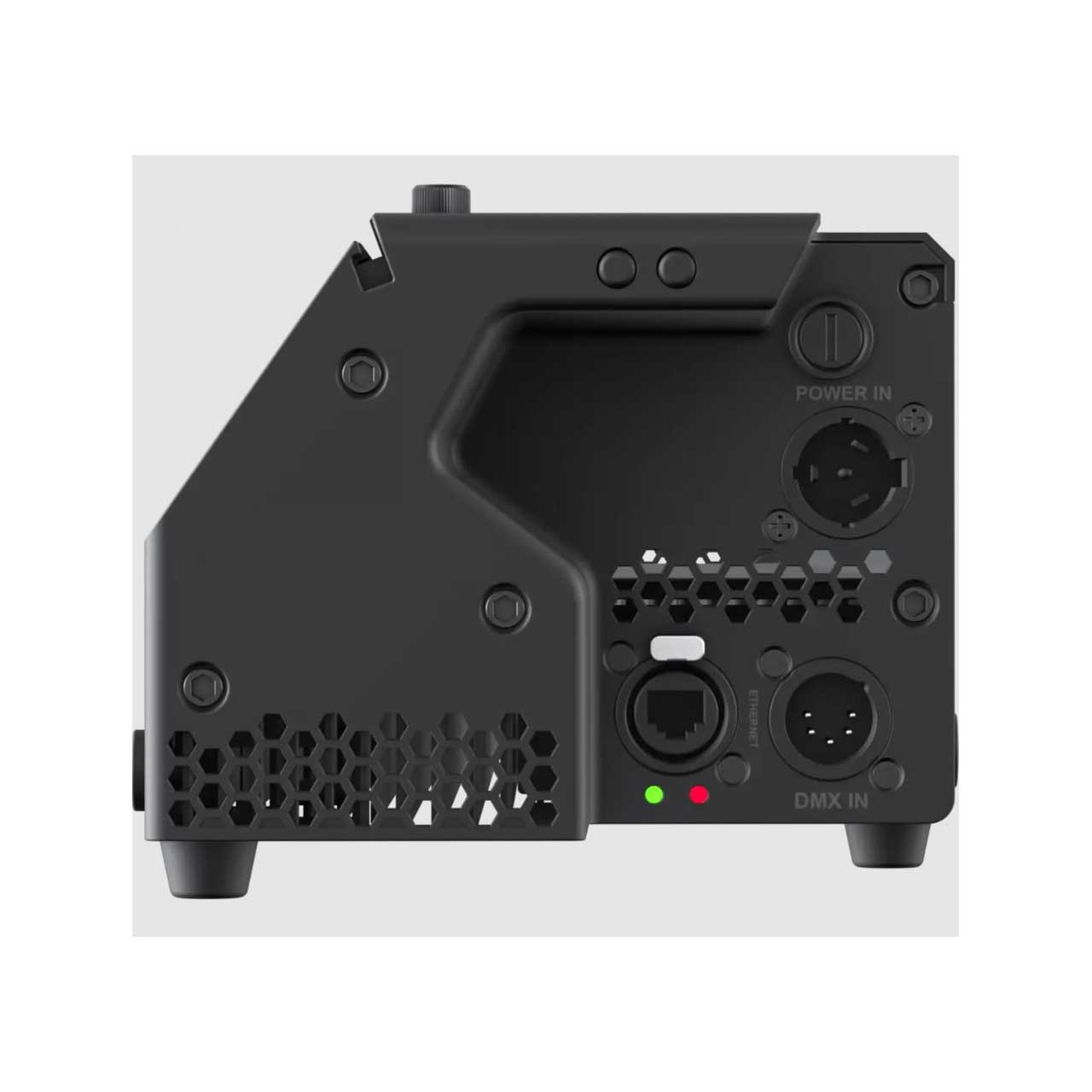

  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: RJ45 IN/OUT
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 39.37" x 4.69" x 5.83"
  • Weight: 21.16lbs

    Certifications / Approvals
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC


• Item Includes:

  • 1x ECLCYC100
  • 1x 1.5 meter (4.92 Ft) power cable (BARE END - SEETRONIC IP65 power connector)
  • 2x OS25 Quick-lock omega bracket with M10 hole
  • 1x User Manual


• Warranty:

  • 2-Year Limited Warranty
