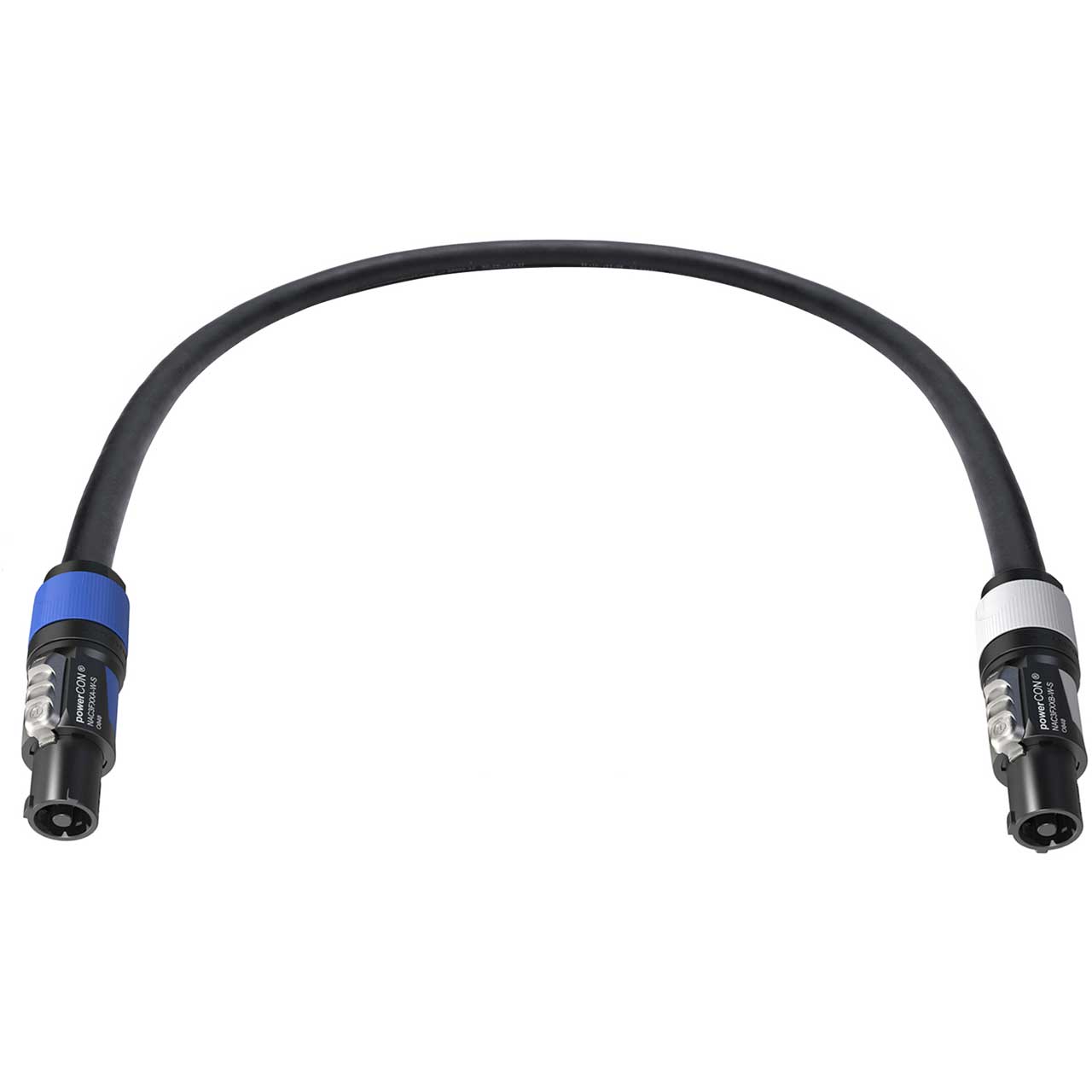

Laird NEUTRIK powerCON Locking 3-Pole 20-Amp Type A to Type B Power Cable - 20 Foot

ITEM #: PWRCN20-AB-20 MFG #: PWRCN20-AB-20

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$69.95

Our Price:

$63.49

Availability: In Stock
iAvailability Description Popup


PWRCN20-AB-20 - Overview

powerCON® is a lockable 3 pole equipment (AC) connector with contacts for line, neutral, and premating safety grounds. It is rated at 20A/250V ac. Color coded for easy identification, powerCON offers power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating. The contacts are designed to prevent damage from arcing when disconnected while under load. The cable is a 300V 12 AWG UL Listed 3 Conductor TPrene Jacketed Heavy Duty Power Cord - Black. Professionally assembled in our in-house cable shop for powering various Mackie, Turbosound, JBL and other gear that utilize the Neutrik powerCON® connector.

  • Features:

    • High-Quality Neutrik powerCON connectors
    • NEMA 5-15P AC Plug
    • PWR-12/3-TP - SJOOW - 300V 12 AWG Heavy Duty Power Cable
    • Resistant to oil, ozone, weathering effects, grease, water, and UV Radiation
    • Circuit Breaking Capability when mated with powerCON Series receptacles

  • Specifications:

      PWR-12/3-TP:
    • Cable Type: SJOOW
    • Number of Conductors x AWG: 3x12
    • Cable Insulation: Rubber (EPR)
    • Outer Jacket: Rubber (CPE) Black
    • Nom. Outer Diameter: 0.45in (11.45mm)
    • Current Carrying Capacity: 25
    • Nom Voltage: AC U 300V
    • Temperature:
      Flexing: -4°F to 194°F (-20°C to +90°C)
      Static: -40°F to 194°F (-40°C to +90°C)
    • Min Bend Radius:
      Flexing: 4.5in (114.5mm)
      Static: 2.7in (68.7mm)

      Neutrik powerCON Connectors:
    • Contact Resistance: ≤ 2 mΩ
    • Dielectric Strength: > 3 kVac (after mating cycles)
    • Insulation Resistance: > 10 GΩ (initially)
    • Lifetime: 5'000 mating cycles
    • Locking Device: Twist lock
    • Protection Class: IP20

  • Warranty:

    • 1 Year
