QSC AD-S112SW AcousticDesign Series 12 Inch 300 Watt Surface-Mount Subwoofer - White

Name: QSC AD-S112SW AcousticDesign Series 12 Inch 300 Watt Surface-Mount Subwoofer - White
Brand: QSC
SKU: QSC-AD-S112-SW-W
Price: 917.00 USD
Availability: PreSale

ITEM #: QSC-AD-S112-SW-W MFG #: AD-S112-SW-WH

QSC

Our Price:

$917.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

AD-S112-SW-WH - Overview

The QSC AD-S112sw is a 12" surface-mount 8-ohm subwoofer supplied with a yoke mounting system, making it suitable for low-frequency reinforcement in a variety of foreground and background music applications, a well-matched companion for QSC's AcousticDesign full-range loudspeakers.

Outfitted with a 12" weather-treated woofer on a 2.5" voice coil, the AD-S112sw direct-radiating subwoofer offers 300W RMS power handling, a frequency range of 30 to 135 Hz (-10 dB), and a peak maximum SPL of 121 dB. Its TFR (Turbulent Flow Reduction) port optimizes resonance tuning and yields higher output SPLs before turbulence.

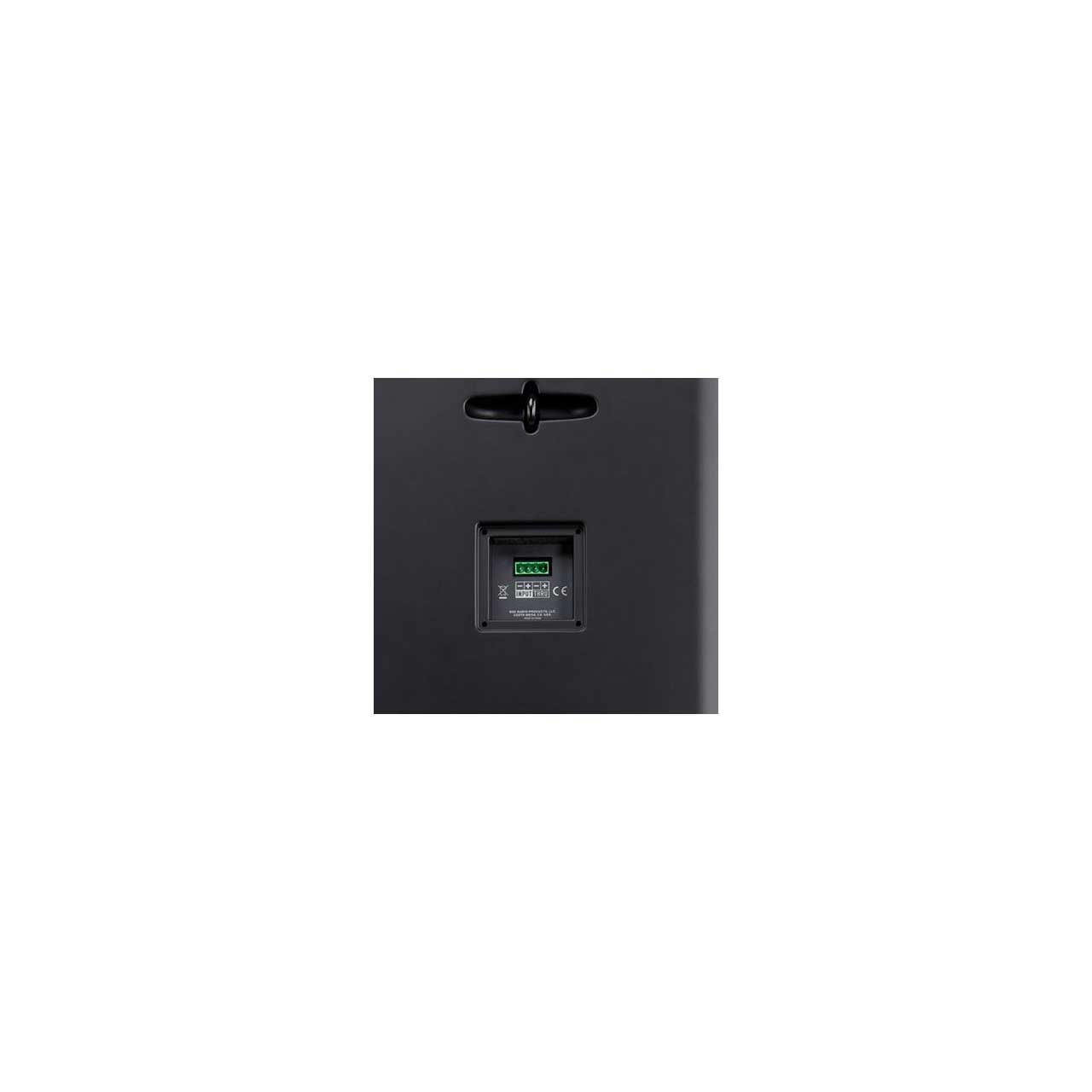

The AD-S112sw utilizes a 4-pole Euroblock connector under a sealed input cover for easy wiring and protection from moisture. Featuring a rugged ABS enclosure and a powder coated aluminum grille, the AD-S112sw boasts dust and splash resistance beyond IP54 ratings for worry-free operation indoors or outside.

Features:
- Designed for foreground and background music sound reinforcement in restaurant, retail, audio visual, education, and large system ancillary support applications as well as in concourses, casinos, transportation terminals, and worship facilities
- Includes a yoke mount assembly to take full advantage of boundary plane coupling and to reduce vibration transmission
- M10 fittings allow suspended or flown deployments using M10 Kit-C (available separately)
- Direct-radiating 12" weather-treated paper cone woofer with a 2.5" voice coil
- TFR (Turbulent Flow Reduction) port design tunes the enclosure resonance and is optimized for high-velocity air flow, resulting in higher output pressures before turbulence or "chuffing" of the port
- Rugged ABS enclosure and powder coated aluminum grille
- Exceeds IP54 ratings for dust and splash resistance
- 4-pole Euroblock connector with loop-thru wiring located under a sealed input cover to prevent moisture at the terminals
- Advanced voicing filter sets using QSC Intrinsic Correction are available through either Q-Sys processing or CXD amplifier platforms (available separately)
Specifications:
- Active or Passive Passive
- Number of Included Speakers 1
- Speaker Configuration Subwoofer
- Power Handling For 2 Hours / At Low-Z:
- 300 W RMS
- Recommended Amplifier Power 600 W
- Impedance 8 Ohms
- Enclosure Type Bass-Reflex
- Shielded No
- LF Driver 1 x 12" / 30.48 cm Paper Woofer
- LF Voice Coil 2.5" / 6.35 c
- Frequency Range 30 Hz to 135 Hz -10 dB
- Maximum SPL 115 dB (Continuous)
- 121 dB (Peak)
- Sensitivity 90 dB SPL
- Recommended High-Pass Filter 32 Hz, 24 dB/Octave
- 100 Hz, 24 dB/Octave
- Maximum Input Voltage 50 V RMS
- I/O 1 x Block 4-Pole Speaker Input/Thru (Removable)
- Water / Weather Resistance Dust Resistant, Humidity Resistant, Water Resistant
- IP Rating IP54
- Operating Temperature -4 to 122°F / -20 to 50°C
- Color White
- Mounting 1 x Bracket Point (Top)
- 1 x Bracket Point (Bottom)
- 2 x M10 Suspension (Bottom)
- Construction Material ABS, Aluminum Grille, Polymer
- Dimensions 23.4 x 13.9 x 12.7" / 59.44 x 35.31 x 32.26 cm
- Weight 29 lb / 13.2 kg
- Package Weight 43.015 lb
- Box Dimensions (LxWxH) 27.3 x 21.5 x 18.5"
Item Includes:
- QSC AD-S112sw AcousticDesign Series 12" 300W Surface-Mount Subwoofer (White)
- Yoke Mounting System
- Euroblock Connector
- Input Panel Cover
- 4 x M4 Phillips Head Screws for Input Panel Cover
- Limited 3-Year Warranty
