Rolls RA62C 6 Channel Headphone Amp w/Mix Control XLR 1/4in & RCA Inputs

Name: Rolls RA62C 6 Channel Headphone Amp w/Mix Control XLR 1/4in & RCA Inputs
Brand: Rolls Corporation
SKU: RA62C
Price: 239.00 USD
Availability: InStock

ITEM #: RA62C MFG #: RA62C

Rolls Corporation

List Price:

$306.00

Our Price:

$239.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

RA62C - Overview

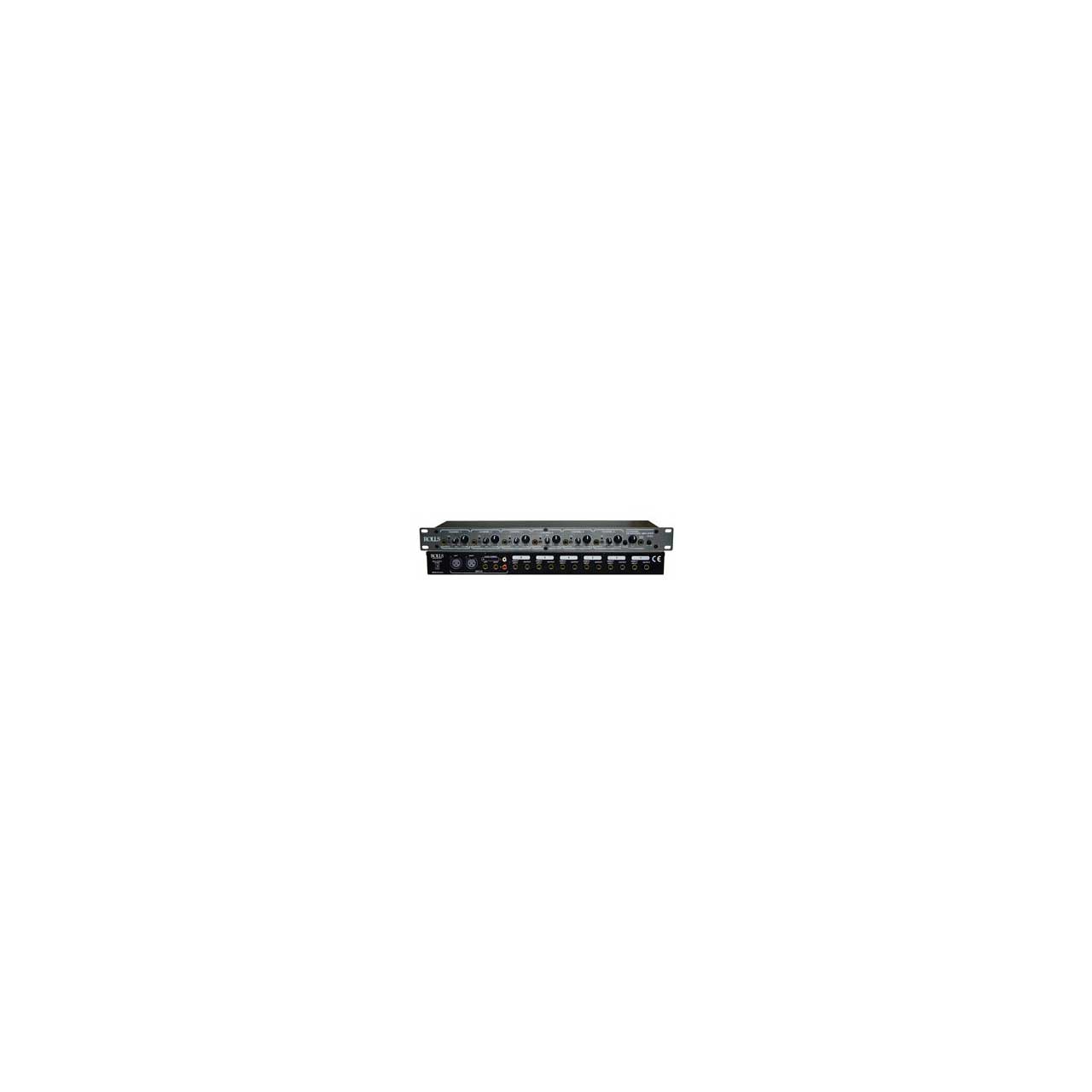

The Rolls RA62c is a six-channel headphone/earphone amplifier for professional audio monitoring. A variety of input options are available including 1/4", RCA, and balanced XLR. Since the MONO/STEREO switch is after the pan control, it will mix 2 MONO signals and their balance can be adjusted with the Pan control. With the addition of rear panel Direct Input connectors, each channel may mix a second stereo signal.

Features:
- Six Channels of clean, quiet headphone/earphone amplification.
- Individual Direct Inputs to mix separate stereo signal with Main Input signals.
- 1/4" and 3.5mm Headphone/Earphone Outputs.
- LED Clip indication.
- Stereo/Mono operation.
Specifications:
- Input Impedance: 10K Ohms unbalanced
- Max Input Level: +18 dBV
- Input Connectors: 1/4" TRS stereo, R & L bal. / unbal. 1/4", RCA, R & L balanced XLR, 6: 1/4" TRS Direct Input jacks
- Output Connectors: 12: 1/4" TRS Stereo jacks, 6: 1/8" (3.5 mm) TRS Stereo jacks
- Max Gain: 20 dB/Channel
- Output Power: 972 mW/side, 1944 mW/Channel ( @ 32 Ohms )
- Frequency Response: DC - 30 kHz
- S/N Ratio: 90 dB
- THD: <.008%
- IMD: <.008%
- Phase Shift (In to Out): 0 deg.
- Slew Rate: 25 V per microsecond Second
- Crosstalk: - 65 dB
- Power: 12 VAC (Rolls Model PS12)
- Size: 19" x 1.75" x 6.5" (48cm x 4.5cm x 17cm)
- Weight: 7 lbs (3KG)
GTIN:
0675889006223

RA62C - Recommended Accessories

Audio-Technica ATH-M50X Professional Monitor Headphones - Black
ATH-M50X
Our Price: $149.00
Sescom Audio Cable Canare Star-Quad 1/4 TS Mono Male to 1/4 TS Mono Male Black - 10 Foot
SC10SS
Our Price: $22.95
Sescom Audio Cable Canare Star-Quad 1/4 TRS Balanced Male to 1/4 TRS Balanced Male - Black - 10 Foot
SC10SZSZ
Our Price: $25.49
Connectronics Premium Stereo RCA Audio Cable 10ft
TN-2R2R-10
Our Price: $27.95

RA62C - Reviews

RA62C - Attachments

See Rolls Corporation RA62C Manual/Specs (PDF)
