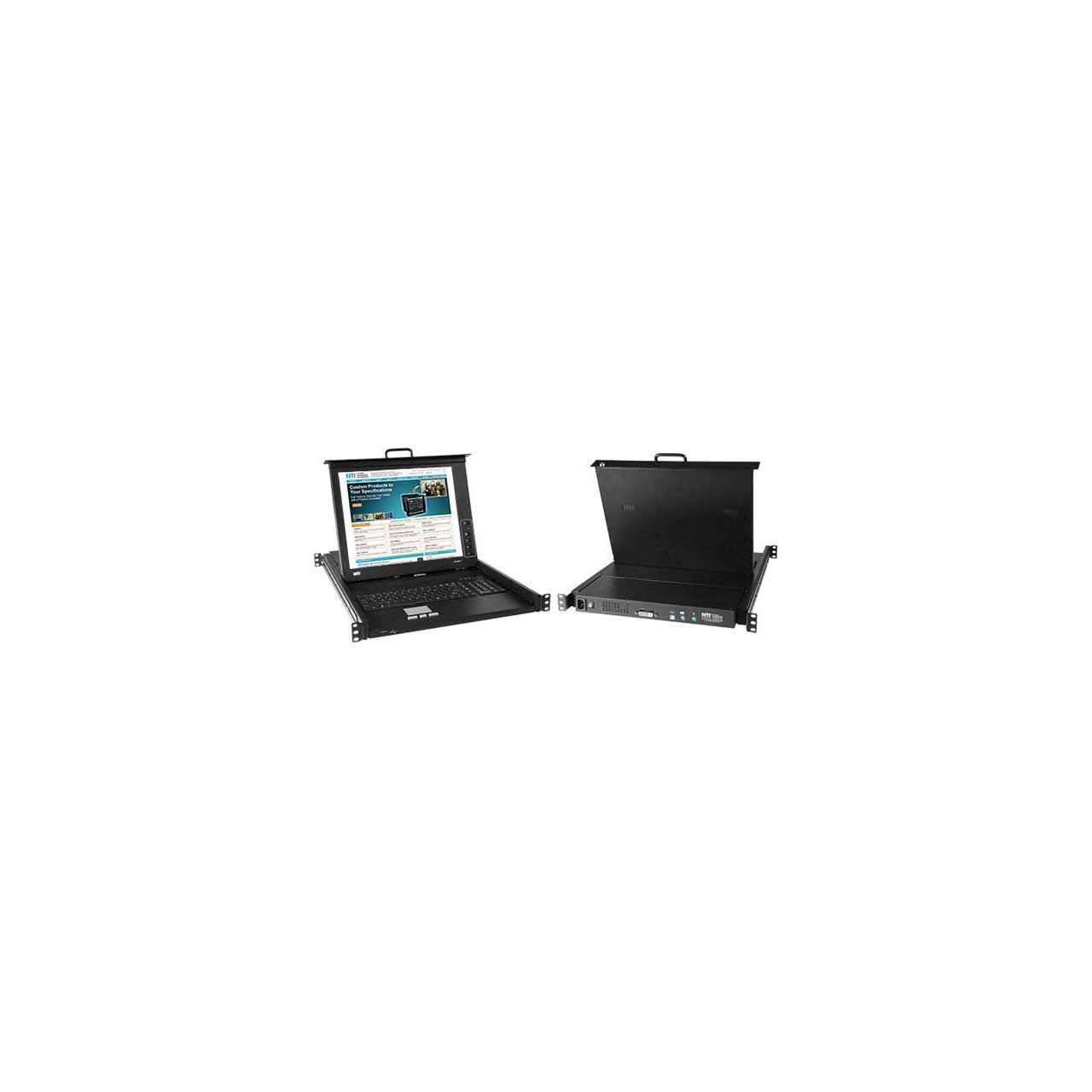

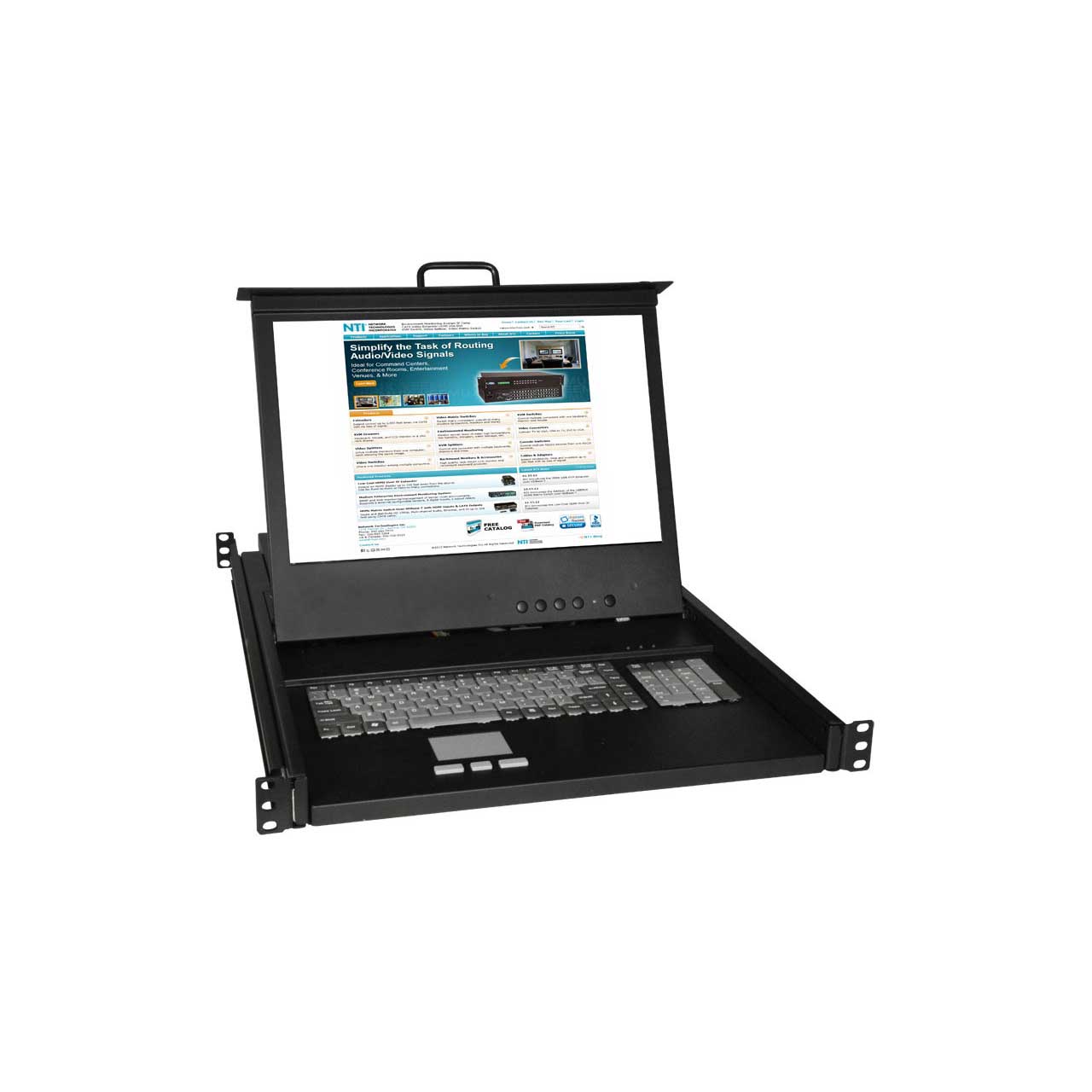

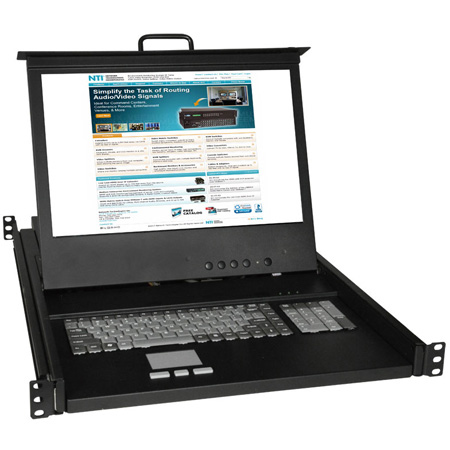

NTI RACKMUX-D17HR-N DVI USB plus PS/2 KVM Drawer w/ Numeric Keypad 17 Inch Hi-Res LCD Monitor Keyboard & Touchpad Mouse

RACKMUX-D17HR-N - Overview

• Features:

  • Available with 17" Active Matrix LCD DVI flat panel monitor.
  • Optional hi-res 1920x1200 17.1" monitor available
  • Tilt LCD up and back to adjust to any comfortable viewing angle to 120°.
  • Compatible with DVI-enabled USB and PS/2 computers.
  • Torque-friction hinges-monitor does not wobble, spring, or slam shut.
  • Compact, heavy-duty tactile keyboard.
  • Available with 17-key numeric keypad or large padded wrist-rest.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Available with optional mounting bracket for two-post style telco rack.
  • Rugged steel construction with durable powder coat finish.
  • LCD auto-shutoff in closed position.
  • Internal cable arm provides proper cable management for sliding the drawer open and closed.
  • Equipped with On Screen Display (OSD).
  • Designed to be a one-person job when installing the drawer.
  • Front panel security lock.
  • Front panel USB port to connect an external USB device, such as a flash drive.
  • Available with optional 24VDC power.


• Specifications:

  • Host Interface
  • Compatible with PS/2, UNIX and USB-enabled computers.
  • Multiplatform support: Windows 2000/XP/Vista/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • One female DVI-D, one female USB Type B, and two female 6-pin minDIN connectors.
  • Use with NTI Multi-Platform KVM Switches to control multiple PC, SUN and MAC computers.

    Monitor
  • Forward-folding 17" (432 mm) Active Matrix LCD DVI flat panel monitor.
  • Resolution: 1920x1200
  • Tilt: up to 120°
  • Frequency: Horizontal: 30 to 80 KHz; Vertical: 56 to 75 KHz
  • OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment.
  • Brightness: 275 nits
  • Contrast Ratio: 800: 1
  • Supports DDC1 and DDC2B protocols.

    Devices
  • Keyboard available in: English (US).
  • RACKMUX-D17HR-N(-24V): 100-key (US) with numeric keypad
  • Three button touchpad mouse.
  • Front panel USB 1.1 port to connect external USB devices.
  • Female USB Type A connector.
  • KVM drawer must be connected to a USB-enabled computer.

    Cables
  • 6.5 foot (2 meters) DVI-D male to male single link cable.
  • 6-foot (1.8-meter) USB Type A male to USB Type B male cable included.
  • 6-foot (1.8-meter) power supply cable included.

    Power
  • 110 or 220 VAC at 50 or 60 Hz via IEC connector.
  • Power Consumption: 30 W
  • Maximum Inrush Current: 30A
  • RACKMUX-D17HR-N-24V: 3-pin terminal block for 24V power source. Accepts 18~36VDC (24VDC nominal).
  • For installation in a 24V Telecom environment.

    Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 140°F (-20 to 60°C).
  • Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.

    Dimensions
  • WxDxH: 19x23.9x1.75 Inches. (483x607x44 millimeters)
  • Handle adds an additional 1.5" to the depth when monitor is in closed position.
  • Weight: 30.2 lbs. (14 kg)
  • Drawer is adjustable to various rack depths from 24" (610 mm) deep to 40" (1,016 mm) deep.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.

    Regulatory Approvals
  • CE, RoHS

    Warranty
  • Two years


• Item Includes:

  • KVM Drawer
  • 2 keys for lock
  • IEC Power Cord, country-specific (excluded in 24V model)
  • 6-ft USB Type A male to USB Type B male cable
  • 6-ft PS/2 male to male mouse and keyboard cable
  • 2-meter DVI-D male to male video cable
  • CD with manual and drawer installation manual
  • Single-person installation mounting kit


• Warranty:

  • Two years
