RDL D-PSP1 Decora-Style Active Loudspeaker

ITEM #: RDL-D-PSP1 MFG #: D-PSP1

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$338.11

Our Price:

$253.59

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


D-PSP1 - Overview

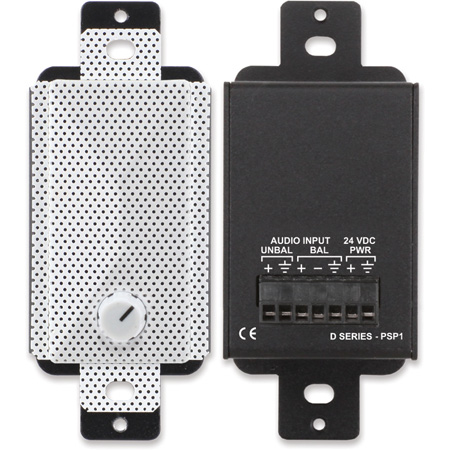

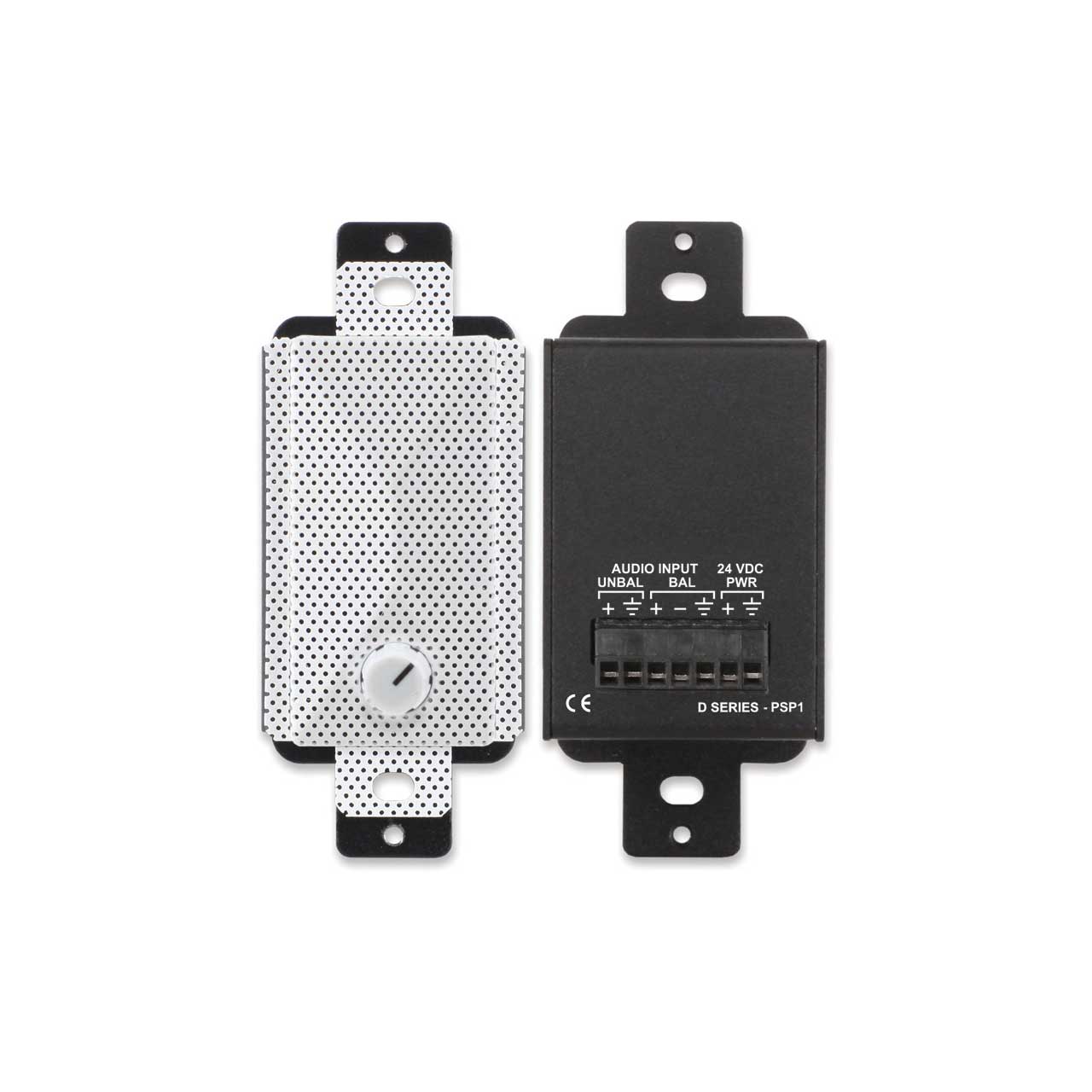

The D SERIES-PSP1 is a compact active loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. The input accepts either a -10 dBV unbalanced or a +4 dBu balanced signal on the rear-panel detachable terminal block. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. The amplified output level is controlled by a front-panel volume control. The PSP1 includes an analog compressor/limiter that makes higher average sound output levels possible without clipping.The driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. This produces sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall.Models are available with grills in black (DB-PSP1), white (D-PSP1), gray (DG-PSP1) or stainless steel (DS-PSP1).

  • Features:

    • Exceptional Audio Quality for Ultra-Compact Size
    • 2 Watt RMS Audio Amplifier
    • Compressor/Limiter Prevents Clipping
    • Balanced +4 dBu Input on the Rear Panel
    • Unbalanced -10 dBV input on the Rear Panel
    • Front-Panel Gain Adjustment
    • Acoustically Optimized Decora Enclosure
    • Fidelity Comparable to Larger Drivers
    • Hemispherical Dispersion Mounted In Wall or Flat Surface

  • Specifications:

    • Inputs (2): 30 kΩ balanced or 10 kΩ unbalancedInput Level: +4 dBu nominal (Balanced); -10 dBV nominal (Unbalanced)
    • MinimumInput Level: -18 dBu (Balanced, Max. gain); -19 dBV (Unbalanced, Max. gain)
    • MaximumInput Level: +22 dBu
    • Gain Adjustment: Single-turn audio taper (Front-panel)
    • Maximum SPL: 81 dB
    • Frequency Range: 150 Hz to 20 kHz, nominal
    • CMRR: > 50 dB (50 Hz to 120 Hz)Power Requirement: 24 Vdc @ 55 mA (Idle); 100 mA (maximum), Ground-referencedAmbient Operating Environment: 0° C to 40° C Maximum; 20° C RecommendedDimensions: Height: 4.12 in. 10.46 cm; Width: 1.72 in. 4.37 cm; Depth: 2.64 in. 6.7 cm
    • Package Type: Cardboard Box
    • Package Dimensions: 3.625 x 4.625 x 2.125 in.
    • Shipping Weight: .573 lbs.
    • WEEE weight: .435 lbs.
    • Tariff code: 8518.40.2000

  • GTIN:

    0813721019134


D-PSP1 - Required Accessories
