RF Venue C6CPS-D5DFIN Wireless Antenna Combiner Super Pack for 5-Ch Microphone Systems and 6-Ch In-Ear Monitor Systems

ITEM #: RFV-C6CPS-D5DFIN MFG #: C6CPS-D5DFIN

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$3,599.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info


C6CPS-D5DFIN - Overview

Experience crystal clear wireless mics and IEMs for the whole band with the C6CPS-D5DFIN turnkey package.

This bundle contains everything needed to configure up to 5 channels of wireless microphones and 6 channels of IEMs in a single rack space with industry-leading essential components from RF Venue. DISTRO5 HDR can also supply up to 5 amps of clean DC power for your compatible RF rack receivers or IEM transmitters, eliminating the need for wall warts.

Carefully designed to work together, the Diversity Fin Antenna and DISTRO5 HDR deliver your wireless microphone receivers clean, low noise RF with plug and play simplicity and design. The weather resistant CP Stage Antenna and COMBINE6 HDR work seamlessly together to deliver clean, low-noise RF with a simple plug-and-play setup for your IEMs. No RF expertise needed - each element is meticulously designed for optimal RF and audio signal quality. And taking up just a single rack space, this super bundle for mics and IEMs is road ready for touring.

Additional Details on the Super Pack
The microphone portion of the bundle features the Diversity Fin Antenna, renowned for its exceptional ability to mitigate signal dropouts and maintain a strong signal in challenging RF environments. Its innovative design features multiple antenna elements that work in conjunction to maximize signal reception and minimize dropouts.

  • Specifications:

      COMBINE6 HDR
    • Frequency Range (USA/Canada): 470 - 608MHz
    • Frequency Range (International): 470 - 698MHz
    • RF Inputs: 6x BNC inputs
    • Maximum Input Power: 60mW (+18dBm) per port
    • Input Port Isolation: 50dB, typical
    • Signal Overload Threshold: 17dBm, typical
    • Passive Circuit Loss: 4dB, typical
    • DC Power Supply: External, 100V - 240V AC, 50/60Hz, 1A
    • DC Power In: +12V, 3A
    • Dimensions: 8.8" x 8.25" x 1.75" (223.5mm x 210mm x 44.5mm)
    • Weight: 3.56lbs (1.6kg)

      CP STAGE
    • Operating Band: 470-928 MHz
    • Polar Pattern: Hypercardiod
    • Impedance: 50Ω
    • Average Return Loss: 10 dB
    • Polarization: Right Hand Circular
    • Gain at: 500 MHz 3 dBi
    • Beam width: 120°
    • Dimensions: 10 x 12 x 1" (247 x 306 x 27mm)
    • Weight: 2lbs (0.9kg)
    • IP Rating: IP44
    • Operating Temperature: 14 - 104°F (-10 - 40°C)
    • Color: Matte Black
    • Weather Resistant Connector: BNC-F

      DISTRO5 HDR
    • Frequency Range: 470 - 698MHz
    • Inputs: 1 Diversity pair BNC
    • Outputs: 5 Diversity pairs BNC
    • Power Supply: Internal, 100V - 240V AC 50/60Hz 2A
    • DC In (optional): 12V DC, 250mA
    • Impedance: 50Ω
    • DC Out Connector: Anderson Powerpole®
    • DC Out: 12V DC, 5A
    • Fuse: T3 5A 240V
    • Dimensions (DxWxH): 8.80" x 8.25" x 1.75" (223.5mm x 210mm x 44.5mm)
    • Weight: 3.7lbs (1.7kg)

      Diversity Fin Antenna
    • Operating Frequency: 470 - 698MHz
    • Bandwidth: 228MHz
    • Average Return Loss: -9.4dB
    • Impedance: 50Ω
    • LPDA Beam Width: 140° azimuth
    • LPDA F/B Ratio: -8dB
    • LPDA F/S Ratio: -5dB
    • LPDA Gain: 5dBd
    • Dipole Beam Width: 100° azimuth
    • Dipole F/B Ratio: -5dB
    • Dipole F/S Ratio: -13dB
    • Dipole Gain: 1.8dBd
    • Length: 12" (300mm)
    • Height: 14.6" (370mm)
    • Weight: 1lb (454g)
    • Mount Threads: 1/4-20, 3/8-16, 5/8-27
    • Operating Temperature: -9°F - 130°F (-23°C - 54°C)
    • Color: Black or white
    • Connector(s): 2x BNC female

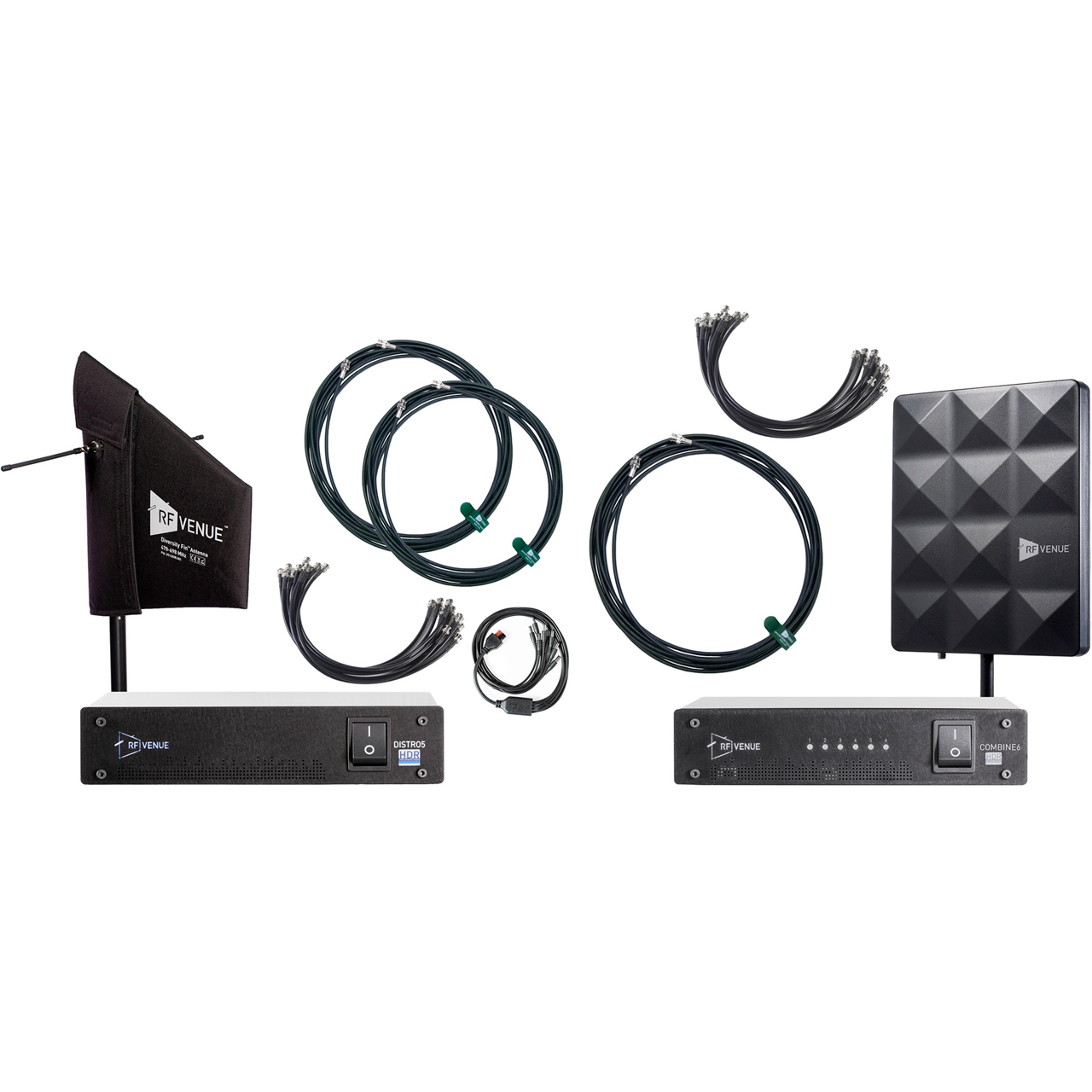

  • Item Includes:

    • 1x DISTRO5 HDR
    • 1x Diversity Fin Stand Mount Antenna
    • 2x 25' RF Venue Low Loss Antenna Cables
    • 1x 10 Pack 1.5' RF Venue Low Loss BNC Interconnect Cables
    • 1x DC Octopus Cable
    • 1x COMBINE6 HDR
    • 1x CP Stage, Weather Resistant (IPxx) Stand Mount Antenna
    • 1x 25' RF Venue Low Loss Antenna Cable
    • 1x 10 Pack 1.5' RF Venue Low Loss BNC Interconnect Cables

  • GTIN:

    0658580647179
