RF Venue CP-STAGE Weather-Resistant Circularly Polarized Stage Antenna

Name: RF Venue CP-STAGE Weather-Resistant Circularly Polarized Stage Antenna
Brand: RF Venue
SKU: RFV-CP-STAGE
Price: 349.00 USD
Availability: PreSale

ITEM #: RFV-CP-STAGE MFG #: CP-STAGE

RF Venue

Our Price:

$349.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

CP-STAGE - Overview

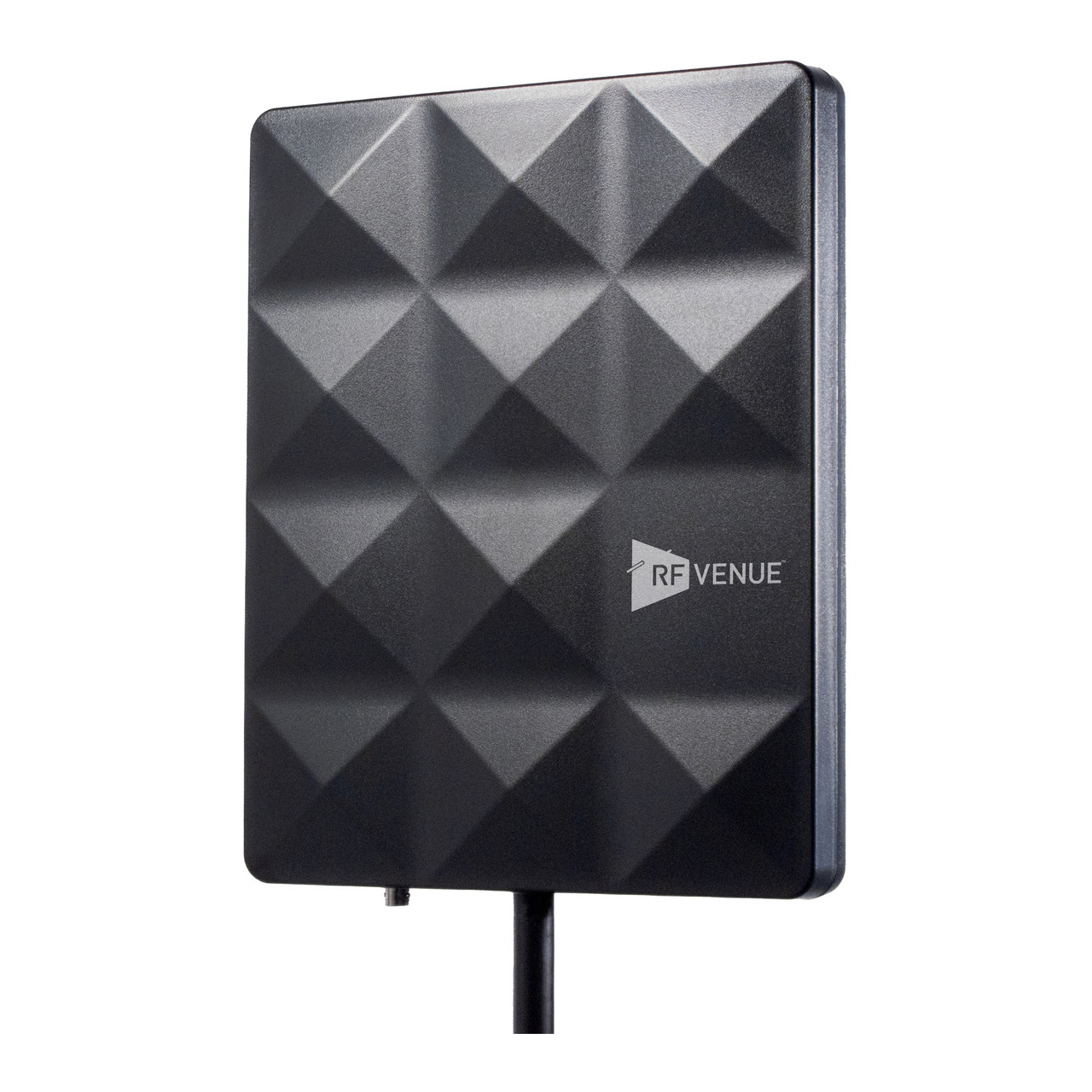

The RF Venue CP Stage is a compact, ruggedized, circularly polarized antenna designed for in-ear monitor transmitters and wireless microphone systems. Similar to its high-powered big brother the patented CP Beam, it delivers a rock-solid, dropout-free signal for in-ear monitors (IEMs) and wireless microphone systems.

Housed in a lightweight yet extremely durable IP-rated weather resistant enclosure, the CP Stage is suitable for both portable use and permanent outdoor installation. The antenna is easily connected to a microphone stand mount, providing a secure connection to boost signal quality for both in-ear monitors and microphones wherever you need it.

Building on the success of the CP Beam and CP Architectural antennas, the CP Stage offers high performance and reliability in a portable package, making it ideal for touring and band fly packs.

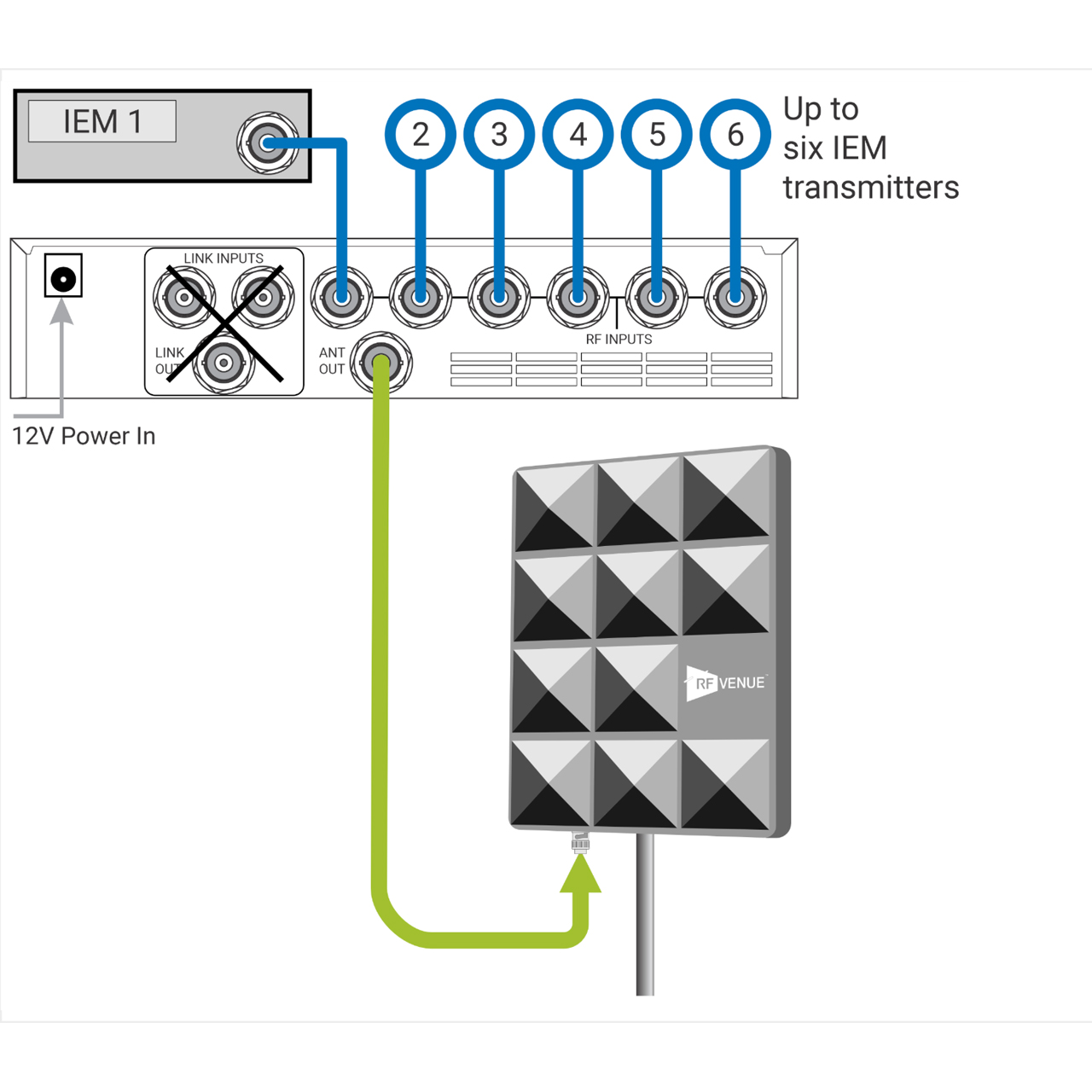

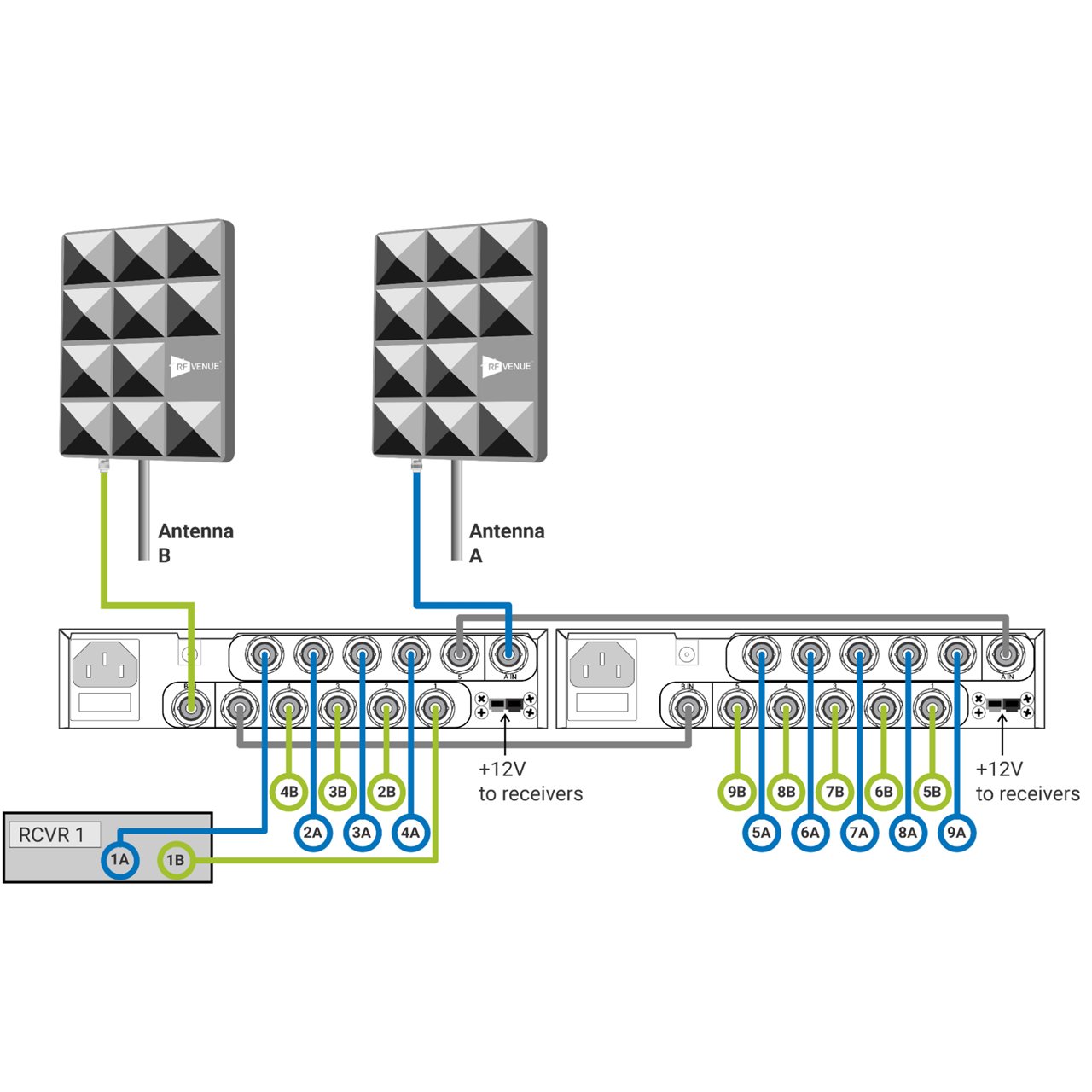

Please Note: For an in-ear monitor system, one CP Stage Antenna is required, but for wireless microphones, two CP Stages are needed for diversity receivers.

Features:
- Built for Better IEMs: Unreliable IEMs are a disaster for live performers. Dropouts and audible "hits" are a distraction and ruin confidence on stage. The CP Stage is built to make your band's IEM rig crystal clear so you can focus on what matters- your performance.
- Circular Polarization: The CP Stage features a low profile circularly polarized element that delivers optimal signal to in-ear monitor bodypacks and wireless microphones. If you're using paddle antennas, swap them out for the CP Stage to see and hear the difference in your IEM system.
- Ruggedized IP-Rated Enclosure: Built to withstand permanent outdoor installation and the abuse of global tours and flypacks, the CP Stage will remain protected in case of weather, mic stand falls or other mishaps on the road.
Specifications:
- Operating Band: 470-928 MHz
- Polar Pattern: Hypercardiod
- Impedance: 50Ω
- Average Return Loss: 10 dB
- Polarization: Right Hand Circular
- Gain at: 500 MHz 3 dBi
- Beam width: 120°
- Dimensions: 10 x 12 x 1" (247 x 306 x 27mm)
- Weight: 2lbs (0.9kg)
- IP Rating: IP44
- Operating Temperature: 14 - 104°F (-10 - 40°C)
- Color: Matte Black
- Weather Resistant Connector: BNC-F
Item Includes:
- 1x 5/8"-27 Thread Mount
- 1x 3/8"-16 Adapter
GTIN:
0658580647070
