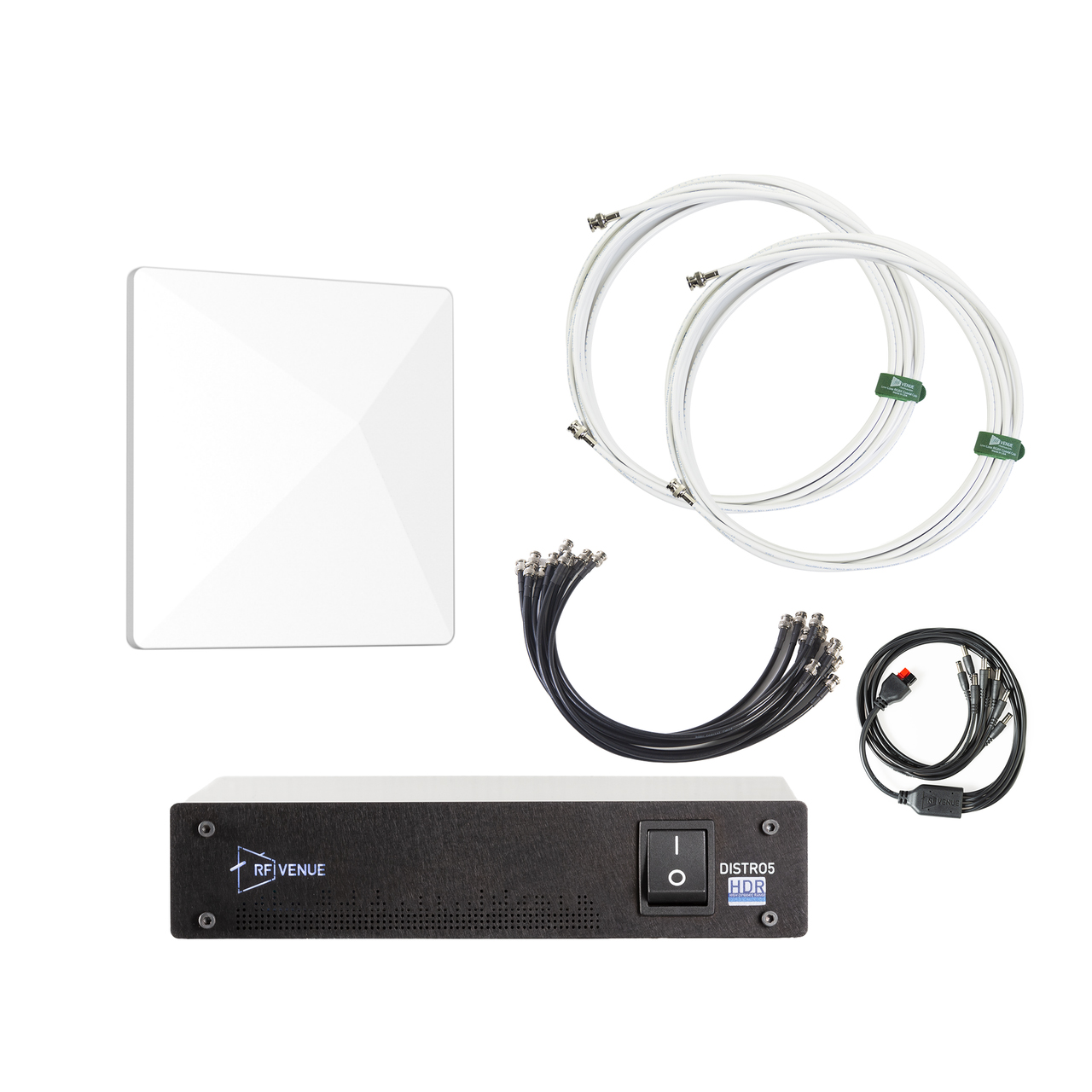

The D-ARCD5 bundle contains everything needed to configure up to 5 channels of wireless microphones (mics sold separately) with industry-leading essential components in a compact footprint. Carefully designed to work together, the Diversity Architectural Antenna and DISTRO5 HDR deliver your wireless microphone receivers clean, low noise RF with plug and play simplicity and design. Each element of the bundle is meticulously designed to work seamlessly together, ensuring optimal audio quality and signal stability, with no RF engineering expertise required.
The centerpiece of the bundle is the Diversity Architectural Antenna, a high-performance antenna system for wireless microphones. It features a slim profile enclosure so that it can be installed in any position on a wall or ceiling, and painted to match any interior. The Diversity Architectural Antenna uses a unique patent-pending dual-feed antenna design that includes both A and B diversity connections, so there is no need to run wire two separate antennas for your wireless microphone system. The end result is a professional "architect approved" look for your venue.
Complementing the Diversity Architectural Antenna is the DISTRO5 HDR, a high-quality distribution amplifier specifically engineered for wireless microphone systems. Building on the success of the DISTRO4, the DISTRO5 HDR delivers even better RF performance in a compact half-rack footprint. Multiple DISTRO5 HDRs can be cascaded together using the included joining plate hardware for up to 9 channels of wireless mics in a 1RU space.
In RF system design, even the smallest details are critical. That's why RF Venue's 5 Channel Wireless Mic Pack includes double shielded coaxial cabling that is terminated and quality controlled in-house by RF Venue engineers. A multi-channel wireless microphone system is a major investment, to get the most out of that investment, including top quality interconnects and antenna cables are a must.
With tens of thousands of successful deployments in diverse environments - churches, schools, stadiums, TV/film productions, RF Venue's expertise in engineering wireless essentials that "just work" is world renowned.

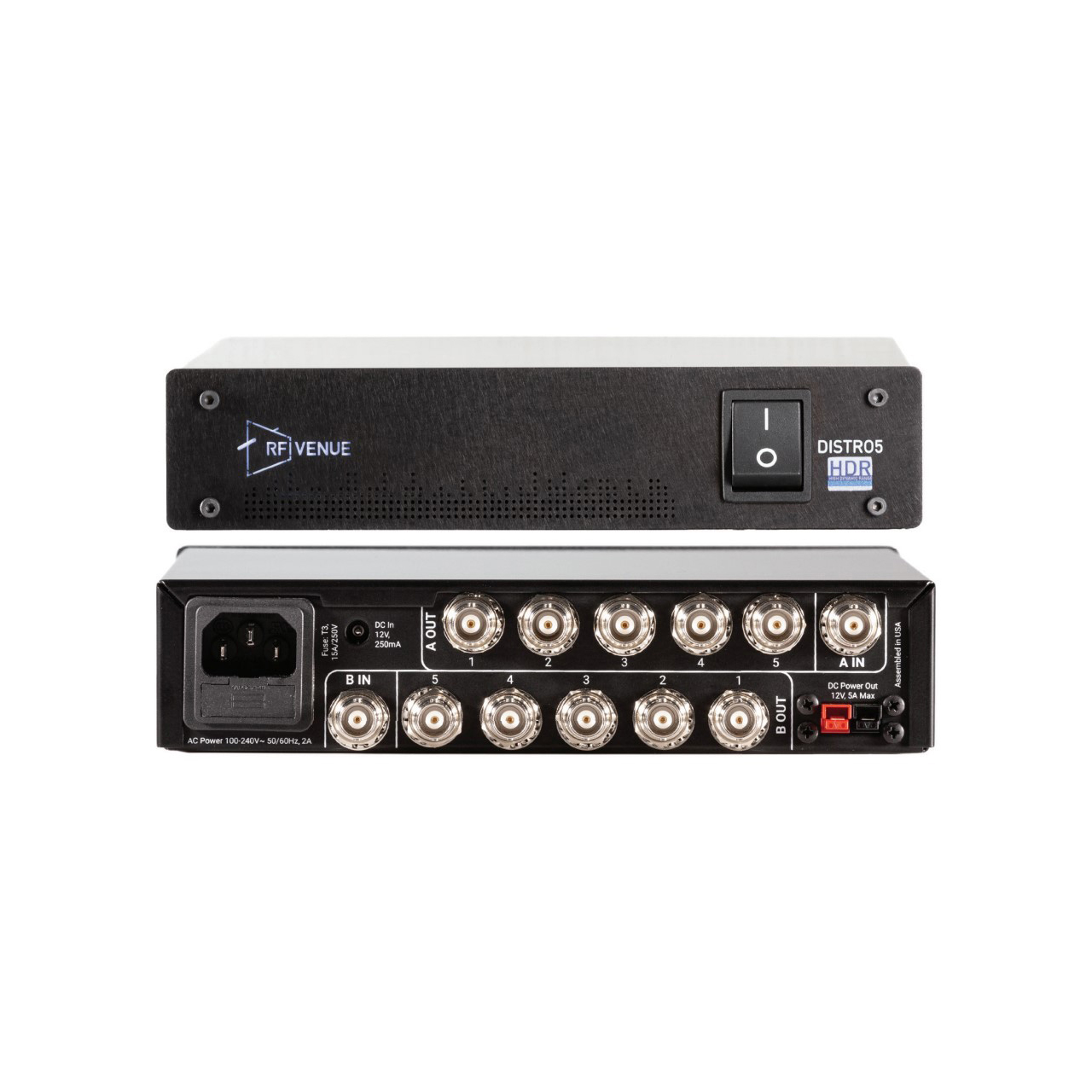

More About the DISTRO5 HDR

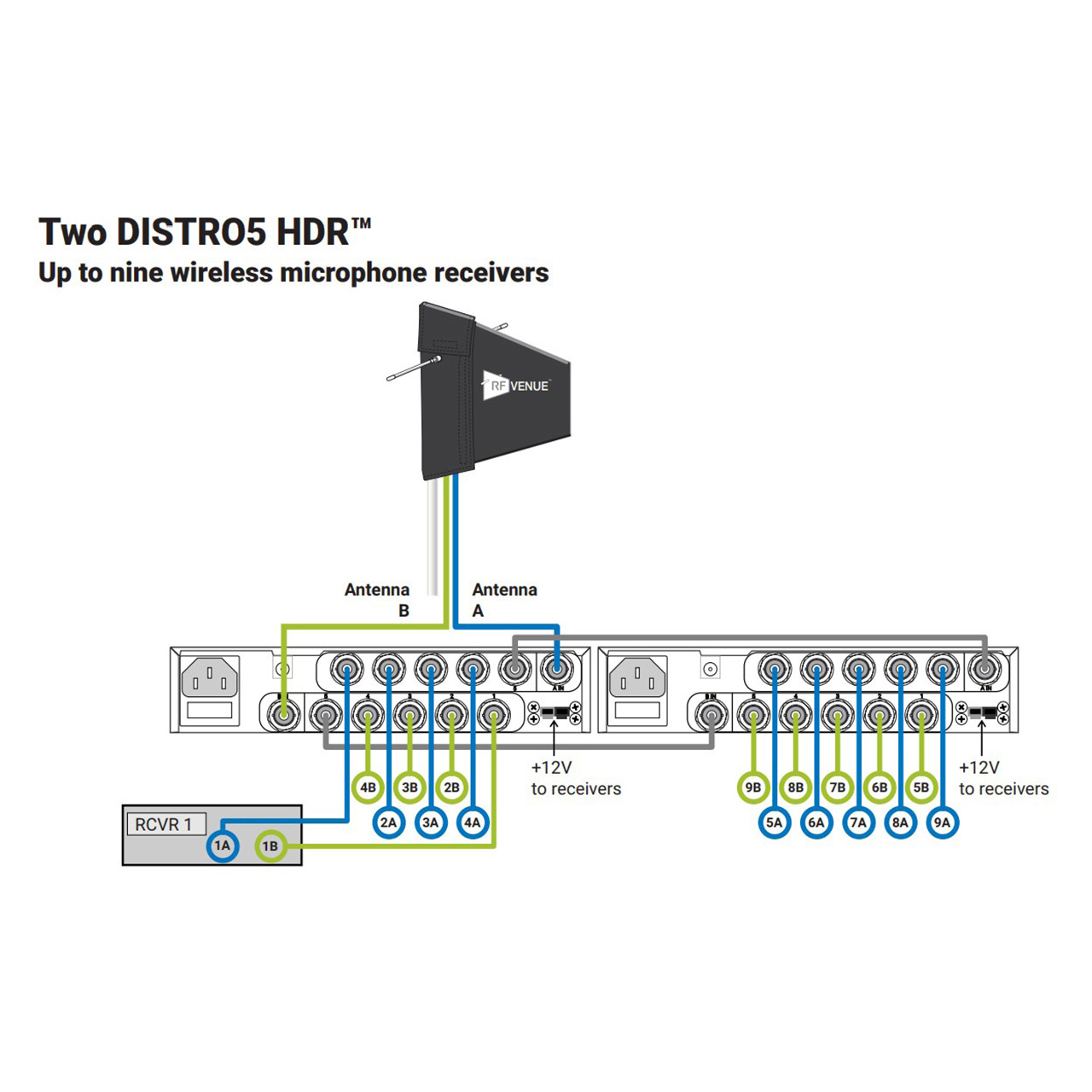

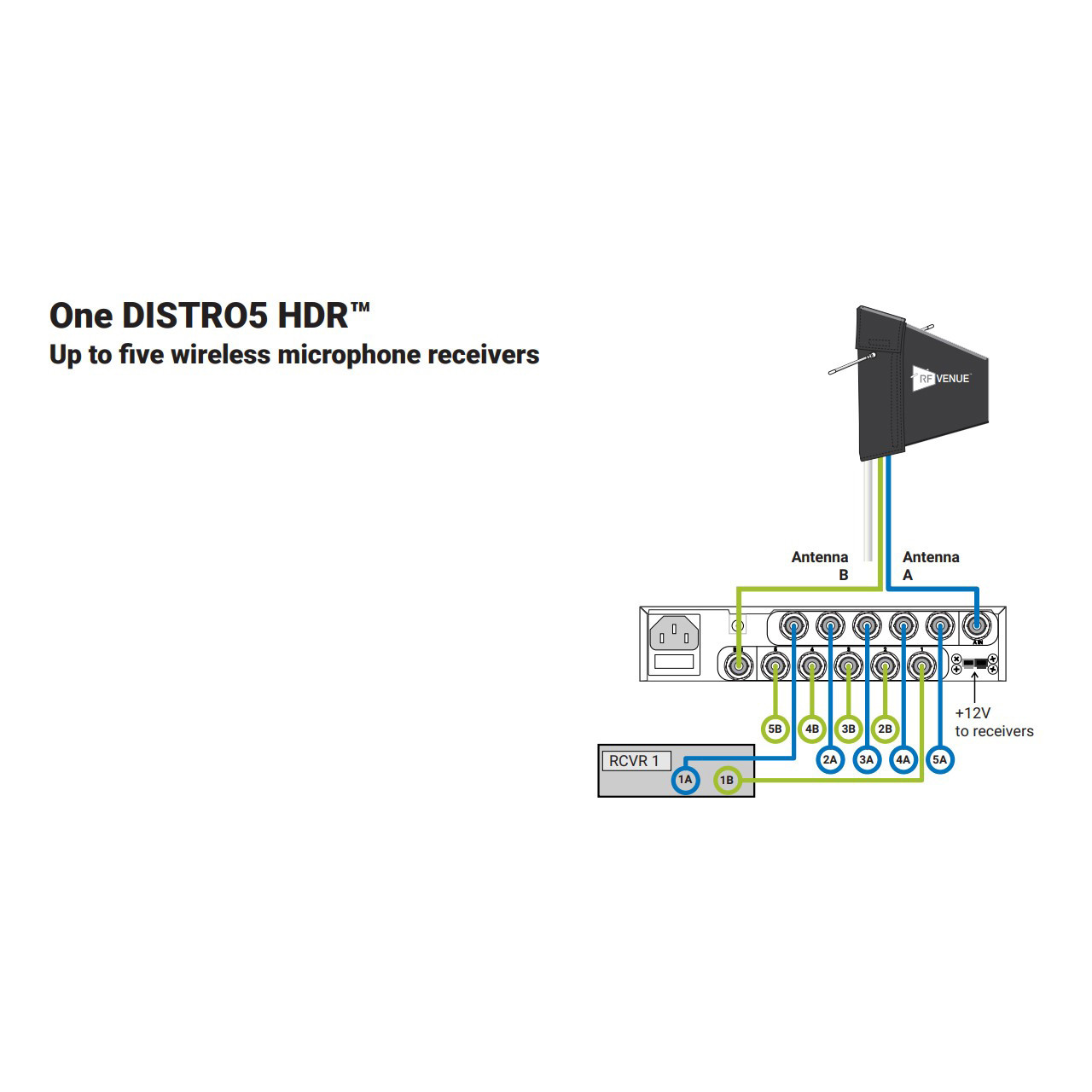

The DISTRO5 HDR is RF Venue's newest and highest performance antenna and power distribution platform for any brand wireless microphone system. Building on the success of the DISTRO4, the DISTRO5 HDR delivers even better RF performance in a compact half-rack footprint. Multiple DISTRO5s can be cascaded together using the included joining plate hardware and available premium interconnect cable packages for up to 9 channels of wireless mics in a 1RU space.
In addition to clean, low noise RF signal distribution across the 470-698 MHz band, the DISTRO5 HDR is a highly capable power distribution system for powering wireless microphone receivers or other 12V DC rack equipment. The available Octopus power cable uses the DISTRO5's robust internal power supply to provide up to 5 amps of DC power to rack devices, eliminating wall warts and the need for dedicated rack power distribution. The DISTRO5 HDR also features a 12V DC power input for battery power operation for mobile sound cart applications.
More about the CP Architectural Antenna
The CP Architectural Antenna is a high performance antenna for installed in-ear monitor systems (IEMs). Featuring a slim profile enclosure, the CP Architectural Antenna can be installed on a wall or ceiling and can be painted to match any interior. Unlike LPDA or "paddle" antennas with a fixed polarization, the CP Architectural Antenna uses a unique circularly polarized design to provide excellent transmit signal coverage for IEMs with a highly polished and professional look that room designers and architects appreciate.
The CP Architectural antenna installs in minutes, with a wall or ceiling-mounted rear plate pre-drilled with multiple mounting hole options. The rear plate then simply connects to the front plate, secured with the included mounting screws. Simply connect the rear-mounted BNC terminated coaxial cable to your in-wall or in-ceiling coaxial cable run and the CP Architectural is ready for use.
