RF Venue D-ARCDISTRO4 Diversity Architectural Antenna Distribution Pack for Wireless Mics - 4 Channel

D-ARCDISTRO4 - Overview

• Features:

  • Two antennas in one package
  • Lower cost - easy installation
  • Blends into any background
  • Doesn't Drop Out


• Specifications:

  • Diversity Architectural Antenna
  • Operating frequency: 470-698 MHz
  • Bandwidth: 146 MHz
  • Impedance: 50&Ohm;
  • Average return loss: -6.4 dB
  • Pattern Type: Diversity Flood
  • Gain: 3 dBd
  • Polarization: Linear
  • Dimensions: 11 x 11 x 2" (280 x 280 x 50mm)
  • Weight: 2lbs / 0.9kg
  • Mount Location: Wall or Ceiling
  • Operating Temperature: 14 to 104°F (-10 to 40°C)
  • Color: White
  • Connector: BNC female


  • DISTRO4™ Antenna Distribution System
  • Frequency Range: 470-952 MHz
  • RF Output Level (gain): 3 dB (±2 dB)
  • Cascade Output Level: 0 dB to ±2 dB
  • Output Connection Isolation: ≥ 25 dB
  • Third Order Intercept Point: 24 dBm
  • Impedance: 50 Ω
  • Power Consumption: 60 W
  • Input AC Voltage: 100 to 24 V switching
  • DC over coax (to external antennas): 12 to 14 VDC
  • Output DC voltage (to receiver jacks): +12V to 1A x4
  • Output DC Connectors: 0.21" OD, 0.08" ID (5.5mm OD, 2.1mm ID)
  • Dimensions W x G x D: 19 x 2 x 10" (480 x 45 x 250mm0
  • Weight: 2.15 Kgs / 4.75lbs

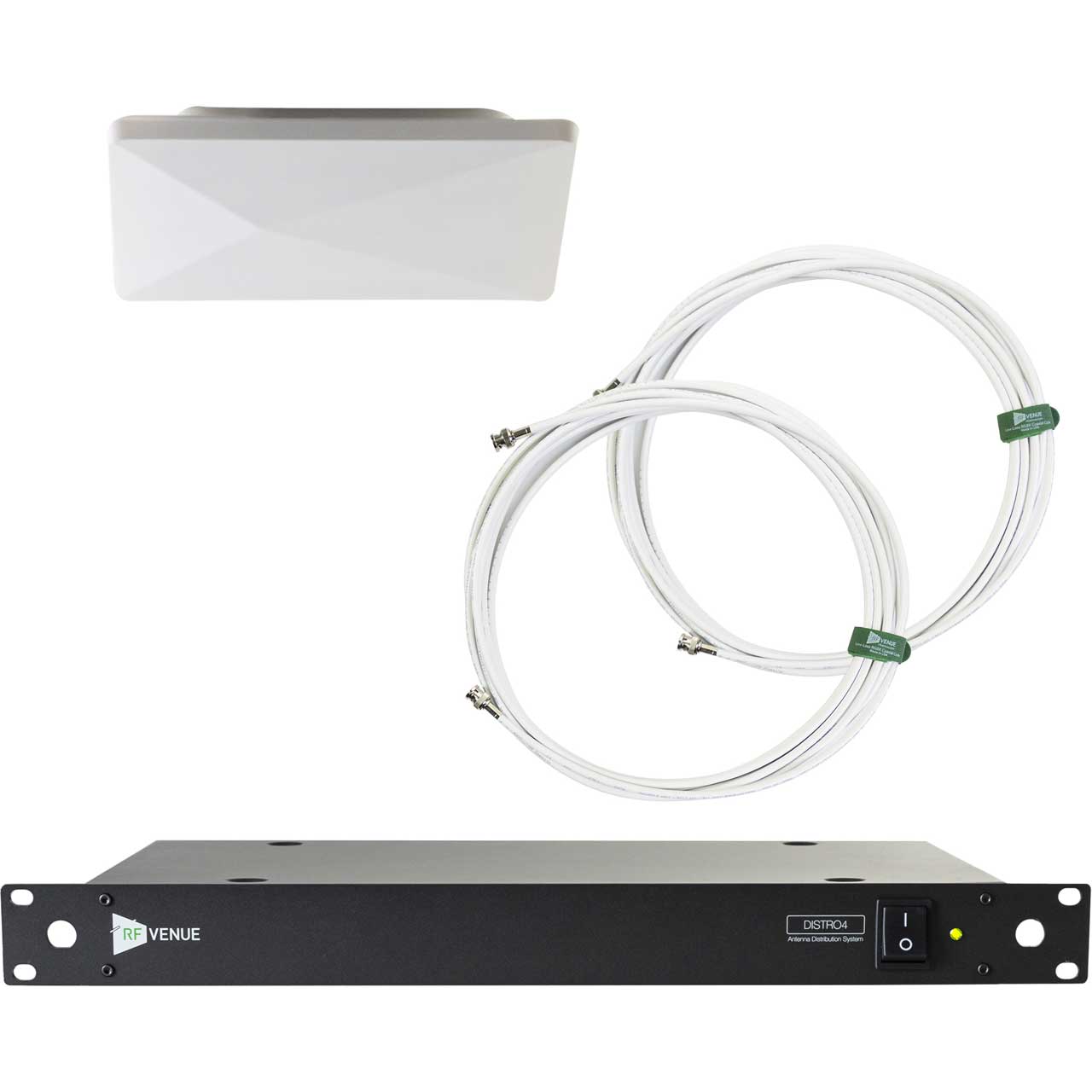

• Item Includes:

  • 1x Diversity Architectural Antenna
  • 1x DISTRO4 Antenna Distribution system with (10) BNC jumpers, (4) DC jumpers, and (1) AC power cord
  • 1x Two White 25' RG8X BNC cables
