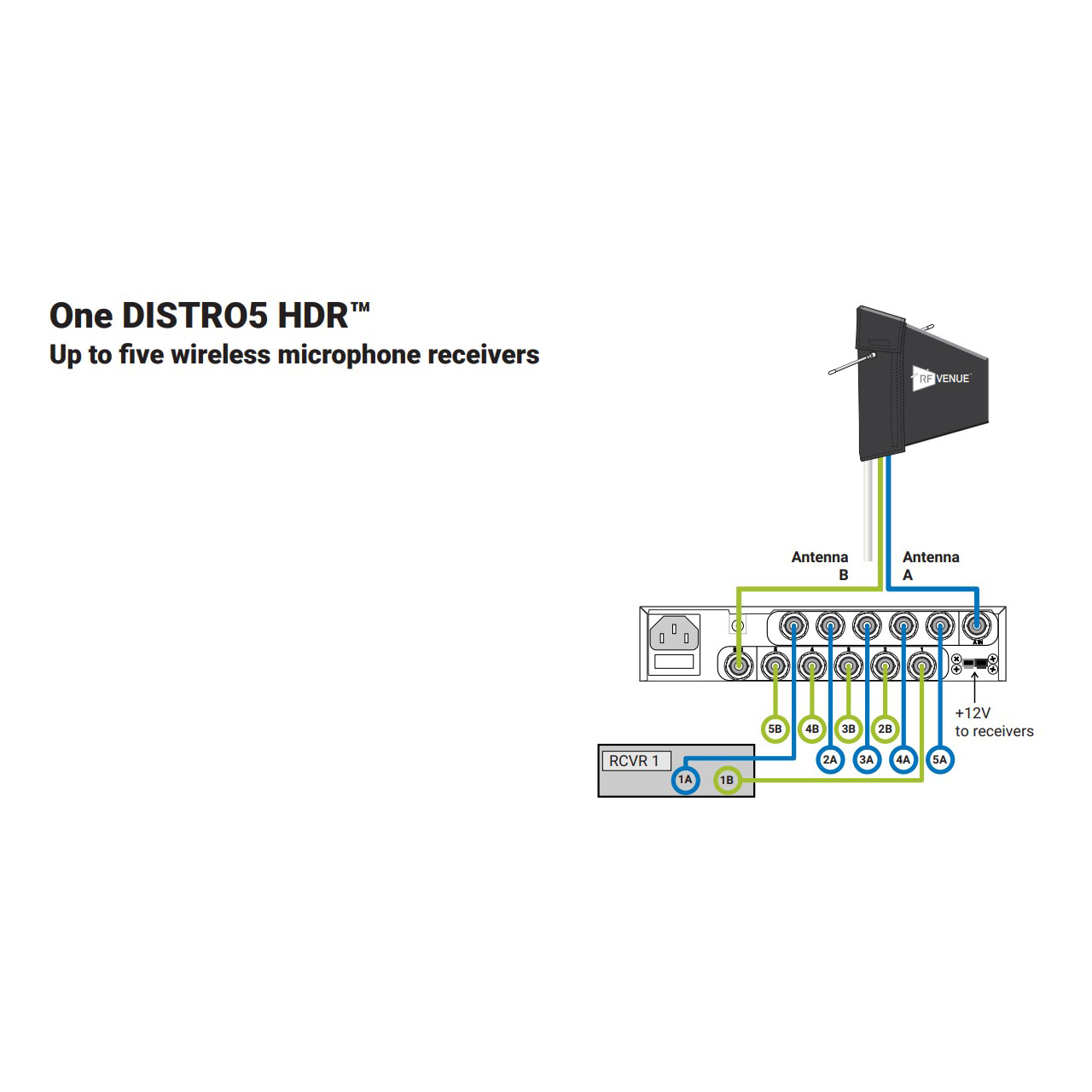

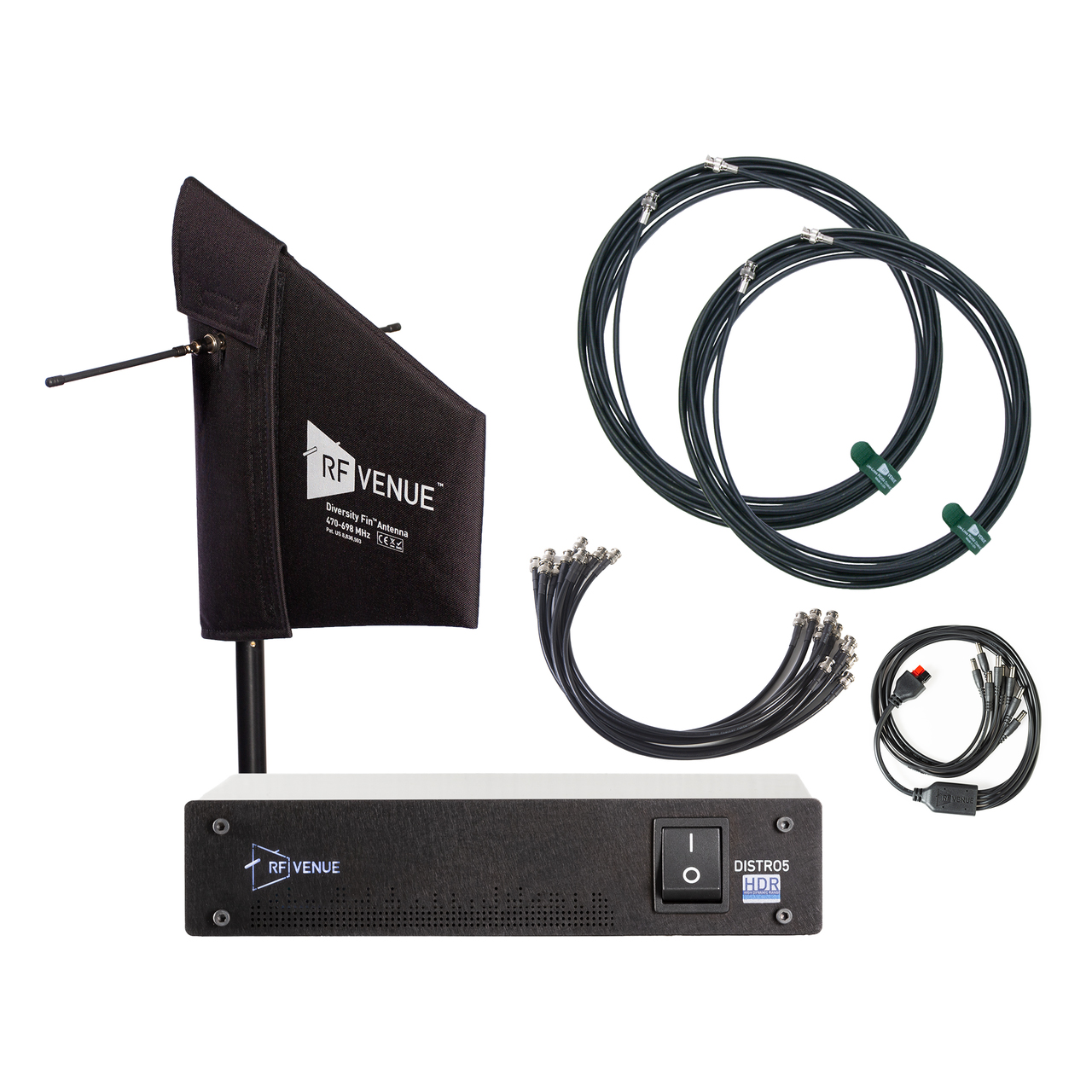

The DFIND5 bundle contains everything needed to configure up to 5 channels of wireless microphones with industry-leading essential components in a compact footprint. Carefully designed to work together, the Diversity Fin Antenna and DISTRO5 HDR deliver your wireless microphone receivers clean, low noise RF with plug and play simplicity and design. Each element of the bundle is meticulously designed to work seamlessly together, ensuring optimal audio quality and signal stability, with no RF engineering expertise required.
The centerpiece of the bundle is the Diversity Fin Antenna, renowned for its exceptional ability to mitigate signal dropouts and maintain a strong signal in challenging RF environments. Its innovative design features multiple antenna elements that work in conjunction to maximize signal reception and minimize dropouts. The antenna's compact size and included mounting hardware make it easy to install on a wall, providing good line of sight to your wireless system and staying out of the way of performers and technicians. For additional wall and ceiling-mount applications, be sure to check out the Diversity Architectural Antenna bundles.

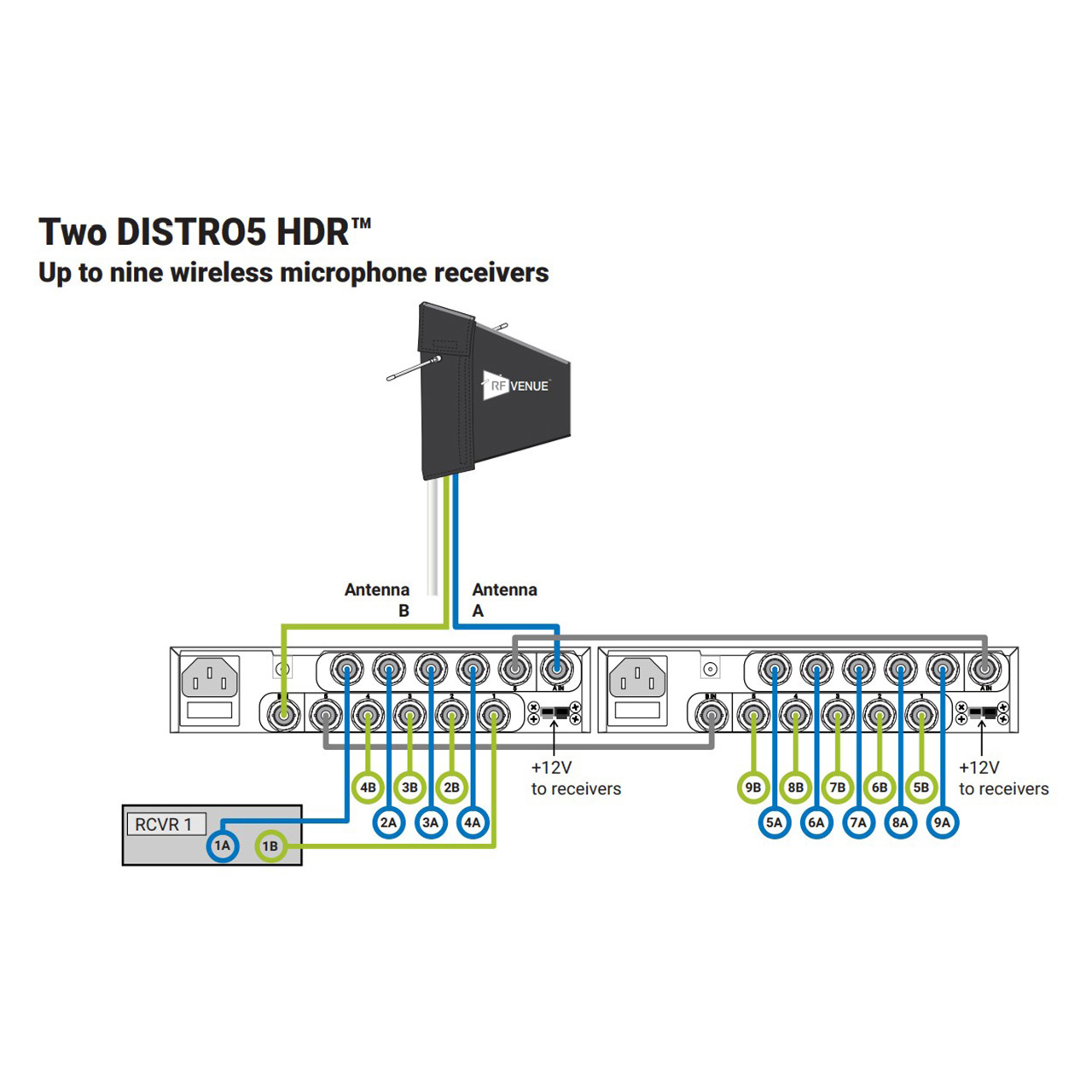

Complementing the Diversity Fin Antenna is the DISTRO5 HDR, a high-quality distribution amplifier specifically engineered for wireless microphone systems. Building on the success of the DISTRO4, the DISTRO5 HDR delivers even better RF performance in a compact half-rack footprint. Multiple DISTRO5 HDRs can be cascaded together using the included joining plate hardware for up to 9 channels of wireless mics in a 1RU space.
In RF system design, even the smallest details are critical. That's why RF Venue's 5 Channel Wireless Mic Pack includes double shielded coaxial cabling that is terminated and quality controlled in-house by RF Venue engineers. A multi-channel wireless microphone system is a major investment, to get the most out of that investment, including top quality interconnects and antenna cables are a must.
With tens of thousands of successful deployments in diverse environments - churches, schools, stadiums, TV/film productions, RF Venue's expertise in engineering wireless essentials that "just work" is world renowned.
More About the DISTRO5 HDR

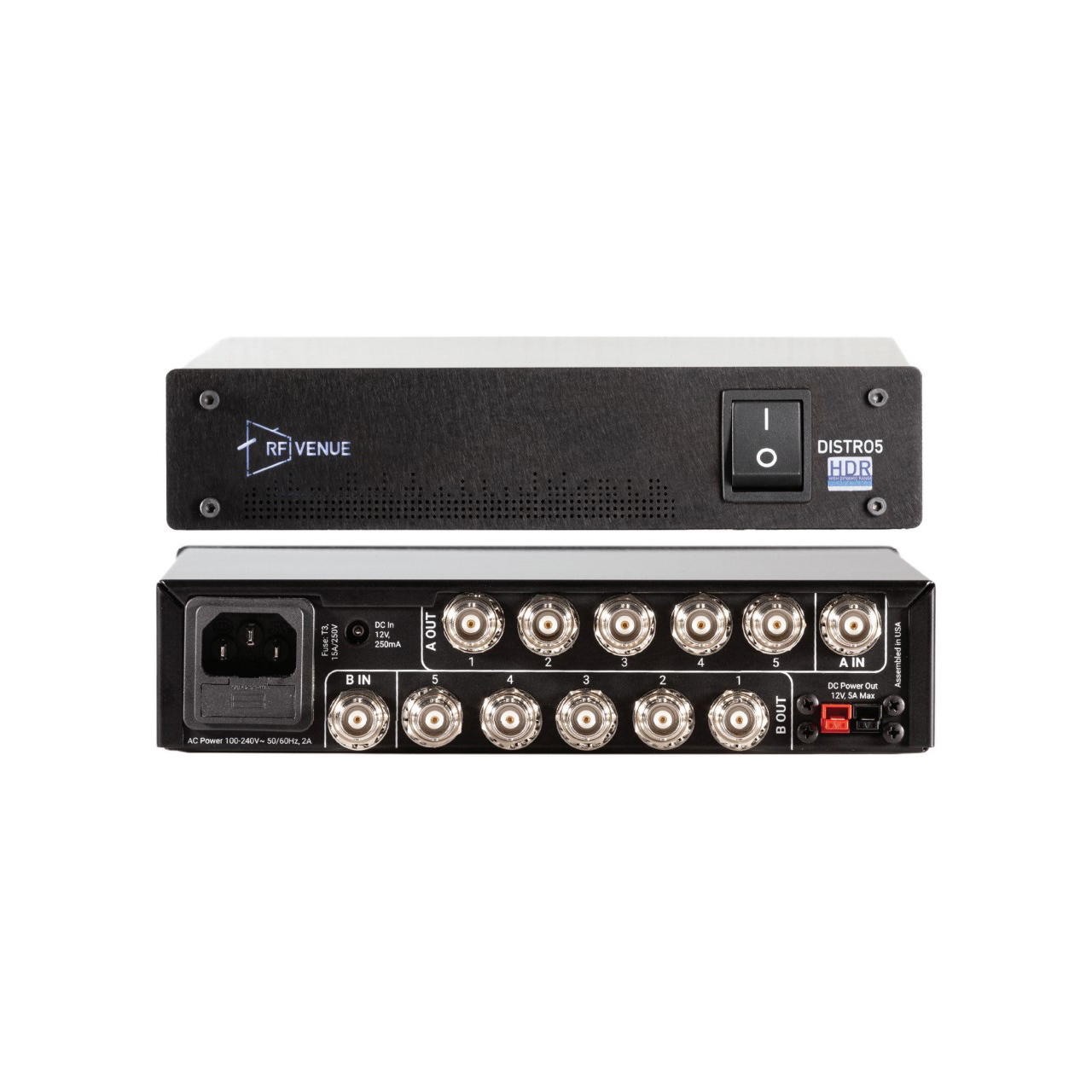

The DISTRO5 HDR is RF Venue's newest and highest performance antenna and power distribution platform for any brand wireless microphone system. Building on the success of the DISTRO4, the DISTRO5 HDR delivers even better RF performance in a compact half-rack footprint. Multiple DISTRO5s can be cascaded together using the included joining plate hardware and available premium interconnect cable packages for up to 9 channels of wireless mics in a 1RU space.
In addition to clean, low noise RF signal distribution across the 470-698 MHz band, the DISTRO5 HDR is a highly capable power distribution system for powering wireless microphone receivers or other 12V DC rack equipment. The available Octopus power cable uses the DISTRO5's robust internal power supply to provide up to 5 amps of DC power to rack devices, eliminating wall warts and the need for dedicated rack power distribution. The DISTRO5 HDR also features a 12V DC power input for battery power operation for mobile sound cart applications.
More About the Diversity Fin Antenna

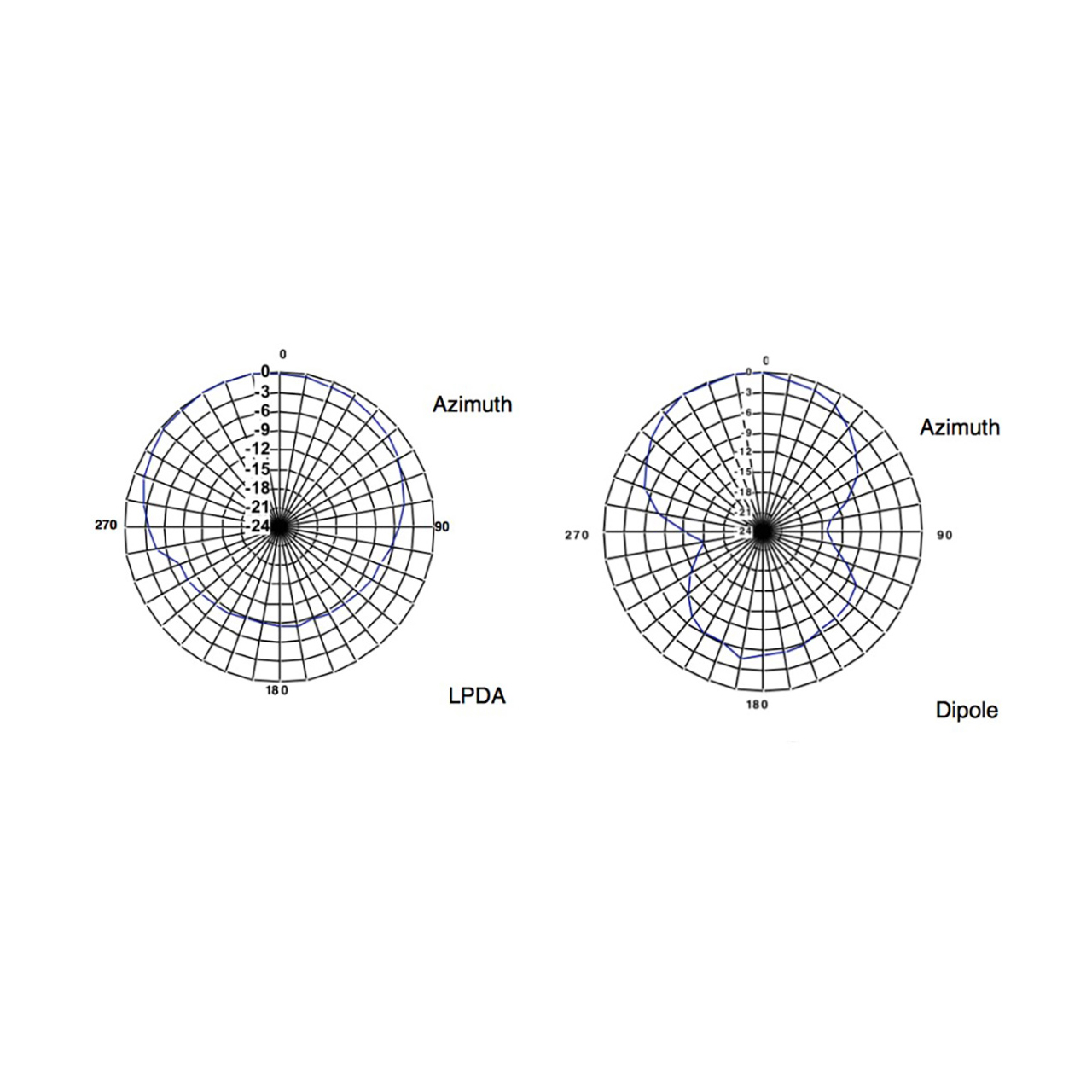

The Diversity Fin® Antenna is a multi-purpose antenna for wireless microphones that reduces or eliminates signal dropouts by using our patented cross-polarized design. It provides a diversity solution in a single package by combining one log-periodic dipole array (LPDA) and one dipole antenna in an orthogonal (right angle) configuration. One element captures vertically polarized signals, and the other horizontally polarized signals.
Unlike traditional "paddle" or "shark fin" antennas, the Diversity Fin allows receivers to see a constant signal regardless of microphone orientation - allowing the user to hold a wireless microphone in any position relative to the antenna. A single Diversity Fin provides superior coverage to two traditional, shark fin antennas, allowing savings as well as reduced time to installation.
