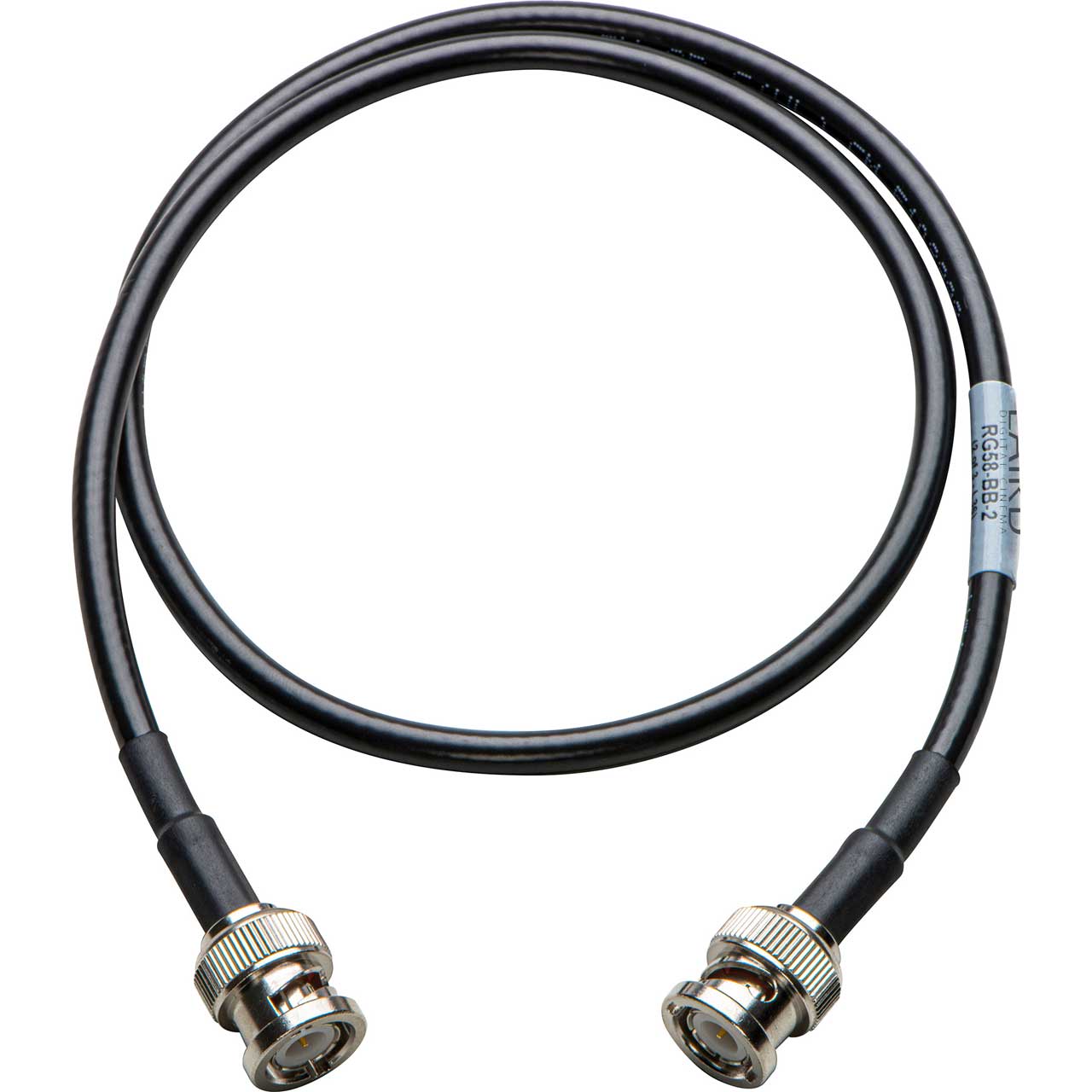

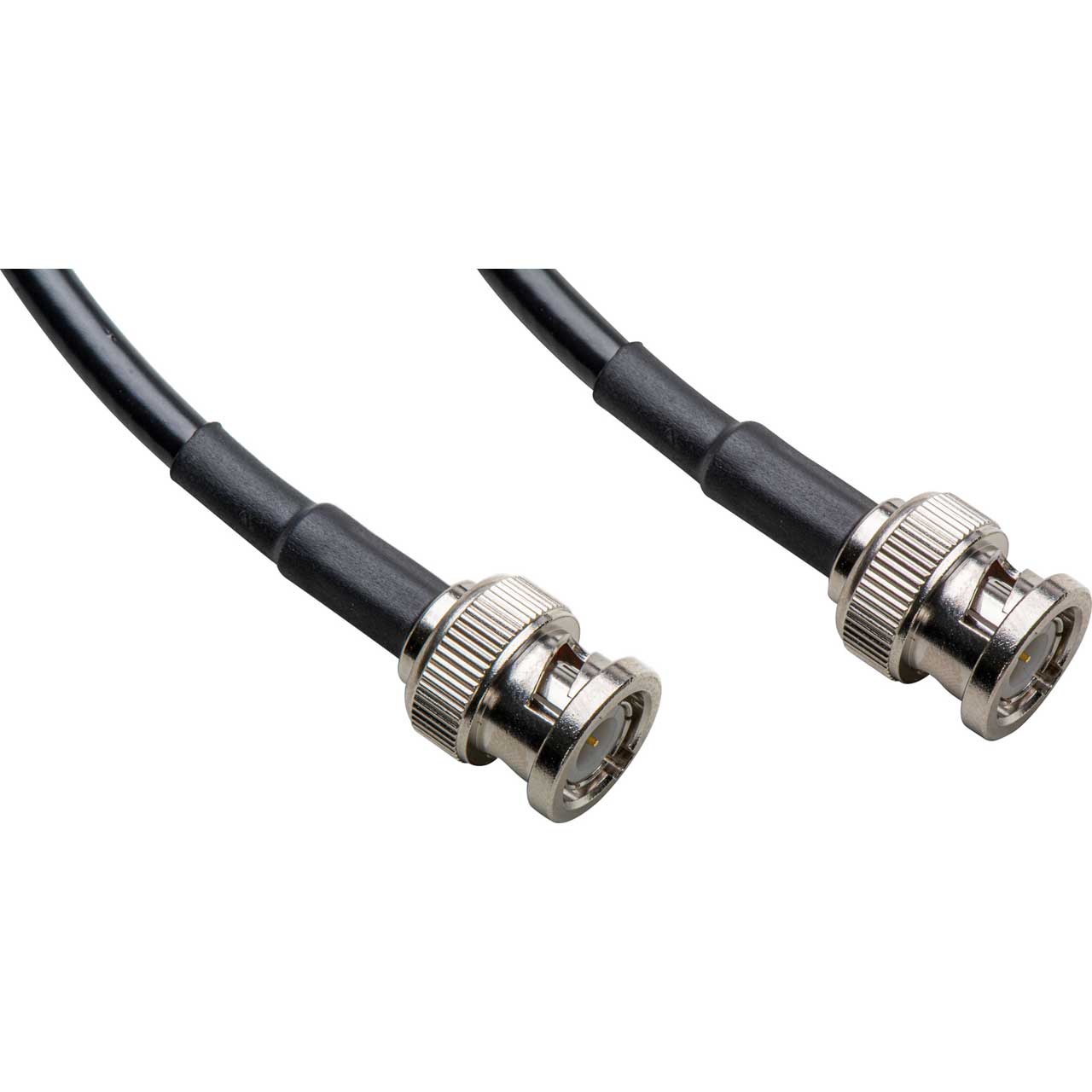

Laird RG58 50 Ohm BNC Male to Male Antenna Cable - 75 Foot

RG58-BB-75 - Overview

RG58 50 Ohm BNC Male to Male Cable

• Features:

  • Pre-terminated 50 Ohm BNC coax assemblies
  • Utilizes RG58 cable
  • Designed for RF applications
  • Balances signal attenuation and power handling
  • Suitable for shorter runs
  • Commonly used in communications patch bays
  • Ideal for mobile and base antenna installations
  • RoHS Compliant


• Specifications:

  • NEC UL Rating: CM
  • Applications: 50 Ohm Systems
  • Bend Radius: 1.95"
  • Conductors: 1
  • AWG Size: 20
  • Stranding: Solid
  • Conductor Type: Tinned Copper
  • Insulation: Foam Polyethylene
  • Insulation Nom. O.D.: 0.116"
  • Shield Type: 100% Aluminum Foil + 95% Tinned Copper Braid
  • Vel. of Prop.: 80% Nom. D.C.R. (Resistance) 10.1 Ohm/1000ft
  • Jacket Type: PVC
  • Nom. Impedance: 52 Ohm


• Warranty:

  • 1 Year
