Tripplite RS-0615-R 1RU Rackmount Power Strip with 6 Rear Facing Outlets and 15ft Cord

ITEM #: RS-0615-R MFG #: RS-0615-R

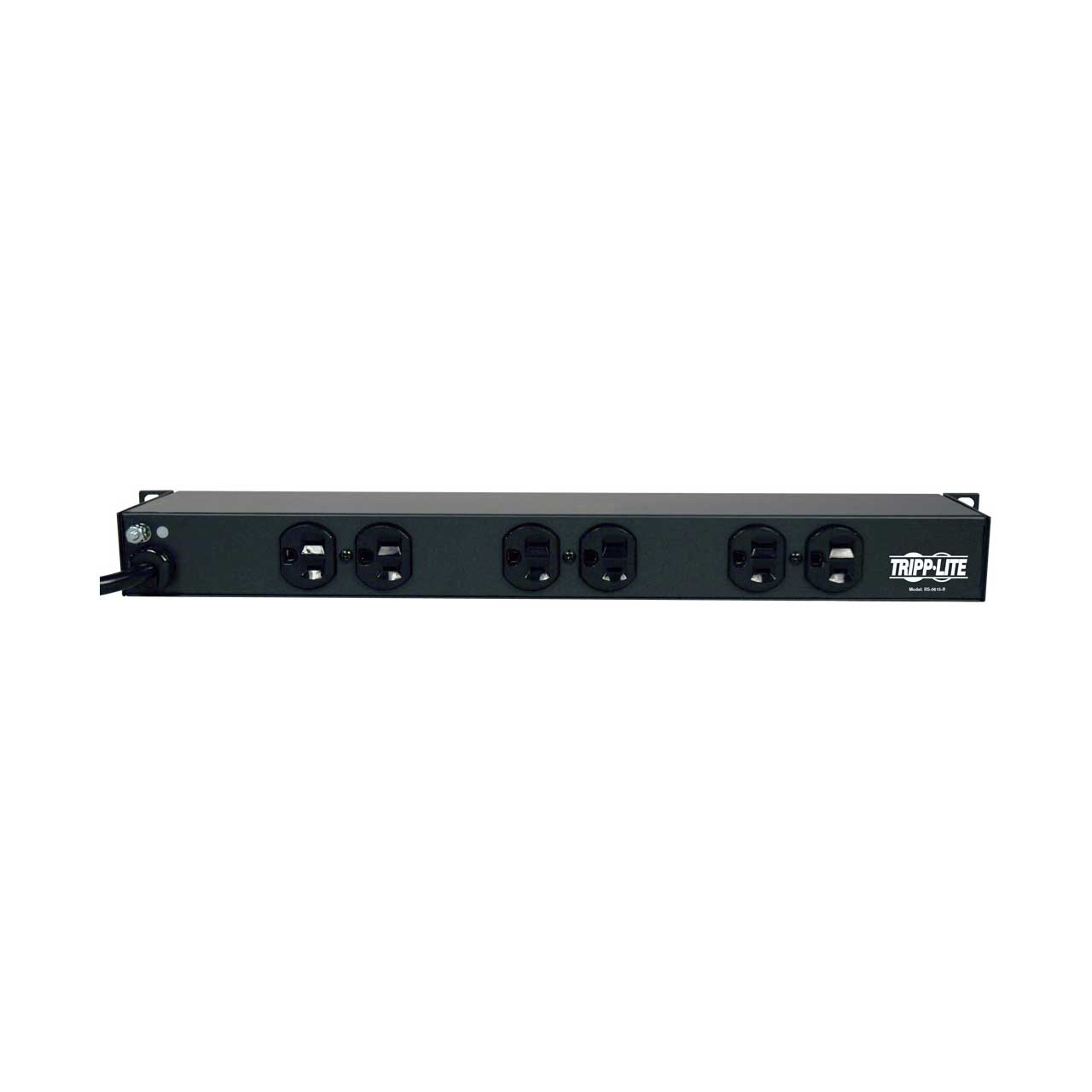

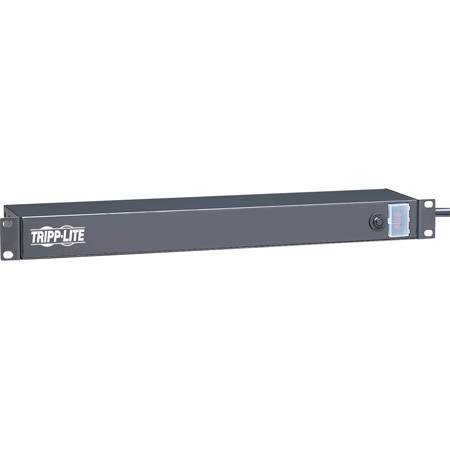

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Tripp Lite
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$117.60

Our Price:

$81.00

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

RS-0615-R - Overview

Tripp Lite's RS-0615-R power strip offers 15 amp capacity AC power distribution in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch rack meeting EIA standards. Unfiltered electrical pass-through makes RS-0615-R ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 6 rear-facing NEMA5-15R outlets, 15 ft AC power cord and lighted switch with latching safety cover prevents risk of accidental turn-off.

  • Features:

    • Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options
    • Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks)
    • Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment
    • 6 rear facing NEMA5-15R output receptacles
    • 15 foot AC cord NEMA5-15P plug connection
    • Lighted power switch confirms power on/off status
    • Latching switch guard prevents accidental turn off
    • 15 amp electrical capacity with circuit breaker
    • 120VAC, 50/60Hz electrical compatibility


  • Specifications:

    • Output/Input
    • Frequency Compatibility: 50 / 60 Hz
    • Output Receptacles: (6) 5-15R
    • Circuit Breaker (amps): 15
    • Nominal Input Voltage(s) Supported: 120V AC
    • Recommended Electrical Service: 15A 120V
    • Input Connection Type: NEMA 5-15P
    • Input Cord Length (ft.): 15
    • Voltage Compatibility (VAC): 120
    • Switches: Red illuminated 2 positon switch controls power to all outlets
    • Locking Switch Cover: Transparent locking switch cover prevents accidental shutoff

      General
    • Shipping Dimensions (hwd / in.): 2.500 x 9.400 x 20.400
    • Shipping Weight (lbs.): 5.1000
    • Unit Dimensions (hwd / in.): 1.75 x 17.5 x 4.5
    • Unit Weight (lbs.): 4.5
    • Material of Construction: Sheet metal
    • Receptacle Color: Black
    • Color (AC Line Cord): Black
    • Form Factors Supported: 1U rackmount, wall-mount and undercounter installation supported
    • Outlets Measurement (Center to Center): Distance between grouped outlets = 38.90mm; Distance between groups = 75.4mm; Distance between duplex outlets = 114.3mm
    • Certifications: NOM (Mexico); UL1363 (Power Tap); cUL
    • Product Warranty Period (Worldwide): Lifetime limited warranty


  • Warranty:

    • Lifetime


  • GTIN:

    0037332115638
