Sachtler 0383A FSB MK II System with FSB 4 Fluid Head / 75/2 AL Mk II Tripod / Flowtech 75 Mid-Level Spreader

ITEM #: SACH-0383A MFG #: 0383A

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,685.00

Our Price:

$1,600.75

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


0383A - Overview

When you need quick set up and precise balancing while using a smaller camera, the Sachtler 0383A FSB MK II System ensures you don't have to compromise on performance. Speedbalance technology finely balances any camera payload from 0kg up to 4kg (8.8lbs), while the snap and go side loading mechanism with a sliding range of 120mm (4.7in) makes mounting and positioning accessorised handheld cameras and DSLRs simple.

Create precision pans with smooth starts and soft stops. Patented Sachtler drag always gives you subtle and smooth movement. Three horizontal and vertical drag settings help you to tune the drag to your payload.

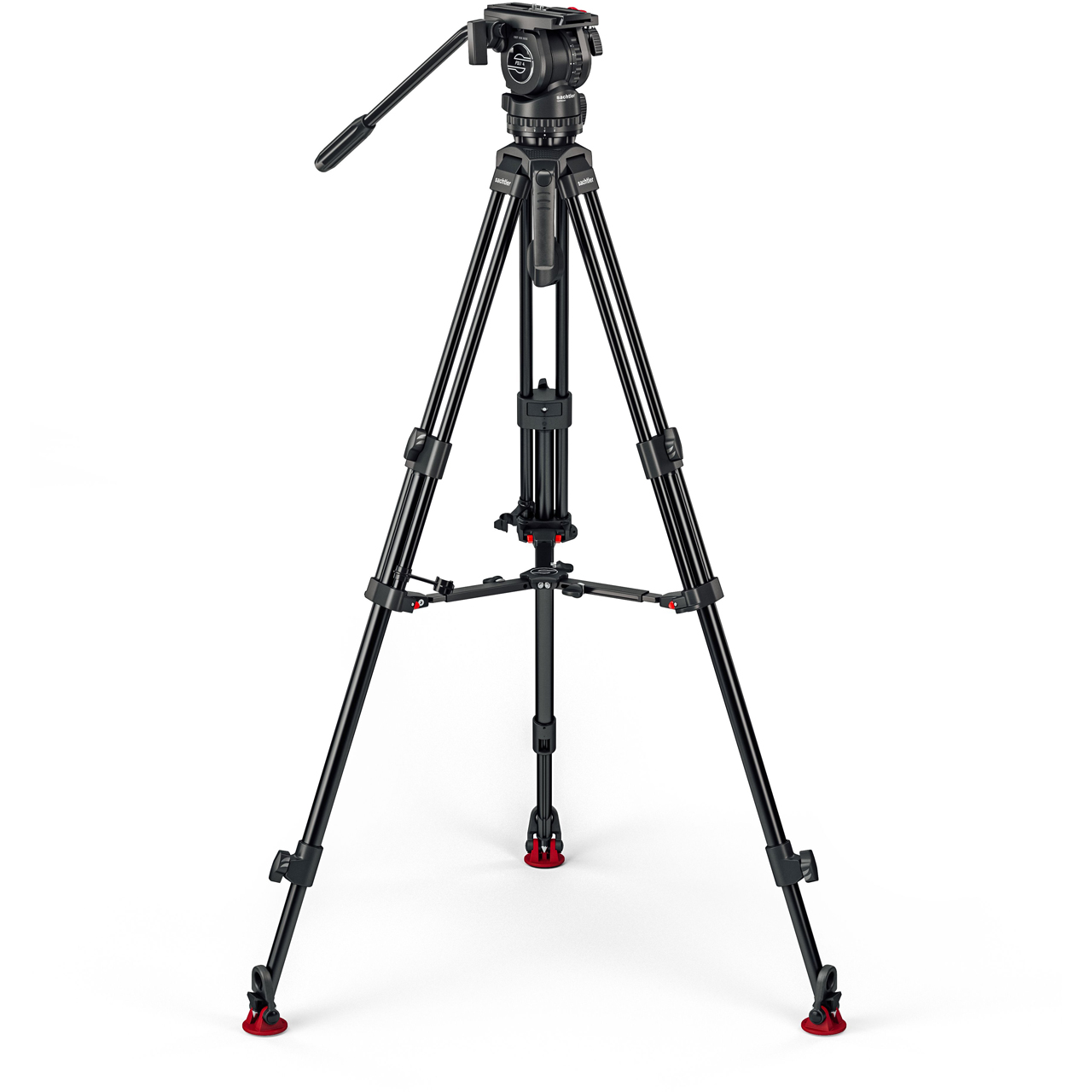

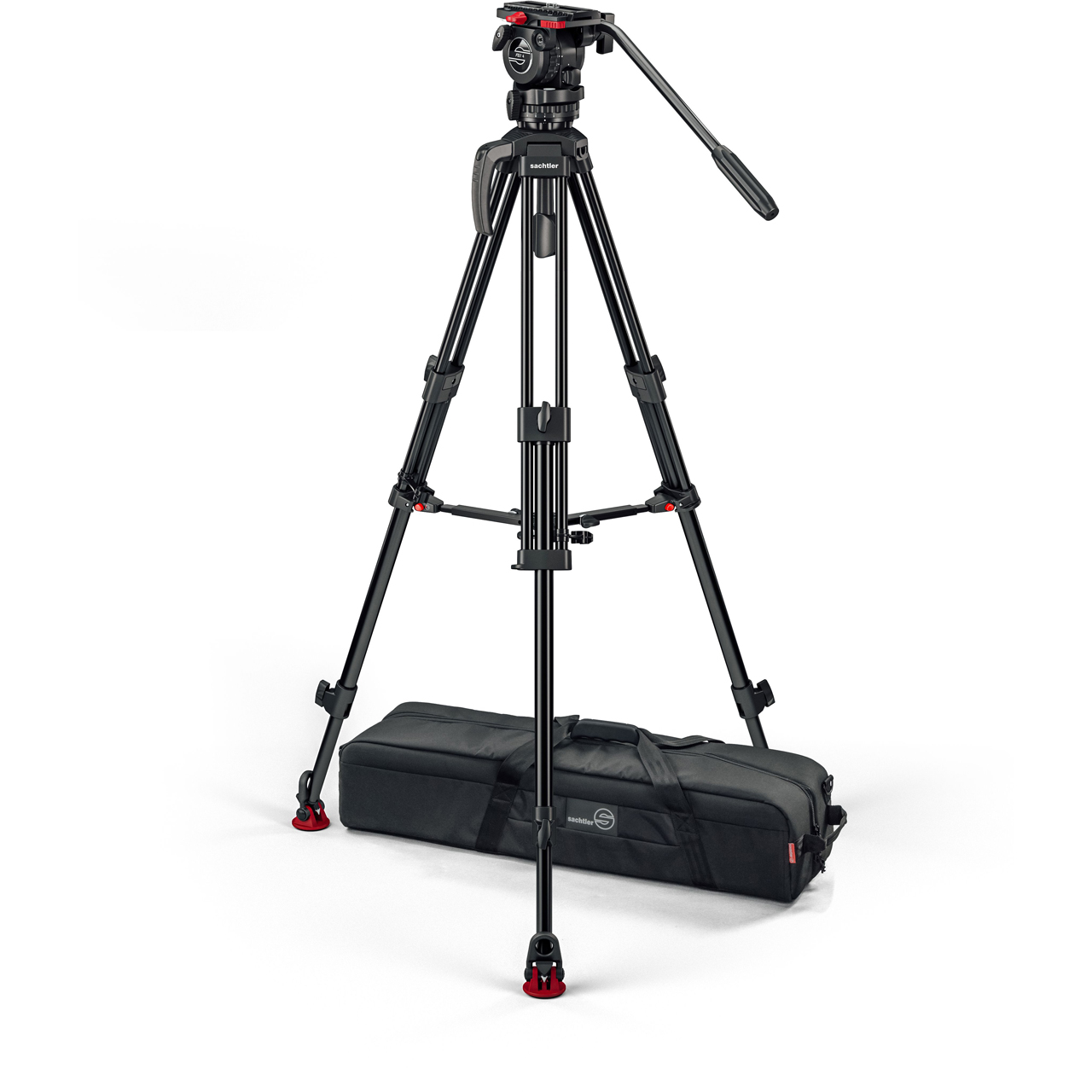

The System includes a lightweight 2-stage aluminum 75mm tripod that's portable without sacrificing strength. With three 3/8" accessory mounting points on the tripod bowl you can add extra accessories like a Magic Arm and attach the included carry handle to help move the system around one-handed. The detachable mid-level spreader provides stability even on rough ground, and a padded bag is included for transportation.

Engineered to the highest standards with tough materials and precision components, FSB is built for endurance. With no variation in performance in the widest range of temperatures and environments, FSB is the first choice for busy operators.

  • Features:

    • FSB 4 system with 2-stage aluminum tripod
    • Smooth operation ­ Create precision pans with smooth starts and soft stops
    • Finely balanced ­ Delivering smooth pan-tilt fluid actions to match any camera payload from 0kg
    • Built for endurance - Engineered to the highest standards with tough materials and precision components
    • Mid-level spreader, carry handle and padded bag included

  • Specifications:

    • Payload: 0 - 8.8 lb (0 - 4 kg)
    • Counterbalance Steps: 5 + 0
    • Drag settings: 3 + 0
    • Weight: 11 lb (5 kg)
    • Height range: 31.1 - 66.9 in (79 cm - 170 cm)
    • Transport length: 34.3 in (87 cm)
    • Illumination: No
    • Number of pan bars: 1
    • Bowl size: 75 mm with Integrated Flat Base
    • Tripod Stages: 2
    • Tripod material: aluminum
    • Sliding range: 4.7 in (120 mm)
    • Camera Plate Interface: Sideload
    • Tilt Range: +90° to -70°
    • Temperature range: -40°F to +140°F (-30°C to +60°C)

  • Item Includes:

    • 1x FSB 4 fluid head
    • 1x 75/2 AL Mk II Tripod
    • 1x Mid-level spreader
    • 1x Rubber feet
    • 1x Carry handle
    • 1x Padded bag

  • Warranty:

    • 1-Year Warranty

  • GTIN:

    5060896407241
