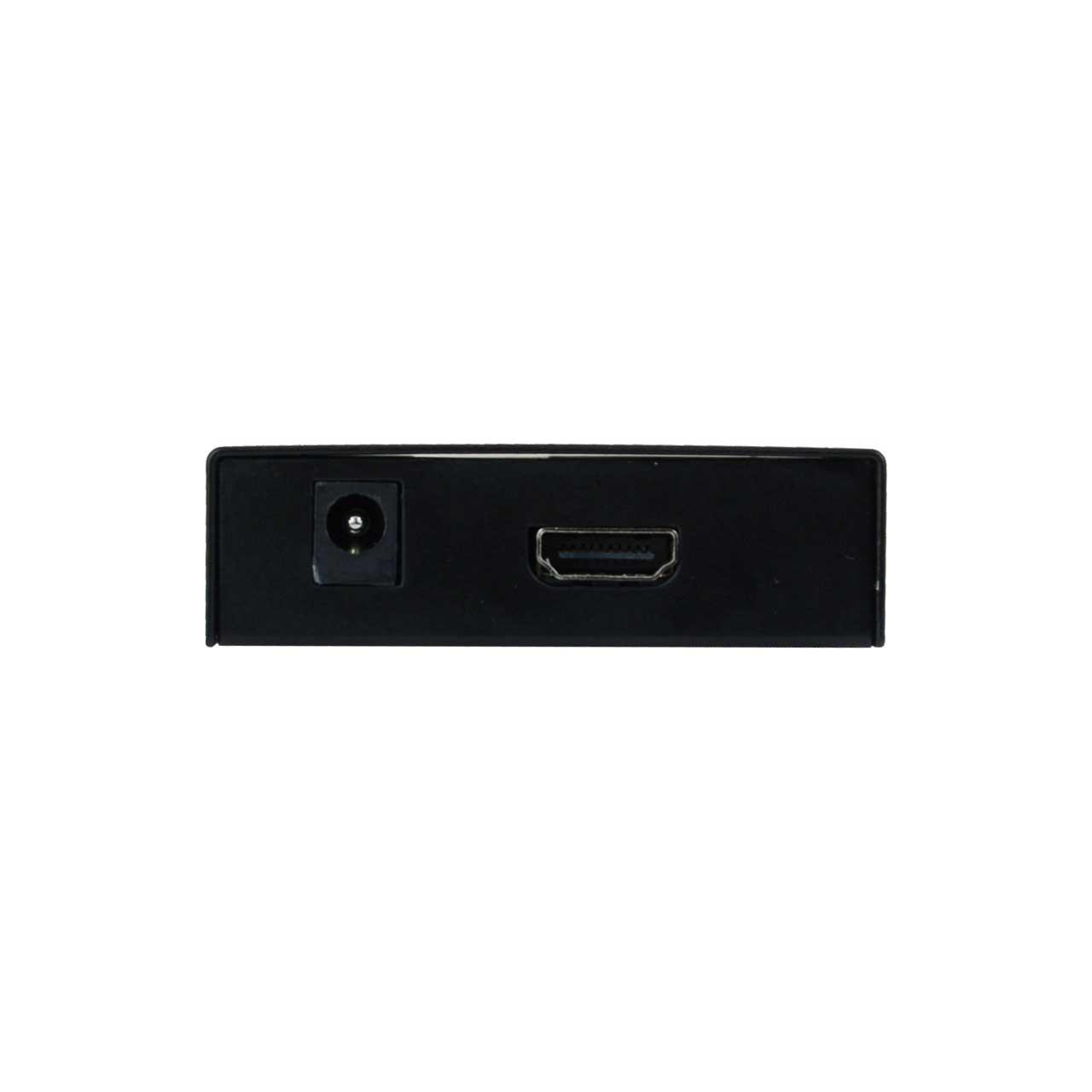

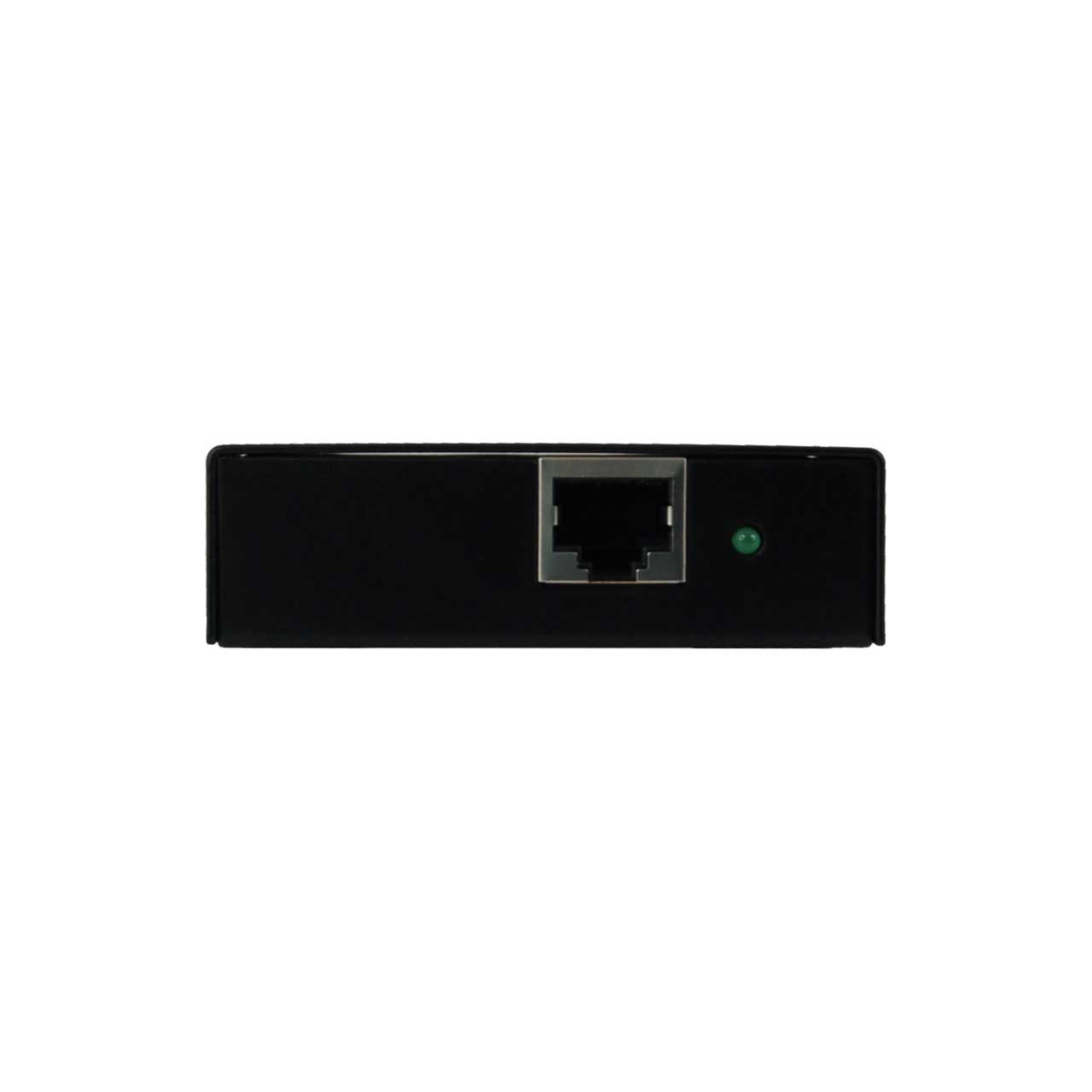

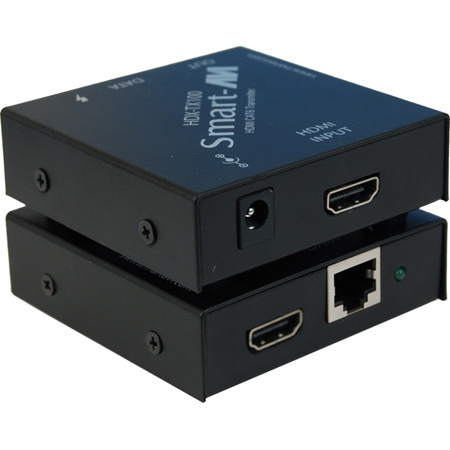

SmartAVI HDX-RX100S HDMI Over a Single CAT6 Cable - Receiver

ITEM #: SAVI-HDX-RX100S MFG #: HDX-RX100S

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$159.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


HDX-RX100S - Overview

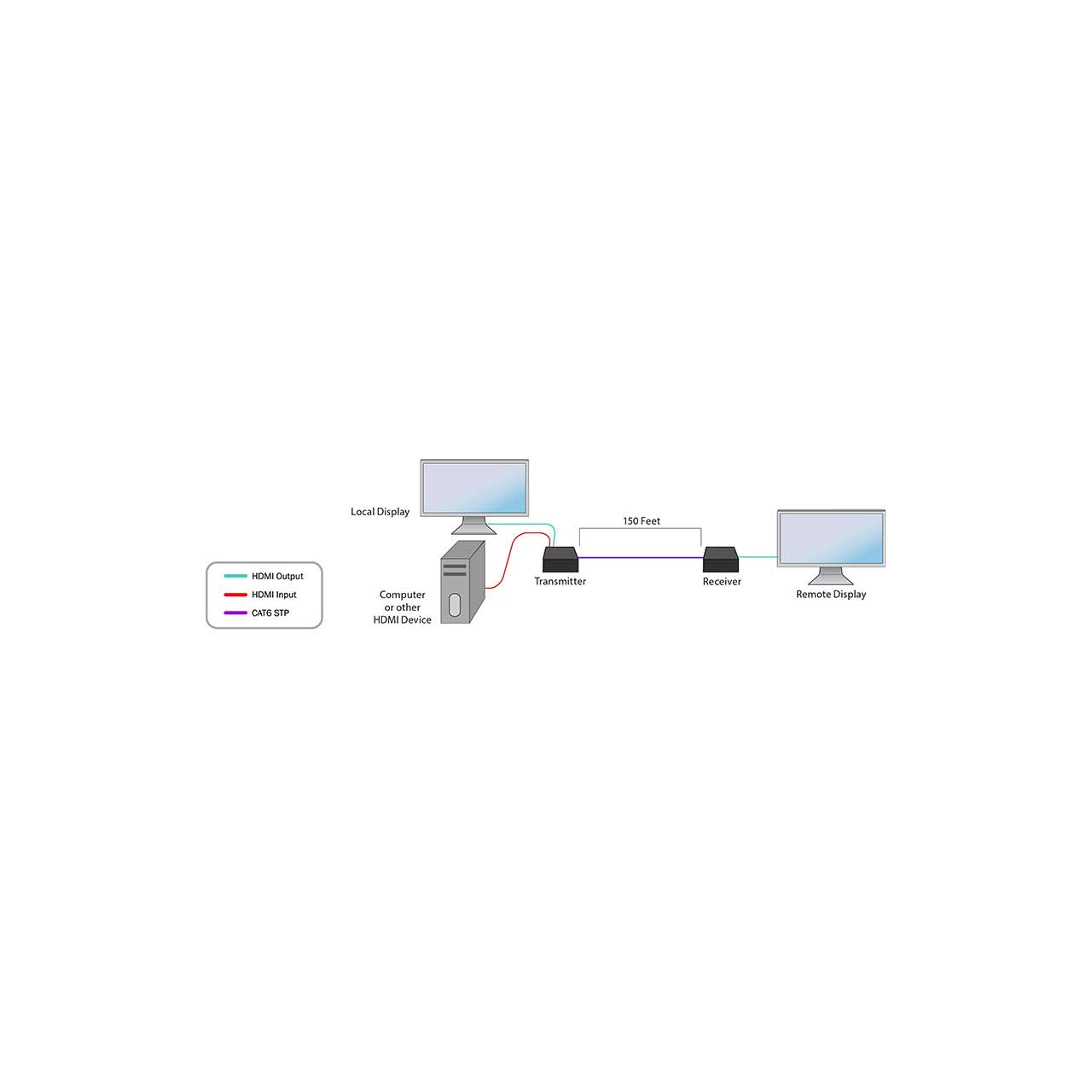

The HDX-400 Extends any HDMI Signal up to 150 Feet to Display Monitors and One Local Screen Using HDMI-to-Cat6 STP Cabling while Retaining High-Definition Images at 1080p up to 1920 x 1200 Resolution SmartAVI's HDX-400 is an innovative solution to extending any HDMI signal - be it a gaming console, Blueray player, computer, etc. - over inexpensive Cat6 STP cabling up to 150 feet away to one to three remote displays and one local screen for real-time monitoring of content. This is the perfect solution for broadcasting high-definition content easily and inexpensively from a source to display screens for customers to view while keeping the CPU in a remote, secure location such as a computer room or back office of a business. Utilizing the HDX-400, you can monitor what's being shown to your customers in real-time via a local display as you retain full control over the CPU or HDMI source, accessible only by key personnel. The HDX-400 is a compact, dynamic unit that is small and easily integrated into a digital display network such as in a retail store or bar/lounge. The transmitter and receiver units are extremely compact, which makes inclusion into your infrastructure very simple and handy.

  • Features:

    • Compact Transmitter/Receiver Units Local HDMI Output Perfect Image Quality at all Resolutions (1920 x 1200, 480p, 720i, 720p, 1080i, 1080p) Video Resolutions up to 1920 x 1200 at 60Hz (1280 x 1024 at 75Hz) on all Distances to the Maximum Limit Bandwidth to 1.64Gps Automatic DDC Learning from Local Monitor Unit Operates Regardless of Local Monitor Connectivity Distances up to 150 Feet using Cat6 STP Cabling Compatible with all Operating Systems Plug-and-Play - No Software Required

  • Specifications:

    • Resolution 1920 x 1200 @ 60Hz Input Interface HDMI (Single Link) Upgradeable Onboard Flash Power Supply Universal Switch Mode PSU(90-240 Input) 5VDC Dimensions 3.75"W x 5.00"L x 8.75"H

  • Item Includes:

    • HDX-400 PS5VD2A
