SC100SSJ - Overview

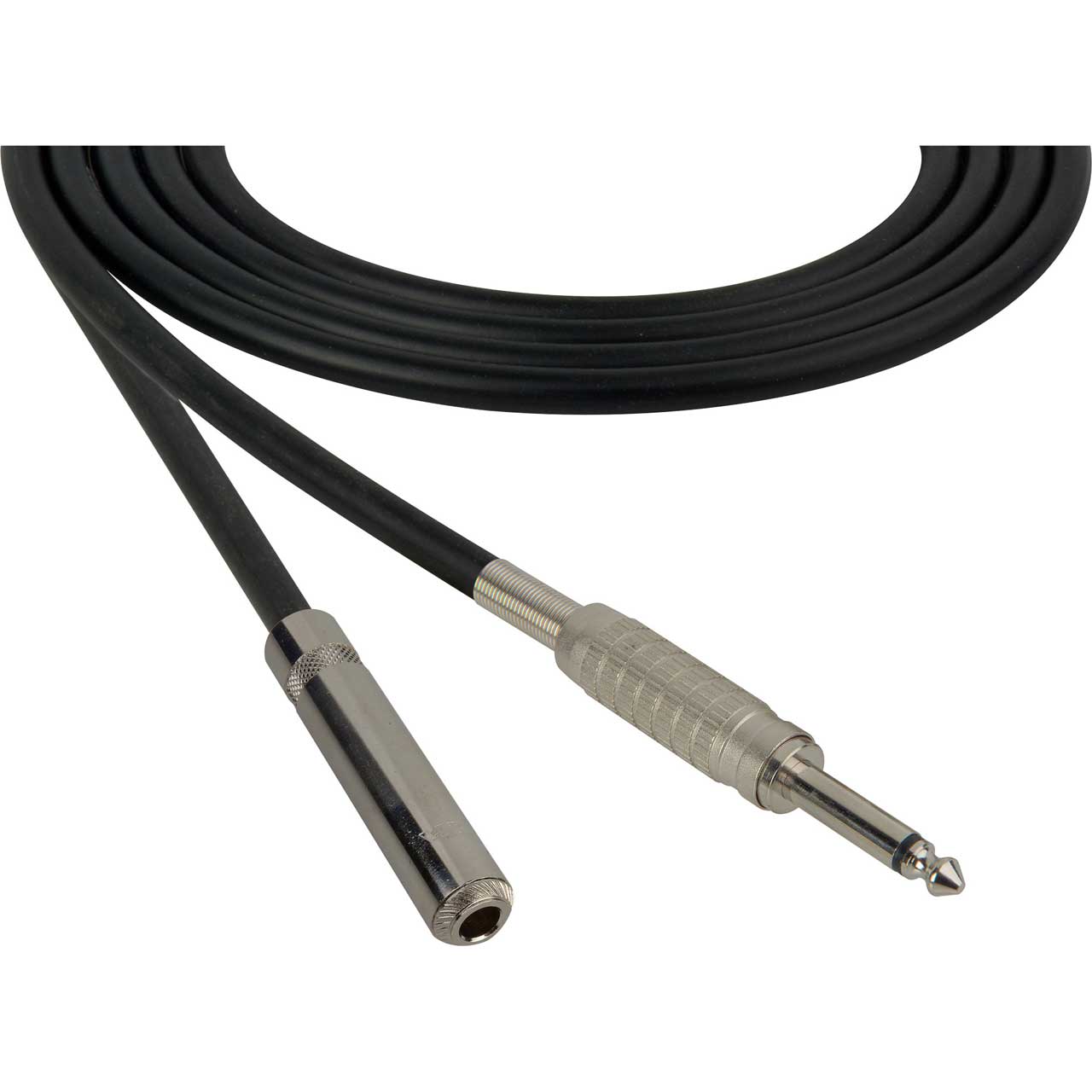

World's Finest Canare Star-Quad 1/4-Inch TS Male to 1/4-Inch TS Female Audio Cables. Cables are built by Sescom with Canare's premier L-4E6S Star-Quad Microphone cable and the highest quality connectors from Neutrik, Connectronics & Switchcraft.

Professional Mic/Audio Cables are designed to use with microphones but are also excellent for line-level signals (i.e. mixer to power amps). Special 4 conductor configuration plus high shield density reduce hum and noise to less than 10% of conventional 2-conductor mic cables. Special construction also reduces handling noise while maintaining excellent flexibility. High density braided shield blocks electrostatic noise to eliminate annoying hum, buzz and radio interference. 4-conductor design cancels electro-magnetically induced noise from SCR dimmers and fluorescent lights. The premier Star Quad cable for all handheld microphone applications. Flexible, satin smooth to the touch and extra strong, this standard diameter, 21 AWG cable fits perfectly in all XLR-type audio connectors. Forty separate strands in each conductor eliminate breakage due to flexing. Available in 10 beautiful matte finish color jackets.

Excellent frequency response is preserved due to low capacitance provided by dielectric qualities of Polyethylene insulation. Handling noise is prevented by use of cotton filter material. Super flexibility results from using large numbers of thin wire strands, plus PVC jacket that remains pliant at extremely low temperatures (brittle point is -56°F); no wall between cold shipping and installation. Quantity Discounts Apply!!

  • Features:

    • Braided Copper Shield
    • Flexible in Extreme Cold Weather
    • Cross Linked PE Insulation
    • Reduced Handling Noise
    • Rejects EMI and RFI

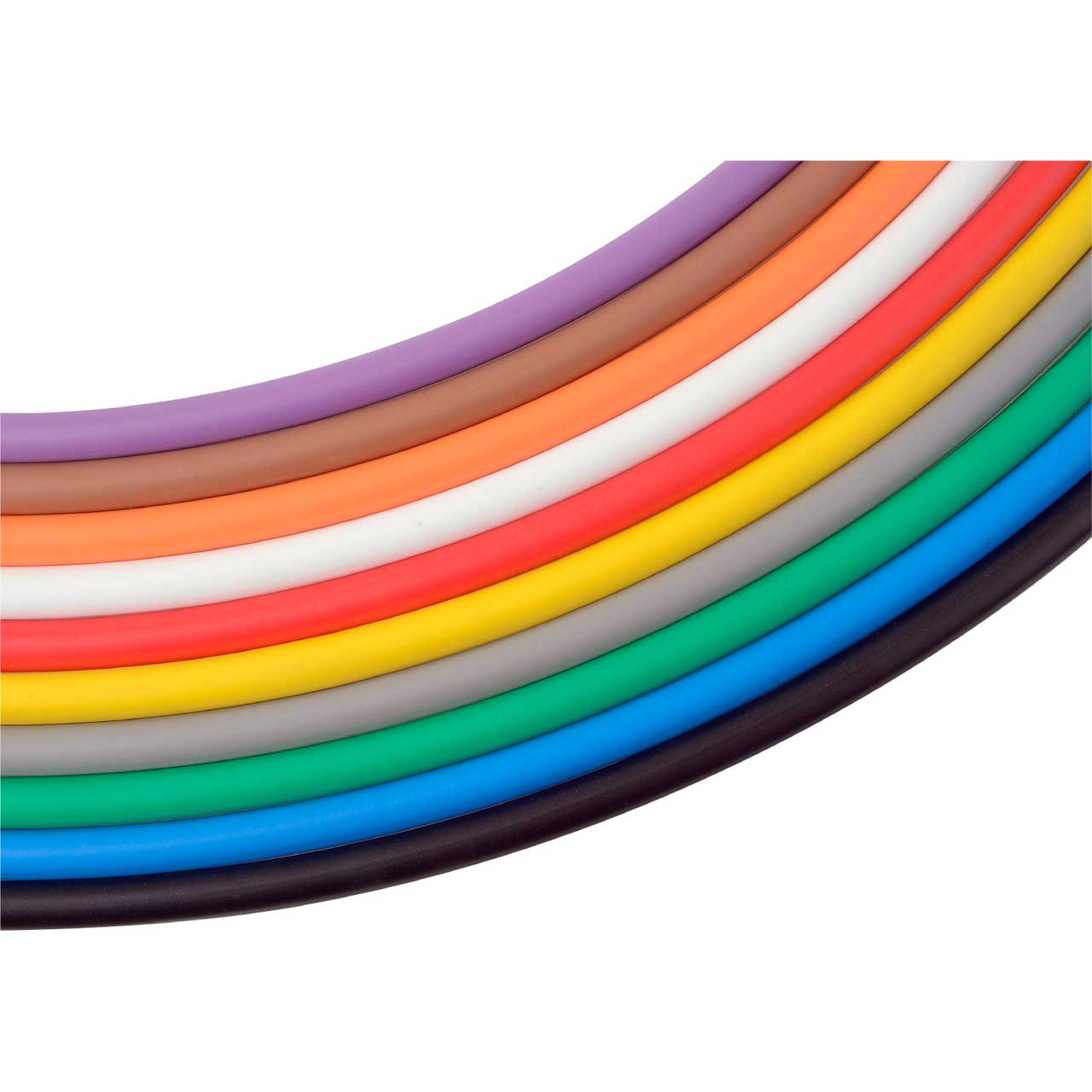

    • 10 Matte Color Jacket
    • SelectionsMicrophones
    • Portable Applications
    • Audio Rack Wiring
    • PA Systems
    • Audio Patch Cords

  • Specifications:

    • Number of Conductors: 4 (2 Blue, 2 White)
    • Conductor AWG: 24
    • Quad AWG: 21 (Effective AWG of combined twin conductors)
    • Nom. O.D.: 0.236"
    • Jacket: PVC
    • Jacket Nom. Thickness: 0.044"
    • Brittle Point: -56°F
    • Insulation Type: IPE
    • Insulation Thickness: 15.7 MIL
    • Pitch Twist Quad: 0.79"
    • Shield Coverage: >95% TAC Braid
    • Cond D.C.R.: <29.9Ω/1000ft
    • Shield D.C.R.: <9.1Ω/1000ft
    • Nom. Capacitance: 150pF/m (between twin Blue & twin White)
    • Nom. Capacitance: 185pF/m (between conductors to shield)
    • Nom. Impedance: 44Ω
    • Nom. Atten.: 0.9 V/1000ft
    • Group Delay Time: 1.80ns/ft

  • Warranty:

    • 1 Year
