Sescom Audio Cable Canare Star-Quad 1/4 TRS Balanced Male to 1/4 TRS Balanced Male Yellow - 50 Foot

ITEM #: SC50SZSZYW MFG #: SC50SZSZYW

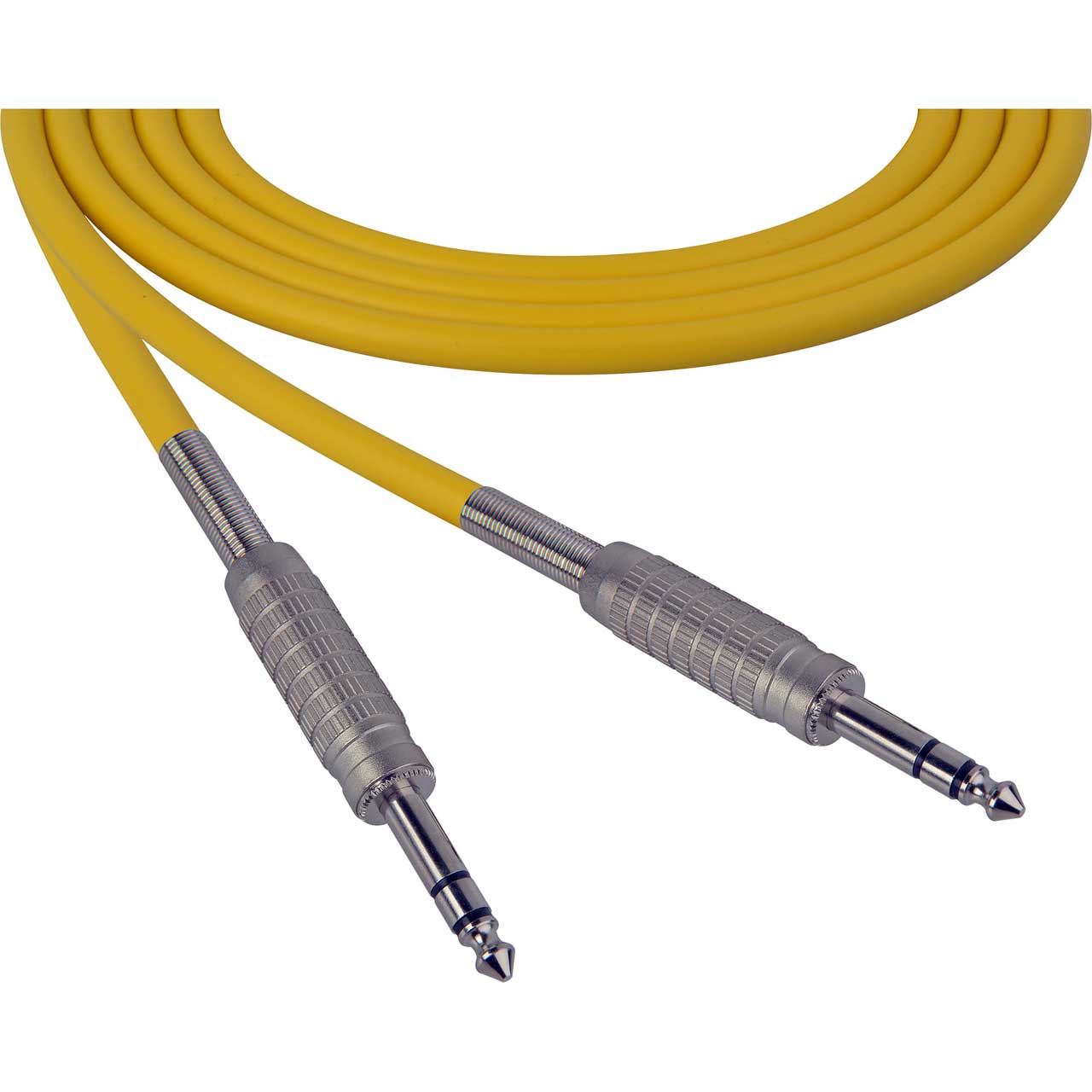

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$58.49

Our Price:

$54.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    SC50SZSZYW - Overview

    World's Finest Canare Star-Quad 1/4-Inch TRS Stereo Male to 1/4-Inch TRS Stereo Male Audio Cables. Cables are built by Sescom with Canare's premier L-4E6S Star-Quad Microphone cable and the highest quality connectors from Neutrik, Canare, Connectronics & Switchcraft.

    Professional Mic/Audio Cables are designed to use with microphones but are also excellent for line-level signals (i.e. mixer to power amps). Special 4 conductor configuration plus high shield density reduce hum and noise to less than 10% of conventional 2-conductor mic cables. Special construction also reduces handling noise while maintaining excellent flexibility. High density braided shield blocks electrostatic noise to eliminate annoying hum, buzz and radio interference. 4-conductor design cancels electro-magnetically induced noise from SCR dimmers and fluorescent lights. The premier Star Quad cable for all handheld microphone applications. Flexible, satin smooth to the touch and extra strong, this standard diameter, 21 AWG cable fits perfectly in all XLR-type audio connectors. Forty separate strands in each conductor eliminate breakage due to flexing. Available in 10 beautiful matte finish color jackets.

    Excellent frequency response is preserved due to low capacitance provided by dielectric qualities of Polyethylene insulation. Handling noise is prevented by use of cotton filter material. Super flexibility results from using large numbers of thin wire strands, plus PVC jacket that remains pliant at extremely low temperatures (brittle point is -56°F); no wall between cold shipping and installation. Quantity Discounts Apply!!

    • Features:

      • Braided Copper Shield
      • Flexible in Extreme Cold Weather
      • Cross Linked PE Insulation
      • Reduced Handling Noise
      • Rejects EMI and RFI
      • 10 Matte Color Jacket
      • SelectionsMicrophones
      • Portable Applications
      • Audio Rack Wiring
      • PA Systems
      • Audio Patch Cords

    • Specifications:

      • Number of Conductors: 4 (2 Blue, 2 White)
      • Conductor AWG: 24
      • Quad AWG: 21 (Effective AWG of combined twin conductors)
      • Nom. O.D.: 0.236”
      • Jacket: PVC
      • Jacket Nom. Thickness: 0.044”
      • Brittle Point: -56 Degrees F
      • Insulation Type: IPE
      • Insulation Thickness: 15.7 MIL
      • Pitch Twist Quad: 0.79”
      • Shield Coverage: >95% TAC Braid
      • Cond D.C.R.: <29.9 Ohm/1000 Ft
      • Shield D.C.R.: <9.1 Ohm/1000 Ft
      • Nom. Capacitance: 150 pF/m (between twin Blue & twin White)
      • Nom. Capacitance: 185 pF/m (between conductors to shield)
      • Nom. Impedance: 44 Ohm
      • Nom. Atten.: 0.9 V/1000 Ft
      • Group Delay Time: 1.80 ns/ft

    • Warranty:

      • 1 Year
