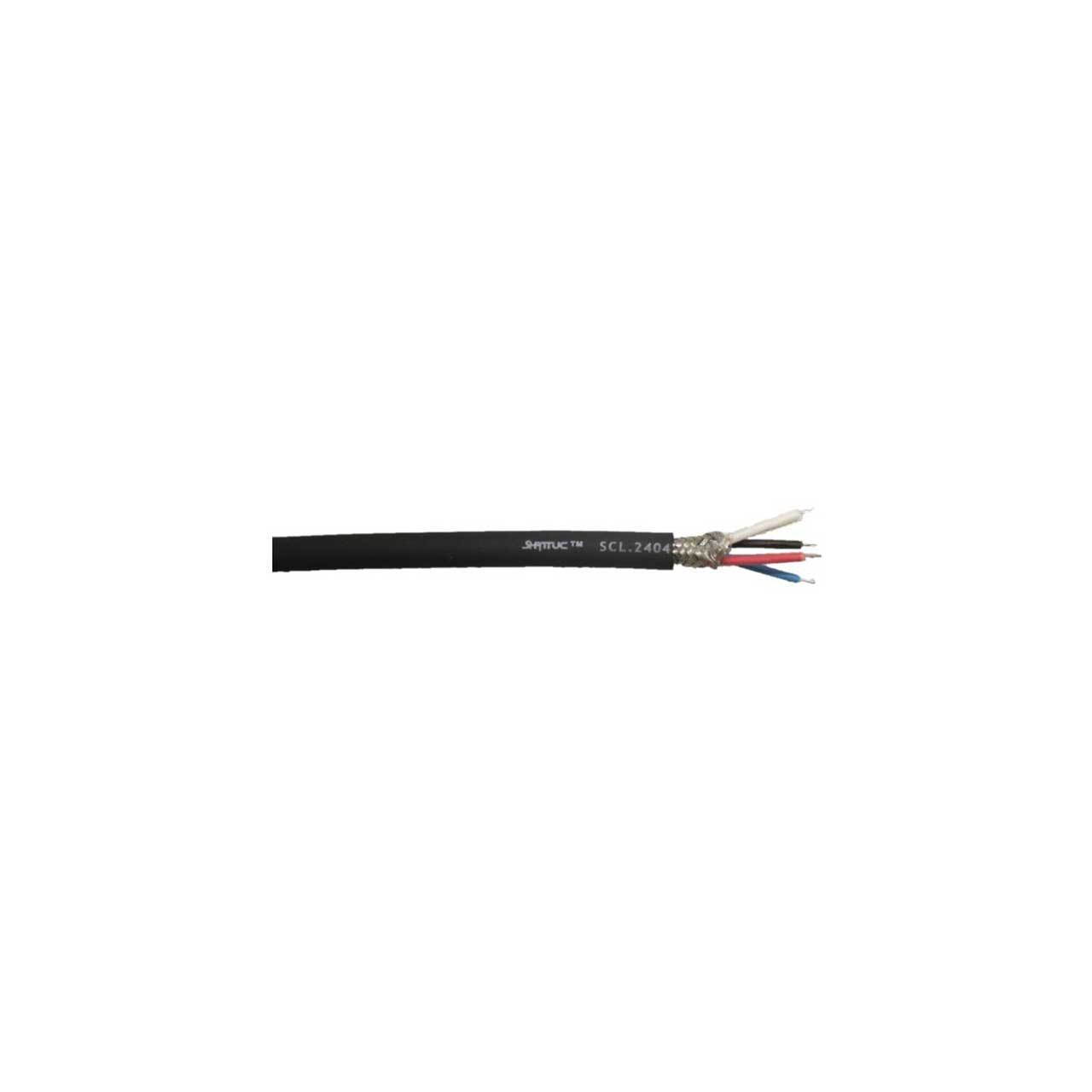

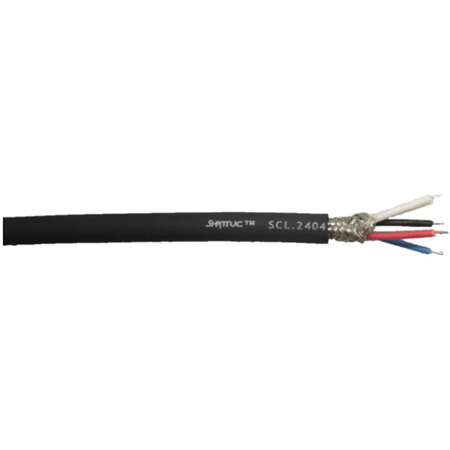

Shattuc SCL-2404 24AWG 4 Conductor O/S Cable for DMX512 Lighting Control Applications - 1000 Foot

SCL-2404 - Overview

• Specifications:

  • Conductor
  • Material: Annealed Tinned Copper
  • Conductor Count: 4 Conductors
  • AWG & Stranding: 24 AWG 7 Strand Class B

    Insulation
  • Material: Foamed Polyethylene
  • Wall Thickness: 0.022"
  • Color Code: Black, White, Red, Blue

    Assembly (Pairs)
  • Pairs Lay Length: 2.50" LHL (4.8TW/FT) Nominal
  • Fillers: Cotton Fillers - For A Circular Cross Section
  • Shield: Aluminum/MYLAR - 100% Coverage (Aluminum Facing Out)
  • Drain Wire: 24 AWG 7 Strand Tinned Copper
  • Braid: 90% Coverage - Tinned Copper

    Jacket
  • Material: Pressure Extruded Thermoplastic Elastomer
  • Wall Thickness: 0.040"
  • Diameter: 0.270" ±0.010"
  • Color: Black Matte Finish
  • Ripcord: No
  • Weight: 47 lbs/mft
  • Length: 1000 foot

    Electrical Characteristics
  • DC Resistance: 24.5Ω /MFT @ 68°F
  • Impedance: 120Ω
  • Capacitance: 11 pF/ft
  • Propogation Velocity: 76%
  • Operating Voltage: 300V RMS
