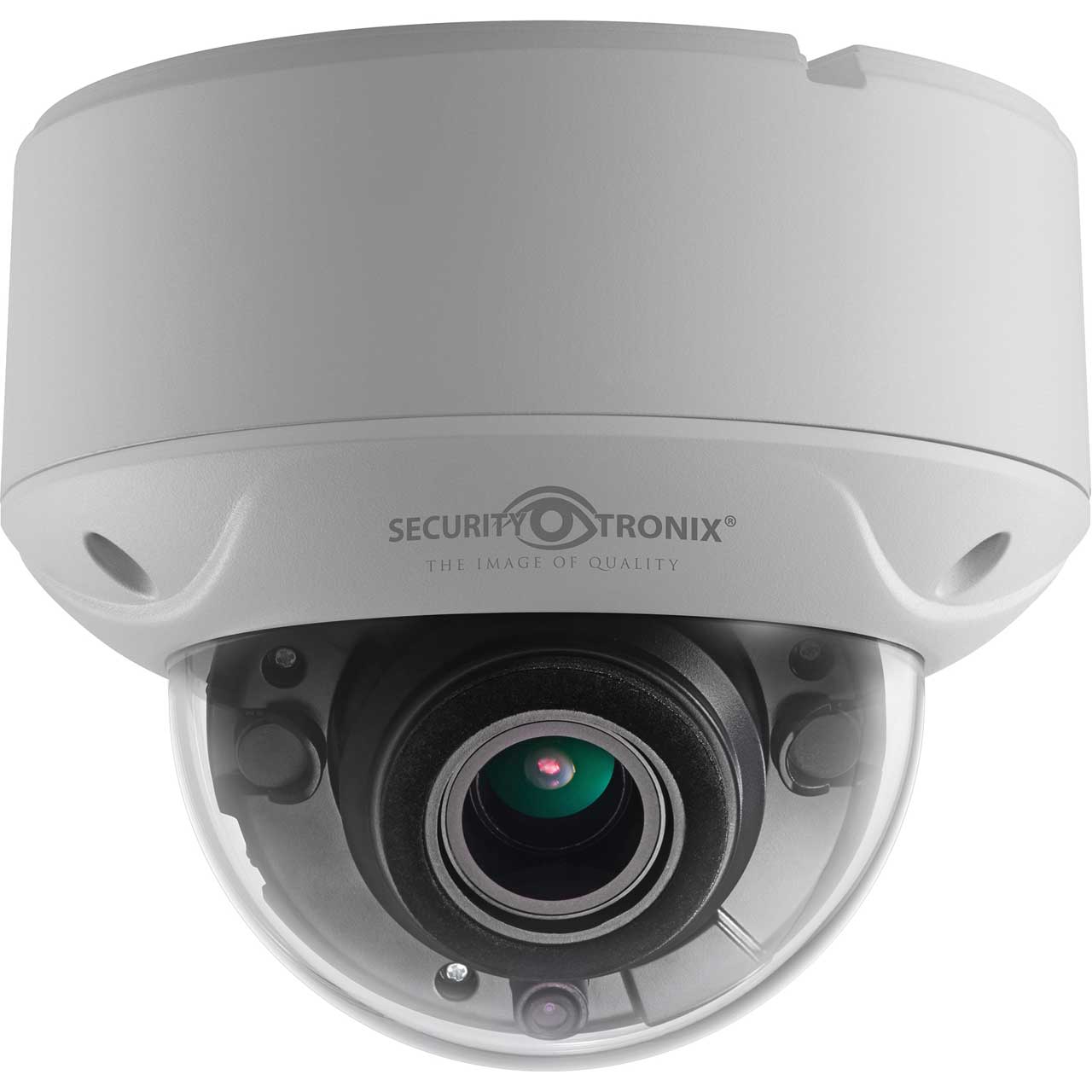

SecurityTronix ST-HDC2VFD-MZ 2MP HD-TVI Motorized Varifocal Lens Dome Camera

ITEM #: SCT-ST-HDC2VFDMZ MFG #: ST-HDC2VFD-MZ

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SCT-ST-HDC2VFDMZ

ST-HDC2VFD-MZ - Overview

The SecurityTronix ST-HDC2VFD-MZ sends HD video over coaxial cable making this camera a cost effective high-definition surveillance solution for any budget. The HD-COAXINATOR™ TVI series utilizes the same coaxial cable, connectors, and power plugs as a traditional analog camera system. The series is priced like analog and delivers resolution like IP, but without video latency or other complexities found when dealing with IP based systems. Integrators can easily upgrade existing systems from analog to HD by simply replacing the old DVR (digital video recorder) and analog cameras with HD-COAXINATOR™ TVI cameras and recorders.

  • Features:

    • 2MP High Resolution
    • Incorporates HD-TVI to provide HD 1080p video over coaxial cable
    • Motorized 2.8mm - 12.0mm vari-focal lens
    • True Day/Night, Smart IR
    • IR Distance up to 131 Feet
    • On Screen Display menu
    • IP66 Weather rating
    • IK10 Vandal rating
    • 12VDC/24VAC Dual voltage powering capability


  • Specifications:

    • Camera
    • Image sensor: 1/2.8" Progressive Scan CMOS
    • Effective Pixels: 1930(H) x 1088(V)
    • Min. Illumination: 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR on
    • Shutter Time: 1/25(1/30) s to 1/50,000 s
    • Lens:
      Motorized VF Lens; 2.8 - 12 mm @ F1.4
      Angle of View: 105.2° - 32.8°
    • Angle Adjustment Pan: 0 - 355°, Tilt: 0 - 90°, Rotation: 0 - 355°
    • Day & Night: ICR
    • Synchronization: Internal synchronization
    • Video Frame Rate: 1080p@25fps/1080p@30fps
    • HD Video Output: 1 turbo HD output
    • S/N Ratio: More than 52dB

      Menu
    • Camera ID: On/off (0-255)
    • AGC: Supported
    • D/N Mode: Color/BW/Auto/EXT
    • White Balance: Auto/User/Push/8000K/6000K/4200K/3000K
    • Privacy Mask: On/Off, maximum 2 zones
    • Motion Detection: On/Off, maximum 4 zones
    • BLC: Supported
    • Anti-flicker: On/Off
    • Language: English/Chinese
    • Functions: Digital noise reduction, Mirror

      General
    • Operating Temperature: -40° to 140°F (-40° to 60°C)
    • Operating Humidity: 90% or less (non-condensing)
    • Power Supply: 12 VDC / 24 VAC (not included)
    • Power Consumption: Max. 5W
    • Weather Proof Ratings: IP66
    • IR Range: Up to 131 Feet
    • Impact Protection: IK10
    • Communication: Up the coax
    • Dimensions: 5.72 x 4.9" (145.2 x 124.1mm)
    • Weight (approx.): 2.03Lbs (920g)
