Sennheiser A3700 Omnidirectional Antenna with Integrated AB3700

Name: Sennheiser A3700 Omnidirectional Antenna with Integrated AB3700
Brand: Sennheiser
SKU: SENN-A3700
Price: 999.00 USD
Availability: PreSale

ITEM #: SENN-A3700 MFG #: A3700

Sennheiser

List Price:

$1,179.00

Our Price:

$999.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

A3700 - Overview

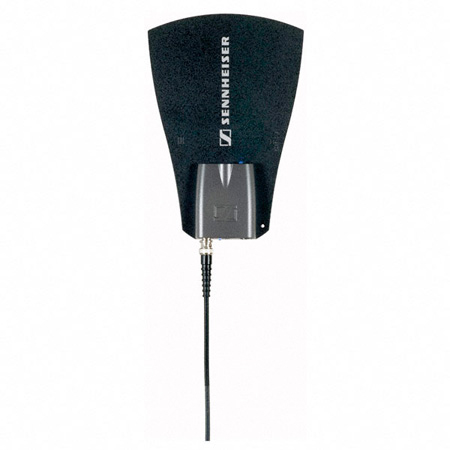

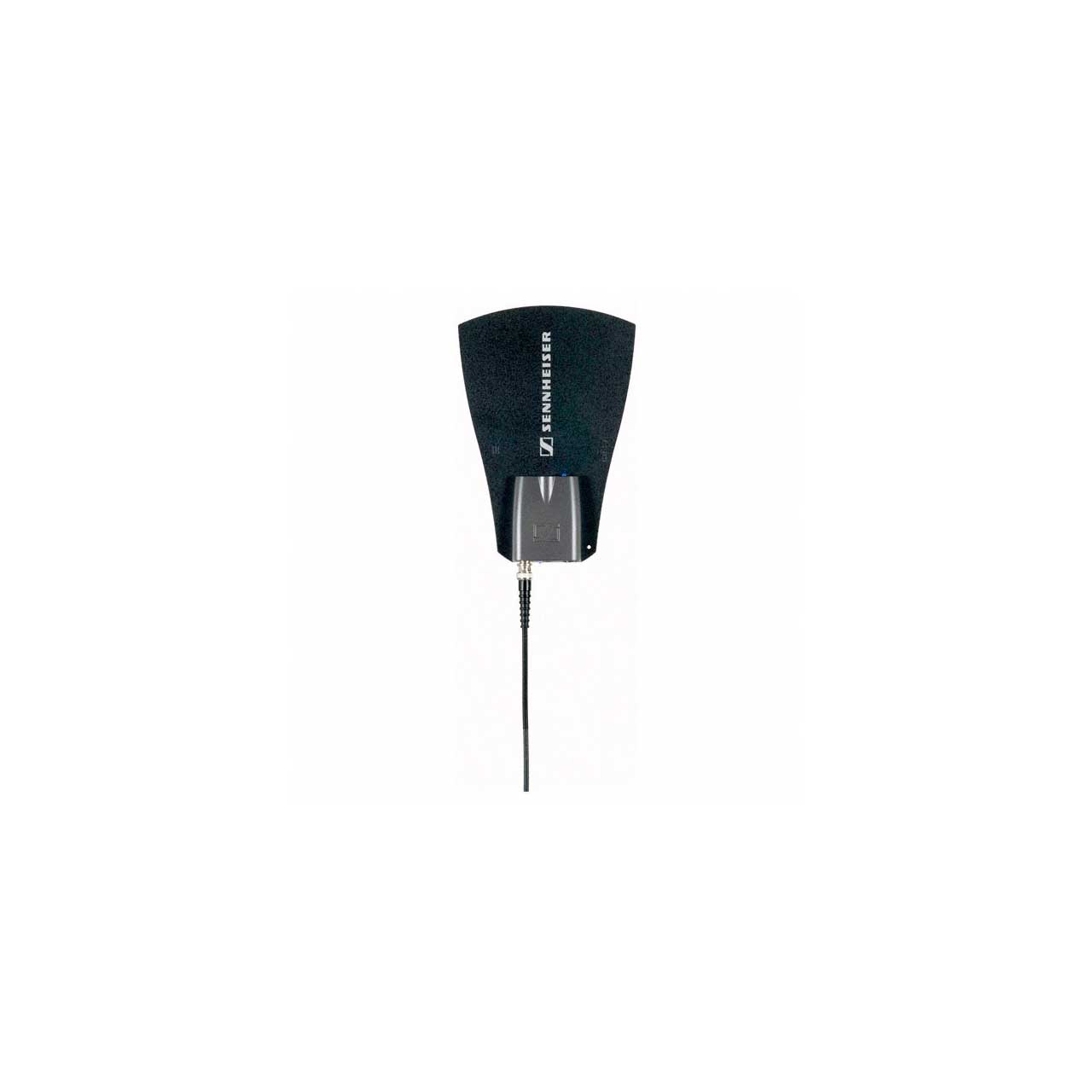

The Sennheiser A 3700 Omnidirectional Antenna with Booster is an RF antenna for the Sennheiser EM3731, EM3732 and EM3732 Command receivers. The antenna significantly boosts RF strength and gain during long BNC cable runs. The A 3700 features up to 15dB of amplification

Omnidirectional antenna with integrated AB3700 for EM3731/3732 series and EM2000/2050 receivers only, 502195, A 3700, A3700

Specifications:
- Frequency Range: 470-866 MHz.
- Polar Pattern: Omnidirectional.
- Gain: typ: bypass (-3 dB), 5dB, 10dB, 15dB adjustable,
- Without remote power suply: -6dB.
- Impedance: 50 Ohms.
- OIP3: > = 32dBm.
- Connections: 1 x BNC.
- Power Supply: 9-15 V DC / 160-100 mA .
- Thread: 3/8" or 5/8" .
- Dimensions: 9.84 x 6.49 x 0.90" (250 x 165 x 23mm).
- Weight: 13.75 oz (390 g).
GTIN:
0615104136755

A3700 - Recommended Accessories

Shure UA802 50 Ohm RG8X/U Type UHF BNC-BNC Remote Antenna Extension Coaxial Cable - 2 Foot
UA802
Our Price: $19.00
Laird RG58 50 Ohm BNC Male to Male Antenna Cable - 3 Foot
RG58-BB-3
Our Price: $18.95
Shure UA825 50 Ohm RG8X/U Type UHF BNC-BNC Remote Antenna Extension Coaxial Cable - 25 Foot
UA825
Our Price: $60.00
Connectronics BF-BF BNC Female to Female Barrel 75 Ohm
BF-BF
Our Price: $2.38
Atlas MS-10C All-Purpose 35in - 63in Chrome Mic Stand
MS-10C
Our Price: $67.99

A3700 - Reviews

Overview

A3700 - Overview

Omnidirectional antenna with integrated AB3700 for EM3731/3732 series and EM2000/2050 receivers only, 502195, A 3700, A3700

Specifications:
- Frequency Range: 470-866 MHz.
- Polar Pattern: Omnidirectional.
- Gain: typ: bypass (-3 dB), 5dB, 10dB, 15dB adjustable,
- Without remote power suply: -6dB.
- Impedance: 50 Ohms.
- OIP3: > = 32dBm.
- Connections: 1 x BNC.
- Power Supply: 9-15 V DC / 160-100 mA .
- Thread: 3/8" or 5/8" .
- Dimensions: 9.84 x 6.49 x 0.90" (250 x 165 x 23mm).
- Weight: 13.75 oz (390 g).
GTIN:
0615104136755
