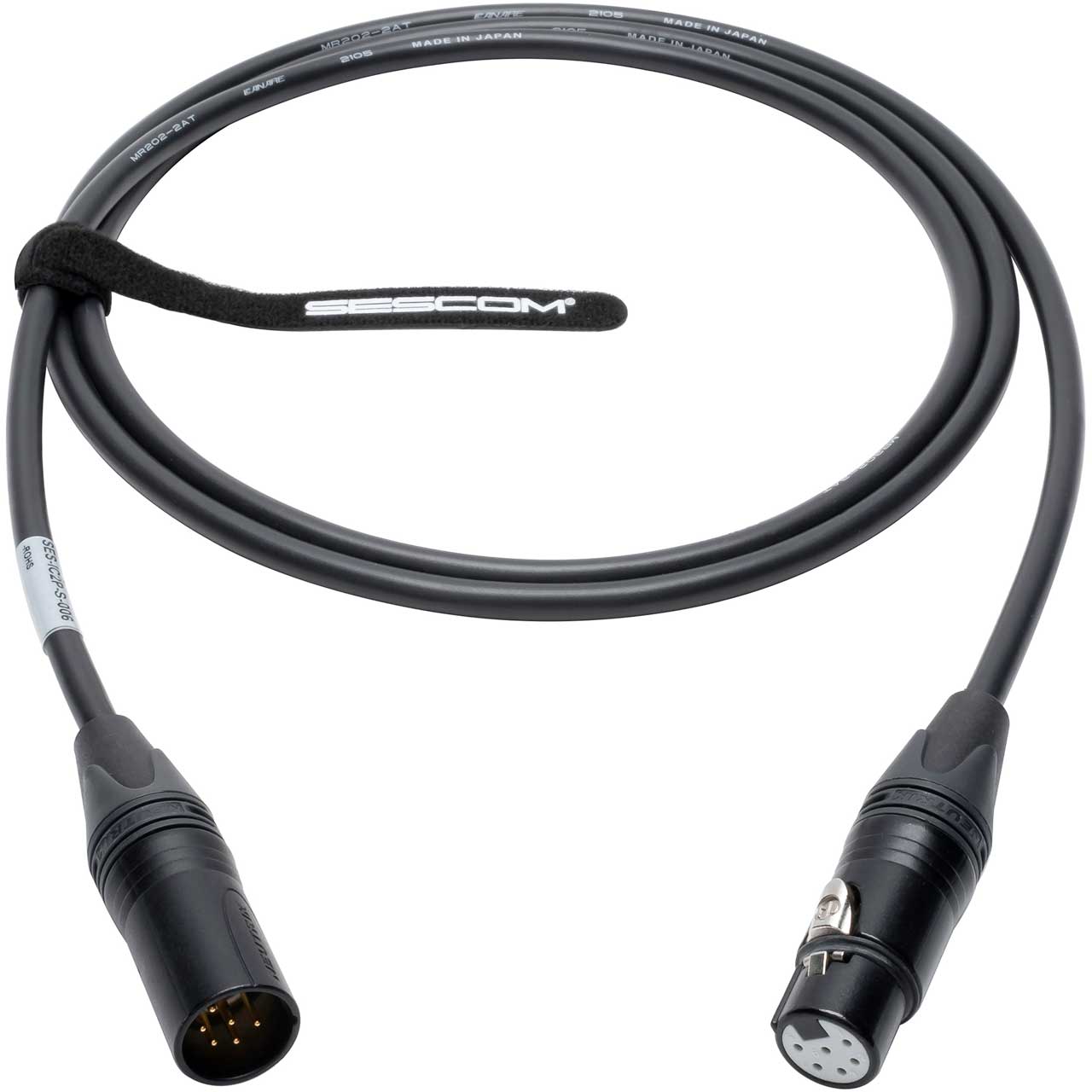

Sescom 6-Pin Switchcraft Layout XLR Male to Female for RS-702 & RS-602 Beltpacks Intercom Cable - 6 Foot

ITEM #: SES-IC2P-S-006 MFG #: SES-IC2P-S-006

Primary Image
Sescom
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$59.49

Our Price:

$53.49

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SES-IC2P-S-006 - Overview

Connect your Clear-Com RS-602 and RS-702 beltpacks at a fraction of the cost with the Sescom IC-2P-Series 6-Pin XLR intercom cables.

These cables are handcrafted in the USA with trusted name brand components including Canare MR202 multichannel snake cable paired with Neutrik 6-Pin XLR connectors. They are lightweight for less drag on the hips and guaranteed to deliver a pristine quality audio signal.

  • Features:

    • Intercom Cable for RS-702 & RS-602 Beltpacks
    • Extremely Lightweight & Flexible Cable
    • Overall PVC Jacketed for Strength and Durability
    • Neutrik 6-Pin Male & Female Connectors


  • Specifications:

    • Canare MR202-2AT 2-Pair Twisted Pair Multi Channel Cable
    • Number of Channels: 2
    • Nominal O.D: 6.7
    • Number of Conductor: 4
    • AWG: 25
    • Conductor D.C.R: 10.7 (Ω/100m)
    • Nominal Capacitance: 76 pF/m

      Neutrik 6-Pin Male & Female Connectors
    • Capacitance between contacts: ≤ 7 pF
    • Contact resistance: ≤ 3 mΩ
    • Dielectric strength: 1.5 kVdc
    • Insulation resistance: > 10 GΩ (initial)
    • Rated current per contact: 7.5 A
    • Rated voltage: < 50 V
    • Insertion force: ≤ 20 N
    • Withdrawal force: ≤ 20 N
    • Lifetime: > 1000 mating cycles


  • Warranty:

    • 1 Year
