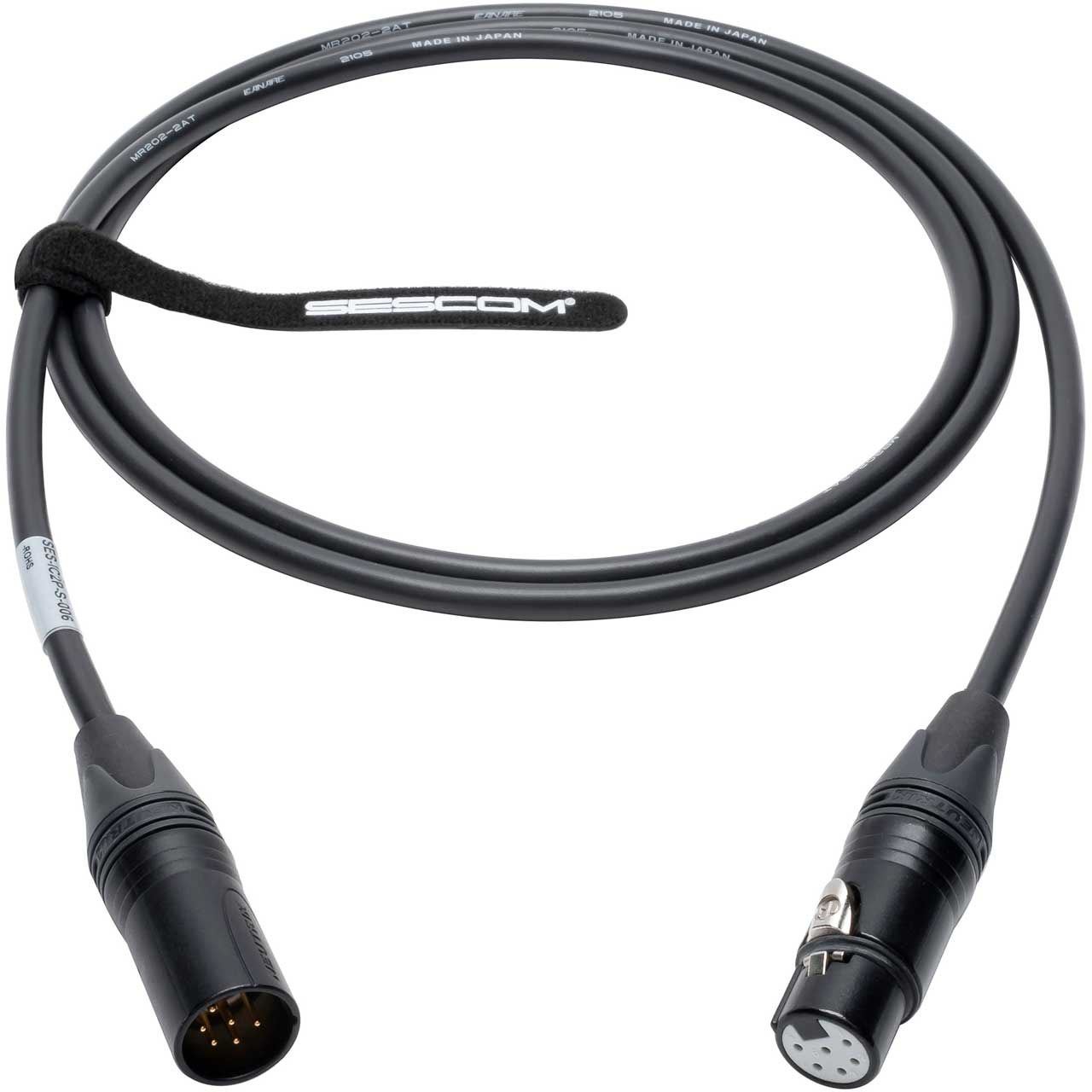

Sescom 6-Pin Switchcraft Layout XLR Male to Female for RS-702 & RS-602 Beltpacks Intercom Cable - 25 Foot

ITEM #: SES-IC2P-S-025 MFG #: SES-IC2P-S-025

Primary Image
Sescom
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$71.49

Our Price:

$64.49

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    SES-IC2P-S-025 - Overview

    Connect your Clear-Com RS-602 and RS-702 beltpacks at a fraction of the cost with the Sescom IC-2P-Series 6-Pin XLR intercom cables.

    These cables are handcrafted in the USA with trusted name brand components including Canare MR202 multichannel snake cable paired with Neutrik 6-Pin XLR connectors. They are lightweight for less drag on the hips and guaranteed to deliver a pristine quality audio signal.

    • Features:

      • Intercom Cable for RS-702 & RS-602 Beltpacks
      • Extremely Lightweight & Flexible Cable
      • Overall PVC Jacketed for Strength and Durability
      • Neutrik 6-Pin Male & Female Connectors


    • Specifications:

      • Canare MR202-2AT 2-Pair Twisted Pair Multi Channel Cable
      • Number of Channels: 2
      • Nominal O.D: 6.7
      • Number of Conductor: 4
      • AWG: 25
      • Conductor D.C.R: 10.7 (Ω/100m)
      • Nominal Capacitance: 76 pF/m

        Neutrik 6-Pin Male & Female Connectors
      • Capacitance between contacts: ≤ 7 pF
      • Contact resistance: ≤ 3 mΩ
      • Dielectric strength: 1.5 kVdc
      • Insulation resistance: > 10 GΩ (initial)
      • Rated current per contact: 7.5 A
      • Rated voltage: < 50 V
      • Insertion force: ≤ 20 N
      • Withdrawal force: ≤ 20 N
      • Lifetime: > 1000 mating cycles


    • Warranty:

      • 1 Year
