MXN-AMP - Overview

The Shure Microflex™ MXN-AMP multichannel PoE+ powered amplifier is designed for speech and program audio reproduction in meeting rooms. When used with Microflex Ecosystem microphones, DSP, and loudspeakers, they deliver room-filling sound, quick installation in a variety of room types, end-to-end audio encryption, and the efficiency of a single-source solution.

Features:
- Provides power for up to 4 MXP loudspeakers in 8 ohm mode, or up to 8 MXP-5/MXP-6 loudspeakers in 70V mode
- Rated at 14.5 watts of combined output power
- Four Dante inputs and four Dante outputs
- Unbalanced stereo analog audio input
- Logic input (switches between presets 1 and 2 as defined in web UI)
- Onboard Shure DSP utilities include EQ, delay, limiter, and signal/tone generator
- Presets for all MXP-series loudspeakers ensure optimal audio performance. Custom presets can be defined in the MXN-AMP web-based control software
- Rack mountable with available CRT-1 rack tray and wall or ceiling mounted (Note: Shure recommends the use of an additional safety tether for overhead components.)
- Supports standards-based security protocols to manage access and protect data, including 802.1x, secure boot/storage, and AES encryption for control and audio data
- Seamless connectivity and compatibility with popular collaboration platforms, including Microsoft Teams and Zoom
Specifications:

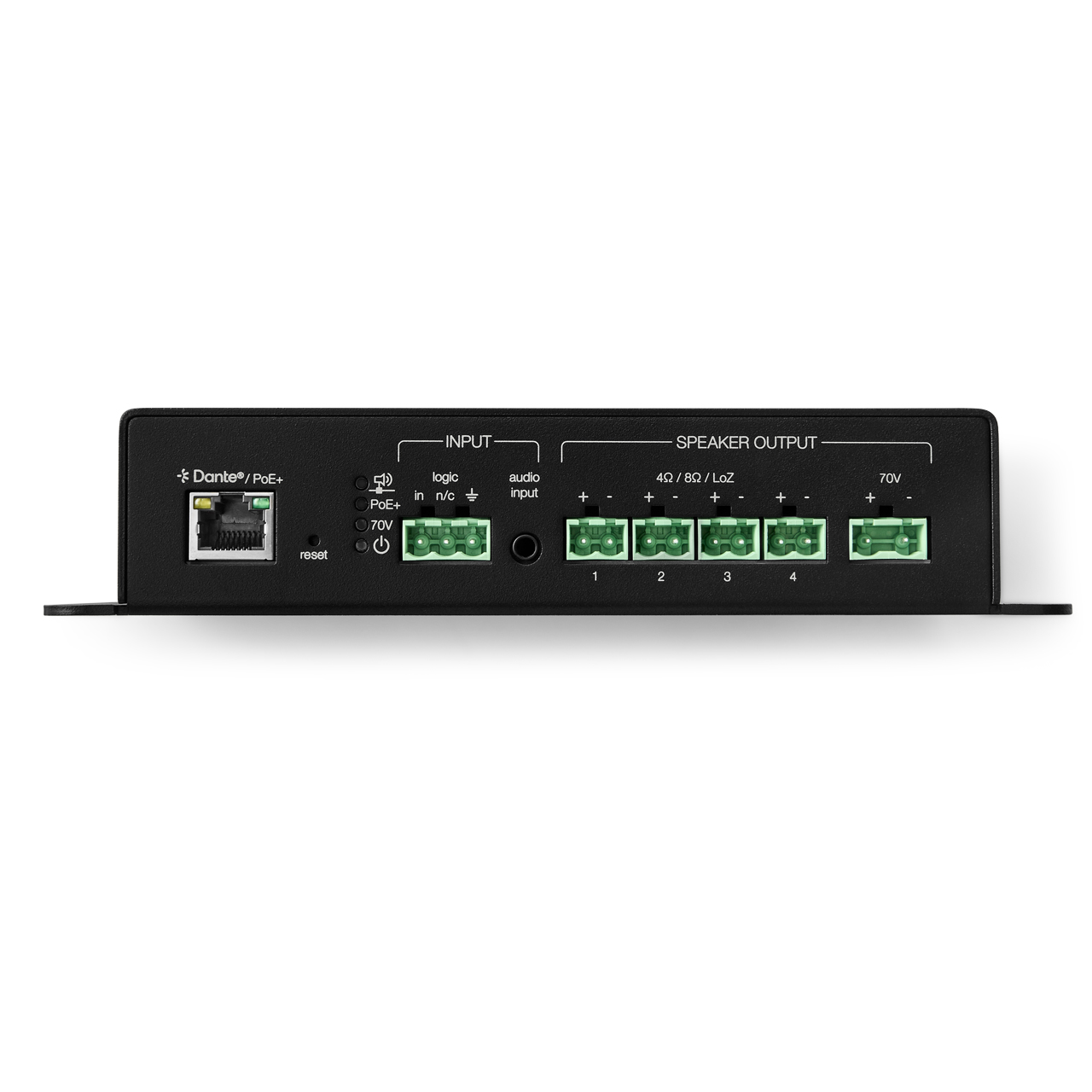

- Connector Type:
  - Logic Input: 3-pin connector, 0.2" (5.08mm) pitch, Dinkle 2ESDV-03P
  - LoZ Output: 2-pin connector, 0.2" (5.08mm) pitch, Dinkle 2ESDV-02P
  - 70V Output: 2-pin connector, 0.295" (7.5mm) pitch, Dinkle 7ESDV-02P
- Audio Inputs: 4x Dante in, 1x 3.5 mm TRS connector with two audio line level inputs
- Control Input: 1x logic in
- Audio Outputs: 4x Dante output channels, 4x LoZ loudspeaker outputs, 1x 70V loudspeaker output
- Output Power Per Channel:
  - LoZ Mode: 3.25W
  - 70V Mode: 11.7W
- Power Input: Power over Ethernet (PoE) or PoE+ over RJ45 (48 V = 25.5 W MAX)
- Weight: 2.43lbs (1.1kg)
- Product Dimensions: 7.95" x 7" x 1.57" (202mm x 178mm x 40mm)
- Control Software: Shure Designer
- Plenum Rating: Suitable for use in air plenums per NEC section 300.22(c) and/or IMC section 602
- Operating Temperature Range: 19.4°F - 104°F (-7°C - 40°C)
- Digital Signal Processing: Gain/Mute, Delay, EQ, Limiter, Speaker Presets
- Latency: 2.2ms typical, 2.5ms max (add 1ms for Dante)
