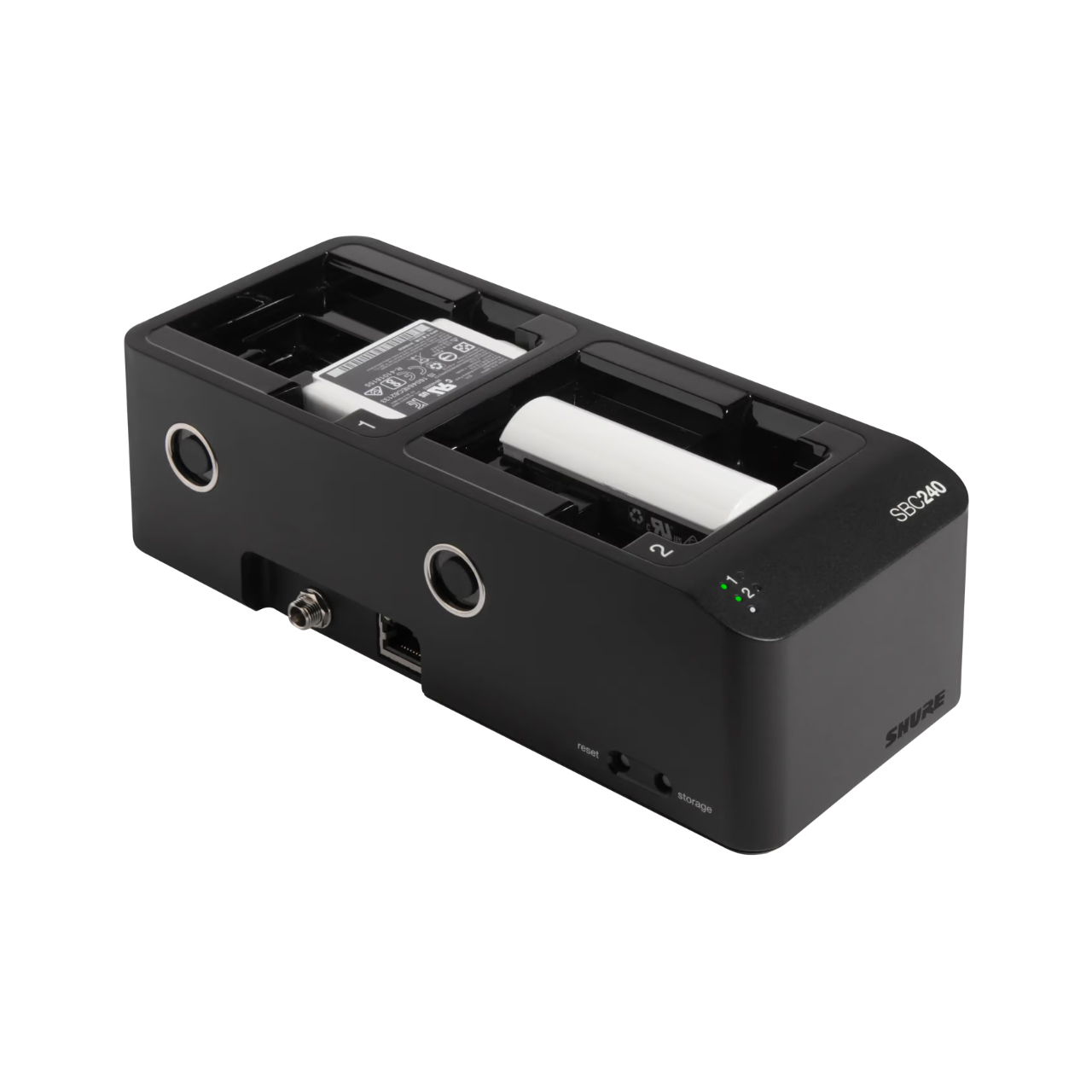

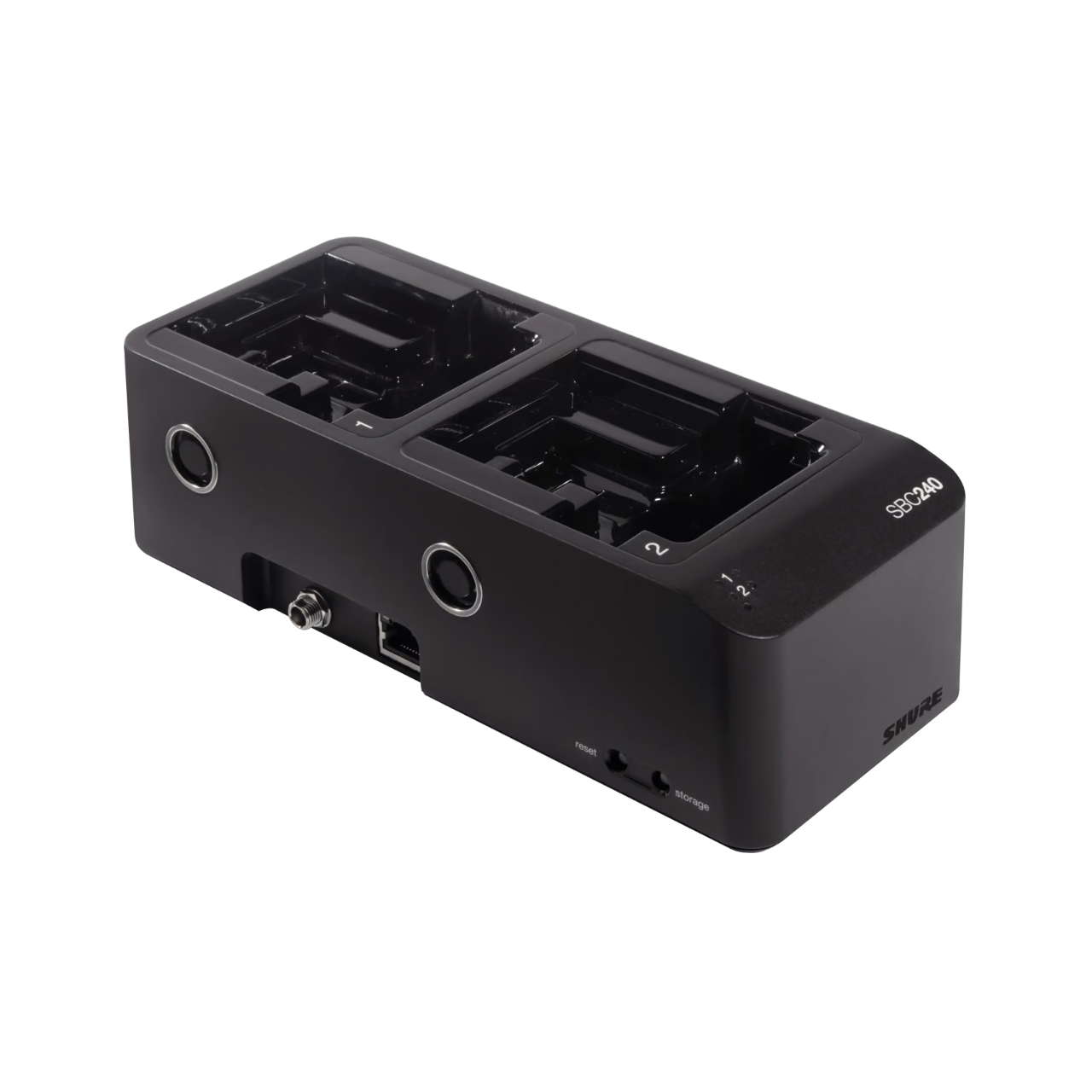

Shure SBC240 2-Bay Networked Charging Dock for SB910 and SB920A Batteries - Power Supply Included - TAA Compliant

SBC240-US-TA - Overview

• Features:

  • Charging for any combination of up to 2 SB910/SB920A batteries or ADX1, ADX2, or ADX2FD transmitters using Shure rechargeable batteries
  • Connect up to 4 chargers together to share power and network connections and save space
  • LEDs indicate charge status and battery errors
  • Storage mode to prepare batteries for long-term storage
  • Network-enabled for remote monitoring


• Specifications:

  • Compatible Batteries: Up to 2x SB910 or SB920
  • Compatible Transmitters: Up to 2x ADX1, ADX2, or ADX2FD
  • Charge Current: 1.25 A maximum
  • Charge Time: 1 hour = 50% charged; 3 hours = 100% charged

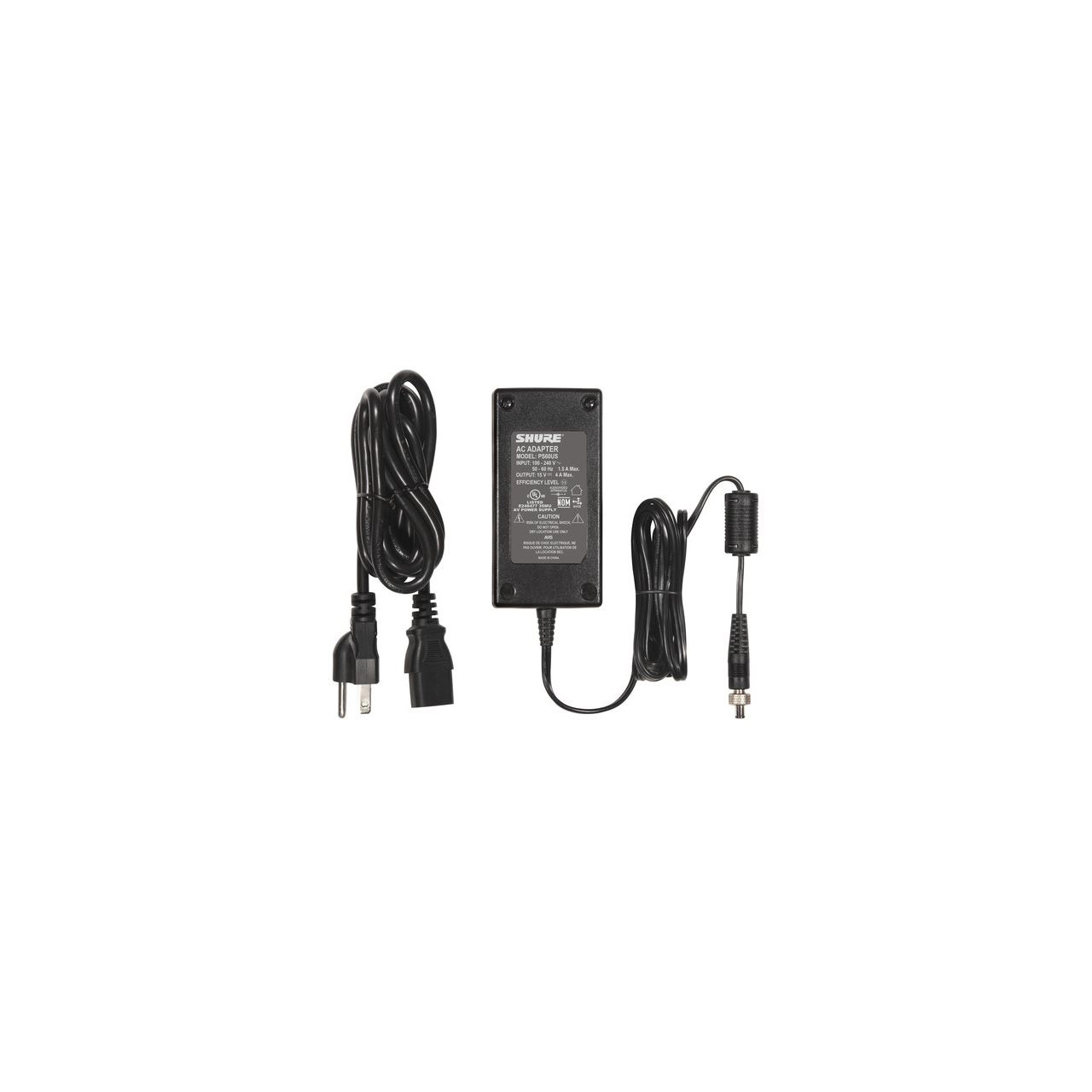

  • External Power Supply: PS60
  • Power Requirement: 15 V, 3.33 A maximum
  • Housing: Molded Plastic
  • Dimensions: 2.57 x 3.49 x 8.30 in. (65.25 x 88.74 x 210.82 mm) H x W x D
  • Weight: 0.45 kg (1 lb) without battery
  • Operating Temperature Range: 0°F (-18°C) to 122°F (50°C)
  • Storage Temperature Range: -20°F (-29°C) to 165°F (74°C)
  • Network Interface: 10/100 Mbps Ethernet
  • Network Addressing Capability: DHCP or Manual IP address


• Item Includes:

  • 1x Screw Power supply
  • 1x Screw Allen wrench
  • 1x Screw


• GTIN:

  0042406827041
