Skaarhoj INLINE-22-V2B Modular Controller - 4 Encoder Knobs / 22 Customizable Graphical OLED Displays

ITEM #: SKA-INLINE-22V2B MFG #: INLINE-22-V2B

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,452.00

Our Price:

$2,390.70

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info


INLINE-22-V2B - Overview

The SKAARHOJ Inline 22 utility panel is the perfect extension to the Live Fly, featuring two rows of RGB Four-way buttons accompanied by crisp OLED displays. This compact panel fits seamlessly into professional setups, offering enhanced control capabilities. Designed with the user in mind, it allows for quick adjustments and customization of settings, making it an ideal solution for live productions, studio settings, or any environment requiring flexible control options. The Inline 22's sleek design and intuitive interface support a broad range of applications, from live streaming to broadcast operations.

Compatible Devices Include:
Blackmagic Design Cameras
Most PTZ Cameras

  • Features:

    • Extends control capabilities with additional RGB Four-way buttons
    • Crisp OLED displays for clear, customizable settings
    • Compact and sleek design fits professional setups
    • Ideal for live productions and studio settings
    • Supports a broad range of applications for flexible use
    • Extensive list of supported devices
    • Versatile connectivity via IP
    • Durable build quality
    • 18 4-way programmable buttons

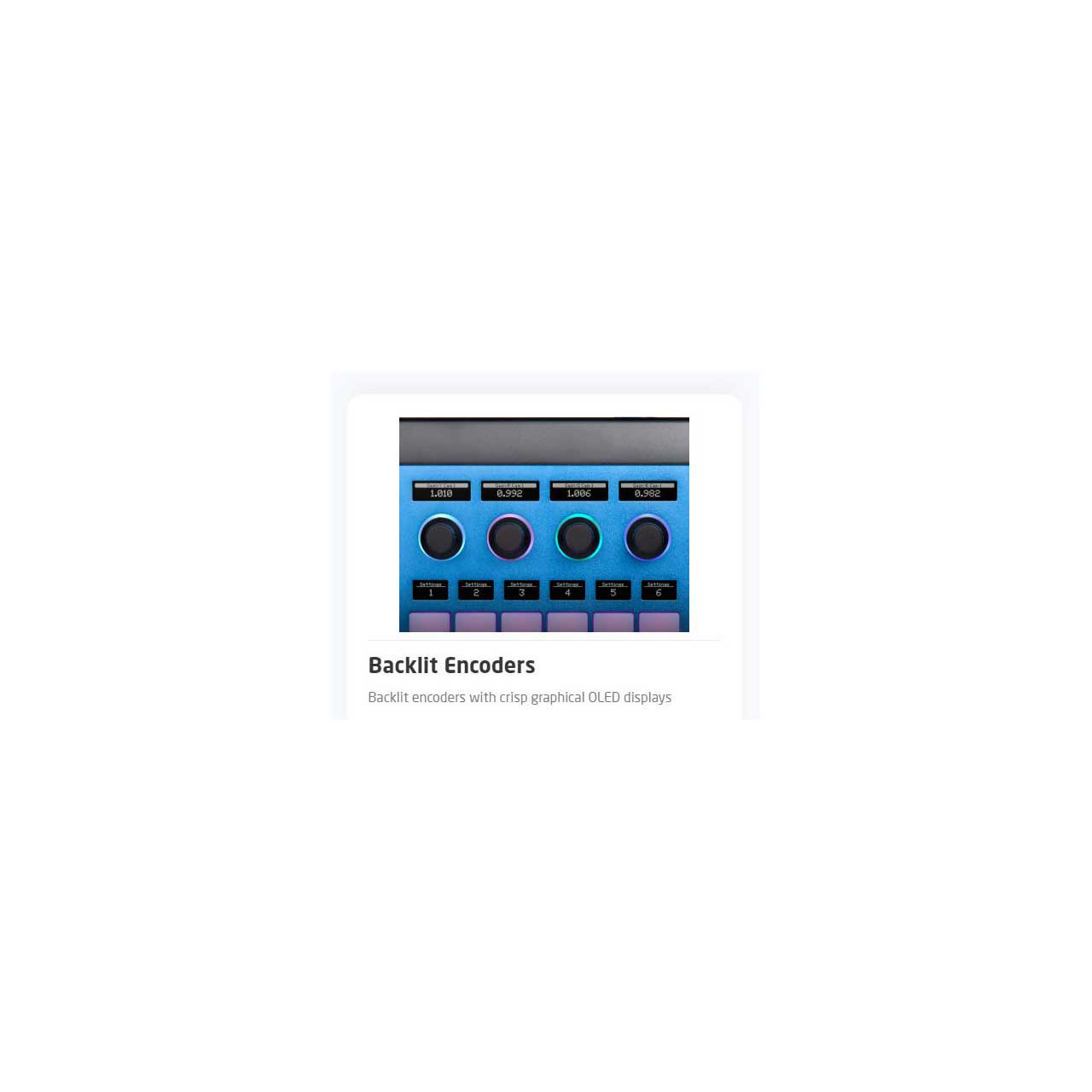

    • 4 backlit encoders
    • OLED displays for labels and feedback
    • Universal control of multiple 3rd party devices
    • User customization with Reactor Web UI

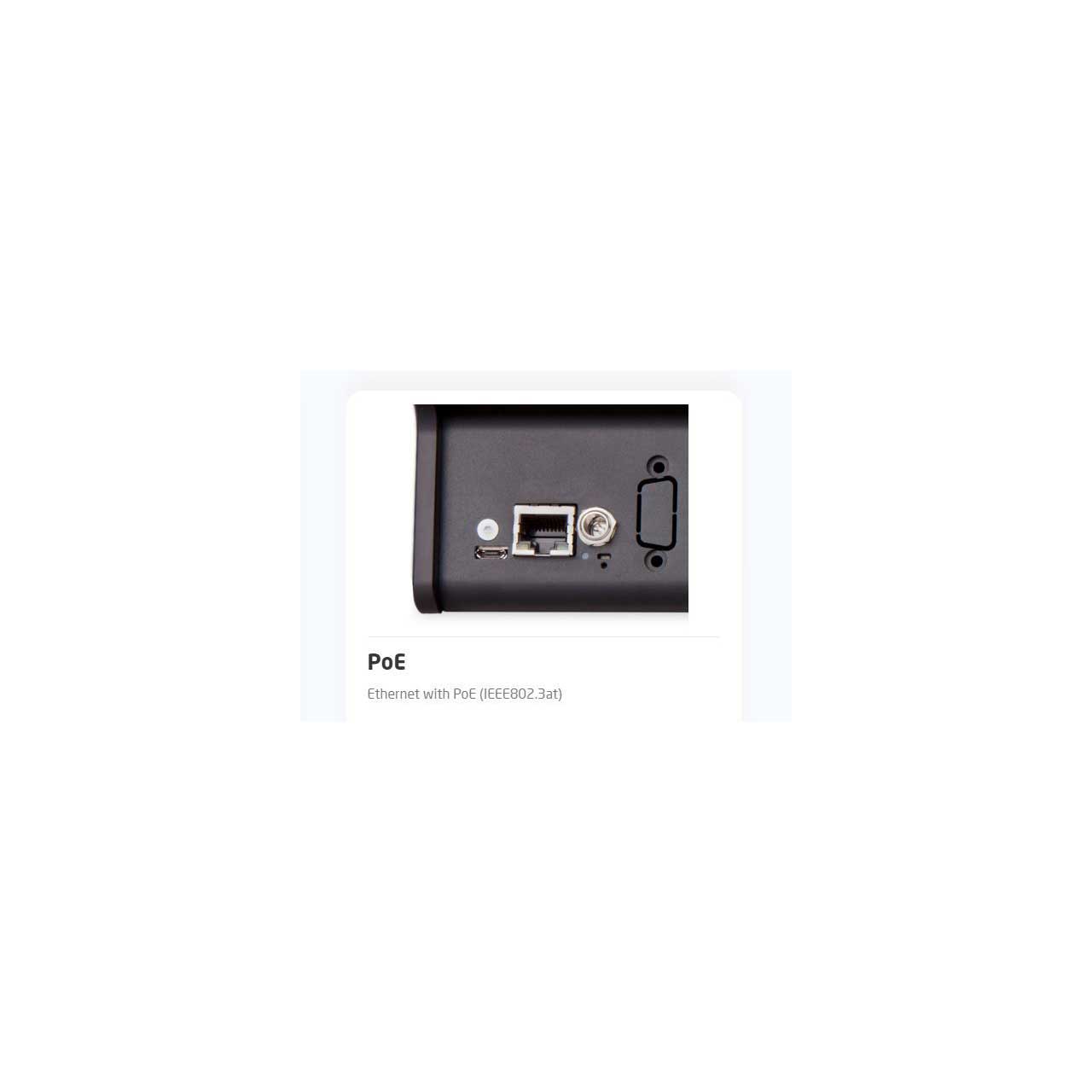

    • 1G Ethernet w/Power over Ethernet (PoE IEEE802.3af/t)
    • Designed and made in Denmark
    • Time tested - adopted by professionals worldwide

  • Specifications:

      Hardware Specifications
    • Buttons: Elastomer Four-Way Button w/Display x18
    • Encoders: Encoder x4
    • Programmable OLED Tiles:
      - 64x32 pixels x18
      - 112x32 pixels x4

      Connectivity
    • Networking: 1G Ethernet w/Power over Ethernet (PoE IEEE802.3af/t)
    • Power Supply: 12V DC Jack 5.5mm x 2.1mm x 10mm Center Positive PoE IEEE802.3af/t
    • Service Port: Micro USB for setting manual IP
    • Peripherals: USB-A 2.0 (500 mA) for Stream Deck, X-keys, additional networking adapters, frame grabbers etc.

      Software
    • Platform: Blue Pill (Reactor, Device Cores, skaarOS Linux)
    • Licenses: Full Reactor and Device Core licenses included

      Physical
    • Dimensions: 5.2 x 6.7 x 3"
    • Product Weight: 3.5

  • Item Includes:

    • 1x Skaarhoj Inline 22 w/Blue Pill Inside
    • 1x 12v Power Supply
    • 1x Micro USB cable

  • Warranty:

    • 1-Year Warranty
