Studiomaster AC-II-36 4 Input 8 Output Digital Audio Processor

AC-II-48 - Overview

• Features:

  • 48kHz sampling rate, 40-bit DSP processor, 24-bit AD/DA convertor
  • Input processing includes Gain, Mute, Link, High-cut, Low -cut, Noise gate, 5PEQ, Phase, and Delay
  • Output processing includes Crossover, 6PEQ, Gain, Mute, Compressor/Limiter, Phase, Delay, and Link
  • Every input and output can do matrix assign freely
  • Adjustable PEQ frequency, Gain and Bandwidth, the gain step is 0.1dB, we can choose style: Peak, H-shelf, L-shelf, LP-6dB, LP-12dB, HP-6dB, HP-12dB
  • The style of all High-cut, Low-cut filter and Distributor Unit: Butterworth, Linkwitz- Riley, Bessel, Slope is-6dB/oct ~-48dB/oct
  • Adjustable compressormiter threshold, soft knee, ratio, attached time and release time. Noise gate's threshold, hold time, attached time and, release time can be adjusted
  • The parameters of input and output adjusting are linkable, revisable input and output channels
  • All delay module's delay time can reach over 680ms the step is: 0.021ms
  • Parameter setting of each channel can copy freely, build-in signal generator

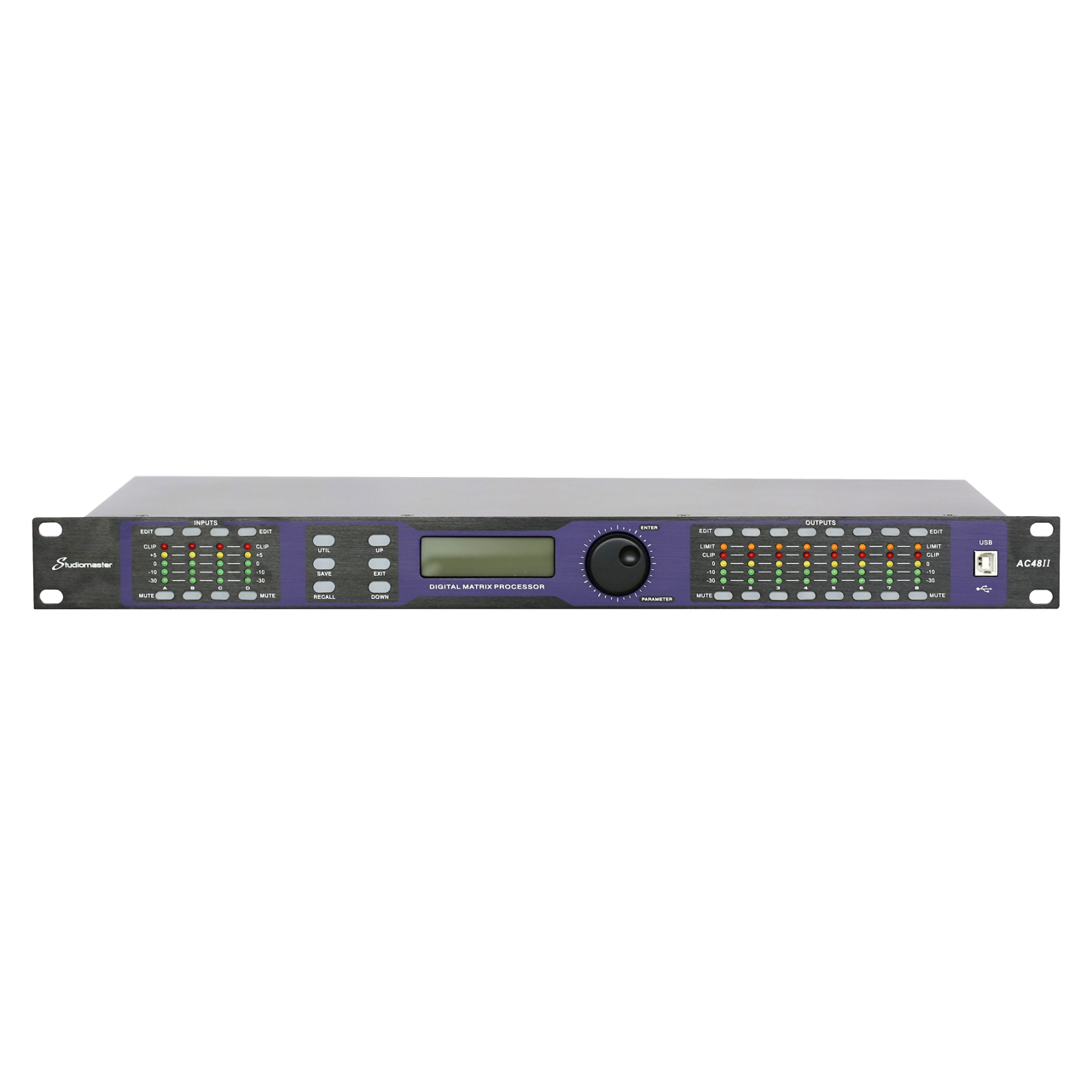

  • Input and Output on the front panel are equipped with 5-segment high precision level indicators, key indicators, security protection function
  • 30 user preset, 1factory preset, device parameter and single preset file can save in computer; it also can download from computer and save in the device. The device itself can store multiple preset parameters and recall freely. With PC software, one-key online made the operation more convenient

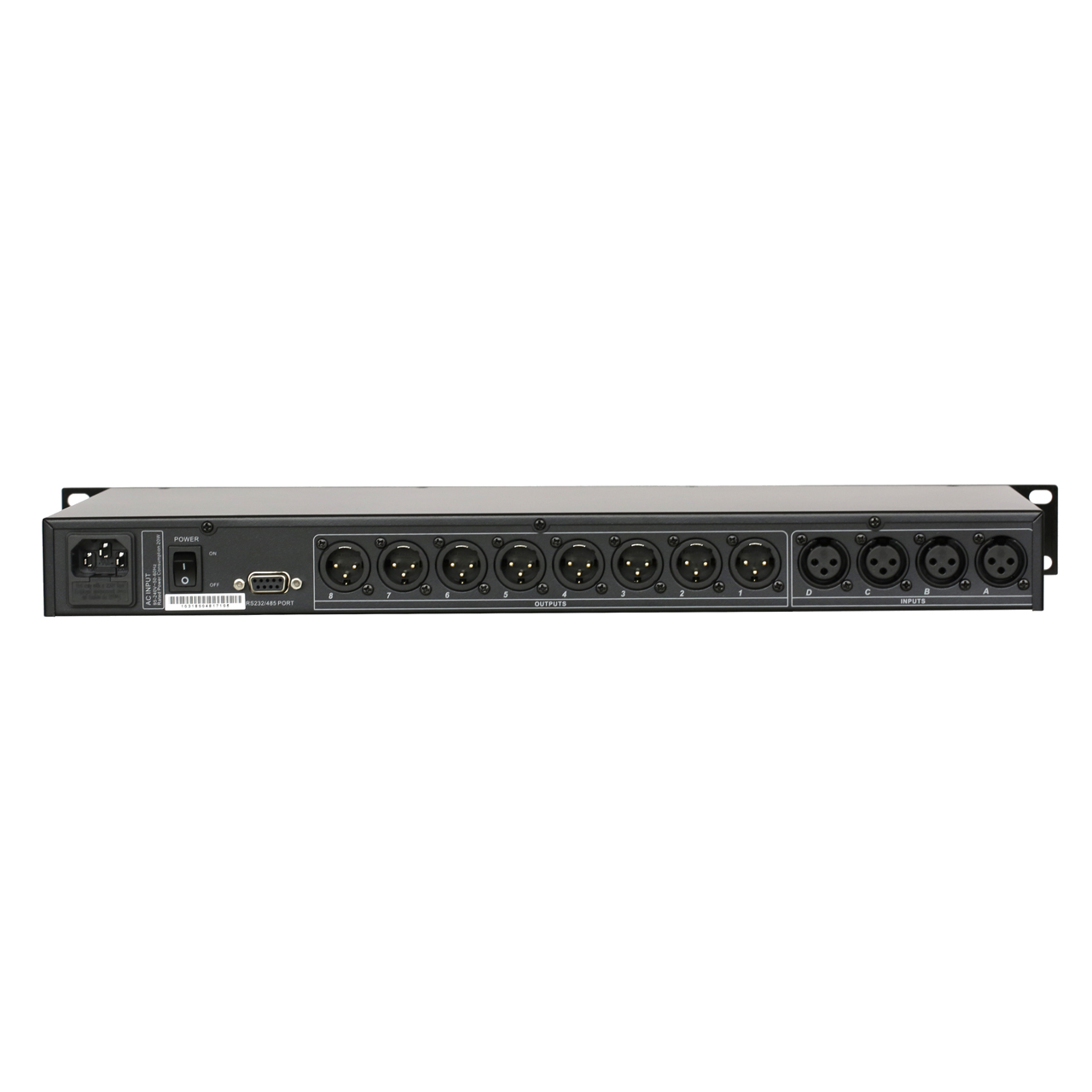

  • USB and RS232 controlling ports, Online remote control and 255 units linkable through Rs485


• Specifications:

  System Specification
  • Frequency Response: 20Hz - 20kHz, -0.3dBu
  • S/N Ratio: >110dBu
  • Distortion (THD): <0. 01 @ 1kHz (0dBu)
  • Cross-talk: <100dB below full scale

    Input Section
  • Type: Balanced XLR
  • Max. Input Level: +15dBu
  • Impedance: 1M/OStereo; 500kΩ/MONO

    Output Section
  • Type: Balanced XLR
  • Max. Output Level (bypass): +15dBu
  • Impedance: <500Ω


  • Digital Processing:
    - 24-bit sigma - delta converters
    - 48kHz Sampling Rates
  • Display: 20 x 2 LCD Display For Parameters Setting And Function Select
  • Power Supply: AC ~95V - 264V FUSE 250V AC/2A FAST
  • Dimension (LxWxH): 32" x 80" x 17" (82cm x 205cm x 44cm)
  • Weight: 6lbs (2.88kg)


• Item Includes:

  • 1x Studiomaster AC-II-48


• Warranty:

  • 1 Year Limited Warranty


• GTIN:

  5060255340981
