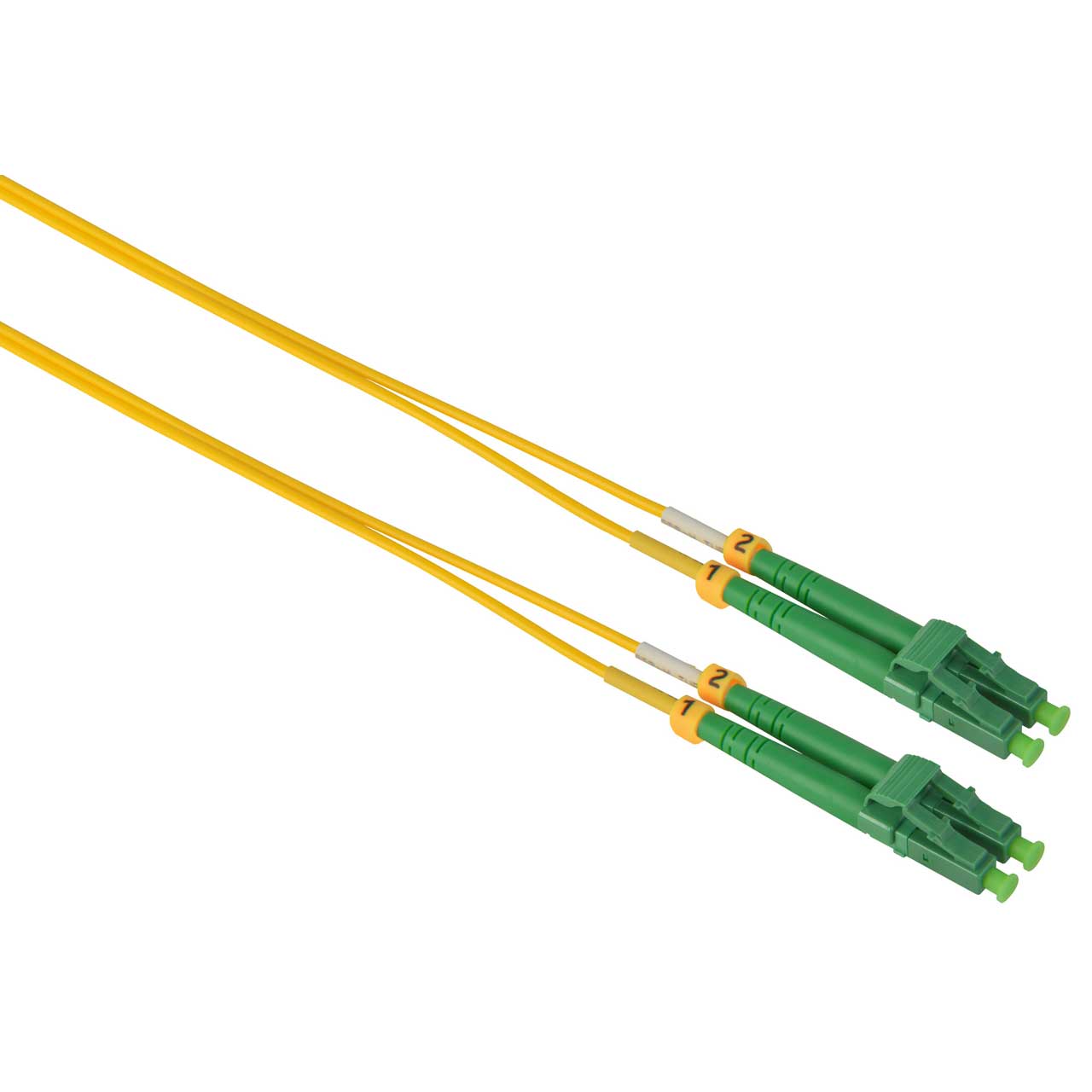

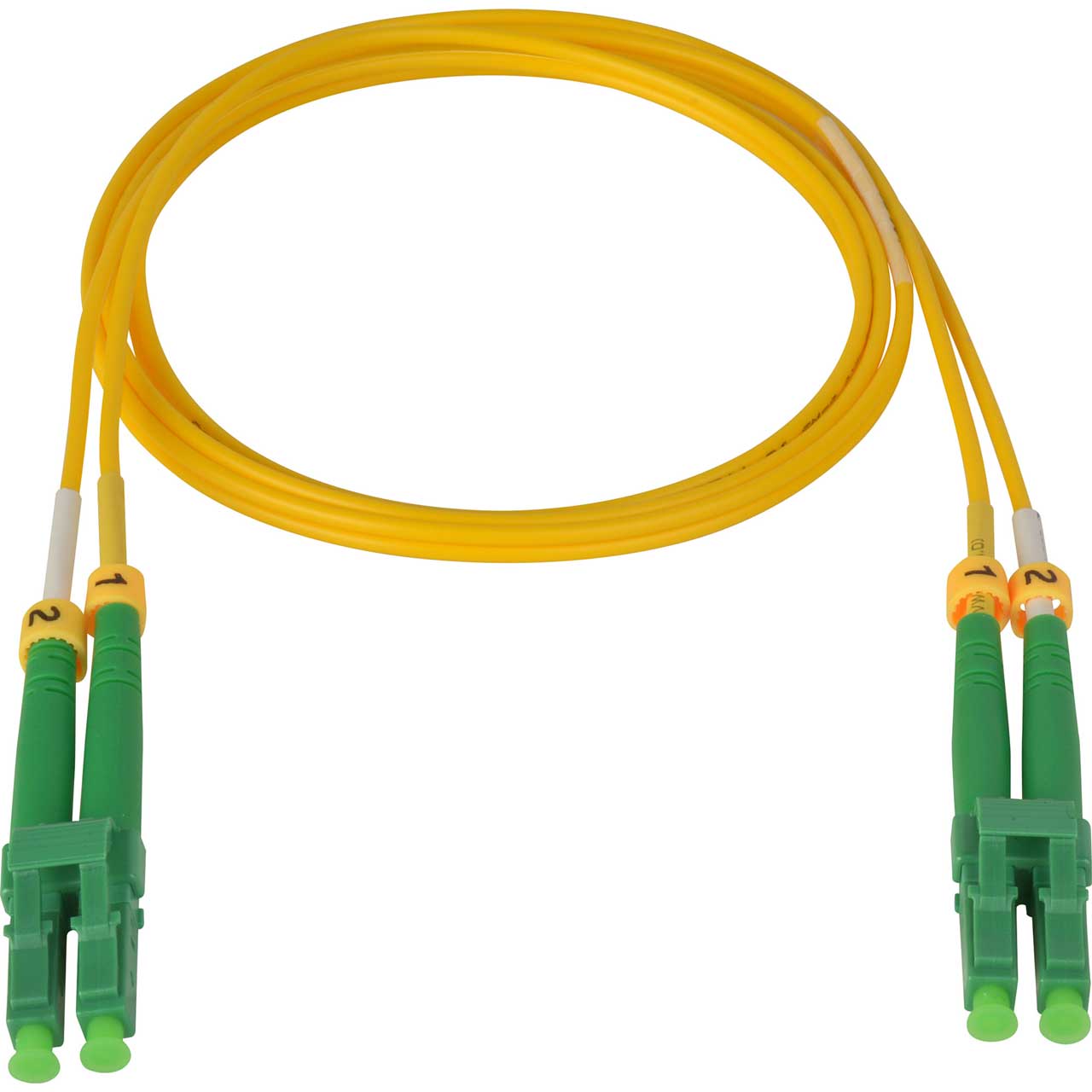

Camplex APC LC to APC LC Premium Bend Tolerant Single Mode Duplex Fiber Patch Cable - Yellow - 1 Meter

ITEM #: SMD9-ALC-ALC-001 MFG #: SMD9-ALC-ALC-001

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Camplex
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$23.49

Our Price:

$22.49

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SMD9-ALC-ALC-001 - Overview

The Camplex SMD9-ALC-ALC-001 9/125 Fiber Optic Patch APC LC to APC LC is a performance series single mode duplex fiber optic cable. Manufactured with high quality components, these riser-rated fiber optic patch cables feature Yellow OFNR jackets. Camplex fiber optic patch cables are fully tested to ensure reliable performance in critical applications. Custom lengths & connector combinations always available from our in-house Fiber Lab.

  • Features:

    • Bend Insensitive OS2 Fiber
    • Ceramic Ferrules for Long-Lasting Reliability and Precision Alignment
    • Connect Patch Panels or Network Devices Requiring 9/125 Single Mode Cabling
    • OFNR Jacket
    • APC LC to APC LC


  • Specifications:

    • 9µm core and 125µm cladding
    • Insertion Loss: ≤0.30dB max (PC, UPC) / ≤0.20dB max (APC)
    • Return Loss: ≤45dB (PC) / ≤55dB (UPC) / ≤65dB (APC)
    • Tensile Strength: Long Term: 160N / Short Term: 300N
    • Pressive Strength: Long Term: 300N / Short Term: 1000N
    • Bend Radius (mm): Dynamic: 80mm / Static: 40mm
    • Attenuation: @1310nm: ≤0.3dB/km / @1550nm: ≤0.3dB/km
    • Temperature: -20°C ~ 80°C


  • Warranty:

    • 1 Year
