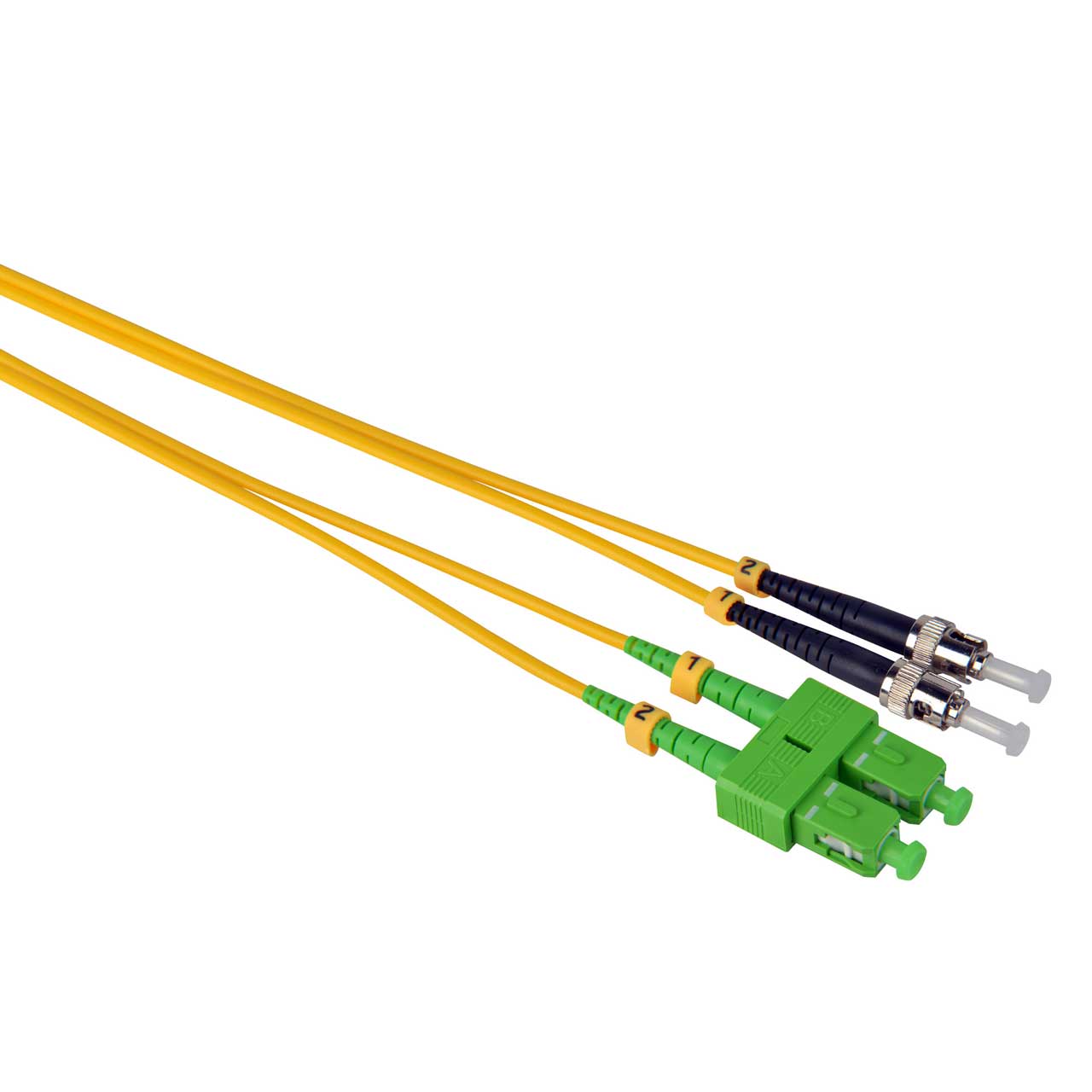

Camplex APC SC to UPC ST Premium Bend Tolerant Single Mode Duplex Fiber Patch Cable - Yellow - 5 Meter

Name: Camplex APC SC to UPC ST Premium Bend Tolerant Single Mode Duplex Fiber Patch Cable - Yellow - 5 Meter
Brand: Camplex
SKU: SMD9-ASC-ST-005
Price: 22.49 USD
Availability: PreSale

ITEM #: SMD9-ASC-ST-005 MFG #: SMD9-ASC-ST-005

Camplex

Lengths:

Lengths

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$23.49

Our Price:

$22.49

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

SMD9-ASC-ST-005 - Overview

The Camplex SMD9-ASC-ST-005 9/125 Fiber Optic Patch APC SC to UPC ST is a performance series single mode duplex fiber optic cable. Manufactured with high quality components, these fiber optic patch cables feature Yellow OFNR jackets. This unique cable bridges the gap between newer APC polish equipment and legacy UPC infrastructures. Camplex fiber optic patch cables are fully tested to ensure reliable performance in critical applications. Custom lengths & connector combinations always available from our in-house Fiber Lab.

Features:
- Bend Insensitive OS2 Fiber
- Ceramic Ferrules for Long-Lasting Reliability and Precision Alignment
- Connect Patch Panels or Network Devices Requiring 9/125 Single Mode Cabling
- OFNR Jacket
- APC SC to ST
Specifications:
- 9µm core and 125µm cladding
- Insertion Loss: ≤0.30dB max (PC, UPC) / ≤0.20dB max (APC)
- Return Loss: ≤45dB (PC) / ≤55dB (UPC) / ≤65dB (APC)
- Tensile Strength: Long Term: 160N / Short Term: 300N
- Pressive Strength: Long Term: 300N / Short Term: 1000N
- Bend Radius (mm): Dynamic: 80mm / Static: 40mm
- Attenuation: @1310nm: ≤0.3dB/km / @1550nm: ≤0.3dB/km
- Temperature: -20°C ~ 80°C
Warranty:
- 1 Year
