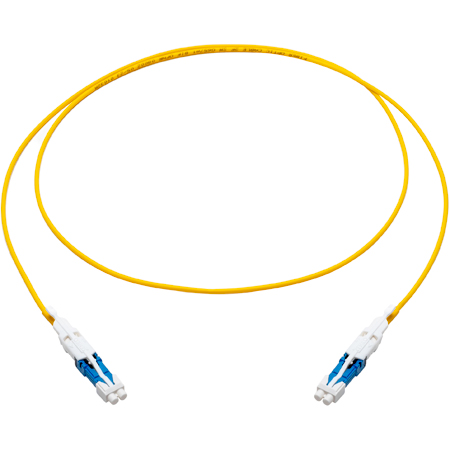

Camplex Premium Bend Tolerant Fiber Patch Cable Single Mode High Density CS to CS - Yellow - 6 Meter

ITEM #: SMD9-CS-CS-006 MFG #: SMD9-CS-CS-006

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$51.49

Our Price:

$45.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SMD9-CS-CS-006 - Overview

Performance series CS to CS 9/125 Duplex (Dual) single mode fiber optic cables from Camplex. The Senko CS Duplex connector is optimized for 400G new-generation data centers and has a 40% size reduction compared to the standard LC Duplex. Manufactured with high-quality components, these fiber optic patch cables feature Yellow OFNR jackets. Camplex fiber optic patch cables are fully tested to ensure reliable performance in critical applications. Custom lengths & connector combinations are always available from our in-house Fiber Lab.

  • Features:

    • Single Mode premium bend tolerant fiber patch cable
    • Duplex Senko CS connector optimized for 400G new generation Data Centers
    • 40% size reduction compared to LC Duplex
    • Designed for OSFP/QSFP-DD Break out application
    • Proven 1.25mm Ferrule technology
    • Push/Pull tab

  • Specifications:

    • Connector A & B: Senko CS/UPC SM
    • Cable Type: SM G657A1 BIF OS2 9/125UM
    • OD: 2.0MM
    • Insertion Loss: ≤ 0.3dB
    • Return Loss: ≥ 50dB
    • Min Bending Radius: 10D (Static); 5D (Dynamic)
    • Operating Temperature: -20°C to 70°C
    • Storage Temperature: -40°C to 70°C
    • Standards: ANSI/TIA/EIA 568-C.3

  • Warranty:

    • 1 Year
