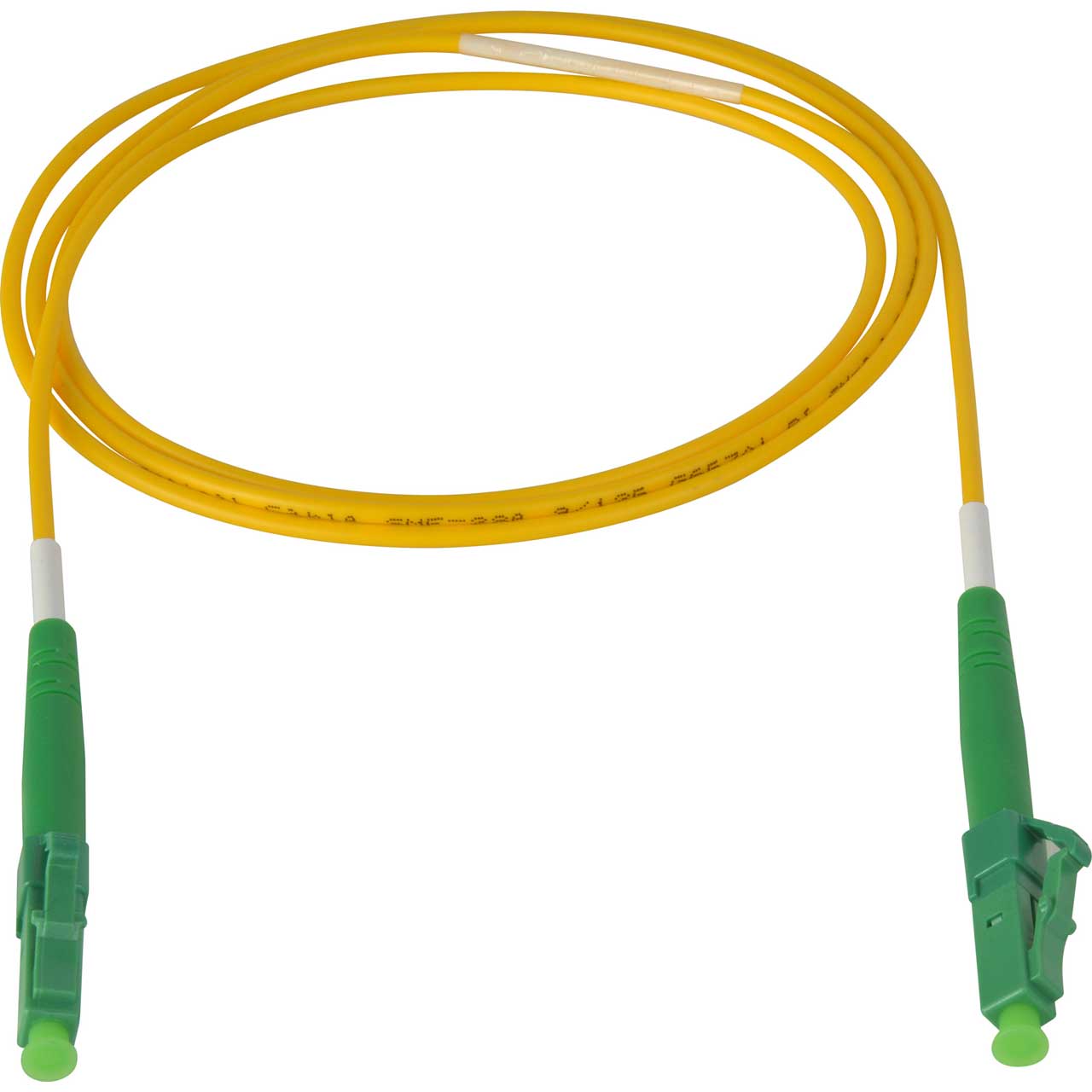

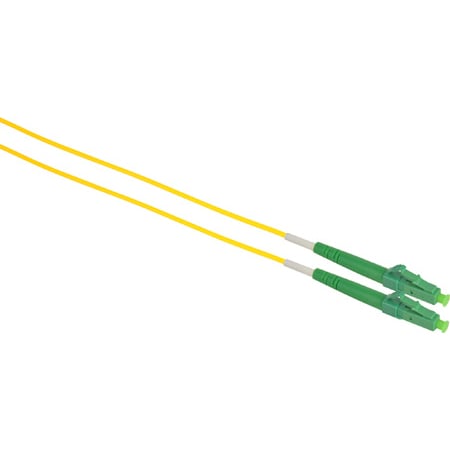

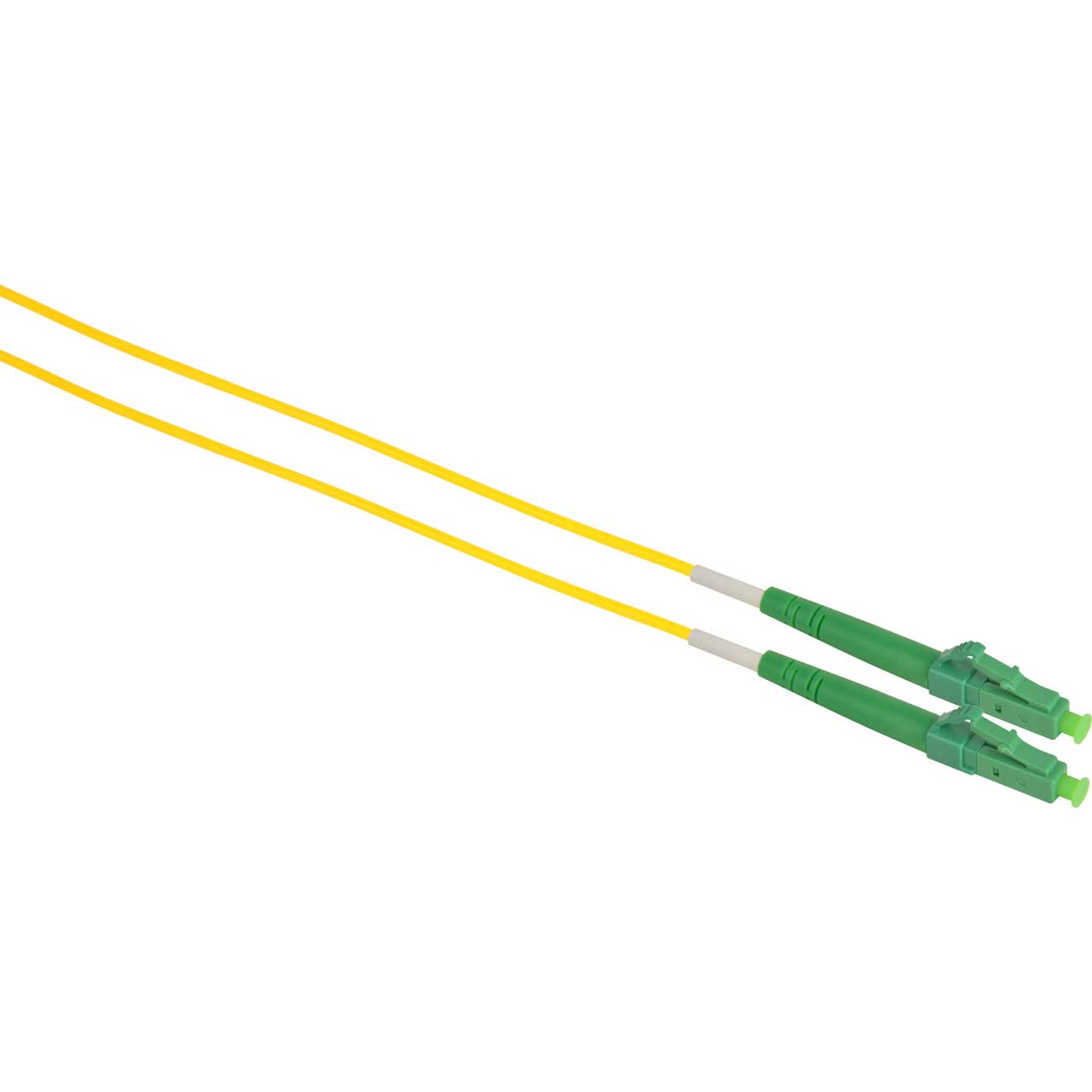

Camplex APC LC to APC LC Bend Tolerant Single Mode Simplex Fiber Patch Cable - Yellow - 1 Meter

Name: Camplex APC LC to APC LC Bend Tolerant Single Mode Simplex Fiber Patch Cable - Yellow - 1 Meter
Brand: Camplex
SKU: SMS9-ALC-ALC-001
Price: 10.95 USD
Availability: PreSale

ITEM #: SMS9-ALC-ALC-001 MFG #: SMS9-ALC-ALC-001

Camplex

Lengths:

Lengths

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$12.49

Our Price:

$10.95

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

SMS9-ALC-ALC-001 - Overview

The Camplex SMS9-ALC-ALC-001 9/125 Fiber Optic Patch APC LC to APC LC is a performance series singlemode simplex fiber optic cable. Manufactured with high quality components, these fiber optic patch cables feature Yellow OFNR jackets.

Camplex fiber optic patch cables are fully tested to ensure reliable performance in critical applications. Custom lengths & connector combinations always available from our in-house Fiber Lab.

Features:
- Bend Insensitive OS2 Fiber
- Ideal for Patching Single Mode Backbones to High-Speed Network Devices
- Ceramic Ferrules for Long-Lasting Reliability and Precision Alignment
- Used to Connect Patch Panels and/or Network Devices
Specifications:
- 9µm Core and 125µm Cladding
- Insertion Loss: ≤0.30dB Max (PC, UPC) / ≤0.20dB Max (APC)
- Return Loss: ≤45dB (PC) / ≤55dB (UPC) / ≤65dB (APC)
- Tensile Strength: Long Term: 160N / Short Term: 300N
- Pressive Strength: Long Term: 300N / Short Term: 1000N
- Bend Radius (mm): Dynamic: 80mm / Static: 40mm
- Attenuation: @1310nm: ≤0.3dB/km / @1550nm: ≤0.3dB/km
- Temperature: -20°C ~ 80°C

SMS9-ALC-ALC-001 - Recommended Accessories

Lightel CI-1100-A2 Fiber Optic Connector Inspector
LTL-CI-1100-A2
Our Price: $1,095.00
Camplex Single Mode Fiber Adapter Kit
HF-FIBERSMA-KIT
Our Price: $163.49
LC to LC Single Mode Simplex Fiber Optic Coupler
FOA-LC-LC-SS
Our Price: $2.49
Camplex One-Click Cleaner for Fiber Optic Connectors 1.25mm LC UPC/APC- Blue
CMX-TL-1401
Our Price: $57.95
JackReel F4 High Performance Fiber Optic Ready Cable Reel
JACKREEL-F4
Our Price: $89.95

SMS9-ALC-ALC-001 - Reviews

SMS9-ALC-ALC-001 - Attachments

Camplex Good Better Best Multi-Channel Fiber Assemblies

Overview

SMS9-ALC-ALC-001 - Overview

Camplex fiber optic patch cables are fully tested to ensure reliable performance in critical applications. Custom lengths & connector combinations always available from our in-house Fiber Lab.

Features:
- Bend Insensitive OS2 Fiber
- Ideal for Patching Single Mode Backbones to High-Speed Network Devices
- Ceramic Ferrules for Long-Lasting Reliability and Precision Alignment
- Used to Connect Patch Panels and/or Network Devices
Specifications:
- 9µm Core and 125µm Cladding
- Insertion Loss: ≤0.30dB Max (PC, UPC) / ≤0.20dB Max (APC)
- Return Loss: ≤45dB (PC) / ≤55dB (UPC) / ≤65dB (APC)
- Tensile Strength: Long Term: 160N / Short Term: 300N
- Pressive Strength: Long Term: 300N / Short Term: 1000N
- Bend Radius (mm): Dynamic: 80mm / Static: 40mm
- Attenuation: @1310nm: ≤0.3dB/km / @1550nm: ≤0.3dB/km
- Temperature: -20°C ~ 80°C
