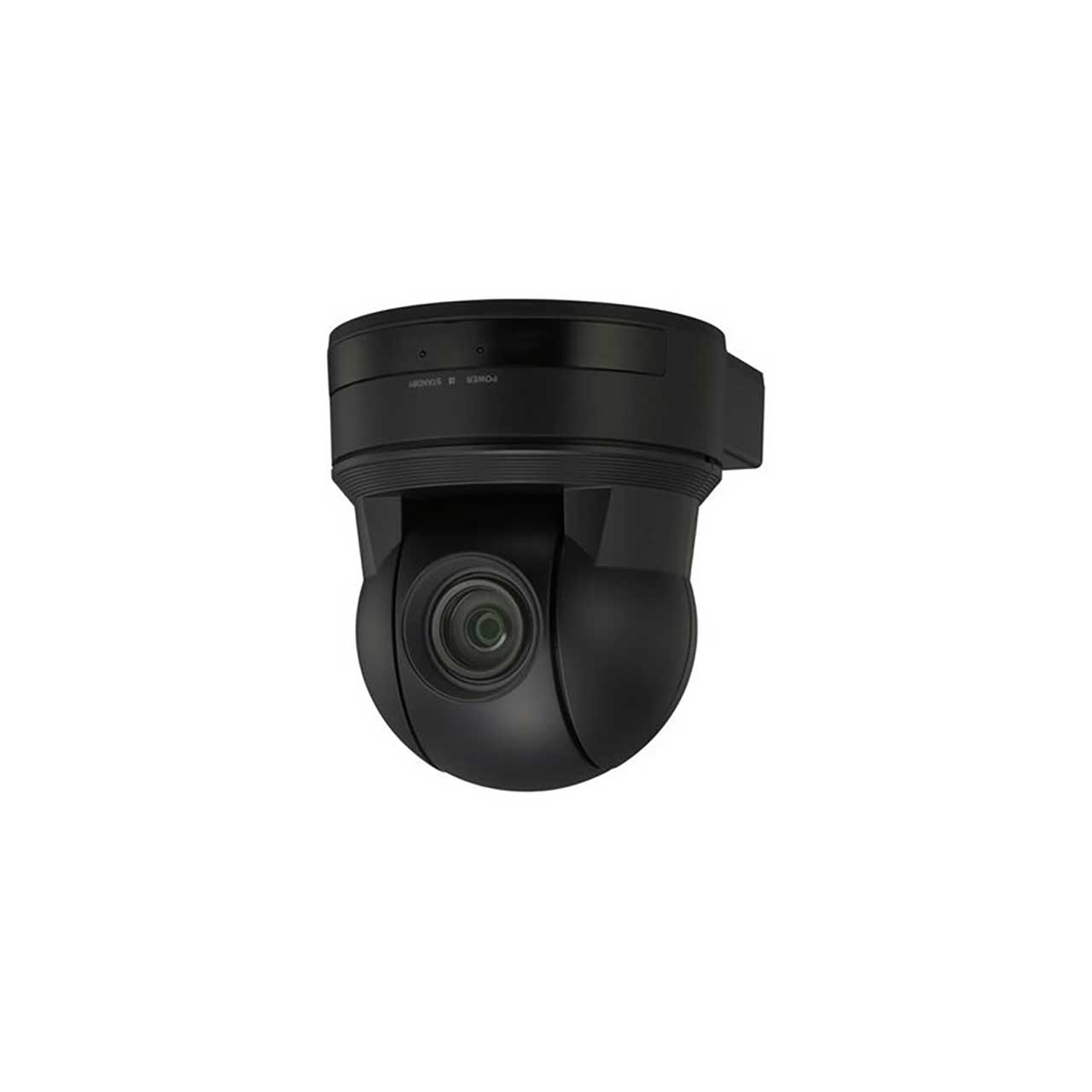

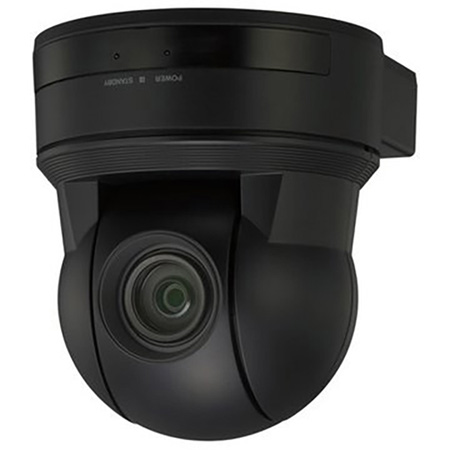

Sony EVID90 28x SD NTSC PTZ Camera - Black

ITEM #: SNY-EVID90 MFG #: EVID90

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$1,349.00

Our Price:

$949.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


EVID90 - Overview

USA Security Systems is continuously updating its wide inventory to keep up with the latest product releases of the brands we carry. The Sony EVI-D90 PTZ camera is one of the newest additions to Sony's EVI series. It has an astounding 28x optical zoom lens and makes use of the RS-232C/RS-422 VISCA camera control interface which allows users to easily connect to various peripheral devices. It has a high-speed pan/tilt/zoom function and is also ceiling mountable.

Sony annouces EVID90 cameras. Superior picture quality with a host of convenient features make these sleek PTZ cameras ideal for videoconferencing, house of worship, distance learning, corporate training, sporting events, and remote justice.

This new EVI-D90 model is the first 28x model and has an added feature of the Wide-D function.

  • Features:

    • 28x optical zoom lens
    • 1/4-type EXview HAD CCD sensor
    • Both standard mounting and ceiling mounting with E-flip function
    • Wide-D Technology
    • Low minimum illumination: 0.65 lx (F1.35 50IRE)
    • Horizontal resolution of 550TV line
    • New design concept for fitting the customer environment
    • Available in Black or White

  • Specifications:

    • Image sensor: 1/4-type EXview HAD CCD
    • Signal system: NTSC/PAL
    • Focal length: f=3.5 mm (wide) to 98.0 mm (tele). F1.35 to F3.7
    • Optical zoom: 28x
    • Digital zoom: 12x
    • Min. object distance: 10 mm (wide) - 1,500 mm (tele) *Default: 290 mm
    • Horizontal viewing angle: 55.8 degrees (wide) to 2.1 degrees (tele)
    • Focus systems: Auto, One-push AF, Manual, Infinity
    • Min. illumination: 0.65 lx (F1.35, 50 IRE)
    • Shutter speed: 1 to 1/10,000s
    • Gain: Auto/Manual/Max. AE Gain Limit (-3 dB to +28 dB, 2 dB steps)
    • White balance: Auto, ATW, Indoor, Outdoor, One-push, Manual
    • Wide-D: Yes
    • Exposure control: Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow Shutter AE
    • S/N ratio: More than 50 dB
    • Pan/Tilt Angle Pan - ±170°
    • Tilt - +90°/-20°
    • Pan/Tilt Max.speed Pan - 100°/sec
    • Tilt - 90°/sec
    • Preset positions: 6
    • Video output: VBS, Y/C

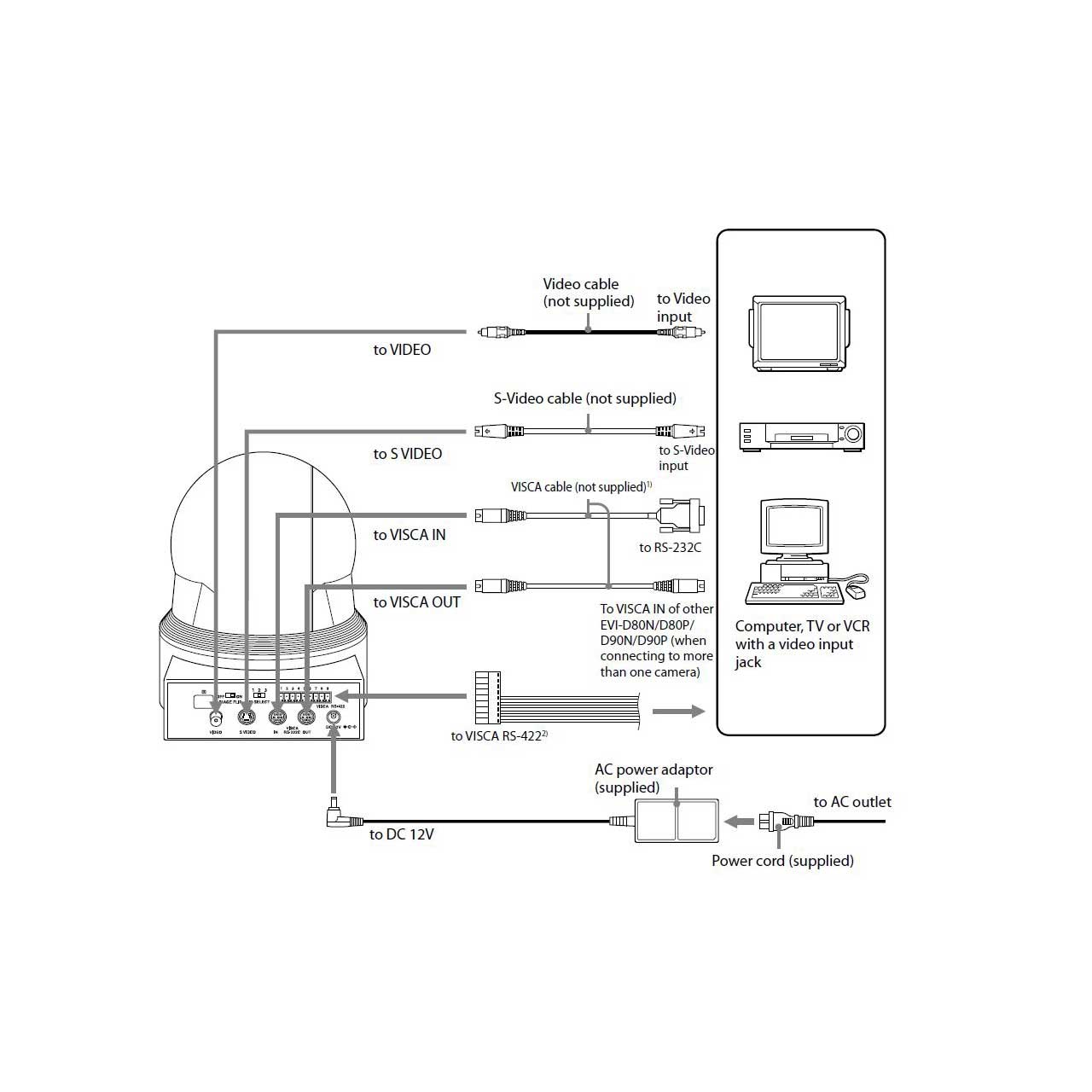

    • Camera control: Interface - RS-232C/RS-422
    • Protocol - VISCA
    • Power requirements: DC 12 V
    • Power consumption: 6 W
    • Operating temperature: 32°F to 104°F (0°C to 40°C)
    • Storage temperature: -4°F to +140°F (-20°C to +60°C)
    • Weight: 3 lb 3 oz (1460 g)
    • Dimensions (WxHxD): 5 3/4 x 6 1/2 x 6 1/2 inches (145 x 164 x 164 mm)
    • Body color: Black, White
    • Supplied accessories: AC adaptor, AC power cable, IR remote commander unit, Ceiling bracket, Operating instructions

  • GTIN:

    0027242272118


EVID90 - Required Accessories
