Sony HDVF-EL760 Full HD 1920 x 1080 7.4 Inch OLED Viewfinder for Sony Portable Cameras with Sliding Mechanism

ITEM #: SNY-HDVFEL760 MFG #: HDVF-EL760

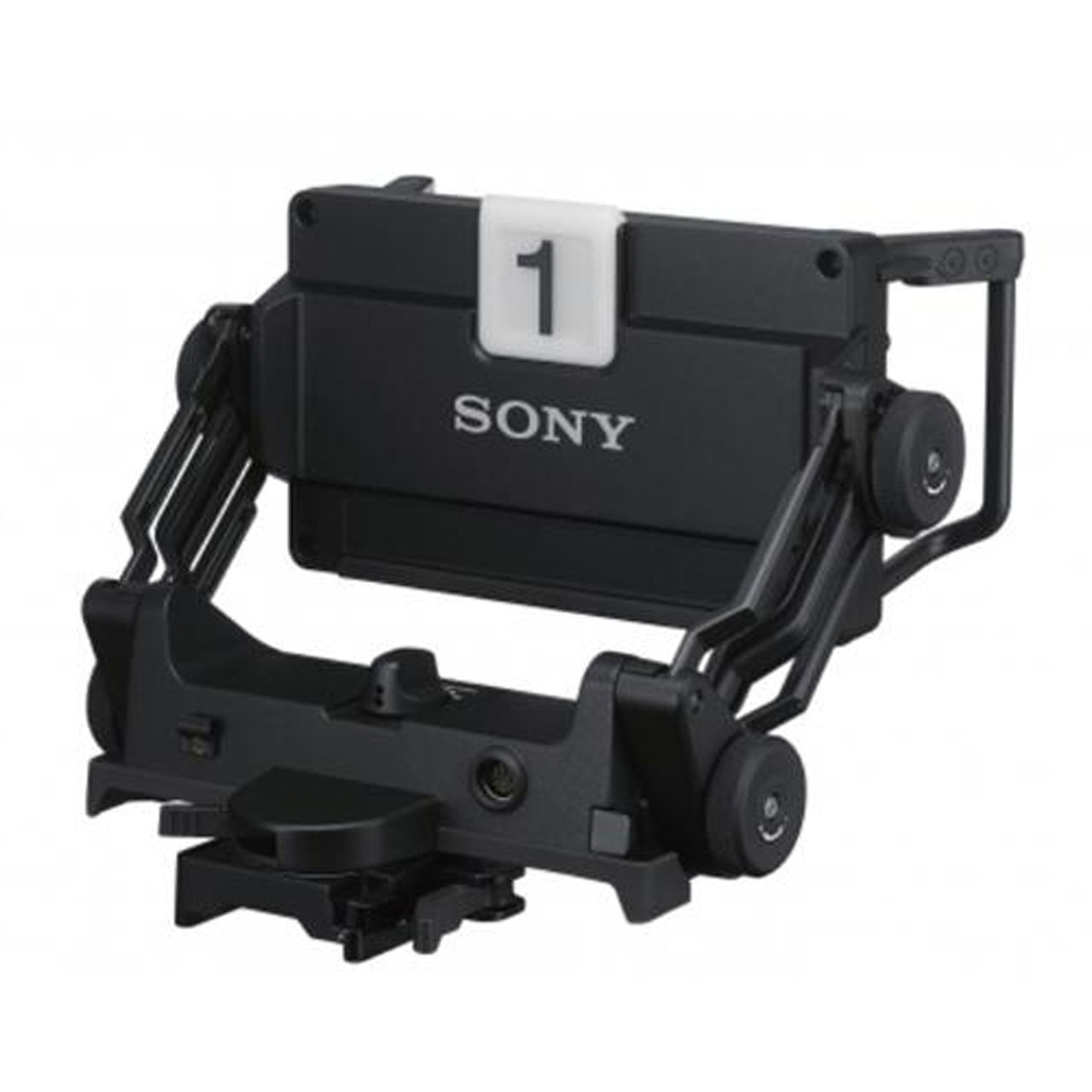

Primary Image

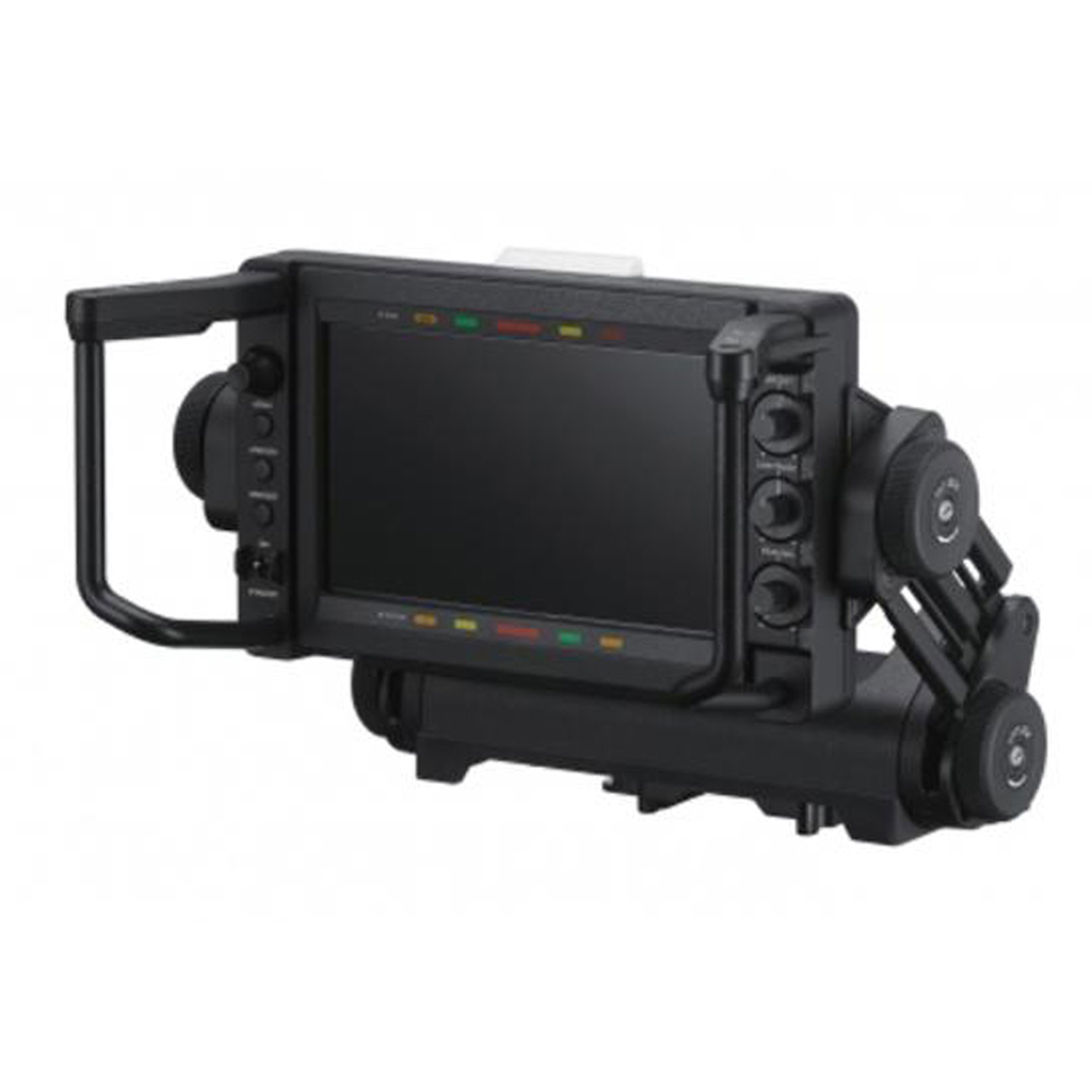

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$10,590.00

Our Price:

$10,060.50

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


HDVF-EL760 - Overview

Featuring a Full HD 1920 x 1080 7.4-inch OLED display panel, the Sony HDVF-EL760 viewfinder is ideal for 4K/HD live productions when used in conjunction with Sony system cameras. A new digital interface supports 1080p direct signal transfers from the latest HDC series camera, while the viewfinder also retains a traditional analog interface for compatibility with other Sony cameras. The new viewfinder mechanism offers a wider up-and-down movement range. Further operational advantages include convenient display of camera head menus and control of camera functions via six assignable switches on the viewfinder for bespoke setups. With this new panel device adoption, the HDVF product body size becomes thinner.

  • Features:

    • Full HD 1920 x 1080 7.4-inch OLED panel ideal for 4K/HD live production with Sony studio cameras
    • New digital interface with camera head
    • Wide movement of counter balanced mechanism
    • Panning braking and clicking system
    • Slider mechanism
    • Combined flexible operation including camera head menus
    • Assignable switches on bezel and handles
    • Boosted Brightness Mode (BBM)
    • Color temperature adjustment
    • Flicker suppression
    • Camera number display
    • Waveform monitor function (WFM)

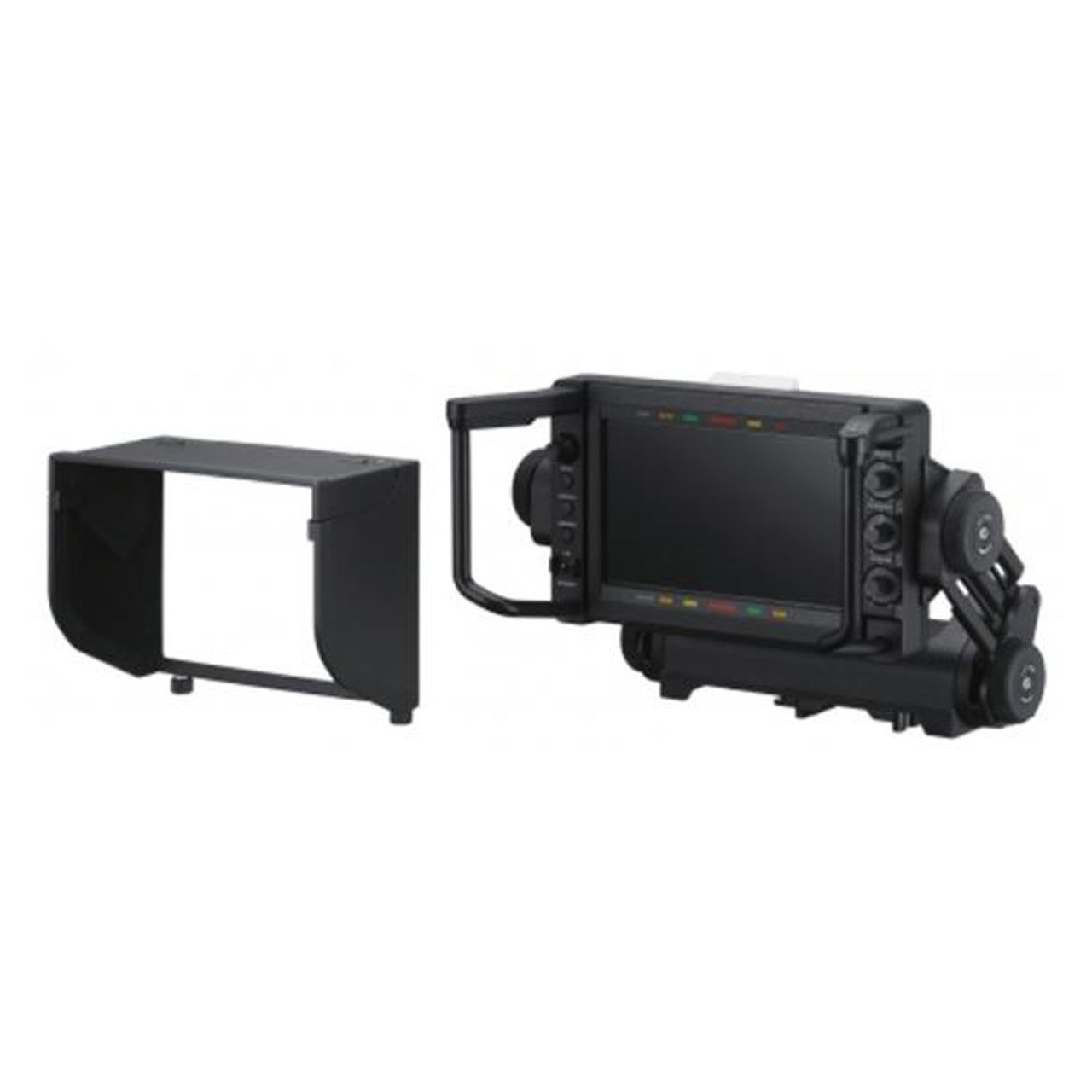

    • Integral removable hood

  • Specifications:

    • General
    • Power Supply: 10.5 V to 17.0 V DC (supplied by the camera)
    • Power Consumption: 13.5 W (BBM ON: 15.5 W)
    • Operating Temp: -4°F to +113°F (-20°C to +45°C)
    • Storage Temp: -4°F to +140°F (-20°C to +60°C)
    • Mass: 7lbs 4oz (3.3 kg) (Not including hood)
    • Dimensions (WxHxD): 12.25 x 8.5 x 11.75 In (310.5 x 214.4 x 295.3 mm)

      Display Unit
    • Panel: 7.4-inch (188 mm) color OLED panel
    • Effective Picture Size [H/V, 16:9 aspect ratio]: 6.5 x 3.625 In (164 x 92 mm)

      Performance
    • Brightness: 315 cd/m2 in normal mode (BBM ON: 700 cd/m2
    • Resolution: 1920x1080
    • Color Temperature: D65

      Connectors
    • Camera Connector: Round type 20-pin (x1)

  • Item Includes:

    • 1x Indoor Hood
    • 1x Number Plate
    • 1x Cleaning Cloth
    • 1x Attachment Plate
    • 1x Pan Base Assembly
    • 4x Mounting Screws for Pan Base Assembly
    • 1x Handle Clamp
    • 1x Hexagonal Wrench
    • 4x Socket Head Cap Screws
    • 1x Connecting Cable, 20 pin
    • 1x Operation Manual CD
    • 1x "Before Using This Unit" Sheet
