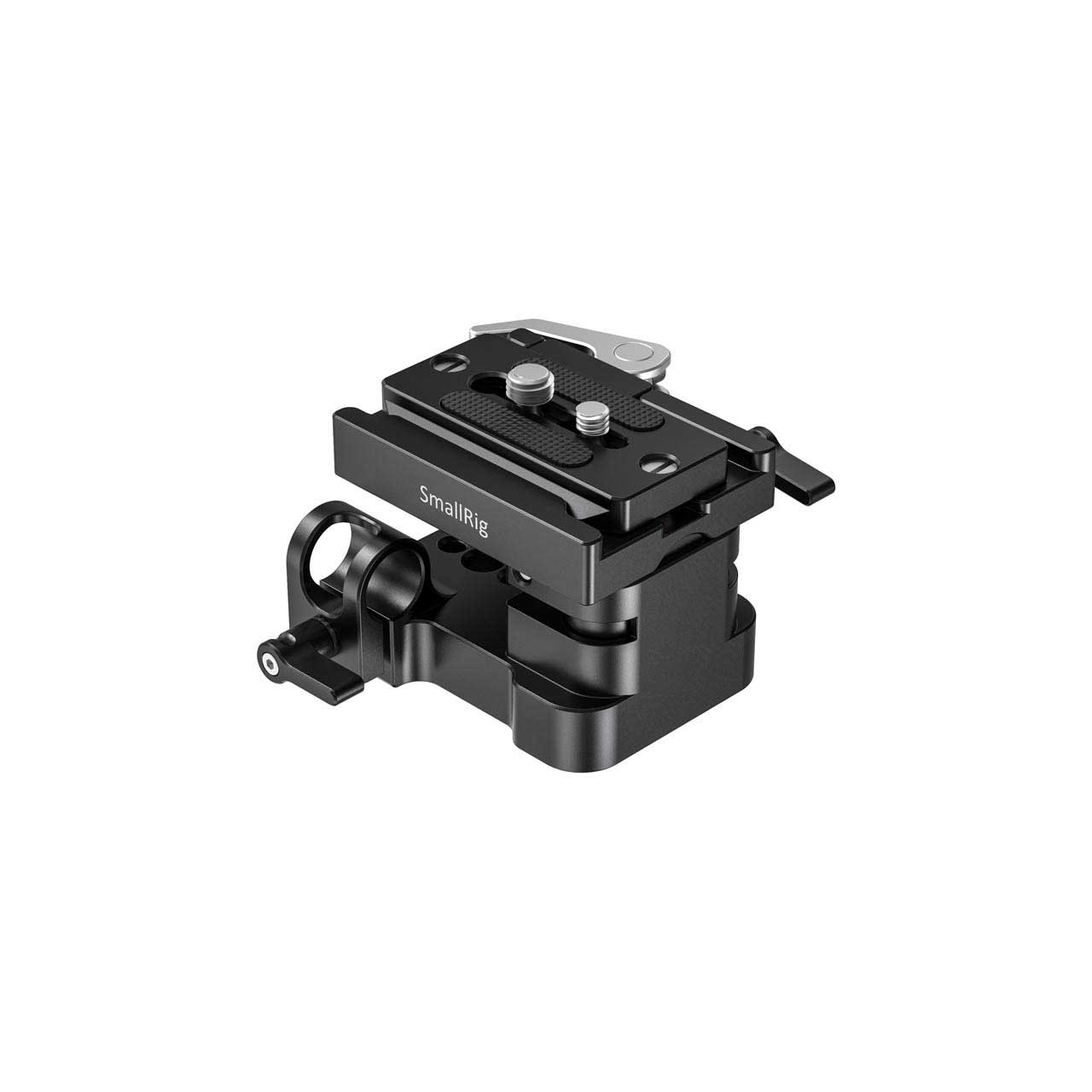

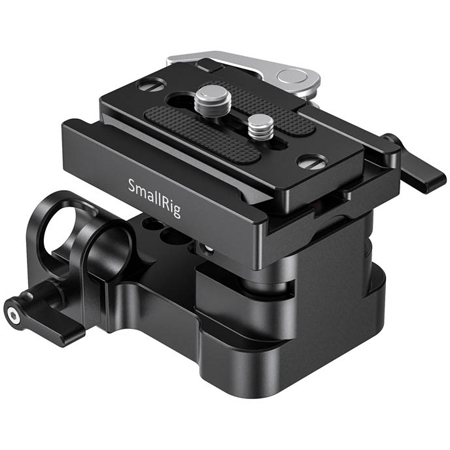

SmallRig 2092B Universal 15mm Rail Support System Baseplate

ITEM #: SR-2092B MFG #: 2092B

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$129.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


2092B - Overview

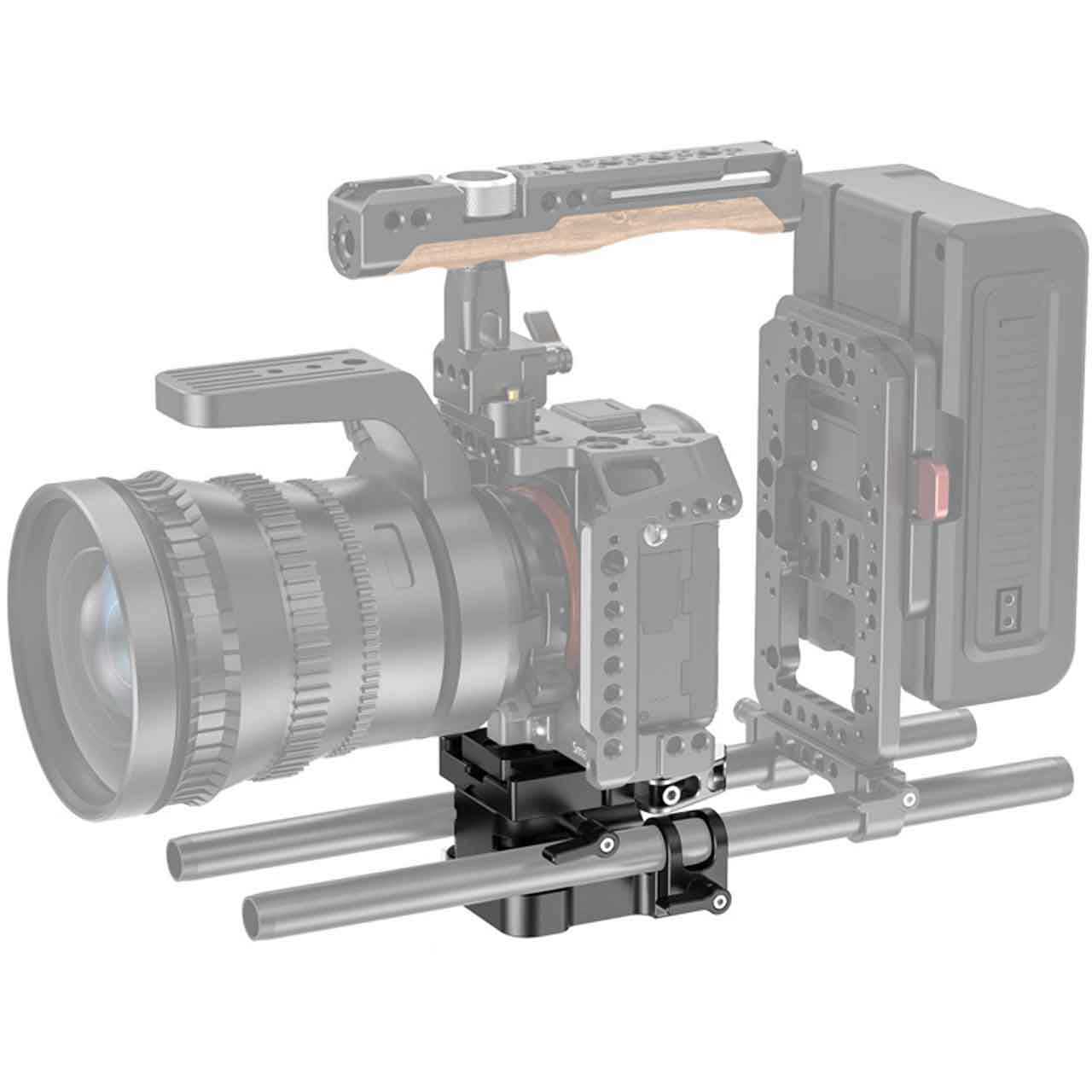

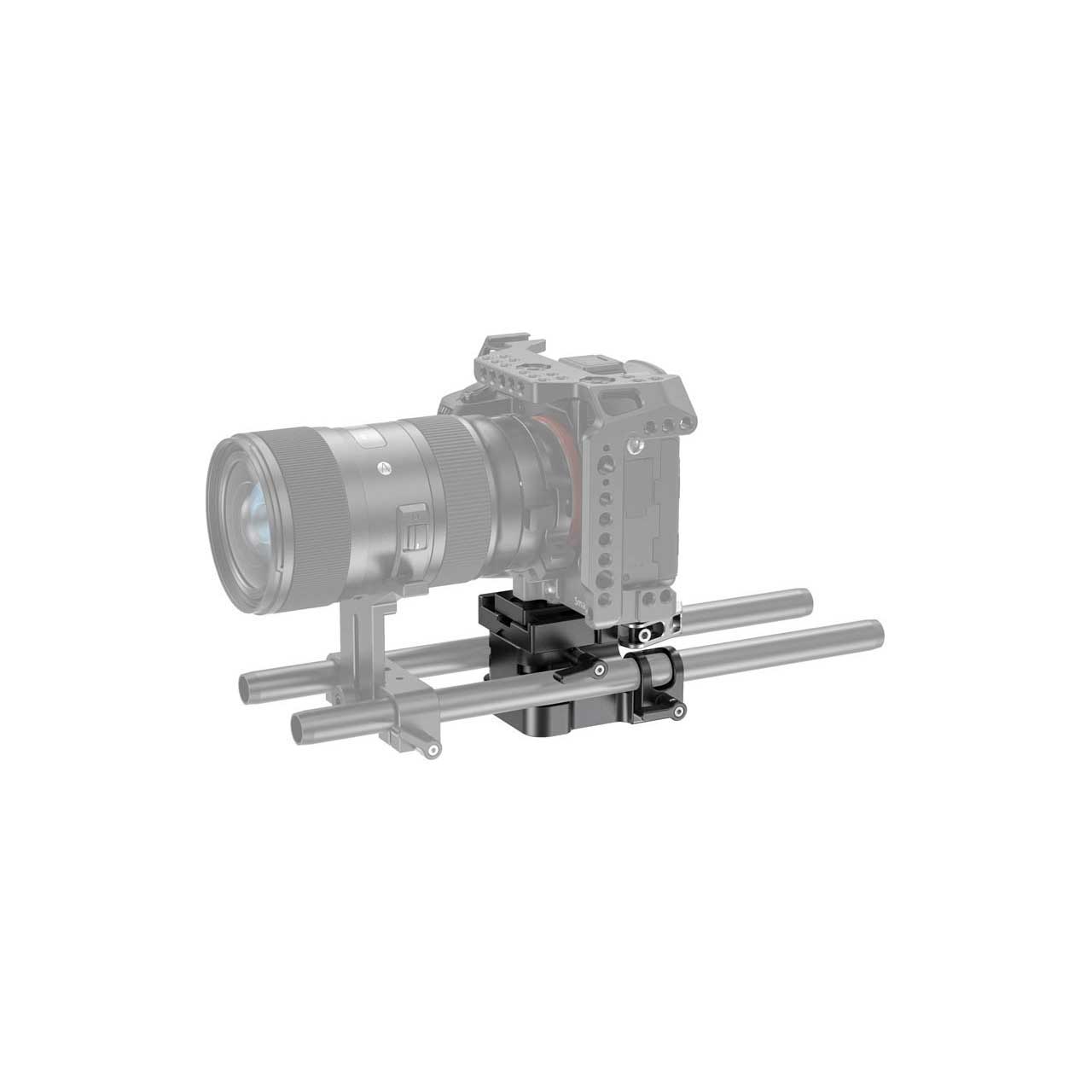

SmallRig Universal 15mm Rail Support System Baseplate 2092B could offer lots of additional attachment options and enables the camera to release its potential to the utmost as per the needs of the cameraman during shooting.

It locks the QR plate via a locking lever for quick release and attachment. The Arca QR plate on the top could be mounted with the camera, and it features convenient detachment and it is very easy to switch to handheld shooting. It could attach 15mm Rod 1053 for follow focus, matte box and Long Lens Support with Dual 15mm Rod Clamp 1087 based on your needs.

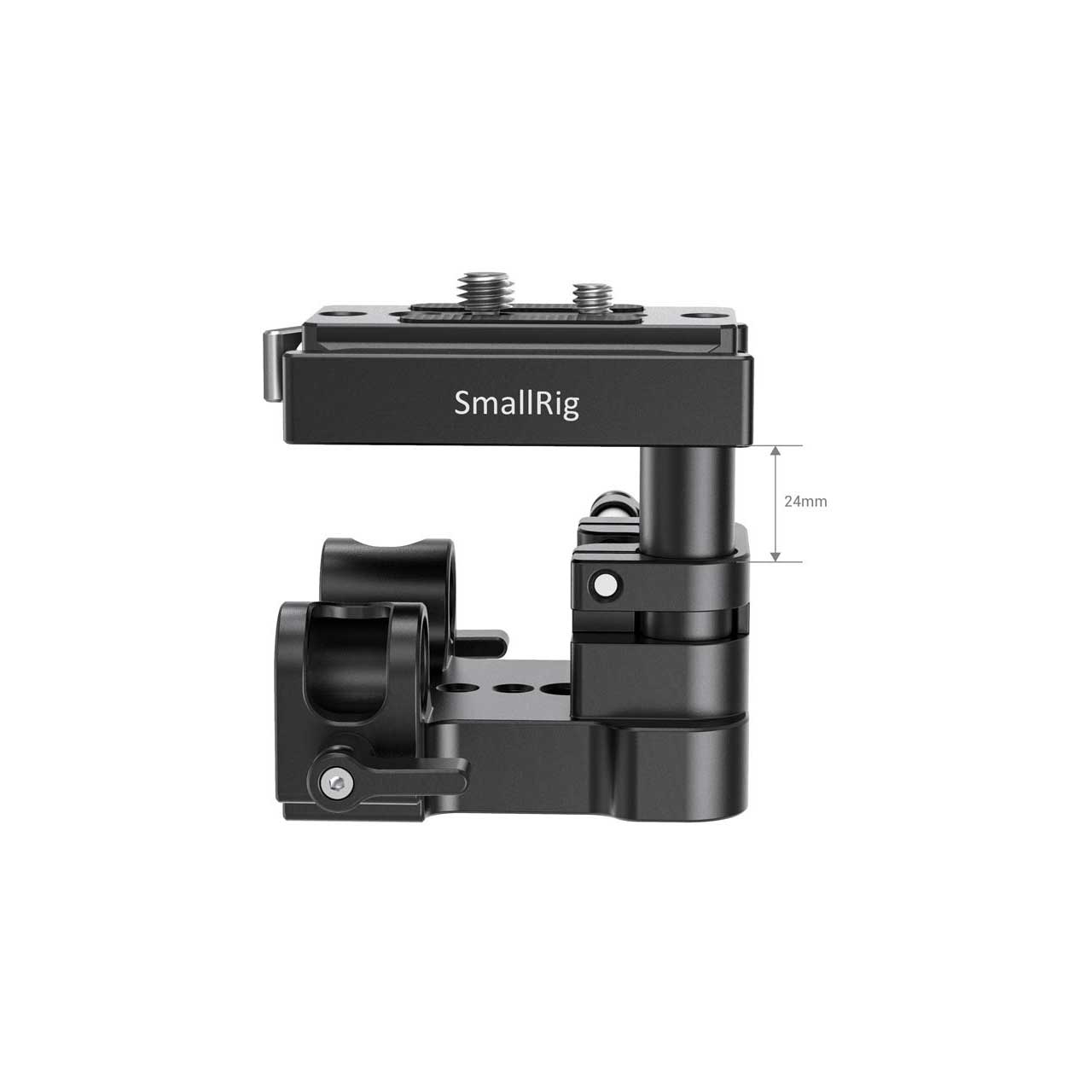

Its adjustable height could reach up to 24mm in maximum via a wingnut, thus it ensures 85mm rod height. The height from the QR plate to rod center ranges from 33.6mm to 57.6mm. Wingnut at the side enables enough space for adjustment manually.

It is equipped with 1/4"-20 and 3/8"-16 threaded holes at the bottom for DIY operation. Therefore, it could attach Quick Dovetail (Manfrotto) 1280 and then sit on Manfrotto tripod.

  • Features:

    • It is a universal adjustable baseplate compatible with a mirrorless camera and DSLR.
    • It comes with a base plate and a QR plate of Arca-swiss standards, locked via a locking lever for quick release and attachment of camera.
    • It could be adjusted in height via a wingnut, and thus it enables 85mm rod height. The height from the QR plate to rod center ranges from 33.6mm to 57.6mm.
    • It is equipped with 1/4"-20 and 3/8"-16 threaded holes to attach QR plates and then tripod.

  • Specifications:

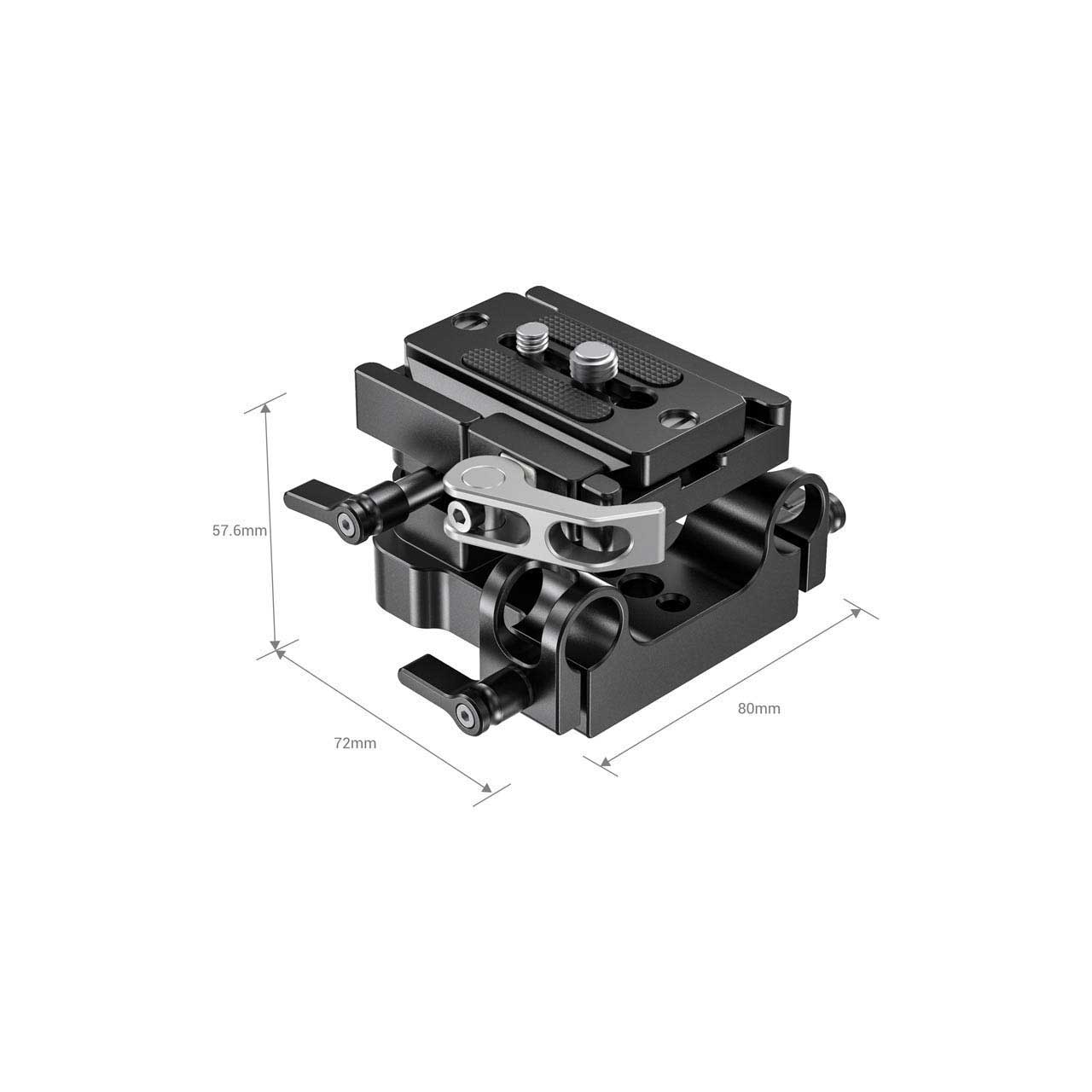

    • Product Dimensions: 108 x 72 x 57 mm (4.25 x 2.84 x 2.24in)
    • Net Weight: 385g (13.58oz)
    • Package Size: 116 x 112 x 95 mm (4.57 x 4.41 x 3.74in)
    • Material(s): Aluminum Alloy

  • Item Includes:

    • 1x Universal 15mm Rail Support System Baseplate

  • Warranty:

    • 2 year

  • GTIN:

    6972070629716
