StarTech CDP2VGA USB-C to VGA Adapter

ITEM #: ST-CDP2VGA MFG #: CDP2VGA

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$30.99

Our Price:

$27.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CDP2VGA - Overview

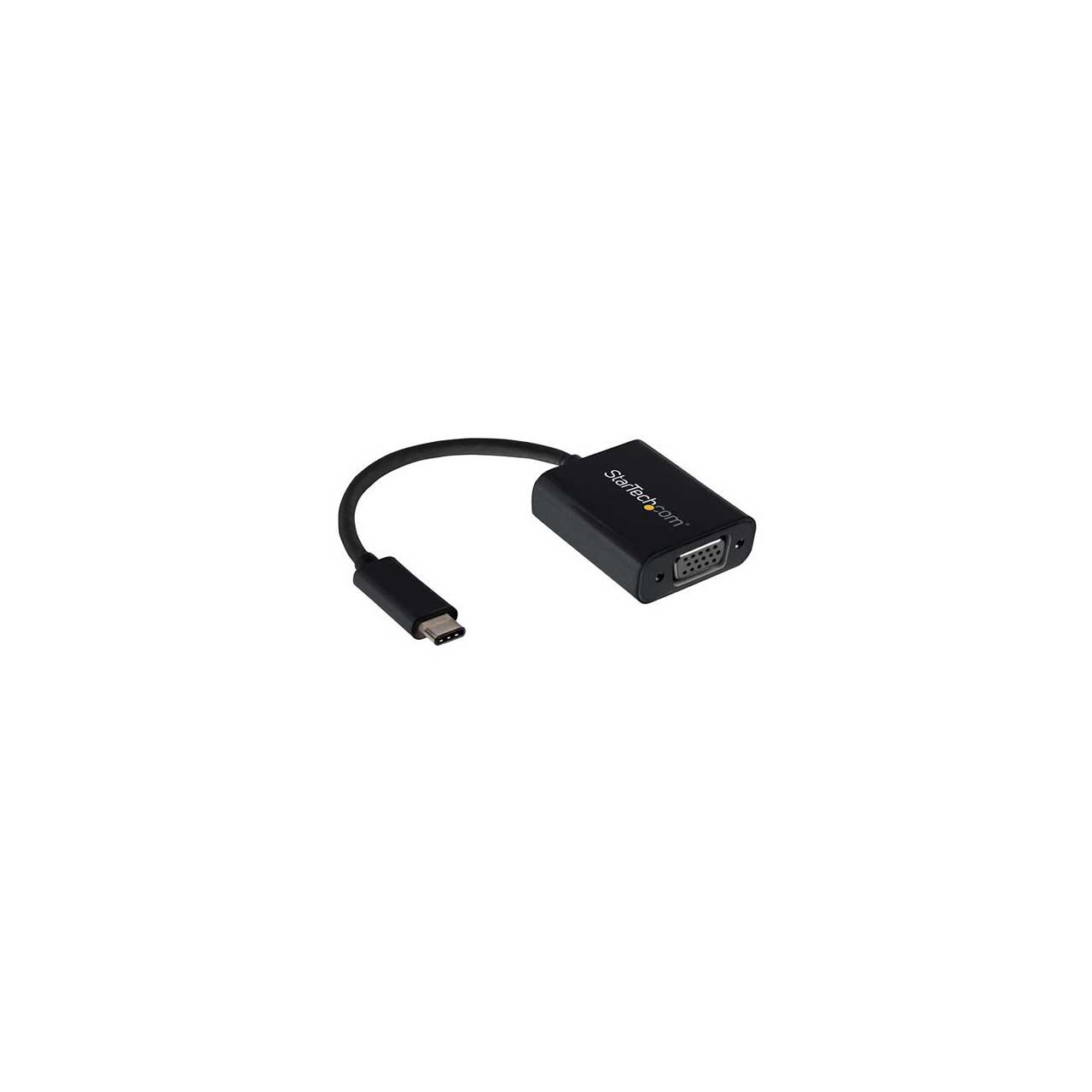

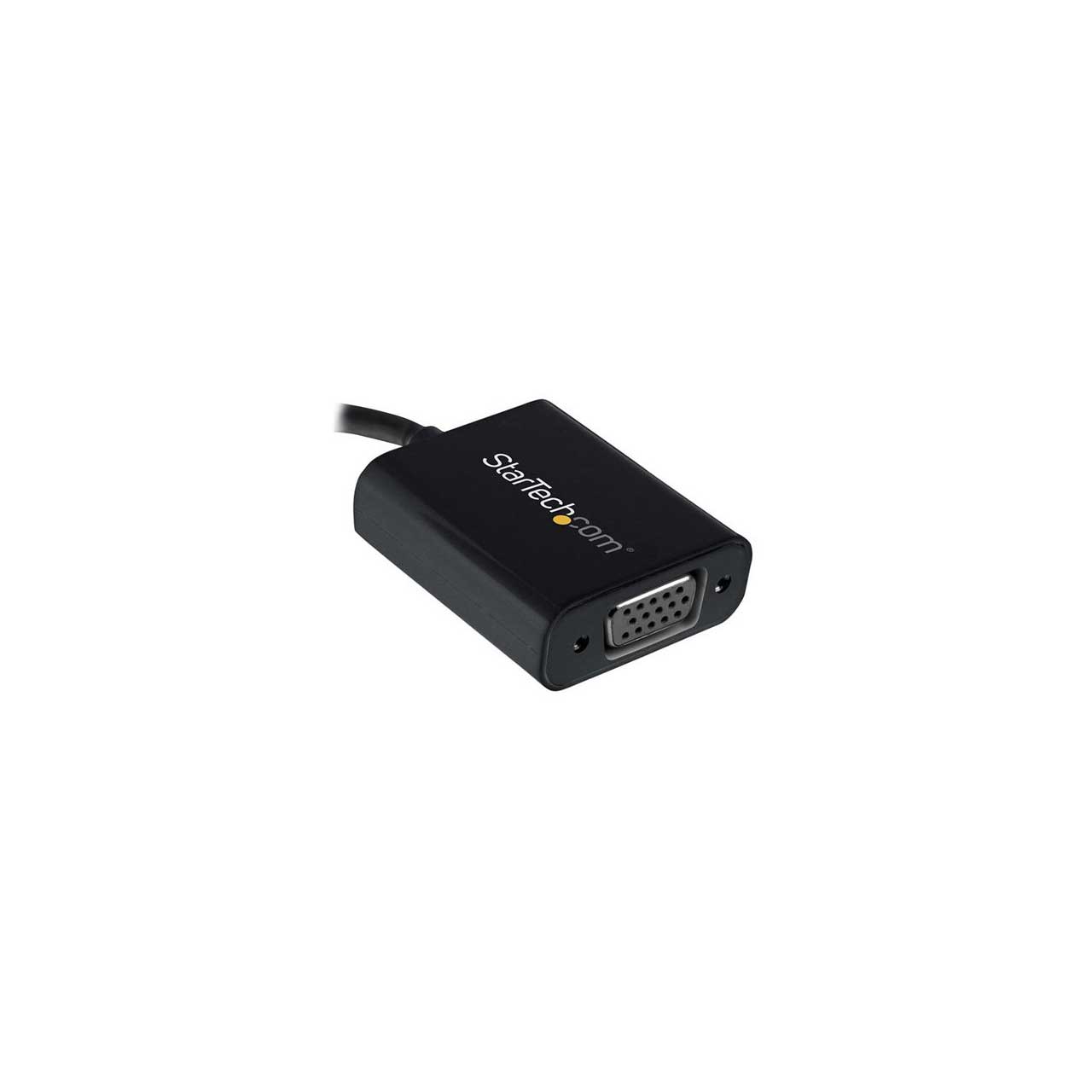

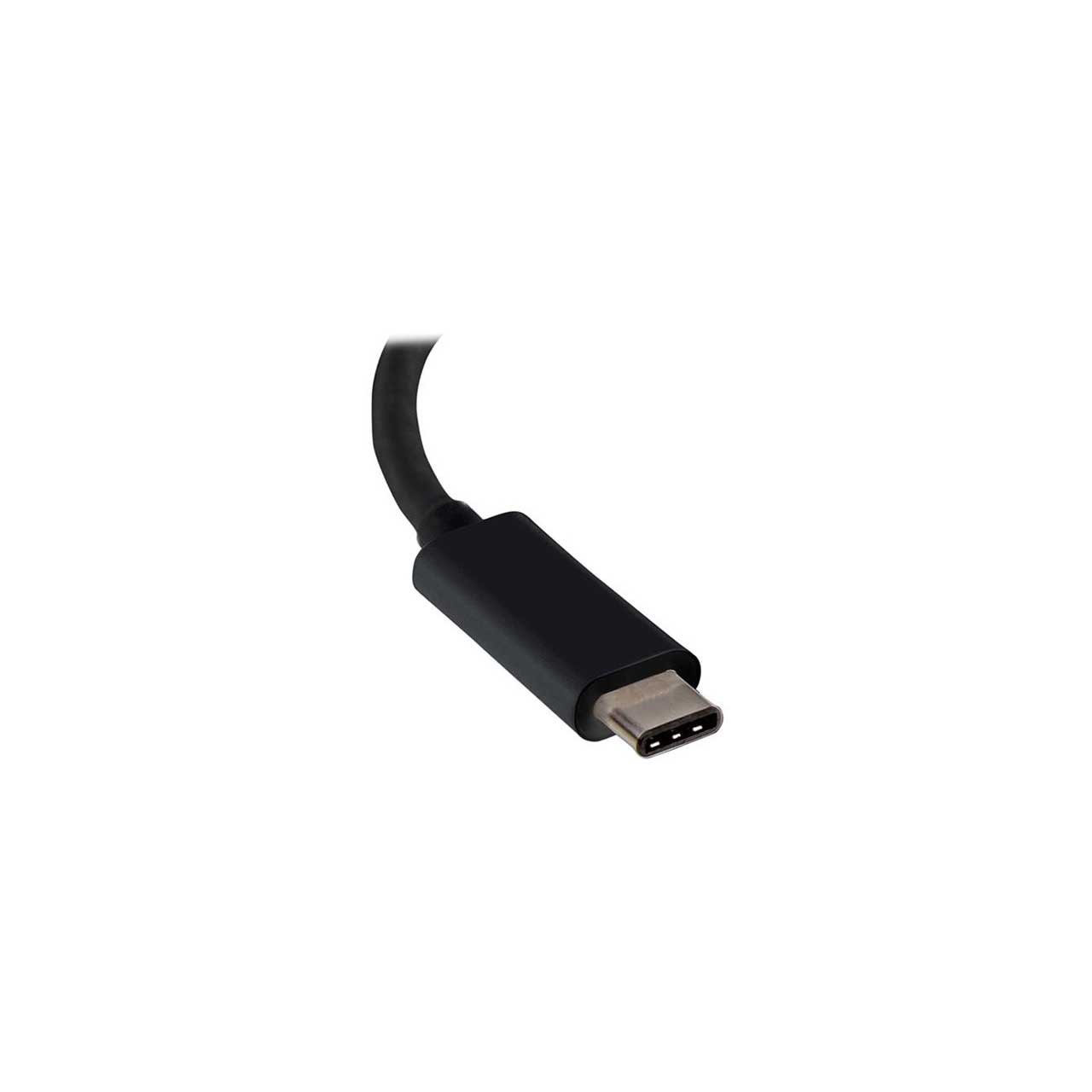

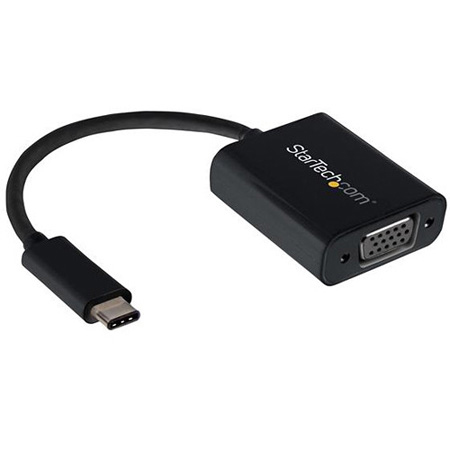

The StarTech CDP2VGA USB-C™ to VGA video adapter lets you output high-definition VGA video from your USB Type-C™ device.

USB Type-C is a universal connectivity standard that combines all of your essential functions into one dynamic port. The connector is featured on ultra-portable devices with USB 3.1 Gen 1. This adapter works with USB-C devices that pass a DisplayPort video signal, such as the MacBook and Chromebook Pixel™. It's also compatible with Thunderbolt™ 3 ports.

Portable convenience
This USB Type-C video adapter maximizes portability with a lightweight, small-footprint design, which makes it the perfect accessory to carry with your MacBook or Chromebook, fitting easily into your laptop bag or carrying case. This ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office.

Hassle-free connection with USB Type-C
This adapter lets you utilize the versatile USB Type-C port on your portable device. USB Type-C is a reversible connector, so no matter how you plug it in, the adapter will always work, saving you the hassle and embarrassment of struggling with your device when you're trying to present.

Crystal clear picture quality
The adapter supports video resolutions up to 1920x1200 or 1080p. You'll be surprised at the picture quality the adapter provides, even when connected to a legacy VGA monitor, projector or television. The adapter harnesses the video capabilities built into your USB Type-C connection to deliver every detail in stunning high-definition.

NOTE: Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter.

  • Features:

    • Hassle-free connection with the reversible USB-C connector
    • Maximum portability with a small footprint and lightweight design
    • Thunderbolt 3 port compatible
    • Crystal clear picture quality with support for high-definition video resolutions up to 1920x1200 or 1080p

  • Specifications:

    • Color: Black
    • AV Input: USB Type-C
    • AV Output: VGA
    • Chipset ID: NXP - PTN5100; NXP - PTN3355
    • Ports: 1
    • Connector A: 1 - USB-C (24 pin) DisplayPort Alt Mode Male Input
    • Connector B: 1 - VGA (15 pin, High Density D-Sub) Female Output
    • Power Source: USB-Powered
    • Humidity: 25% to 85% RH Non-Condensing
    • Operating Temperature: 5°C to 35°C (41°F to 95°F)
    • Storage Temperature: 5°C to 35°C (41°F to 95°F)
    • Product Height: 0.6 in [14 mm]
    • Product Length: 7.1 in [180 mm]
    • Product Weight: 0.8 oz [24 g]
    • Product Width: 1.5 in [37 mm]

  • Item Includes:

    • 1 - USB-C to VGA adapter

  • Warranty:

    • 2 Years

  • GTIN:

    0065030862608
