StarTech SDOCK2U33EB USB 3.0/e SATA Dual Hard Drive Dockin G Station

ITEM #: ST-SDOCK2U33EB MFG #: SDOCK2U33EB

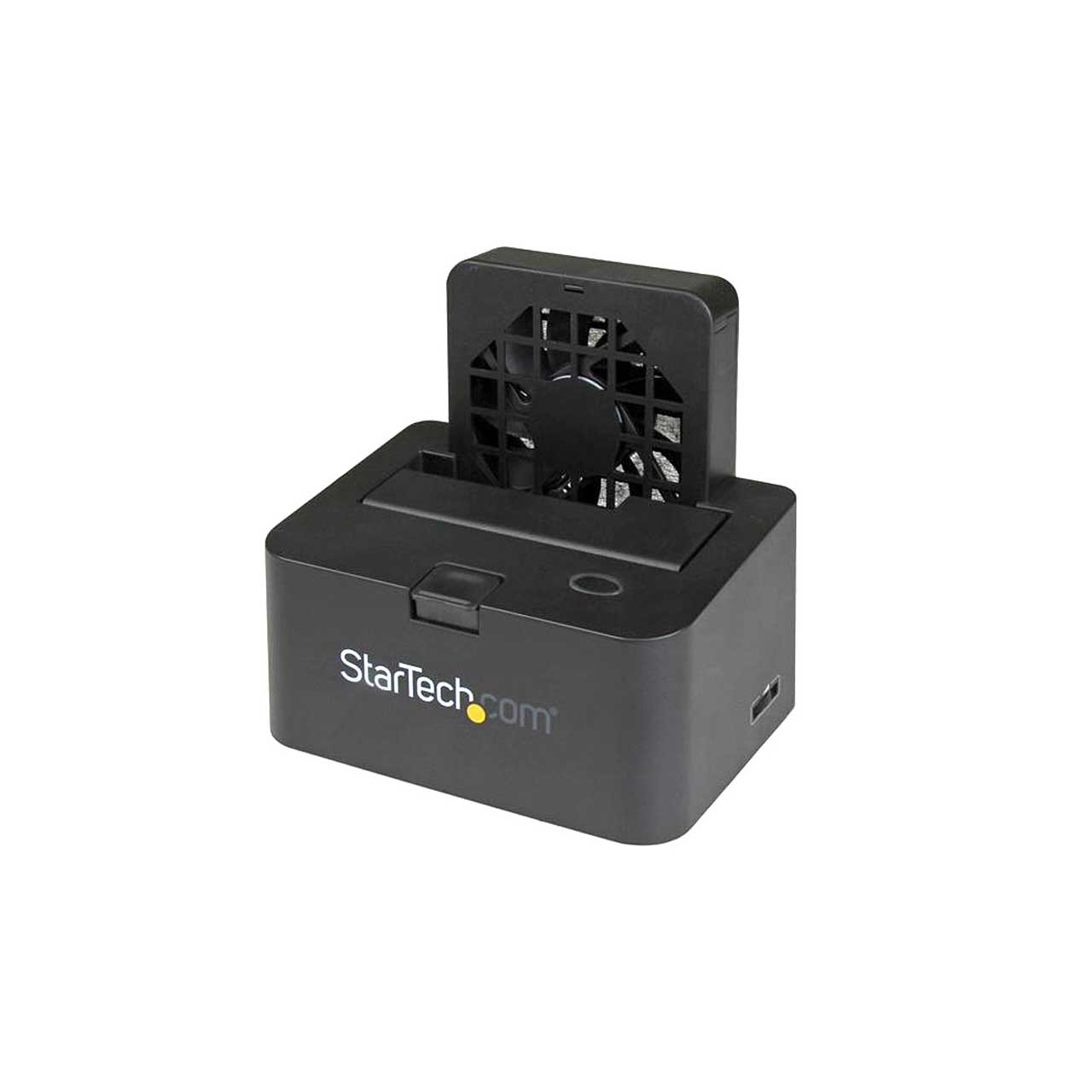

Primary Image

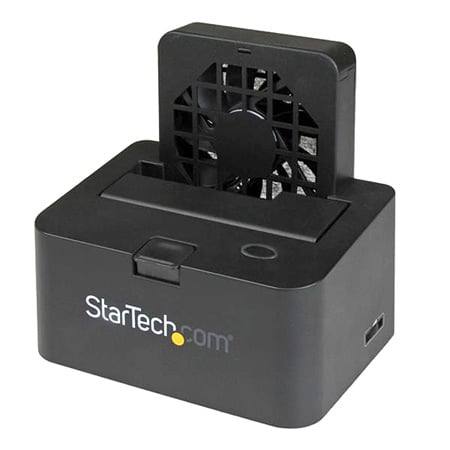

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$88.99

Our Price:

$83.24

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


SDOCK2U33EB - Overview

The SDOCK2U33EB Dual 2.5/3.5" SATA hard drive docking station lets you dock and swap hard drives from your desktop or laptop computer simultaneously using a single eSATA or USB port. For fast performance and efficient data transfers when connected through eSATA, the docking station supports full SATA III transfer speeds -- up to 6 Gbps. For universal compatibility, the dock can be connected through USB 3.0 with transfer speeds up 5 Gbps plus support for UASP, which supports performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives. See our UASP testing results below for further details.The hard drive docking station supports the fastest drive technologies including SATA III (6 Gbps), hybrid drives and solid state drives (SSD), ensuring you can save time by getting the most out of your drive performance. Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in. IDE hard drive into a SATA hard drive dock. To ensure compatibility with your computer system, the SDOCK2U33EB supports all of the leading operating systems, including: Microsoft Windows (8/7/Vista/XP/Server 2008/Server 2003), Apple OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS. The SDOCK2U33EB is backed by a StarTech.com 2-year warranty and free lifetime technical support.

  • Features:

    • Support SATA III (6 Gbps) and UASP for optimal performance
    • eSATA or USB host connection
    • Compatible with USB 3.0/2.0/1.1 (5 Gbps / 480 Mbps / 1.5 Mbps)
    • Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives
    • Supports both 2.5" and 3.5" form factor hard drives (HDD) and solid state drives (SSD)
    • Dual bay, top slot-loading design with drive doors

  • Specifications:

    • Hardware
    • Chipset ID: JMicron - JMS562
    • Compatible Drive Types: SATA
    • Drive Installation: Removable
    • Drive Size: 2.5in & 3.5in
    • Interface: USB 3.0 & eSATA
    • Number of Drives: 2
      Performance
    • Insertion Rating: 15,000 Cycles
    • Max Drive Capacity: Currently tested with up to 4TB 7200 RPM 3.5" hard drives per bay (8TB total) and 2TB 5900 RPM 2.5" hard drives (2TB total)
    • Type and Rate: USB 3.0 - 5 Gbit/s, SATA III (6 Gbps)
    • UASP Support: Yes
      Connector(s)
    • Drive Connectors: 2 - SATA Data & Power Combo (7+15 pin) Receptacle
    • Host Connectors: 1 - eSATA (7 pin, Data) Female, 1 - USB Type-B (9 pin) USB 3.0 Female
      Software
    • OS Compatibility: OS independent; No software or drivers required
      Indicators
    • LED Indicators 1 - Power, 1 - Drive 1 Activity, 1 - Drive 2 Activity
      Power
    • Input Current: 1.5 A
    • Input Voltage: 100 ~ 240 AC
    • Output Current: 3.0 mA
    • Output Voltage: 12 DC
    • Plug Type: M
    • Power Consumption (In Watts): 36
    • Power Source: AC Adapter Included
      Environmental
    • Humidity: 20%RH-80%RH
    • Operating Temperature: 5°C to 35°C (41°F to 95°F)
    • Storage Temperature: -20°C to 50°C (-4°F to 122°F)
      Physical Characteristics
    • Color: Black
    • Enclosure Type: Plastic
    • Product Height: 2.8 in [70 mm]
    • Product Length: 5.6 in [143 mm]
    • Product Weight: 17.3 oz [490 g]
    • Product Width: 5.2 in [132 mm]
      Packaging Information
    • Shipping (Package) Weight: 2.2 lb [1 kg]

  • Item Includes:

    • 1 - USB 3.0/eSATA to Dual 2.5/3.5in SATA Hard Drive Docking Station
    • 1 - USB 3.0 Cable
    • 1 - eSATA Cable
    • 1 - Universal Power Adapter (NA,EU,UK)
    • 1 - Instruction Manual

  • Warranty:

    • 2 Years

  • GTIN:

    0065030855891
