StarTech UNIDOCKU33 USB 3.0 SATA & IDE HDD Docking Station for 2.5 or 3.5-Inch drives

ITEM #: ST-UNIDOCKU33 MFG #: UNIDOCKU33

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$93.99

Our Price:

$88.09

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


UNIDOCKU33 - Overview

The UNIDOCKU33 USB 3.0 Universal HDD / SSD Dock enables you to instantly access your 2.5 or 3.5in IDE and SATA hard drives through two top loading drive slots, saving you the hassle of mounting the drives into a computer or external enclosure or tray.

Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. See our UASP testing results below for further details.

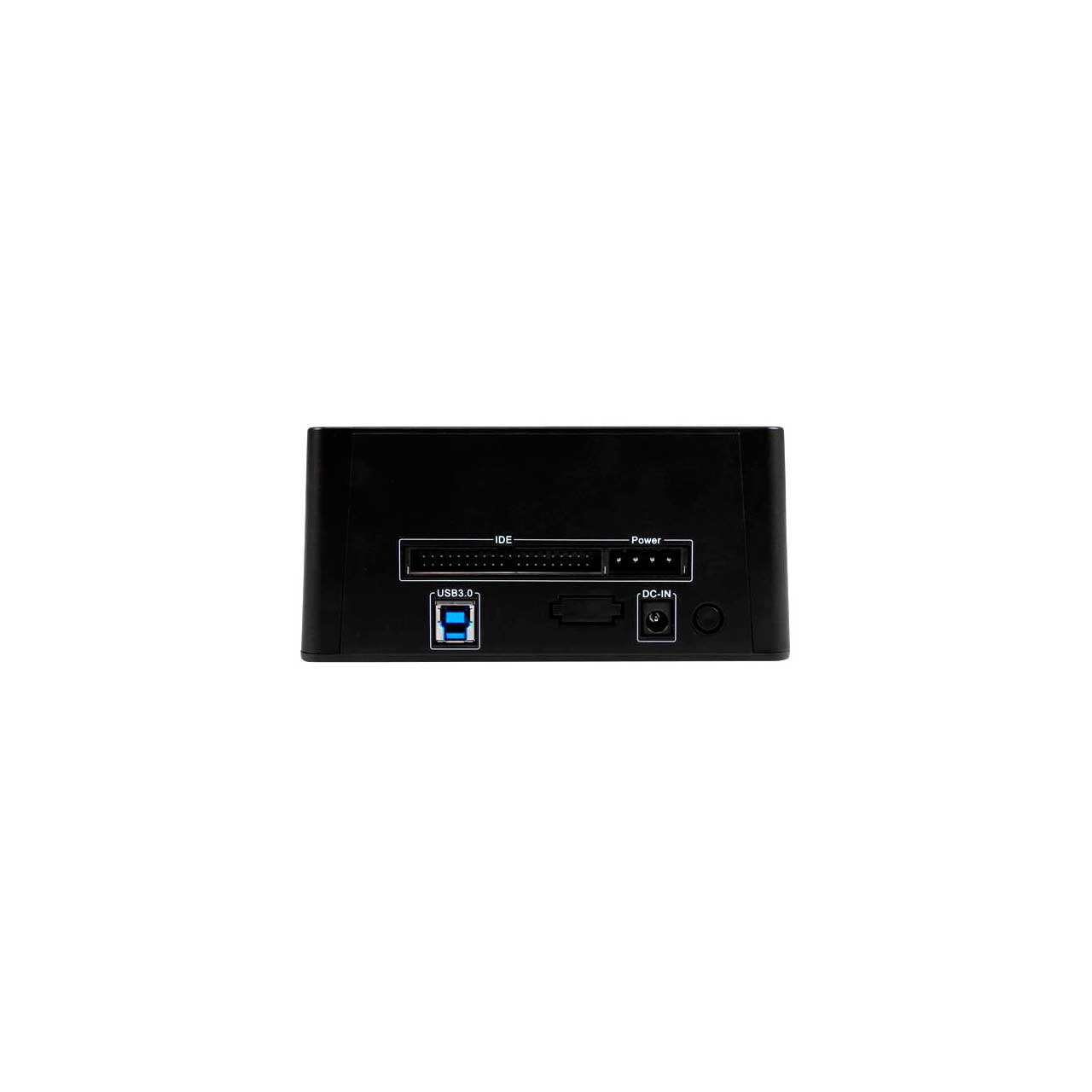

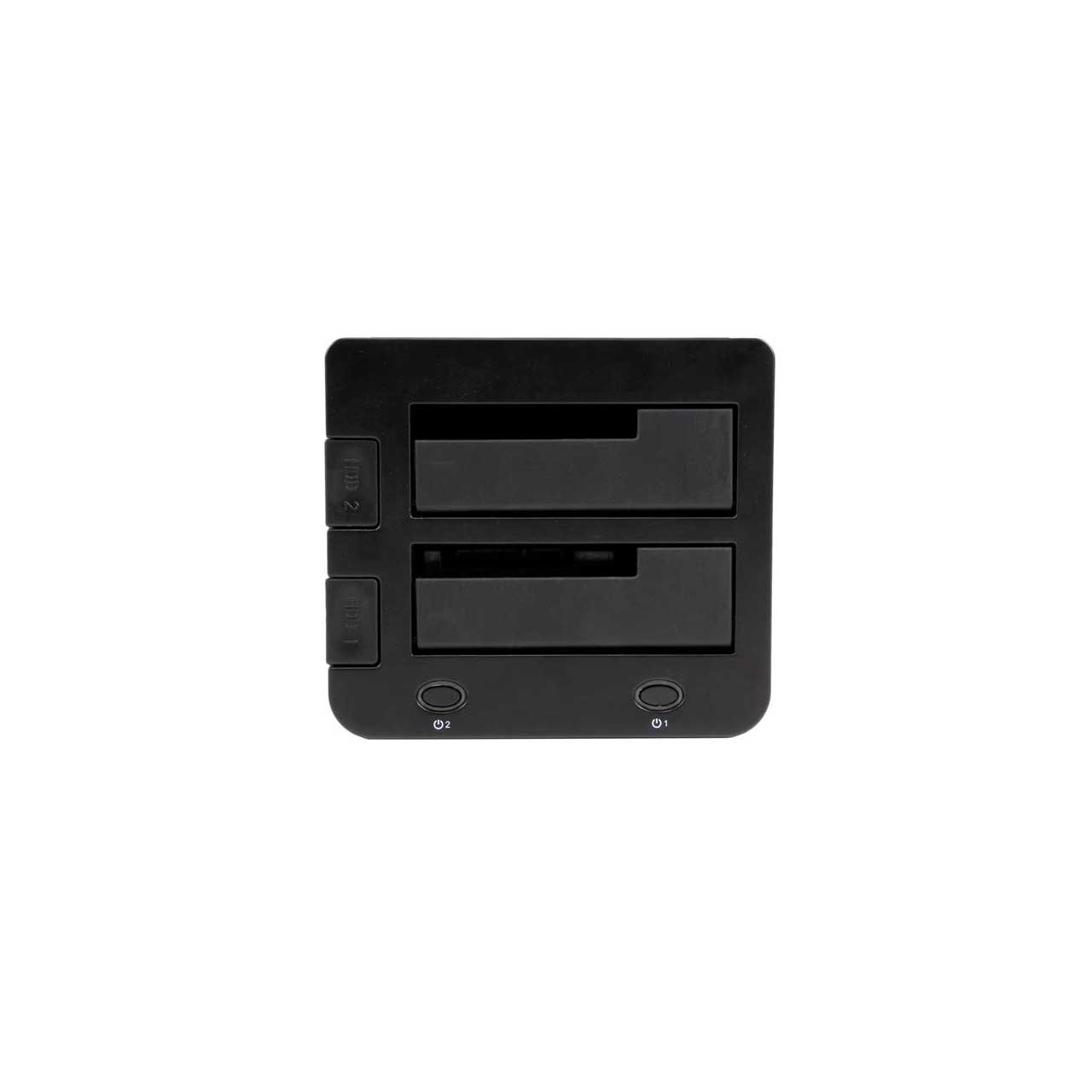

The slot-loading design holds the SATA and IDE drives upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables.

A single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dock can also be used to greatly increase  the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives).

The UNIDOCKU33 is backed by a StarTech 2-year warranty and free lifetime technical support.

Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

  • Features:

    • Versatile configuration options, with support for IDE and SATA 2.5in and 3.5in drives
    • Save time, with file transfers up to 70% faster than traditional USB 3.0 when used with a UASP-supported host
    • Hassle-free operation and reduced workspace clutter, with upright slot-loading design
    • Compatible with USB 3.0 / 2.0 / 1.1 (5 Gbps / 480 Mbps / 1.5 Mbps)
    • Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives
    • Compatible with PATA (IDE) 66/100/133 MBps hard drives
    • Supports 2.5" or 3.5" form factor hard drives (HDD) or solid state drives (SSD)
    • Compact, desktop-style form factor

  • Specifications:

    • Warranty: 2 Years
    • Chipset ID: JMicron - JMS561U, JMD330
    • Compatible Drive Types: (Type and Rate) SATA & IDE
    • Drive Installation: Removable
    • Drive Size: 2.5in & 3.5in
    • Fan(s): No
    • Interface: USB 3.0
    • Number of Drives: 2
    • Insertion Rating: 15,000 Cycles (SATA)
    • Max Drive Capacity: Currently tested with up to 6TB 7200 RPM 3.5" hard drives and 2TB 5400 RPM 2.5" hard drive
    • Maximum Data Transfer Rate: 5 Gbps
    • MTBF: 30000 hours
    • RAID:No
    • Type and Rate: USB 3.0 - 5 Gbit/s; SATA III (6 Gbps)
    • UASP Support: Yes
    • Drive Connectors: 1 - IDE (40 Pin; EIDE/PATA) Male
    • Drive Connectors: 1 - LP4 (4 pin; Molex Large Drive Power) Male
    • Drive Connectors: 1 - SATA Data & Power Combo (7+15 pin) Receptacle
    • Host Connectors: 1 - USB 3.0 B (9 pin; SuperSpeed) Female
    • Color: Black
    • Enclosure Type: Plastic
    • Product Height: 2.8 in [70 mm]
    • Product Length: 5.8 in [147 mm]
    • Product Weight: 18.1 oz [512 g]
    • Product Width: 5.1 in [130 mm]
    • LED Indicators: 2 - Power and Drive Activity
    • Power: Center Tip Polarity Positive
    • Input Current: 1.3 A
    • Input Voltage: 110 ~ 240 AC
    • Output Current: 3 A
    • Output Voltage: 12 DC
    • Plug Type: M
    • Power Source: AC Adapter Included
    • Humidity: 8% ~ 90% RH
    • Operating Temperature: 5°C to 80° (41°F to 176°F)
    • Storage Temperature: -40°C to 70°C (-40°F to 158°F)
    • Shipping (Package) Weight: 2.3 lb [1.1 kg]

  • Item Includes:

    • 1-Universal Hard Drive Dock
    • 1-USB 3.0 Cable
    • 1-IDE 40 to 40 Pin Cable
    • 1-LP4 Power Cable
    • 1-40 Pin + LP4 to 44 Pin IDE Cable
    • 1-Universal Power Adapter (NA/UK/EU/AUS)
    • 1-Instruction Manual

  • GTIN:

    0065030859813
