StarTech VGABNCMF1 Male Coax HD15 VGA to Five Female BNC RGBHV Monitor Cable - 1 Foot

Name: StarTech VGABNCMF1 Male Coax HD15 VGA to Five Female BNC RGBHV Monitor Cable - 1 Foot
Brand: Startech.com
SKU: ST-VGABNCMF1
Price: 13.18 USD
Availability: PreSale

ITEM #: ST-VGABNCMF1 MFG #: VGABNCMF1

Startech.com

List Price:

$13.99

Our Price:

$13.18

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

VGABNCMF1 - Overview

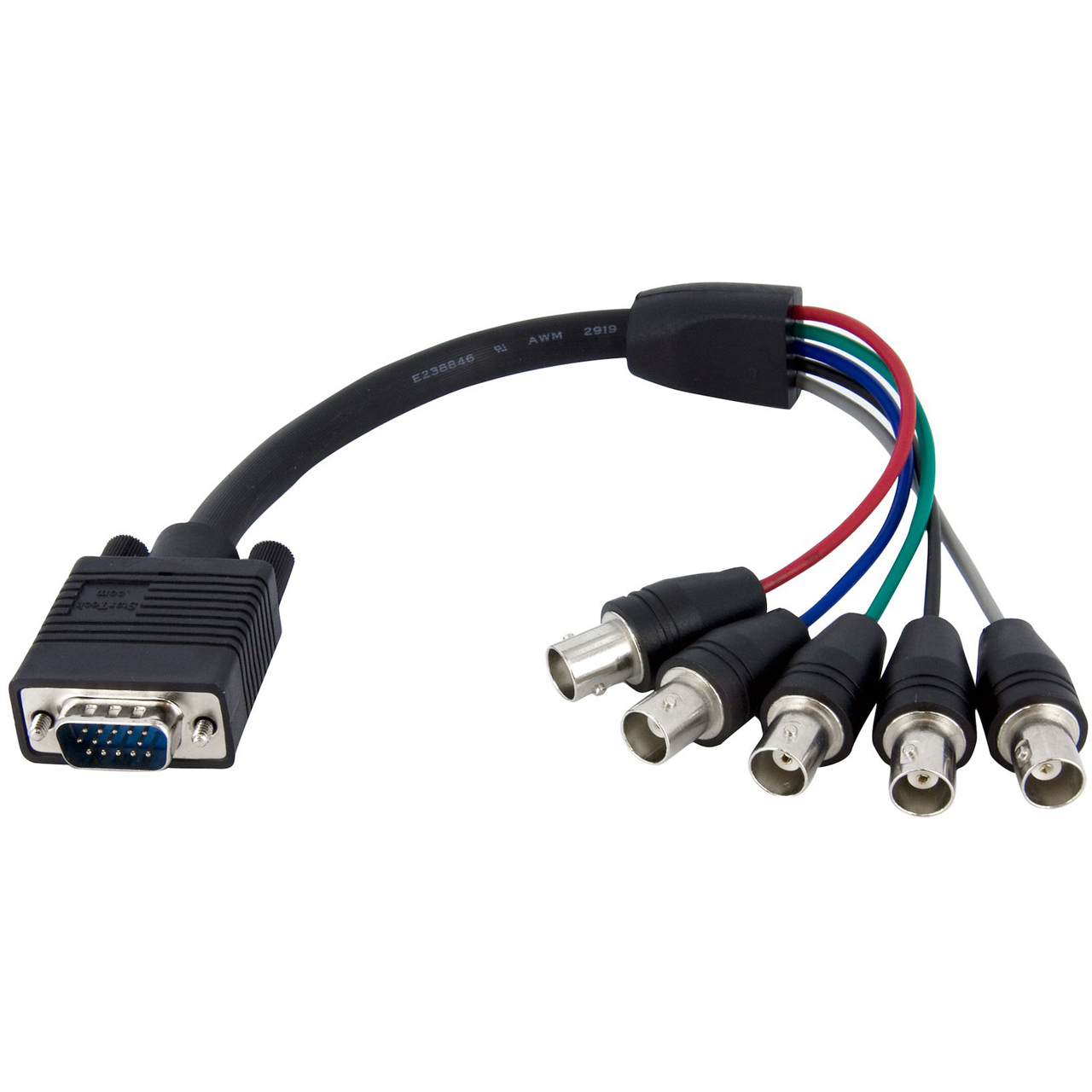

The StarTech VGABNCMF1 1-foot Coax HD15 VGA to 5 BNC RGBHV Adapter Cable features an HD15 VGA (male) connector and 5 BNC (RGBHV) (female) connectors, allowing you to connect your existing BNC video source to a VGA distribution amplifier or PC.

The cable can also be used with a VGA out signal, breaking out to 5 BNC female connectors that can be used with a 5 BNC (M-M) cable for use with a BNC monitor/display.

Applications:
Connect your BNC connected cabled panels and projectors to a VGA distribution amplifier or PC

Note:
- RGB signal: Red, Green, Blue wires
- Vertical Sync: Black wire
- Horizontal Sync: White wire

Features:
- Short flexible cable design
- HD15 VGA Male to 5 BNC Female Connectors
Specifications:

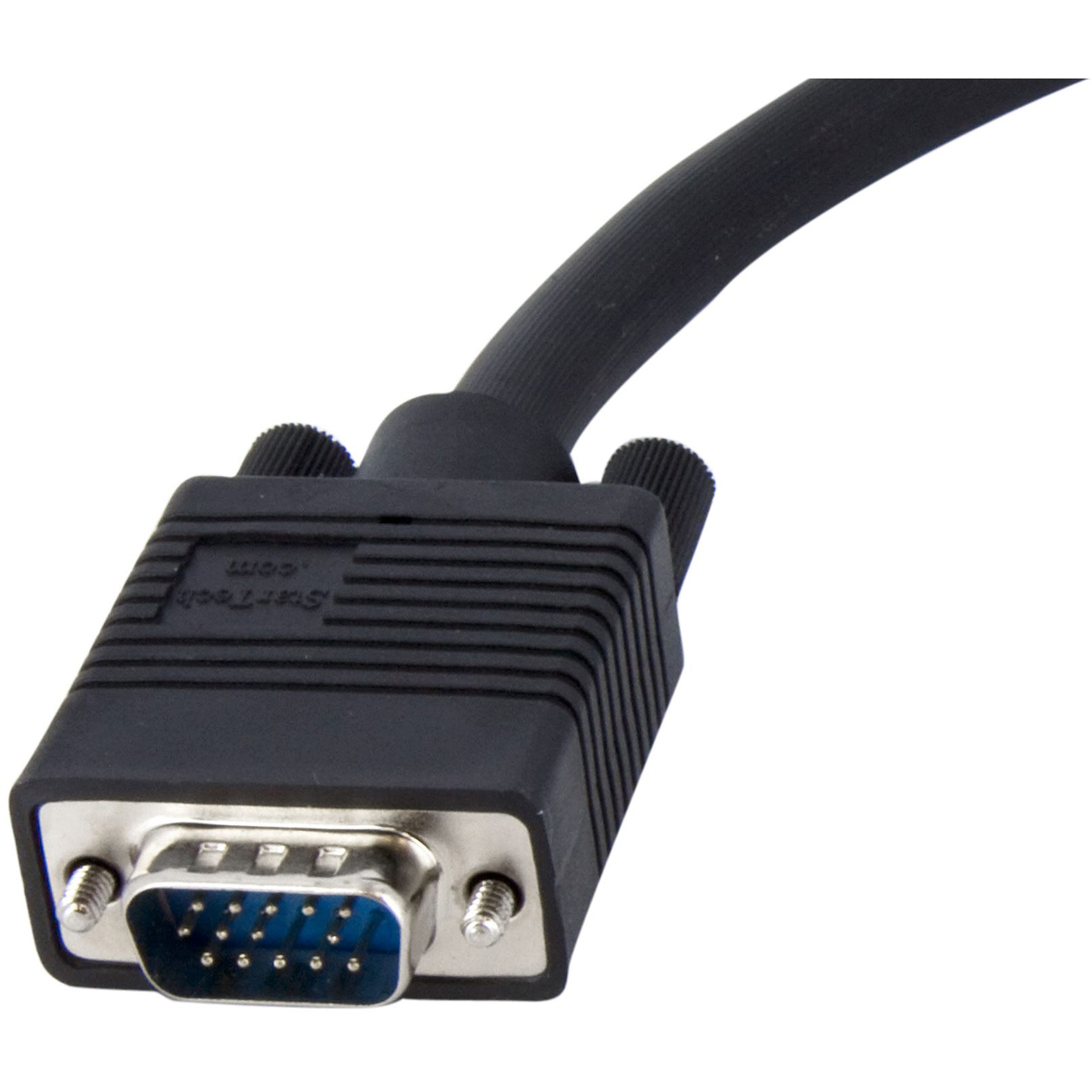

- Connector A (Male):
  - 1x VGA (15 pin, High Density D-Sub)

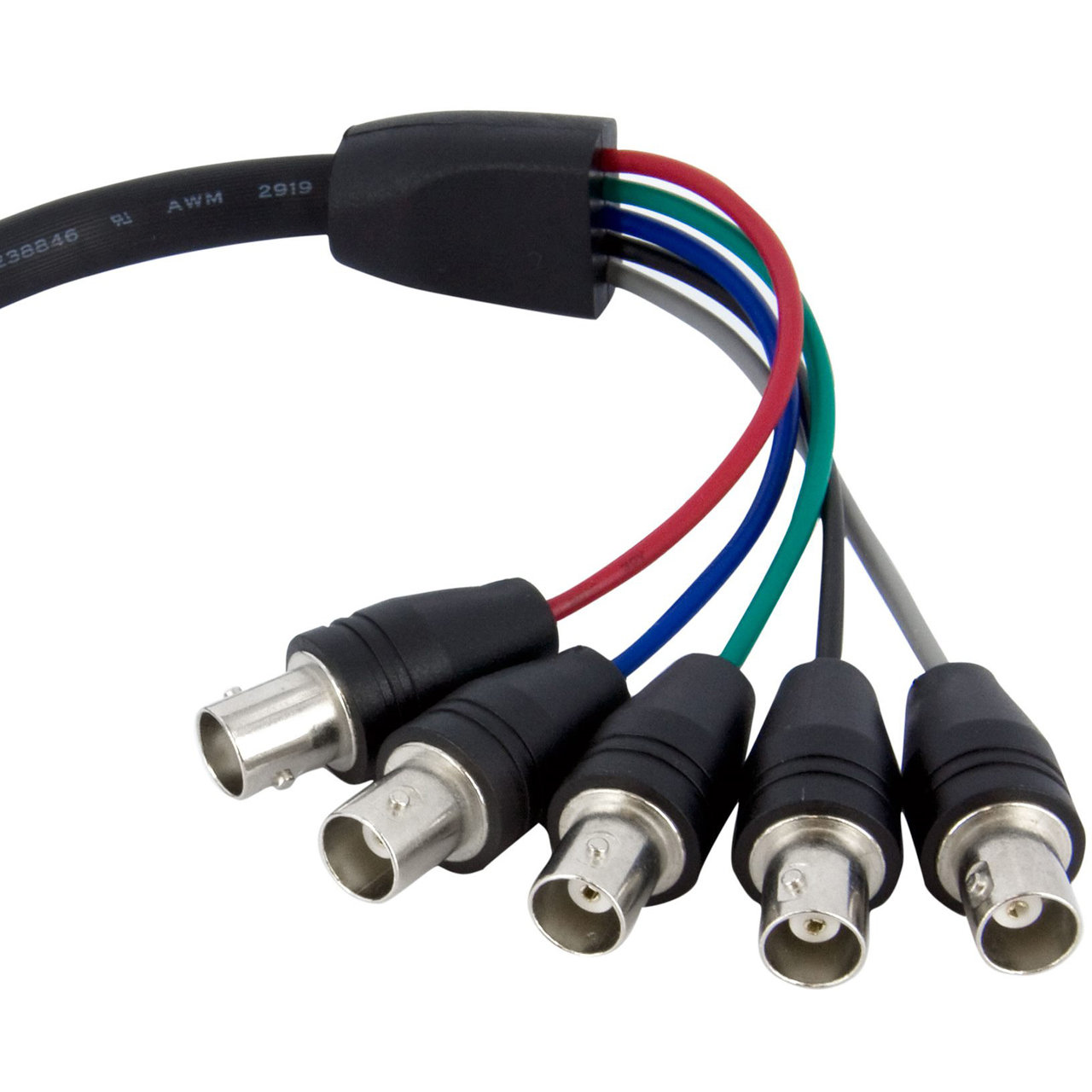

- Connector B (Female):
  - 5x BNC (RF Coax)

  Hardware
- Connector Plating: Nickel
- Cable Jacket Material: PVC - Polyvinyl Chloride
- Fire Rating: CMG Rated (General Purpose)

  Physical Characteristics
- Weight of Product: 3.6oz (103.0g)
- Product Width: 1.3" (3.3cm)
- Product Height: 0.6" (1.5cm)
- Color: Black
- Wire Gauge: 28 AWG
- Cable Length: 1.0ft (0.3m)
- Cable OD: 0.3" (8.5mm)
- Product Length: 12.0" (30.5cm)

  Packaging Information
- Package Height: 0.7" (1.7cm)
- Package Length: 8.9" (22.5cm)
- Shipping (Package) Weight: 3.8oz (108.0g)
- Package Width: 4.9" (12.5cm)
Item Includes:
- 1x 1 - 1 ft Coax HD15 VGA to 5 BNC RGBHV Monitor Cable - M/F
Warranty:
- Lifetime
GTIN:
0065030836722
