The Studio Technologies Model 543D IFB Interface provides broadcast-standard powered and line-level (non-powered) analog IFB outputs from audio signals that are supplied by way of Dante® audio-over-Ethernet media networking technology. IFB, also known as "interruptible foldback" or talent cueing, is a method commonly used by broadcast on-air talent and related personnel to receive one-way (listen-only) audio signals associated with live-event broadcasts. Especially important in sports and entertainment events, IFB plays a crucial role in virtually all broadcast applications that require people to stay "in the know." Dante has found wide acceptance as an audio "backbone" due to its ease of use, high performance, strong interoperability, and wide adoption by a large number of equipment manufacturers. The Model 543D is a unique product that helps to extend Dante's capabilities into the important but specialized world of broadcast and production IFB.

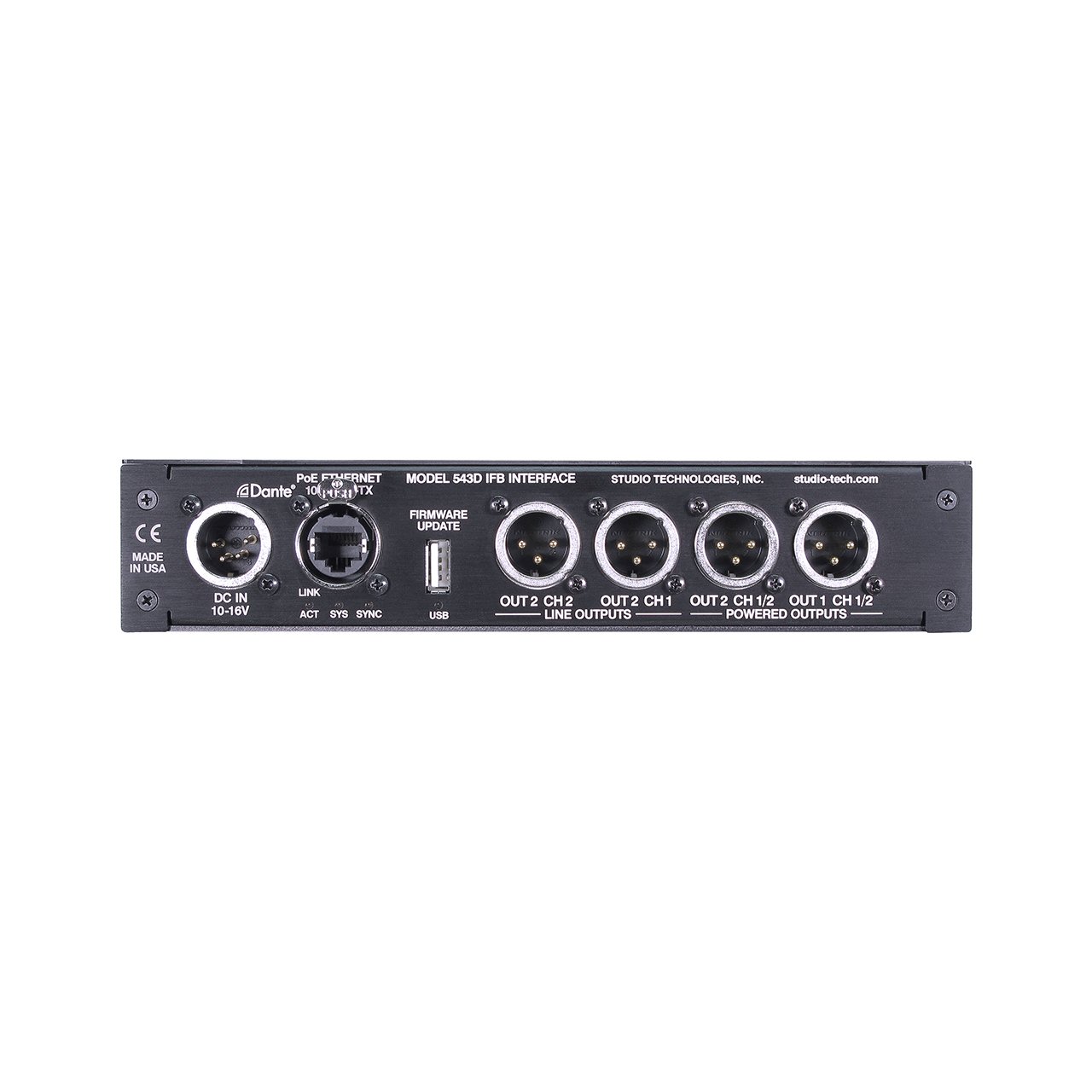

Dante audio-over-Ethernet technology is used to transport four audio channels from their source to the Model 543D and then on to the two, 2-channel IFB outputs. Each of the Model 543D's powered IFB outputs supplies DC voltage and two audio channels to groups of listen-only user devices. Two analog line-level IFB outputs are also provided for general-purpose use. The Model 543D is compatible with the latest broadcast and audio equipment that uses Dante technology. An Ethernet connection is all that's required to make the Model 543D part of a sophisticated, networked audio system.

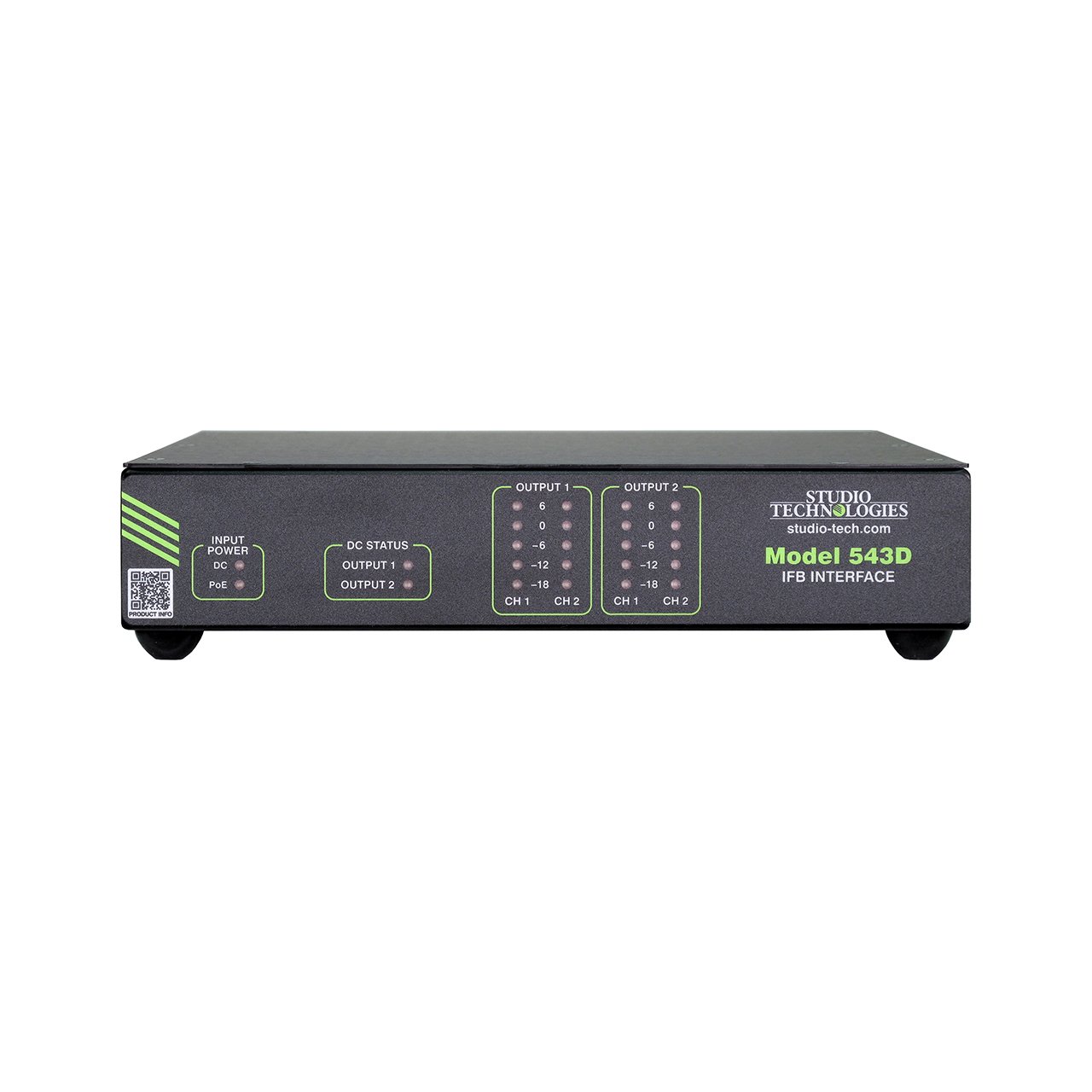

A Model 543D can utilize up to four digital audio input channels provided by Dante-enabled devices such as matrix intercom systems, DSP processors, broadcast routers, and audio consoles. The unit's powered IFB outputs allow direct connection with listen-only user beltpacks such as the Studio Technologies' Model 32A, Model 33A, or Model 34. The powered IFB outputs also support connection of listen-only devices from manufacturers such as RTS® and Clear-Com®. Two LED indicators serve as status displays for the 28 volts DC that is an integral part of each powered IFB output. The two line-level IFB outputs are provided for connection with a variety of devices that have balanced or unbalanced analog inputs.
