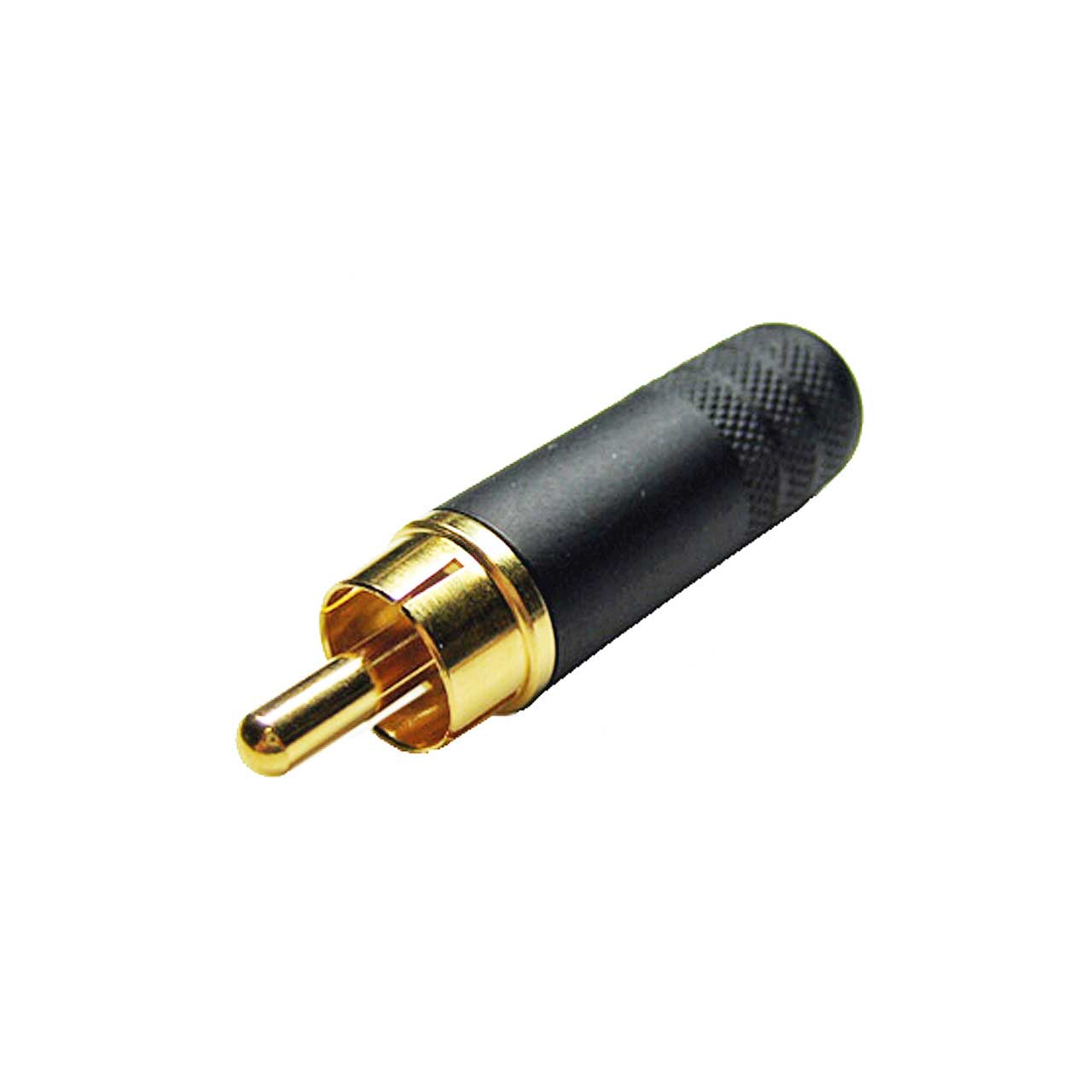

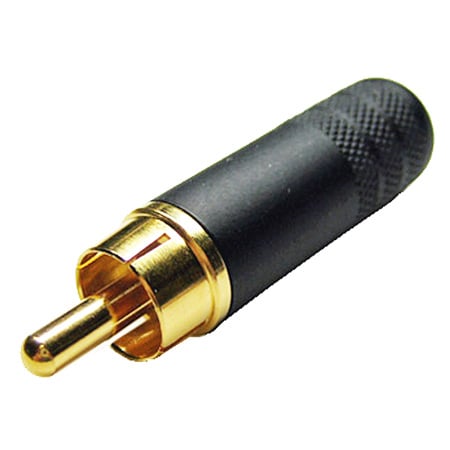

Switchcraft 3502ABAU Longbody RCA Male Black/Gold

Name: Switchcraft 3502ABAU Longbody RCA Male Black/Gold
Brand: Switchcraft
SKU: SW3502ABAU
Price: 4.35 USD
Availability: InStock

ITEM #: SW3502ABAU MFG #: 3502ABAU

Switchcraft

List Price:

$5.00

Our Price:

$4.35

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

3502ABAU - Overview

Switchcraft 3502ABAU is a 2 conductor shielded RCA straight plug for solid pin cable up to 0.203" (5.16mm) diameter, solder cup on center. Long handle & cable clamp, Black Handle, Gold Plug

Specifications:
- Contact Resistance (typical *D.O.M.J.):< 0.020 ohms
- Dielectric Withstand Voltage: 500V AC (minimum)
- Insulation Resistance @ 500V DC: 2,000 megohms (minimum)
- Insulation Resistance (after MIL-STD-202 Salt Spray): 1,000 megohms (minimum)
- Working Voltage: 250V AC, 140V DC
- Current Carry @ Working Voltage(typical *D.O.M.J.): 6.0 AMPS
- Insert/Withdrawal Force: *D.O.M.J
- Temperature Range: -40° to + 85° Centigrade
- U.L. Component Recognition File No.: E118169
- Life: *D.O.M.J..
- Maximum Cable Size: .285 inch diameter. D.O.M.J. - Dependent On Mating Jack

  Materials
- Pin: Copper alloy; nickel-plated or gold-plated
- Sleeve: Copper alloy; nickel-plated or gold-plated
- Handle: Copper alloy; nickel-plated or black epoxy finished
- Cable Clamp: C.R.S., electrotin-plated
- Insulator: Rigid plastic
