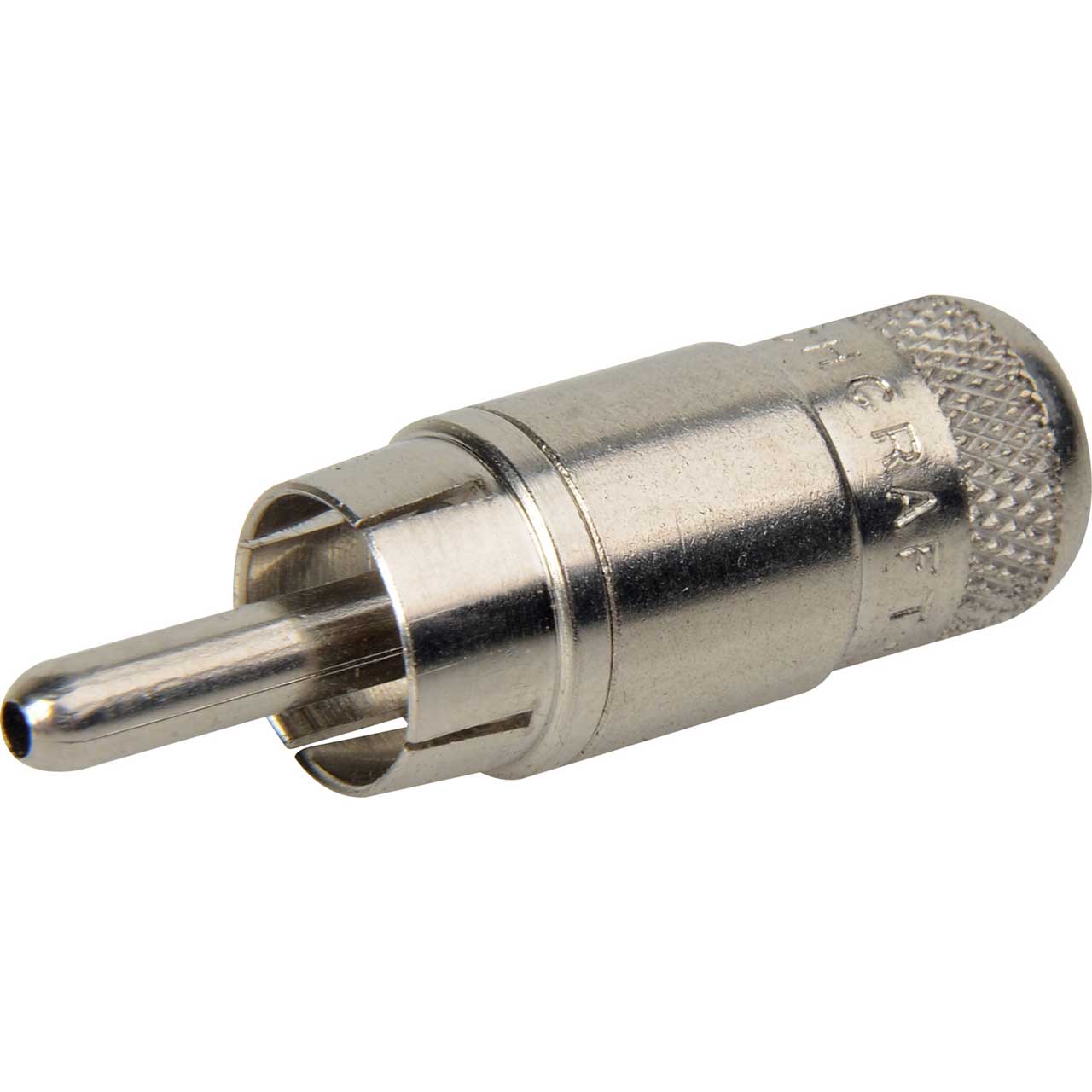

Switchcraft 3502L RCA Male (W/Large Hole)

ITEM #: SW3502L MFG #: SW3502L

Primary Image
Switchcraft
Free Shipping with $49 Minimum Order

List Price:

$5.00

Our Price:

$4.53

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SW3502L - Overview

The Switchcraft 3502L is a 2 conductor shielded RCA straight plug with a nickel plated copper alloy body and handle. Designed for cable up to 0.281" (7.137mm) in diameter. Terminals can be crimped or soldered.

  • Specifications:

    • Contact Resistance (typical *D.O.M.J.): < 0.020 ohms.
      Dielectric Withstand Voltage: 500V AC (minimum).
      Insulation Resistance @ 500V DC: 2,000 megohms (minimum).
      Insulation Resistance (after MIL-STD-202 Salt Spray): 1,000 megohms (minimum).
      Working Voltage: 250V AC, 140V DC.
      Current Carry @ Working Voltage (typical *D.O.M.J.): 6.0 AMPS.
      Insert/Withdrawal Force: *D.O.M.J..
      Temperature Range: -40° to + 85° Centigrade.
      U.L. Component Recognition File No.: E118169.
      Life: *D.O.M.J..
      Maximum Cable Size: .285 inch diameter.
      *D.O.M.J. - Dependent On Mating Jack
      Pin: Copper alloy; nickel-plated or gold-plated.
      Sleeve: Copper alloy; nickel-plated or gold-plated.
      Handle: Copper alloy; nickel-plated or black epoxy finished.
      Cable Clamp: C.R.S., electrotin-plated.
      Insulator: Rigid plastic.
