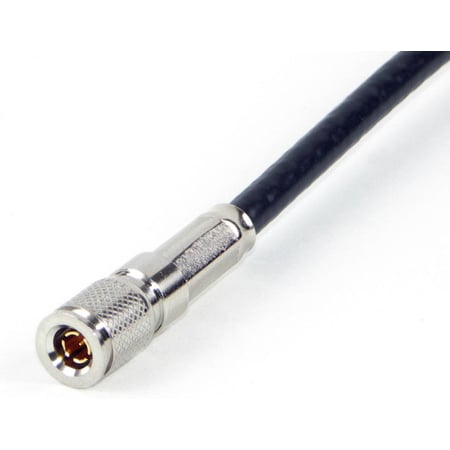

Switchcraft DIN1855A DIN 1.0/2.3 Connector for Belden 1855A Cable

ITEM #: SWC-DIN1855A MFG #: DIN1855A

Primary Image

Free Shipping with $49 Minimum Order

List Price:

$8.00

Our Price:

$7.15

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

People Also Bought

Similar Products

DIN1855A - Overview

The Switchcraft DIN1855A DIN 1.0/2.3 connectors utilize a unique push/pull lock and release feature, simplifying installation and modification. They are 75 Ohm rated, compatible with the most widely used cable sizes, and can be terminated using a standard BNC crimp tool.

Specifications:
- Body: Copper alloy; nickle plated
- Contact pin: Coppy alloy; gold plated
- Sprikng: Beryllium copper; gold plated
- Tine contact: Beryllium copper; gold plated
- Insulator: Teflon
- Ferrule: Coppy alloy; nickel plated
- Impedance: 75 Ohms; 3GHz bandwidth
- Return loss: Meets HDTV SMPTE 424M specification
