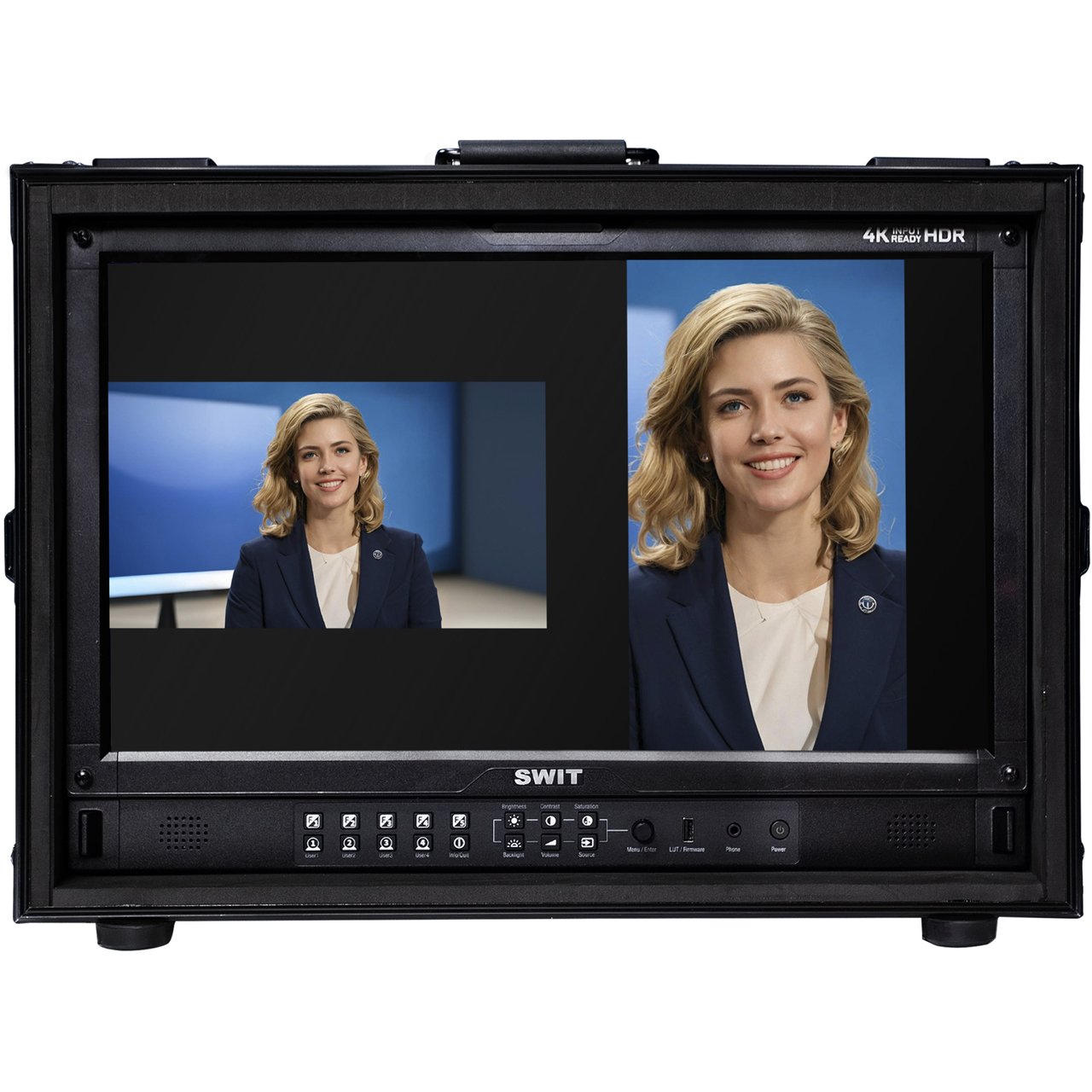

21.5" Field Production Monitor - 4K inputs, 1000nits, HDR, Multi-view
SWIT FM-215HDR is a 21.5-inch 4K 12G-SDI input high bright HDR monitor with V-Mount for filmset or live streaming productions, go with flight case, screen protector and could be installed on C-stand for convenience field video productions.
1000nits Sunlight View HDR
The monitor is equipped with an advanced Quantum Dot LED (QLED) panel of 1000nits high bright backlight, outdoor sunlight viewable, and support PQ/HLG/S-log3 HDR monitoring.

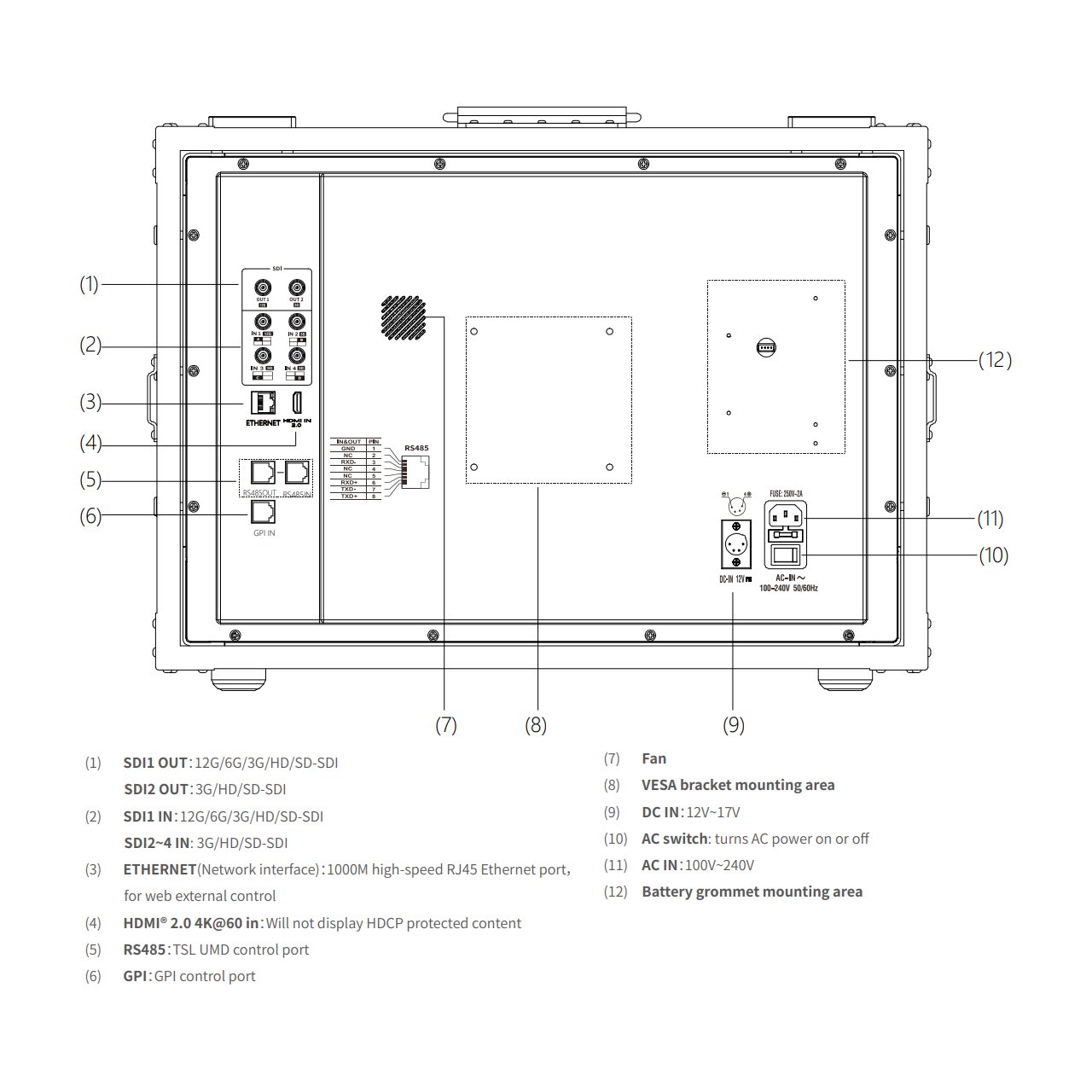

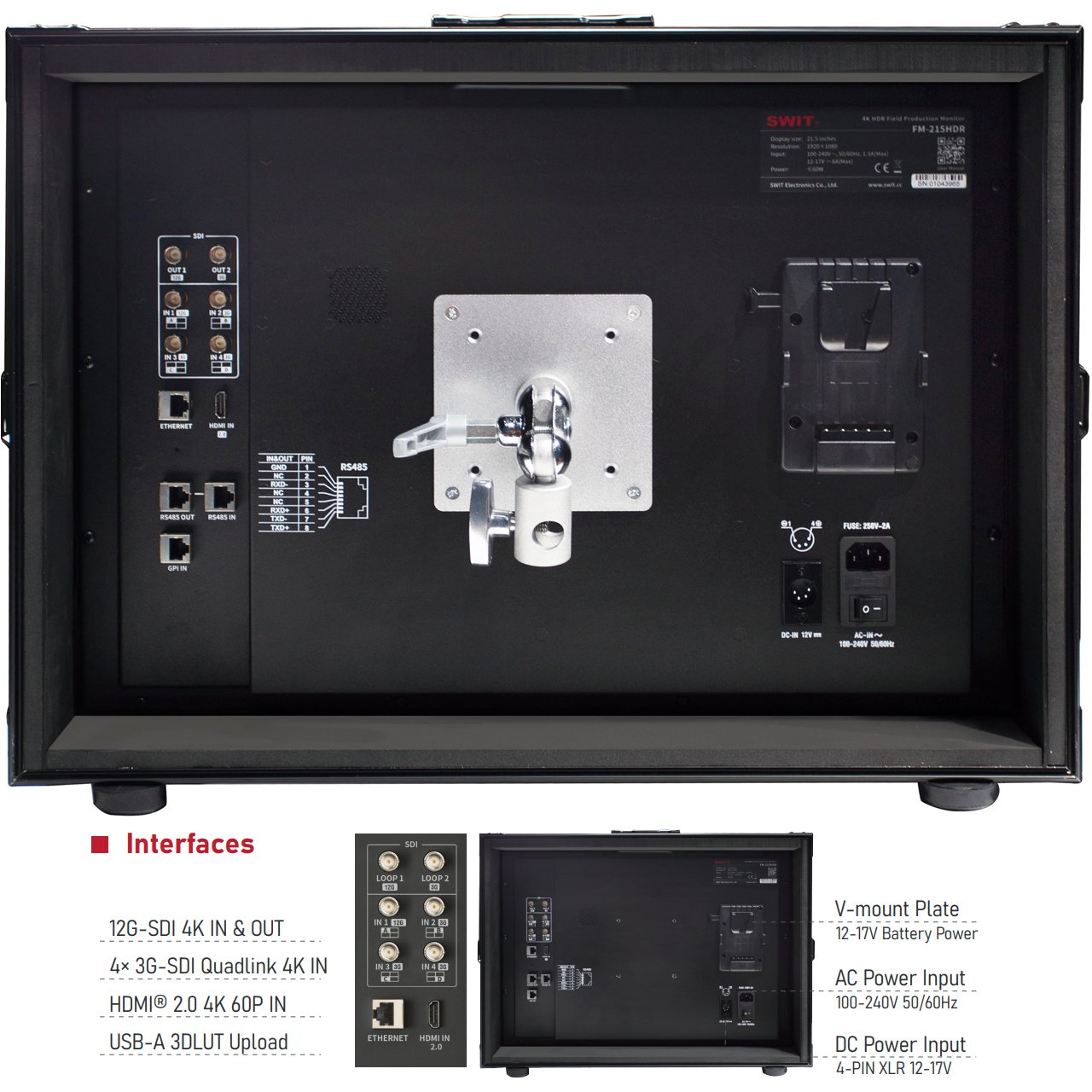

All 4K Input Interfaces - FM-215HDR supports various 4K inputs including:
- 12G-SDI 4K in and out
- 4x 3G-SDI Quadlink 4K input
- HDMI® 2.0 4K input
Multiview Display Mode
Supports 4x input video of mixed formats quadview display, or any 2x inputs Pic-by-Pic or Pic-in-Pic view, and any 2x inputs vertical (Cropped) display mode. You can select HDR/SDR gamma, color gamut independently for each input.
H/V Multi-platform Livestreaming View
1x input source to display regular horizontal view and cropped vertical view side by side simultaneously, for multi-platform livestreaming productions.
Multiple Video Analysis Patterns:
- Waveform Y/Cb/Cr/R/G/B with Nits mark
- Vector scope
- Red/Blue Peaking focus assist
- R/G/B/Mono mode
- Single line waveform
- R/G/B/Y Histogram
- Over exposure zebra stripes
- False color
Go with Flight Case
The FM-215HDR monitor is shipped with strong aluminium flight case, for all-around protections on filmset.
Equipped with Screen Protector
The FM-215HDR monitor provides an acrylic screen protector, with high transparency and anti-reflection.
Mounting Cheese Easy Plate
Mounting Cheese Easy Plate with multiple 1/4" and 3/8" threads which can be installed on the top of the flying case for mounting other devices.
Optional VESA to C-stand Bracket
The monitor has a standard 10x10 VESA mount and provides VESA to 5/8" baby-pin C-stand / Light stand adaptor bracket. (Optional purchased accessory)
