SWIT PB-S220A 220Wh Gold Mount Li-Ion Battery with Multi D-Tap Out and USB Port

ITEM #: SWIT-PB-S220A MFG #: PB-S220A

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$485.00

Our Price:

$465.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Item restricted to Contiguous United States ground shipment only.

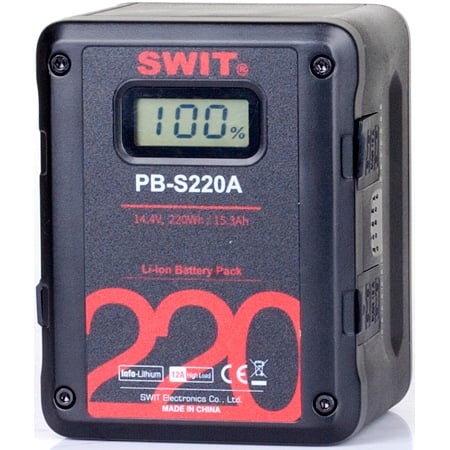

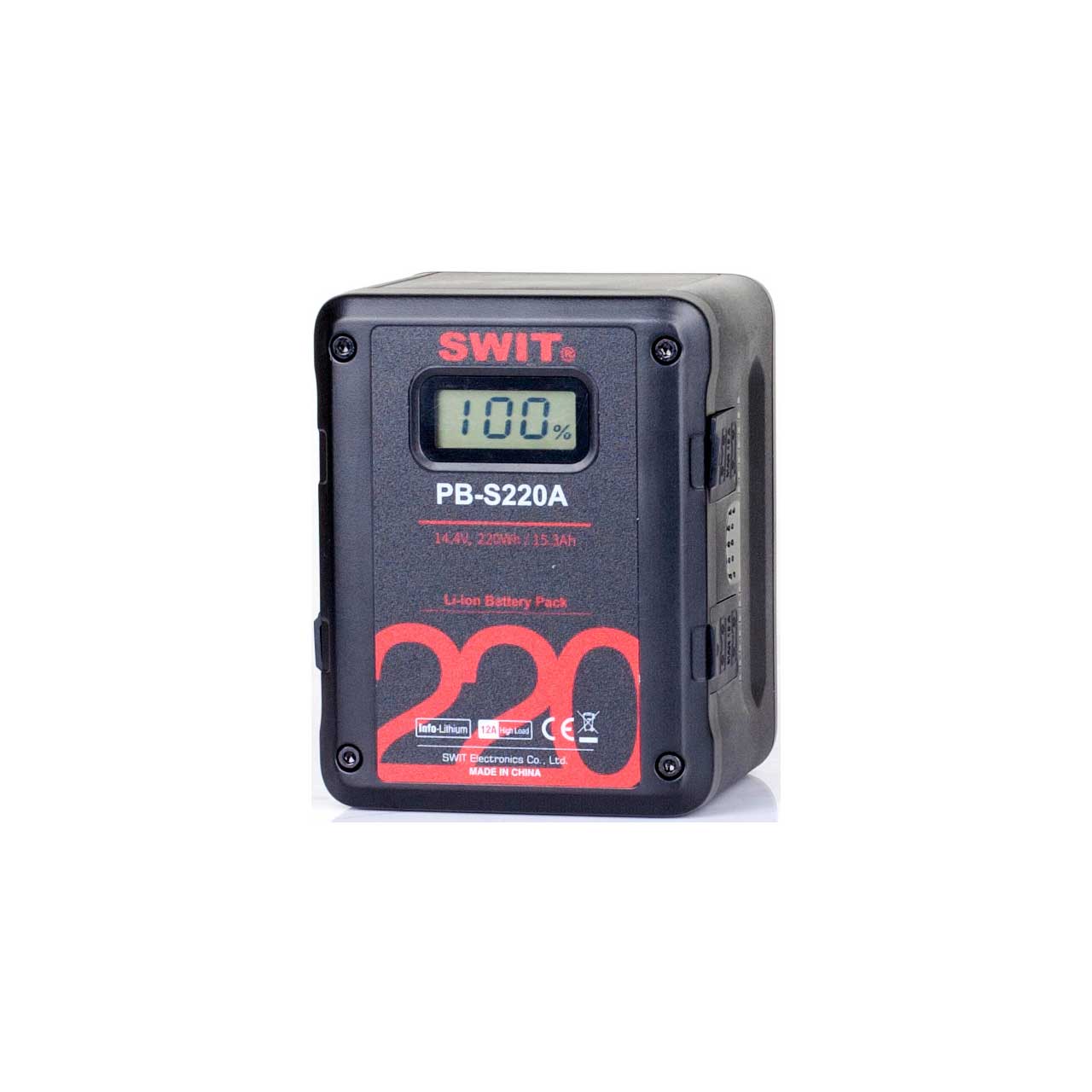

PB-S220A - Overview

SWIT's PB-S220A is a 220Wh High-load Gold mount battery that features a compact designe with 4 D-tap DC outputs and one USB 5V/1A charging port. It is convenience for powering other camera devises simultaneously or charing mobile devices. PB-S220A also features a built-in LCD screen for displaying power level in percentages, remaining running time, low power warnings and battery cycle times. It features a 150W/12A power output for powering the most cine cameras, lights or other accessories. This battery supports 6A fast charging by SWIT S-3812A charger (sold separetely), to save more than 50% charging time, for fully charged within 3.5 hours. It also can be charged by SWIT other Gold mount chargers or Anton Bauer Gold mount chargers, the other third party chargers may not charge battery correctly. The battery features a built-in intelligent circuit for multiple protections of over current, over /under voltage or high/low temperature.

  • Features:

    • 220Wh Lithium-Ion Gold Mount Battery
    • High-load Li-ion cells
    • Max 150W, 12A continous power draw

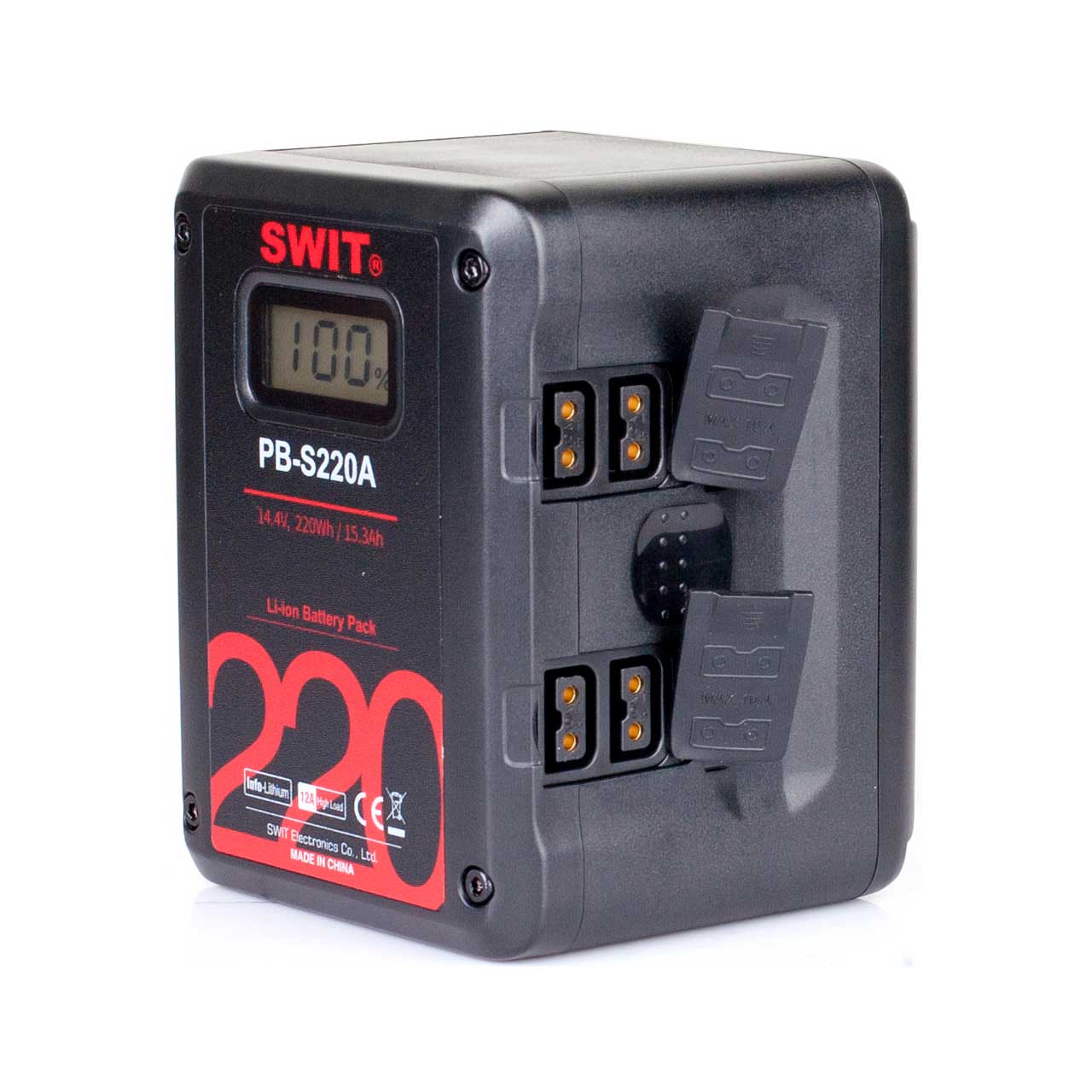

    • 4x 14.4V D-tap DC output socket

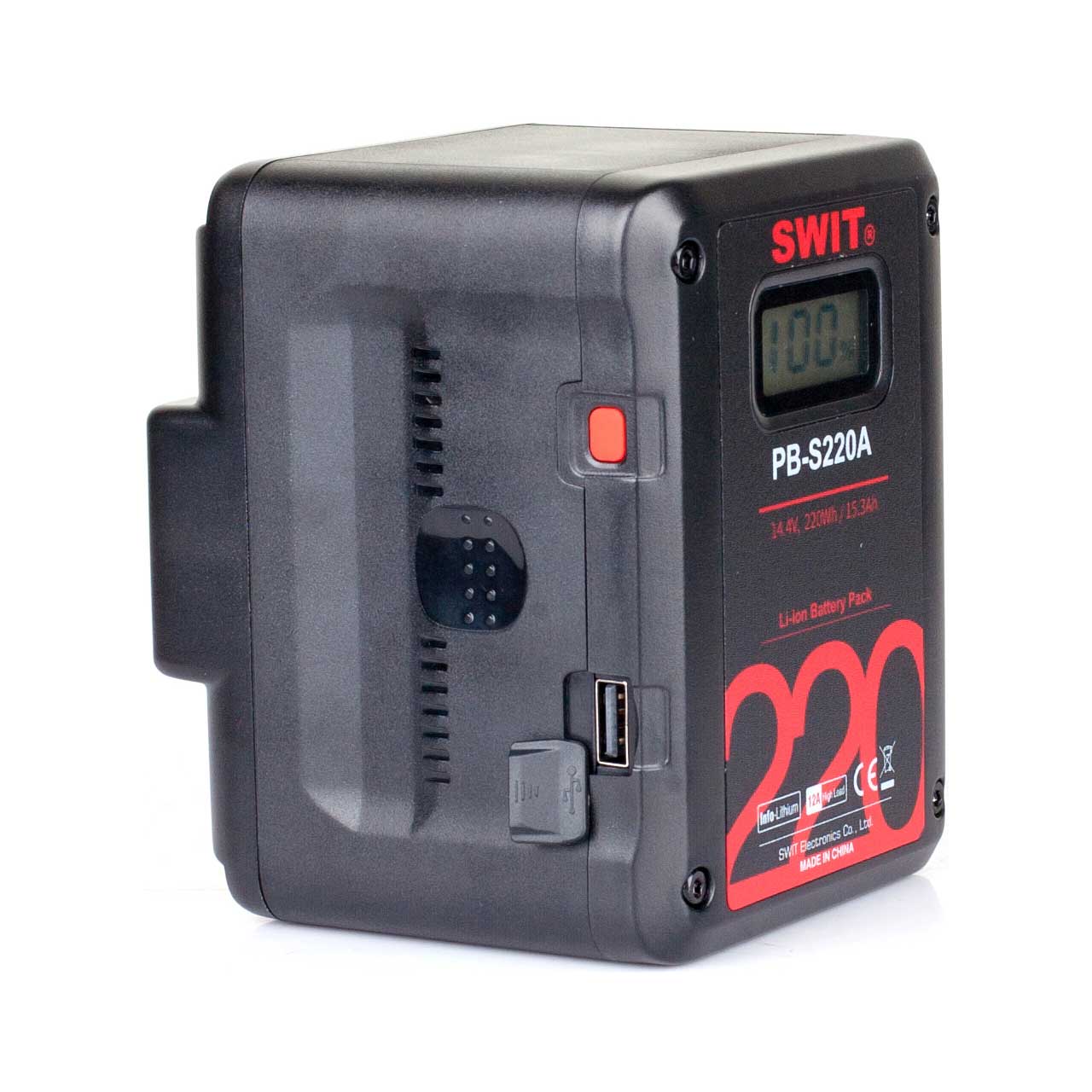

    • 1x 5V/2A USB charging port
    • LCD display remaining power level in percentage
    • LCD display running time in hours and minute
    • Low power remaining alart
    • LCD refreshes in every 2 second
    • built-in circuit for multiple protections

  • Specifications:

    • Output voltage: 14.4V
    • Capacity: 220Wh
    • Max output power: 150W
    • Max output current: 12A
    • Max output via D-tap: 120W/12A
    • Max output via USB: 10W, 5V/2A
    • Max charging current: 6A
    • Mount type: Gold mount
    • Operation temperature: 0 - 40 °C
    • Net weight: Approx 3.2 LB /1.4kg
    • Dimensions: 4.8x3.7x3.8 inch / 121×95×96mm

  • GTIN:

    6948193504865
