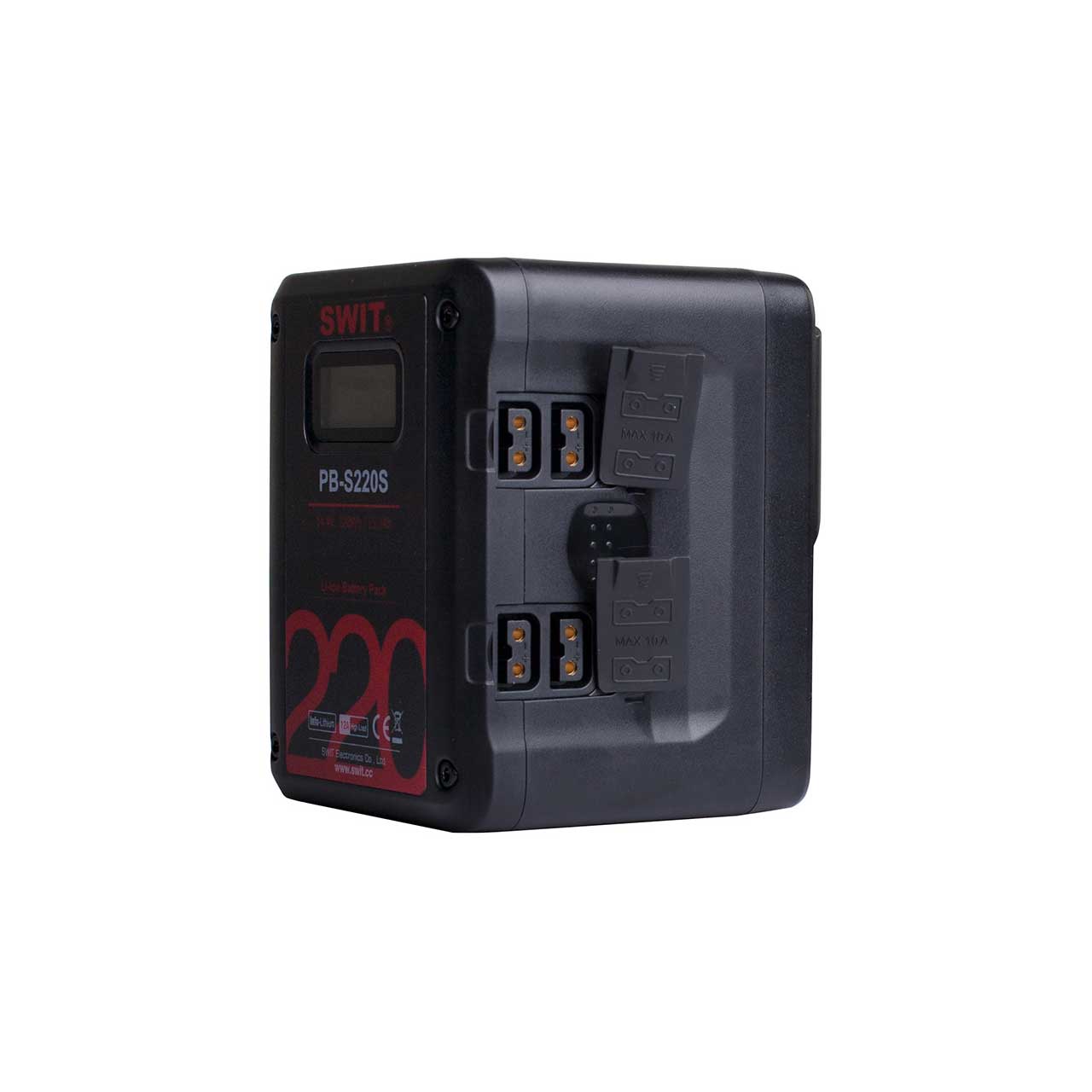

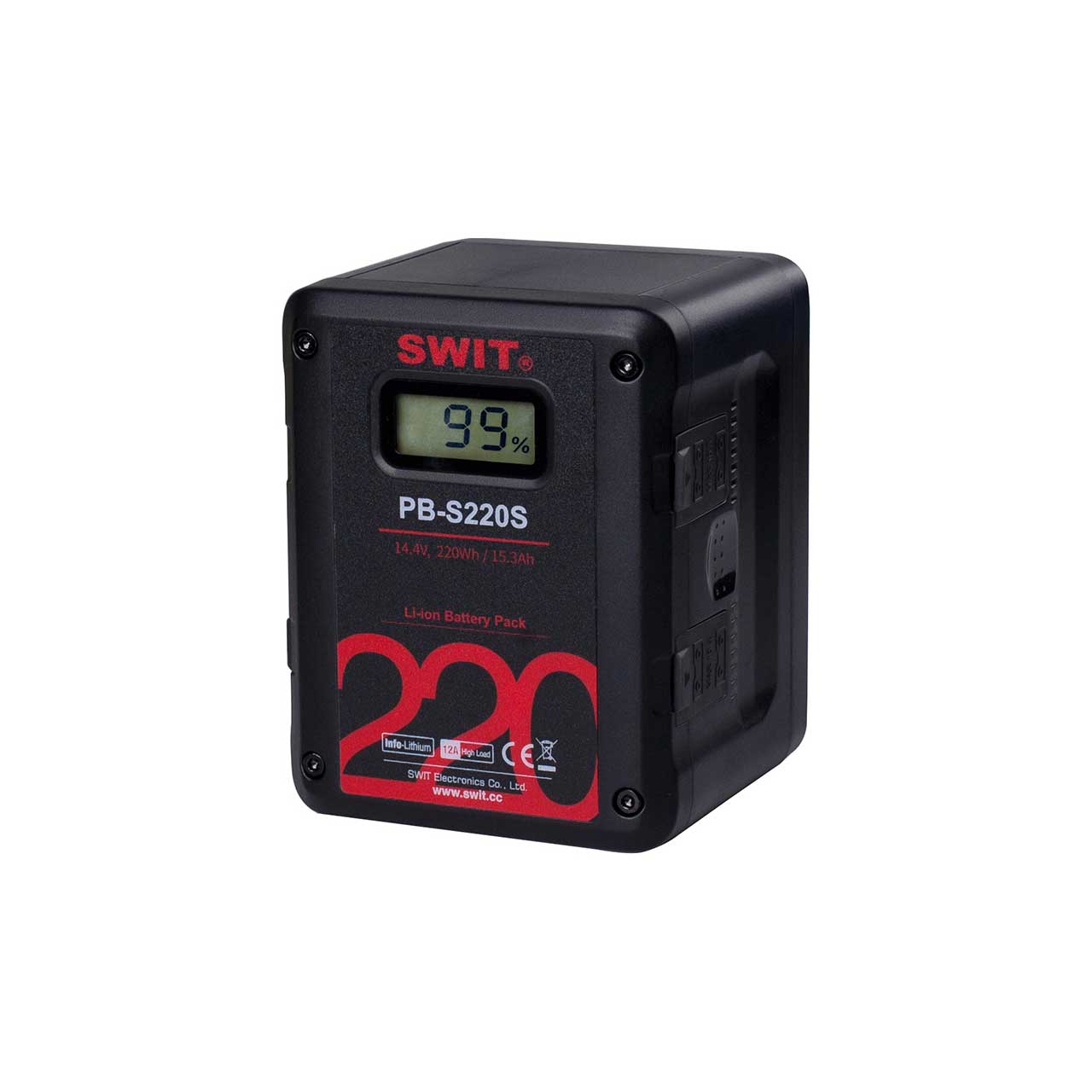

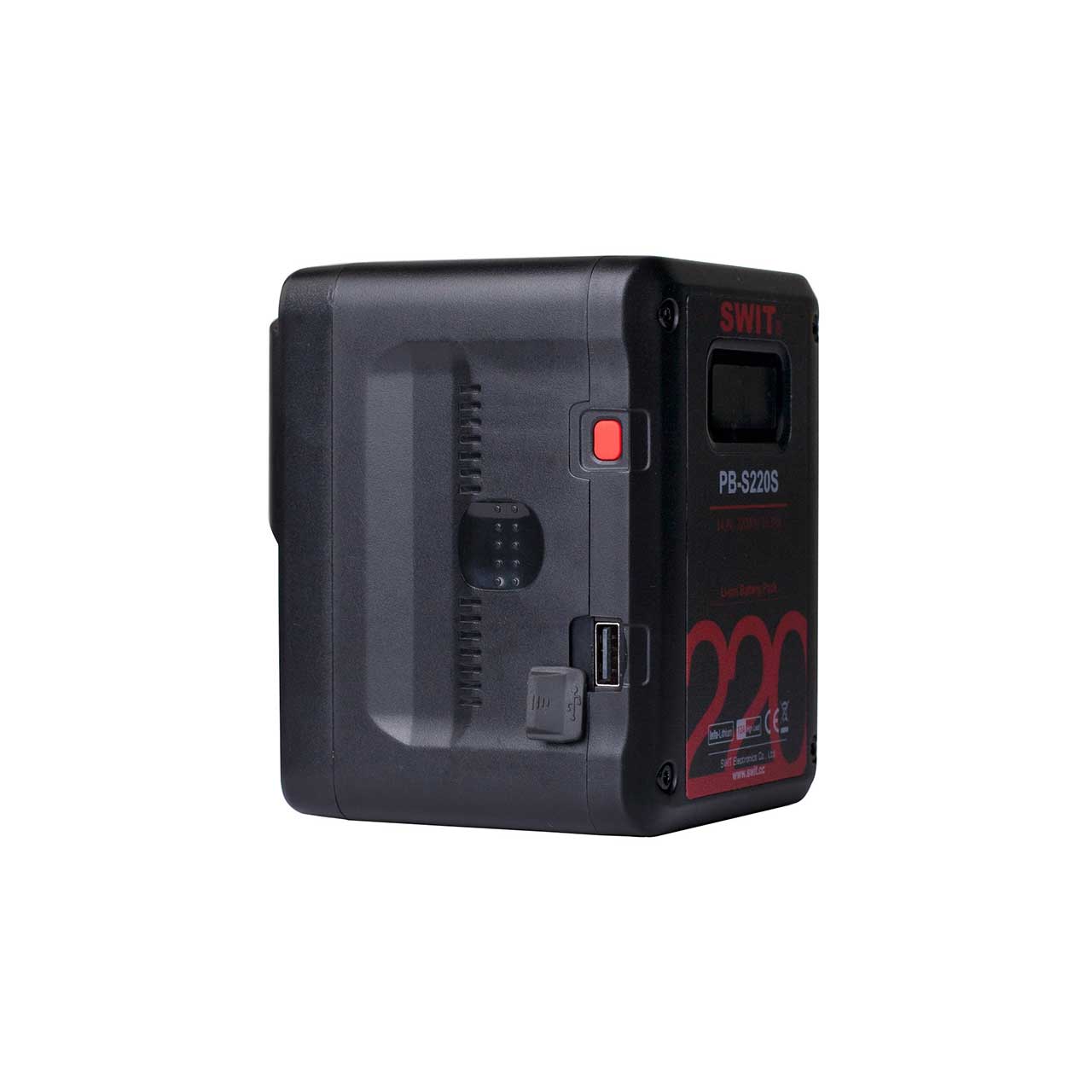

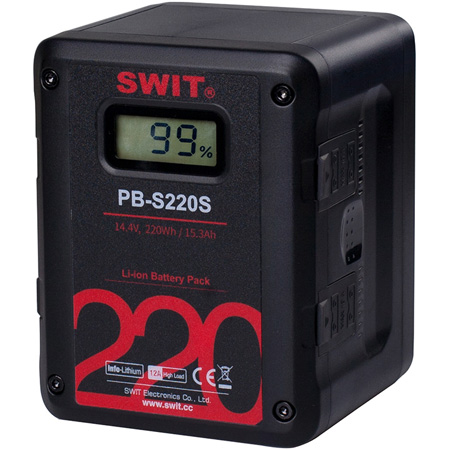

SWIT PB-S220S 220Wh V-Mount Li-Ion Battery with Multi D-Tap Out and USB Port

ITEM #: SWIT-PB-S220S MFG #: PB-S220S

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$485.00

Our Price:

$465.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Item restricted to Contiguous United States ground shipment only.


PB-S220S - Overview

SWIT's PB-S220S is a 220Wh High-load V-mount battery that features a compact designe with 4x D-tap DC output and one USB 5V/1A charging port. It is convenient for powering other camera devises simultaneously or charing mobile devices. PB-S220S also features a built-in LCD screen for displaying power level in percentages, remaining running time, low power warnings and battery cycle times. The battery features 150W/12A of power output for powering the most cine cameras, lights or other accessories. This battery supports 6A fast charging by SWIT S-3812S charger (sold separetely), to save more than 50% charging time and fully charged within 3.5 hours. It also can be charged by SWIT other V-mount chargers or Sony V-mount charger, the other third party chargers may not charge battery correctly. The battery features a built-in intelligent circuit for multiple protections of over current, over /under voltage or high/low temperature.

  • Features:

    • 220Wh Lithium-Ion V-Mount Battery
    • High-load Li-ion cells
    • Max 150W, 12A continous power draw
    • 4x 14.4V D-tap DC output socket
    • 1x 5V/2A USB charging port
    • LCD display remaining power level in percentage
    • LCD display running time in hours and minute
    • Low power remaining alart
    • LCD refreshes every 2 second
    • Display info for both RED and Sony
    • built-in circuit for multiple protections

  • Specifications:

    • Output voltage: 14.4V
    • Capacity: 220Wh
    • Max output power: 150W
    • Max output current: 12A
    • Max output via D-tap: 120W/12A
    • Max output via USB: 10W, 5V/2A
    • Max charging current: 6A

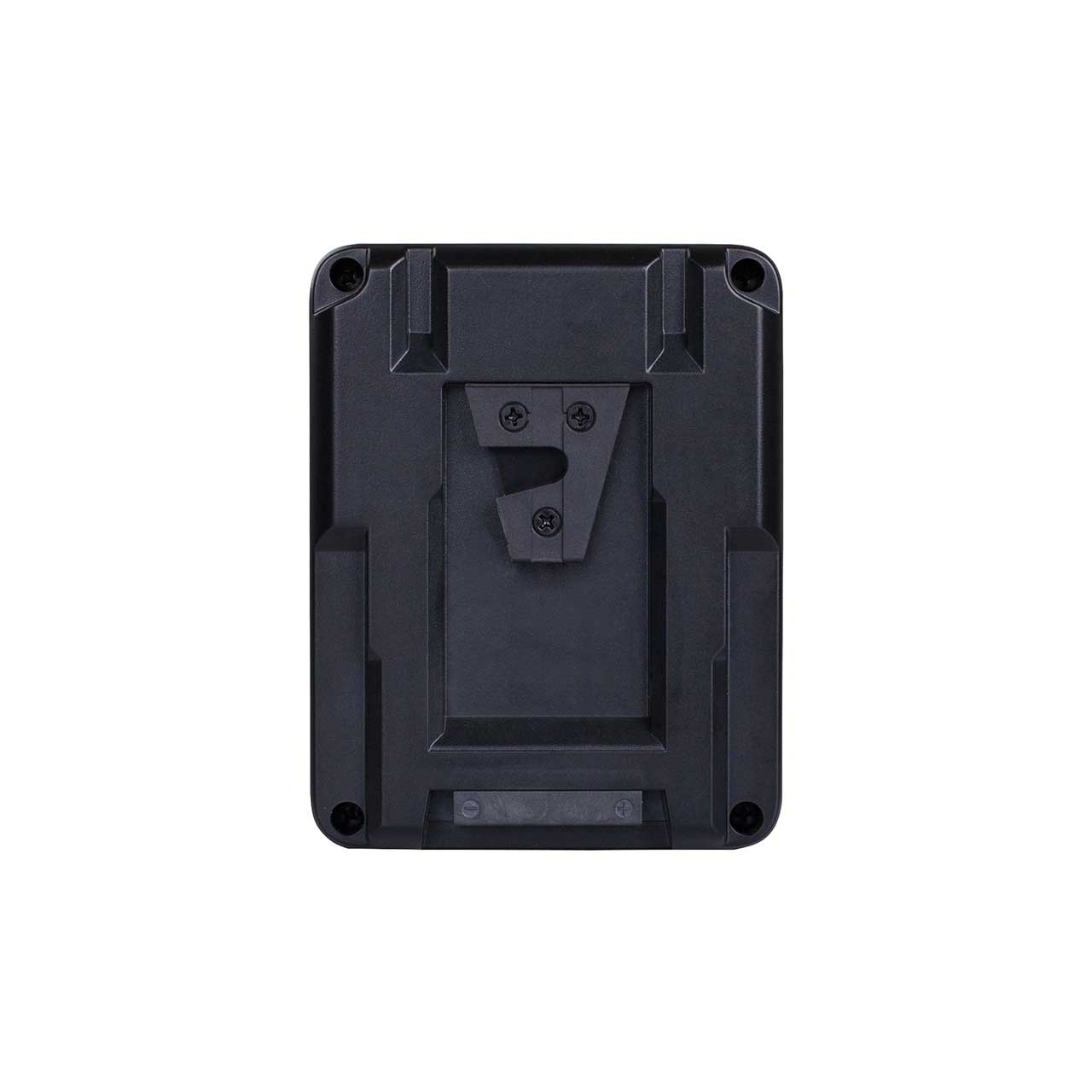

    • Mount type: V-mount
    • Operation temperature: 0 - 40 °C
    • Net weight: Approx 3.2 LB /1.4kg
    • Dimensions: 4.8x3.7x3.8 inch / 121×95×96mm

  • GTIN:

    6948193504520
