SWIT PC-P461B 4-Channel Simultaneous Fast Charger for B-mount Batteries

ITEM #: SWIT-PC-P461B MFG #: PC-P461B

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$1,045.00

Our Price:

$1,039.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PC-P461B - Overview

4x100W Super Fast Charger

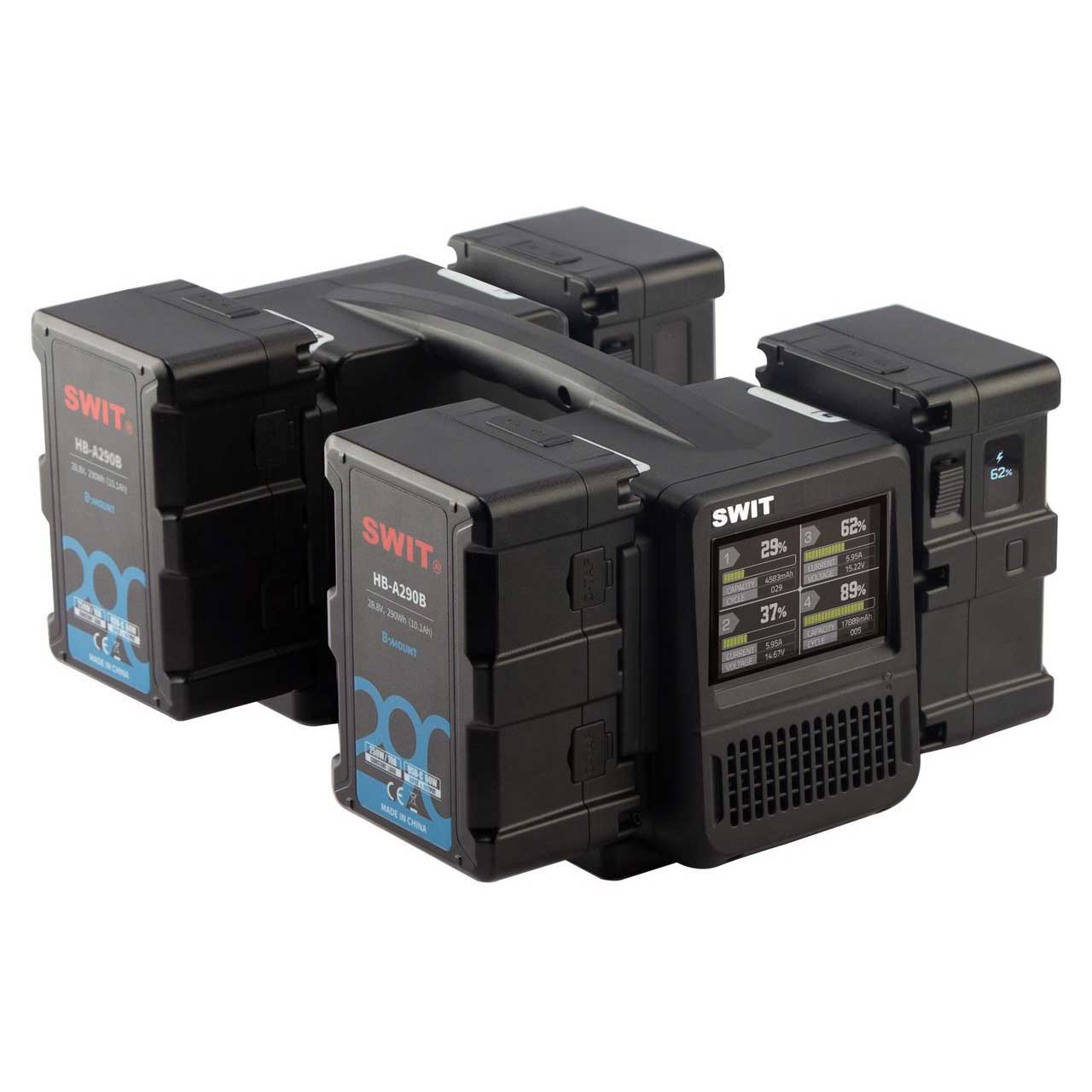

SWIT PC-P461B can charge 4x B-mount batteries simultaneously at 33.6V/3A, 100W per channel super fast charging speed, save up to 60% charging time comparing to normal chargers.

Compatible with pure 28.8V B-mount batteries and 14.4V/28.8V bi-voltage B-mount batteries.

Please Note: Batteries are sold separately

Charging Time
To charge 4x 290Wh B-mount batteries, the PC-P461B will take only 2 hours 30 minutes to charge to 80%, and take 3 hours 50 minutes to fully charge.

3.5-inch Color LCD

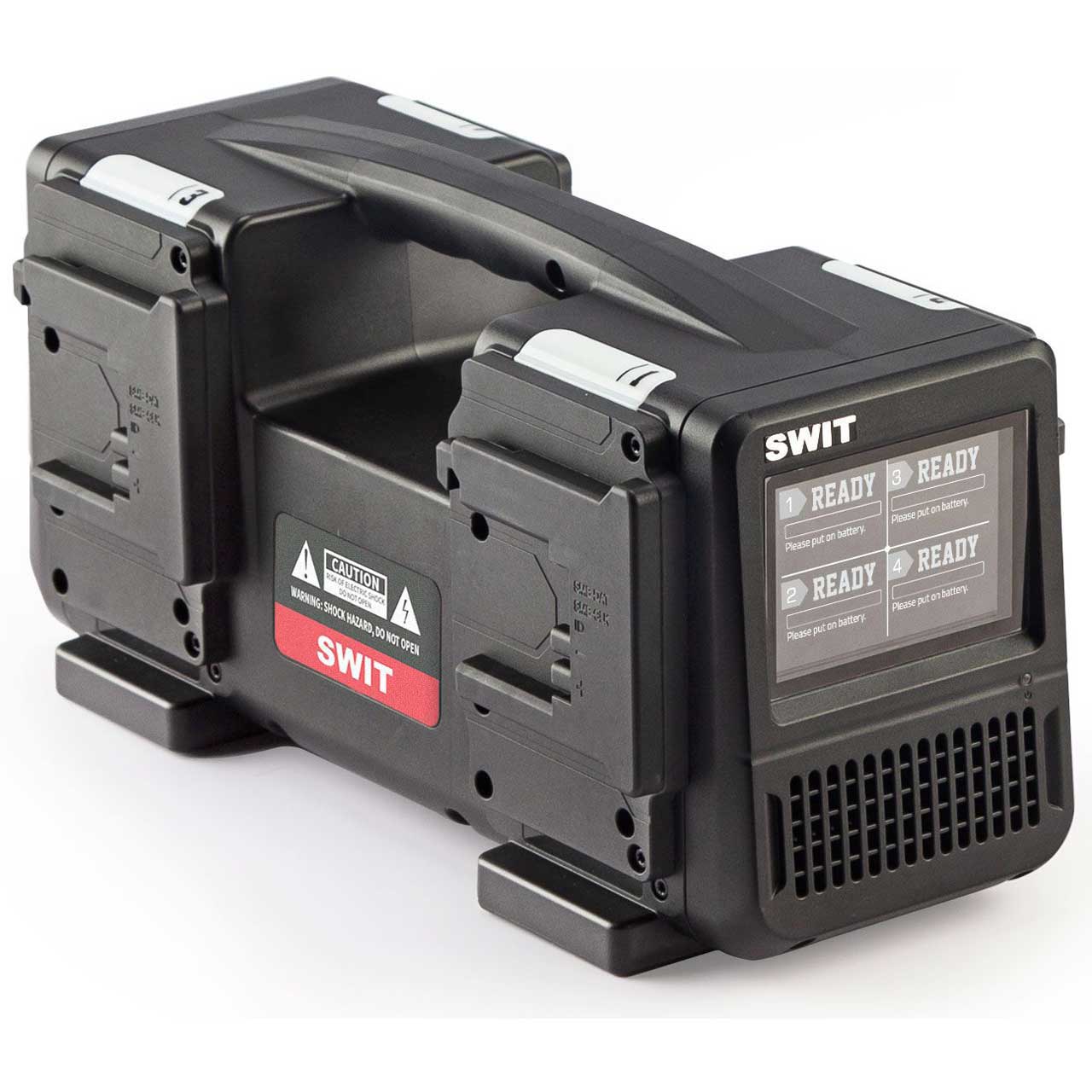

PC-P461B provides a 3.5-inch color LCD panel to display charging progress, charging current and voltage, and battery cycle times of each channel.

Top Charging Indicators
Besides LCD screen info, you can check the charging status at a glance by the 4 large size indicators on the top of the charger.
Red on: 0-80%
Green flashing: 81%-99%
Green on: 100% fully charged
Red flashing: Charging error, check LCD info

Light Weight and Portable

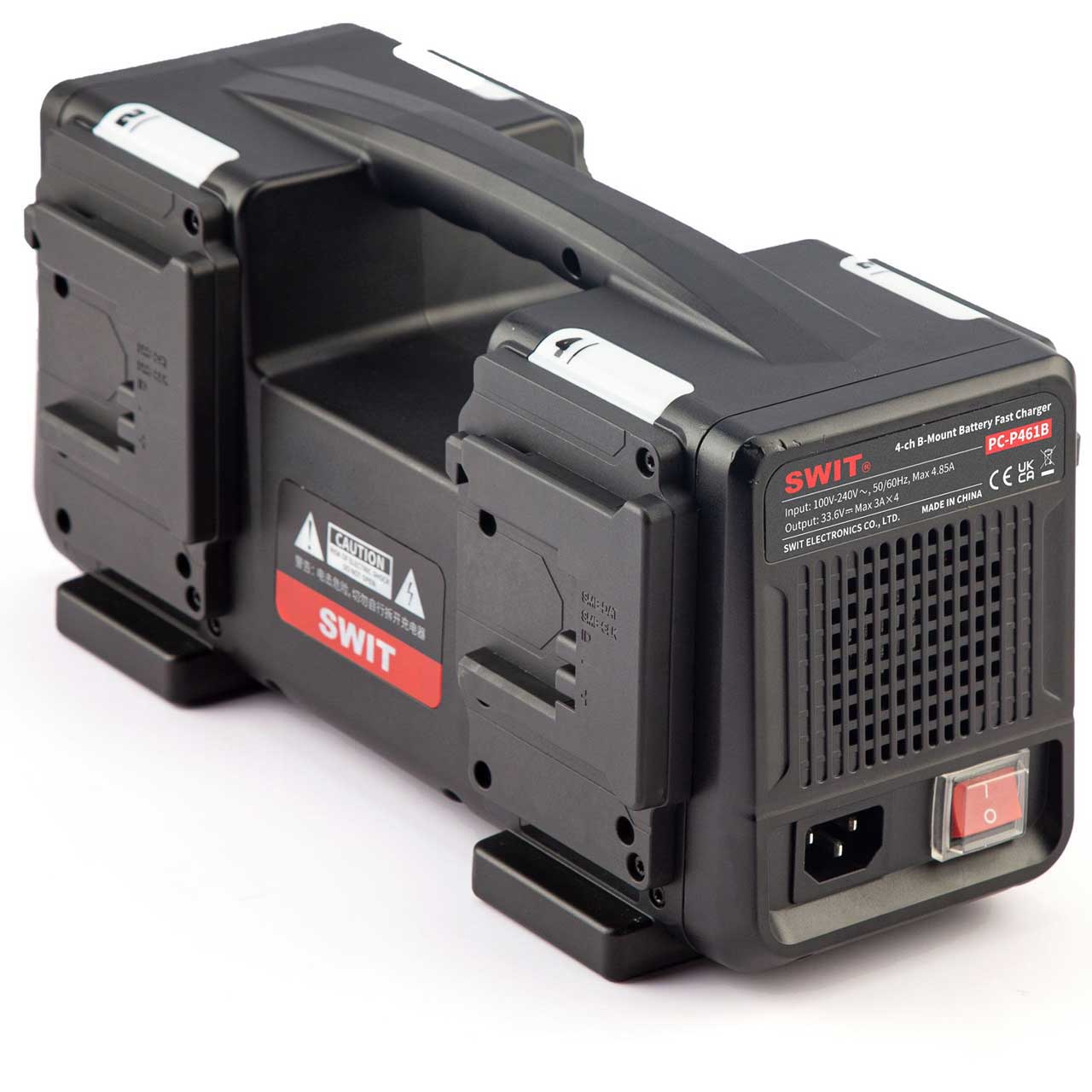

The 4 channel fast charger PC-P461B has minimized the size and weight, and the new handle design makes the charger solid and easy to carry.

  • Features:

    • 4-ch simultaneous fast charging
    • Charge pure 28.8V B-mount batteries
    • Charge 14.4V/28.8V Bi-voltage B-mount batteries
    • 33.6V/3A 100W super fast charging
    • 3.5-inch color LCD info display
    • Battery cycle times display
    • Top large charging indicators

  • Specifications:

    • Power: Max 450W
    • Input: AC100V-240V 50/60Hz
    • Output: DC 33.6V, 3Ax4
    • Applicable battery: B-mount battery
    • Dimensions: 330 x 153 x 162mm
    • Net weight: 2.43kg

  • Item Includes:

    • 1x SWIT PC-P461B 4-Channel Simutaneously Fast Charger for B-mount Batteries

  • GTIN:

    6948193508405
