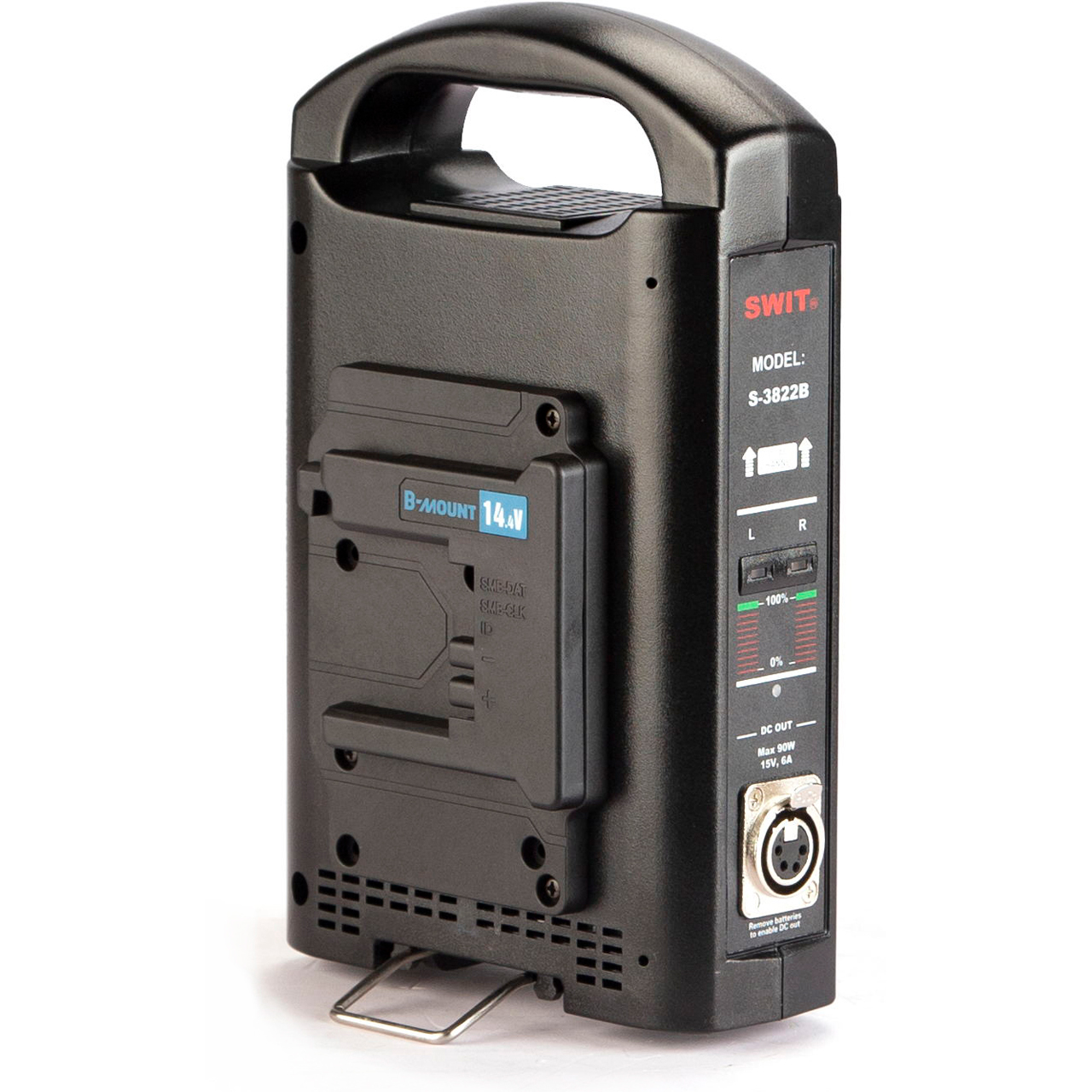

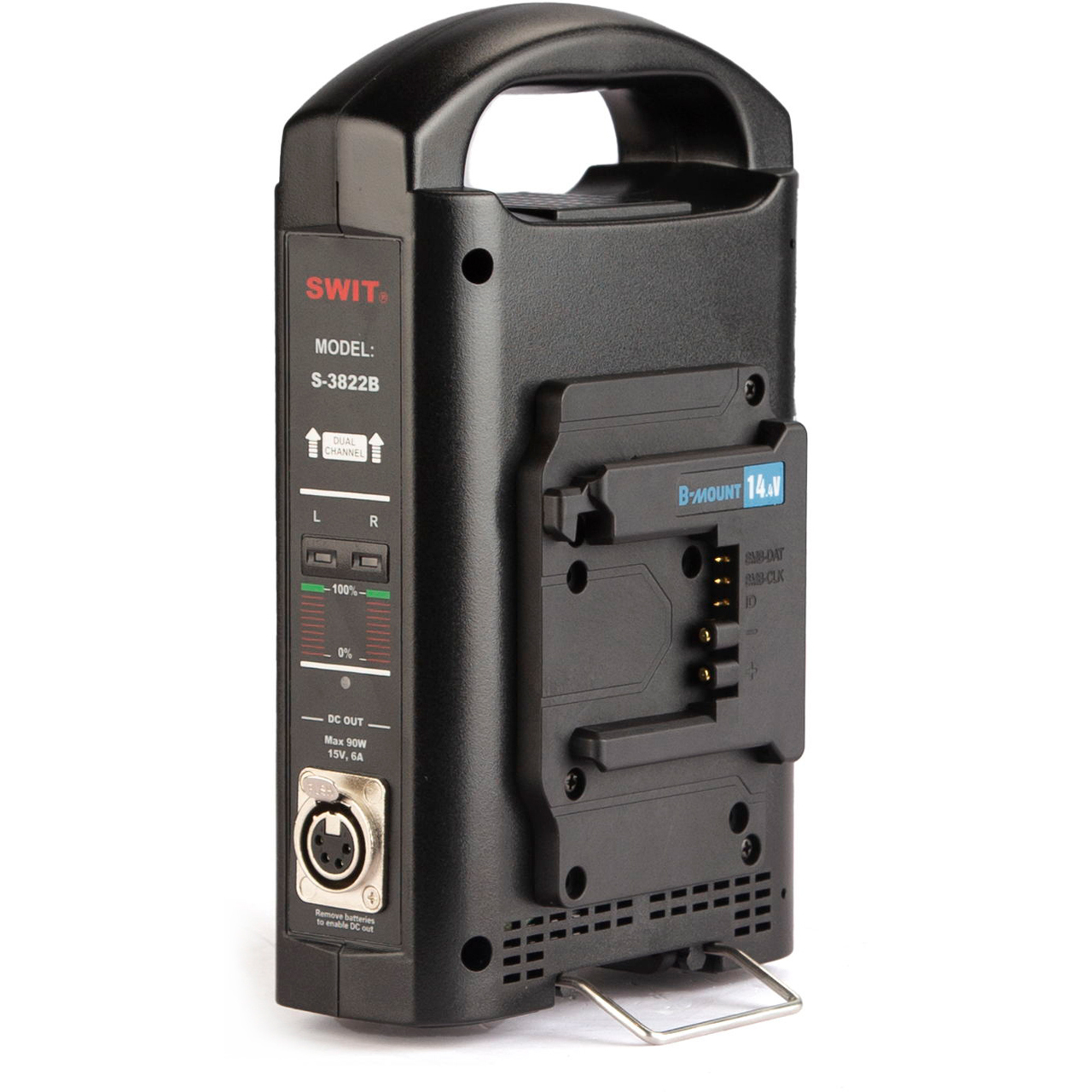

2-Channel Simultaneous B-mount Charger
SWIT S-3822B is a portable 2-channel simultaneous charger for Dual voltage B-mount batteries. The charging output is DC 16.8V, 3A, and 50W for each channel.
14.4V Charging Mode

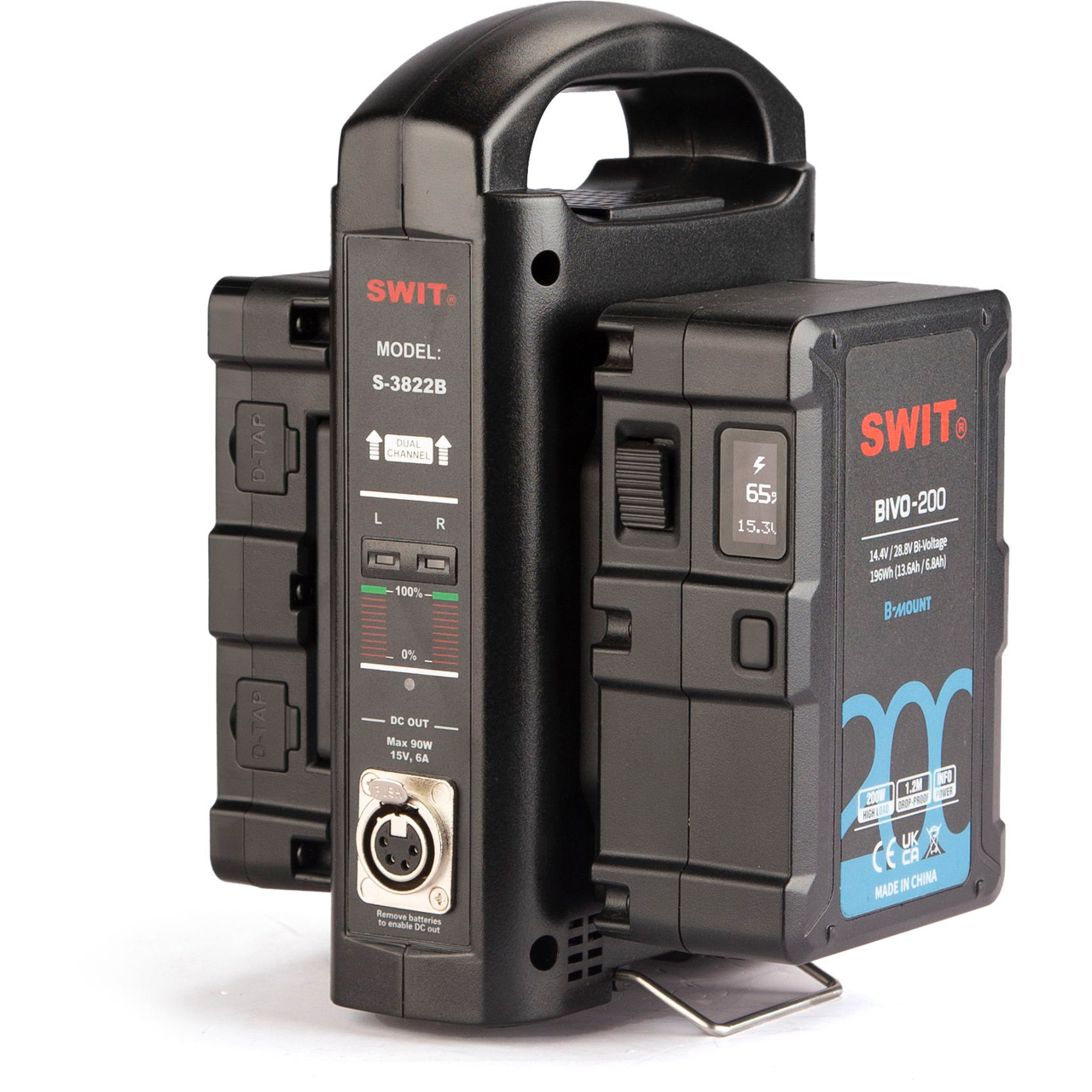

The S-3822B charges B-mount batteries at DC16.8V, compatible with the B-mount batteries that support 14.4V nominal voltage mode, like SWIT BIVO series, Bebob and CoreSWX Bi-voltage series.

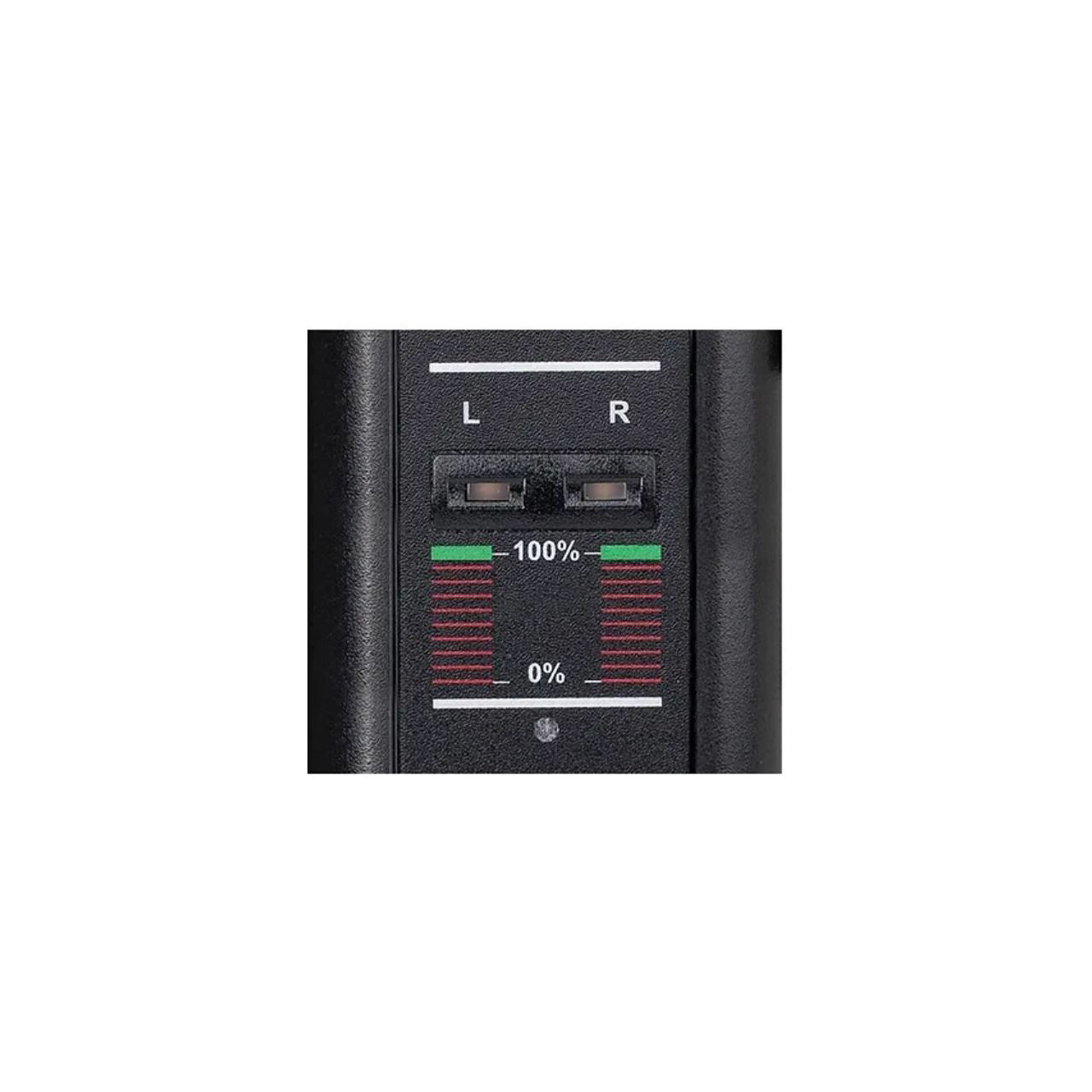

LED Charging Indicators
S-3822B has LED charging indicators on the front panel, indicates the real time capacity of each channel by different colors:
- Red: the battery is under charging status
- Green: the battery is fully charged
- Red flash: Charging error, please check the battery
AC-DC Adapting Output
S-3822B has a 4-pin XLR female connector on the front panel. Connected with SWIT S-7102 4-pin XLR female to male cable (optional purchase), you can use the charger as AC-DC adaptor of DC 15V, 6A, 90W output.
