The Axess ELITE is a complete power management system that provides remote insight and control of the electrical power consumed by an underlying device. It enables the switching of devices in various power modes, each with different power usage characteristics related to device performance. Giving technicians the ability to easily manage their installs remotely and limit service calls.

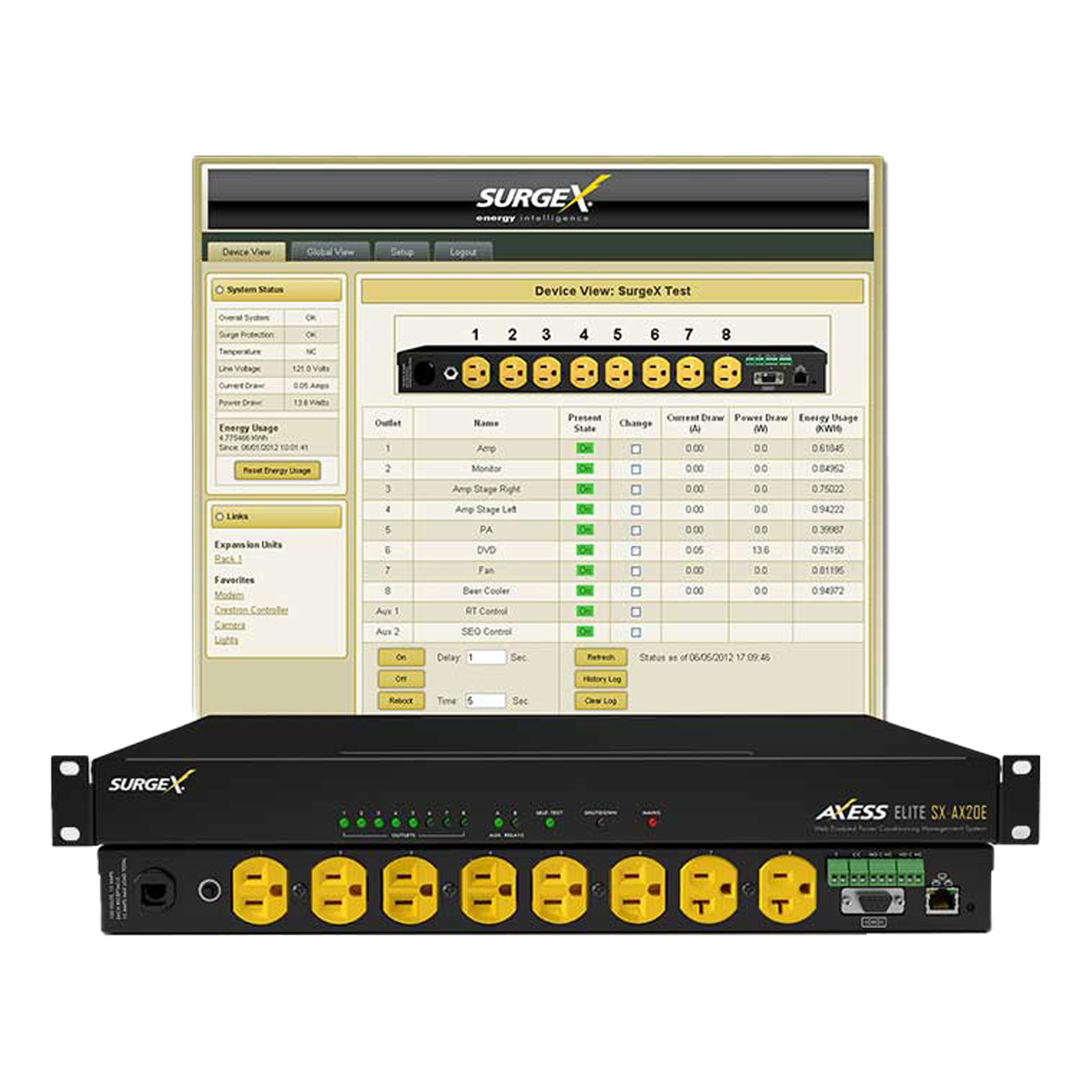

The SurgeX SX-AX20E-15L is a one-rack-space unit in a magnetic shielding steel enclosure. It operates from 120 volts AC and has a 15-foot, locking, grounded, 3-wire #12 line cord. There are 8 grounded AC receptacles on the back panel, with all 8 switched.
The unit has remote turn-on capabilities enabled by wired Ethernet, serial, and terminal block connections. Remote turn-on and turn-off can be activated by contact closure or software. The SX-AX20E-15L has remote control, sequencing, scheduling, measurement, AutoPing, and adjustable trigger functions, and supports wired RS-232 and Ethernet HTTP, Telnet, SNMP, Syslog, SMTP, and SDxP protocols.
This unit measures voltage, current (per outlet), power (per outlet), energy (per outlet), and temperature, and can record events in its internal memory. There are two relay outputs for control and cascading. The SX-AX20E-15L has a load rating of 20 amps at 120 volts, a self-test circuit with visual indicator, and provide EMI/RFI filtering, inrush current elimination and catastrophic over/under-voltage shutdown. It can withstand at least 1000 occurrences of surge pulse voltages up to 6000 volts.
