SurgeX SA-1810 STANDALONE Power Surge Protector & Conditioner - 15A/120V x 10

ITEM #: SX-SA-1810 MFG #: SA-1810

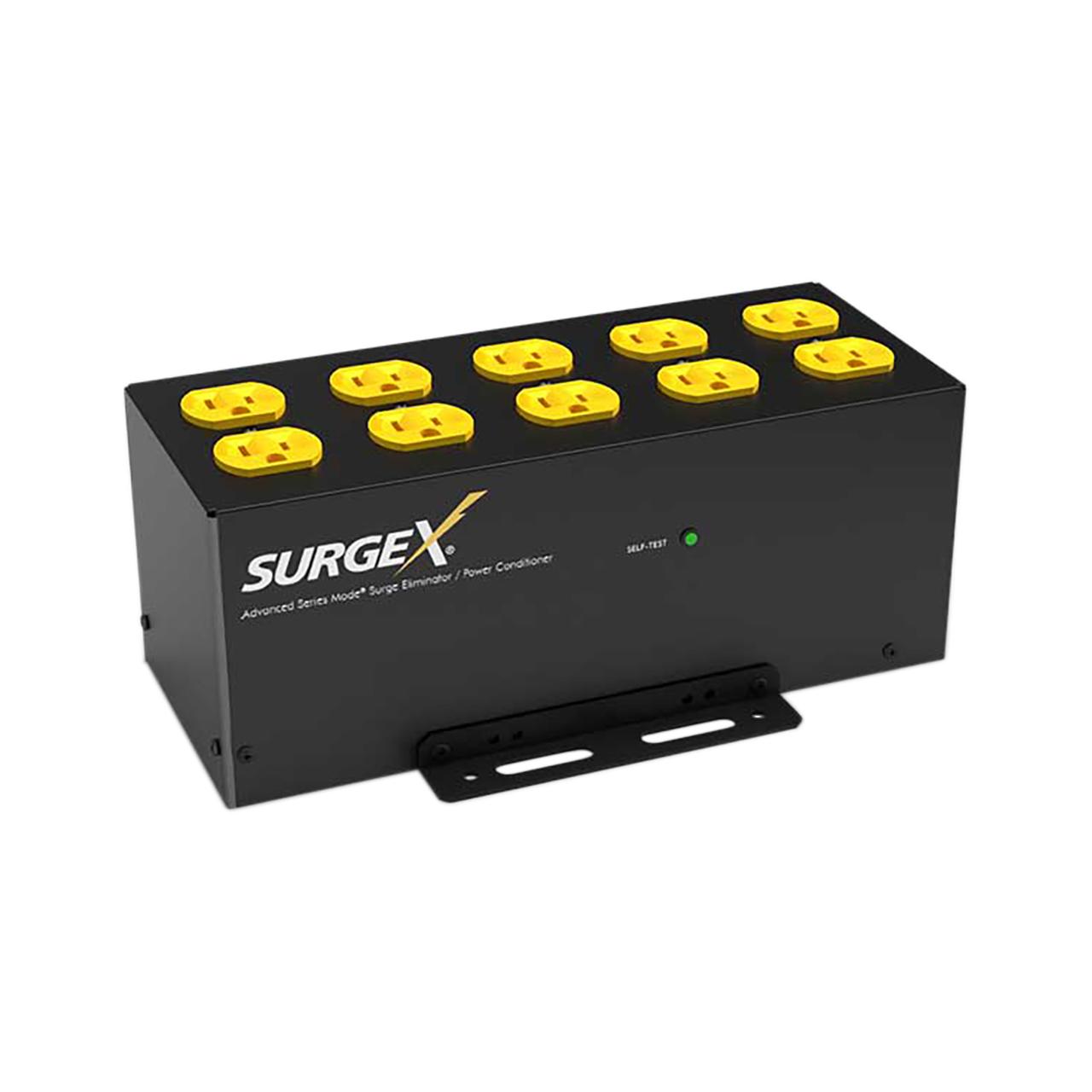

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$699.00

Add to Cart for Better Price


Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SA-1810 - Overview

Surge Elimination Outside of a Rack

The SurgeX Standalone power surge protector and conditioner devices safeguard mission-critical equipment in environments outside of a rack. Their compact design easily fits along, behind, or near equipment, takes up minimal space, and are perfect for AV, surveillance, and monitoring systems.

Featuring Advanced Series Mode technology and Impedance Tolerant EMI/RFI filtration, they provide patented surge elimination and power conditioning for equipment that relies on peak AV performance. The Standalone surge protection devices are comprised of non-sacrificial components that never degrade or fail, guaranteeing equipment stays protected. They eliminate surge energy up to 6,000 Volts without producing harmful ground contamination or common mode disturbances that can cause hissing sounds and pixelation on AV systems to ensure pristine sound and video.

Available in four configurations, the Standalone products safeguard connected equipment from harmful surges, spikes and electrical transients that can cause malfunction, downtime and unnecessary expenses.

  • Features:

    • Compact design
    • Non-sacrificial components
    • 2 and 10 receptacle configurations
    • 9' grounded 3-wire cord
    • IP enabled (SA-20-AR)
    • Magnetic shielding steel enclosure

  • Specifications:

    • Load Rating: 15A
    • Voltage Rating: 120V
    • Power Requirement (No Load): 4W
    • Surge Let-Through Voltage (6000 Volt Surge): 0 Volts
    • Maximum Applied Surge Voltage: 6000 Volts
    • Maximum Applied Surge Current: Unlimited (Due to current limiting - 1.2 x 50 microsecond industry standard combination wave surge as per IEEE C62.41)
    • Maximum Applied Surge Energy: Unlimited (Due to current limiting - 1.2 x 50 microsecond industry standard combination wave surge as per IEEE C62.41)
    • Endurance (C62.41-1991 Category B3 Pulses): 1KV > 500,000; 3KV >10,000; 6KV >1,000
    • EMI/RFI Filter:
      Normal Mode (50Ω Load):
      >20dB 38kHz-50MHz
      >30dB 160kHz-50MHz
      25dB @ 100kHz; 39dB @ 300kHz
      60dB @ 3MHz; 44dB @ 30MHz
    • Common Mode (50Ω Load):
      >10dB 280kHz-50MHz
      >20dB 1.7kHz-20MHz
      >30dB 9kHz-27MHz
      11dB @ 300kHz; 19dB @ 1MHz
      26dB @ 5MHz; 34dB @ 20MHz
    • Under-Voltage Auto Shutdown: No
    • Over-Voltage Auto Shutdown: No
    • Over-Current Auto Shutdown: Circuit Breaker
    • Over-Temperature Auto Shutdown: None
    • Network Port: No
    • Serial Port: None
    • Temperature Sensor Input: None
    • Auxiliary Relay Outputs: No
    • Contact Closure Input: No
    • Dimensions (HxWxD): 4 x 10.2 x 4.2"
    • Weight: 8.5Lbs
    • Temperature Range: 41° to 95°F (5° to 35°C)
    • Humidity Range: 5 to 95% RH, non-condensing
    • Agency Listings: Conforms to UL Stds 1283 & 1449; Certified to CSA Std C22.2 No. 8

  • Warranty:

    • Standalone Series - Limited Lifetime Product Warranty and Limited Five (5) Year Connected Protection Warranty - See attached info for further details

  • GTIN:

    0859971002564
